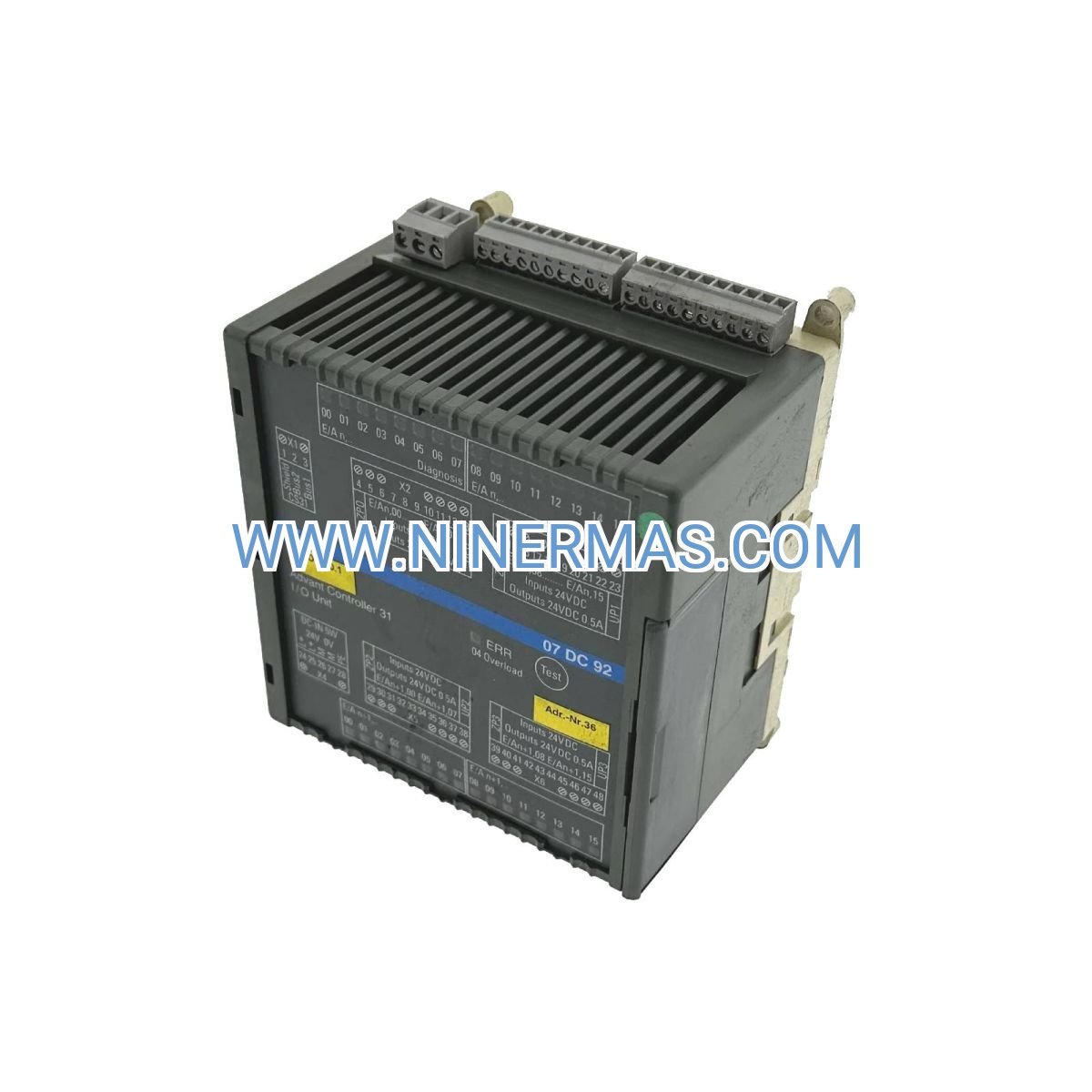

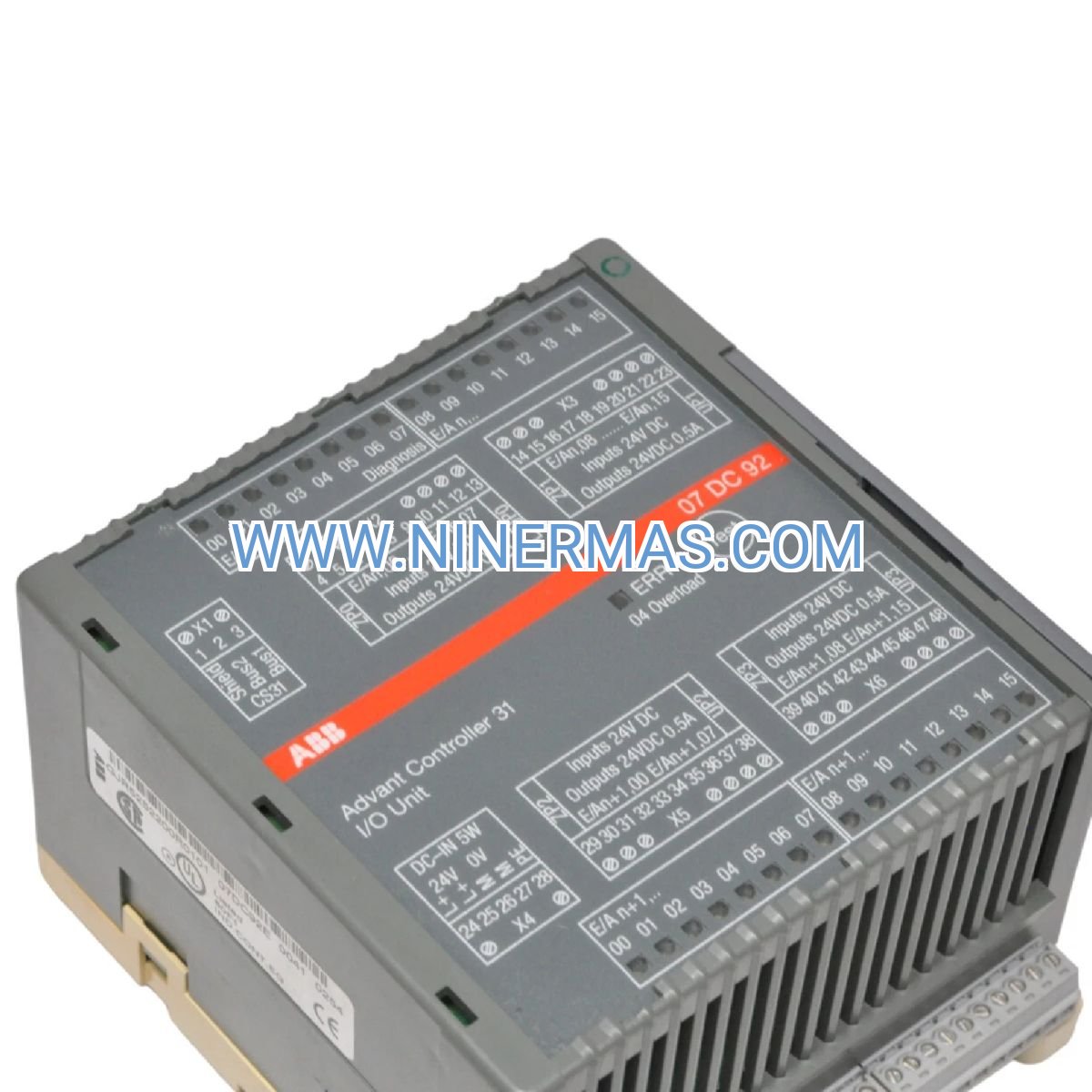

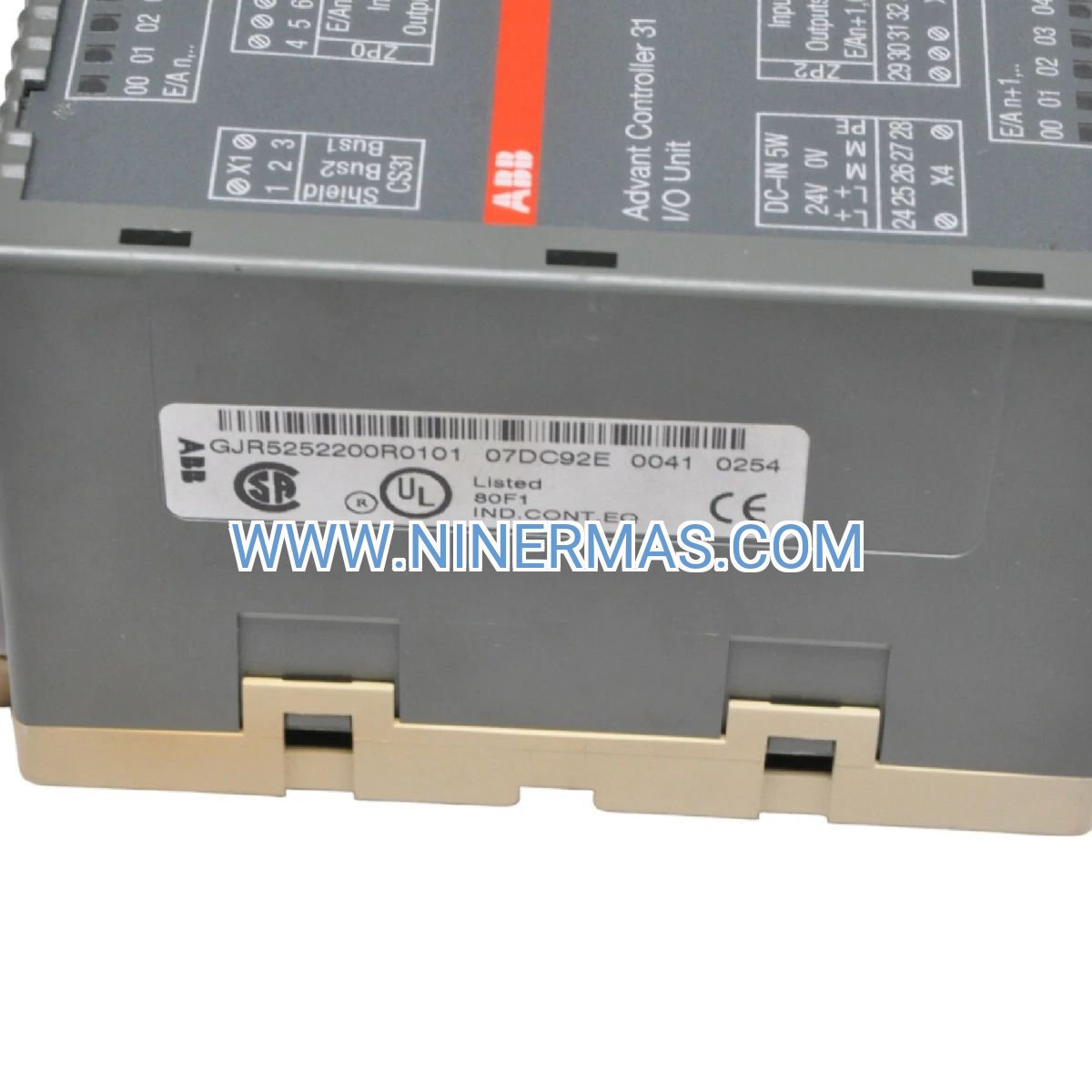

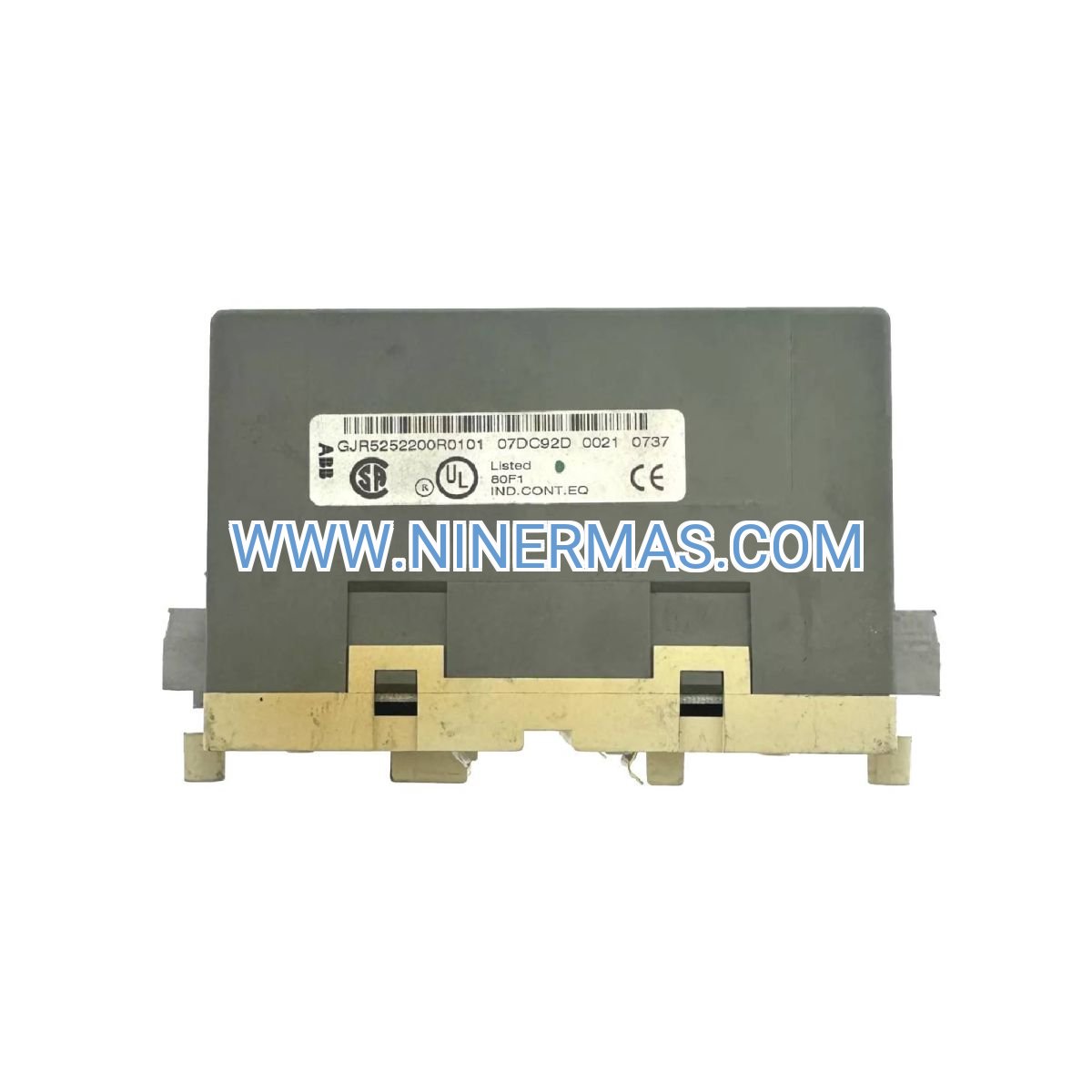

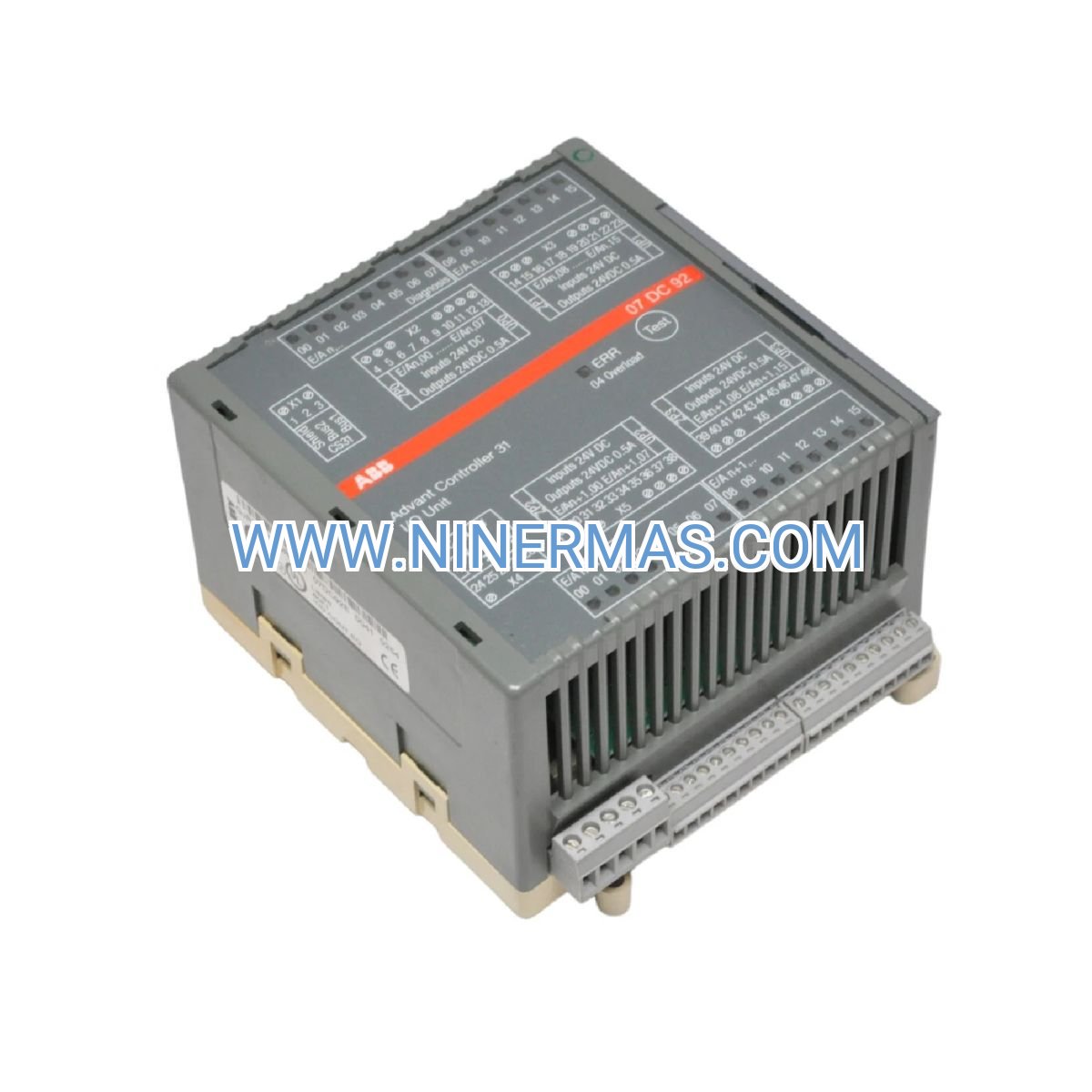

ABB 07DC92 GJR5252200R0101 Digital I/O Module (Industrial-Grade 24-Point Interface)

The ABB 07DC92 GJR5252200R0101 represents a proven digital input/output solution engineered for ABB's Advant OCS distributed control systems. This 24-channel interface module combines flexible I/O configuration, advanced signal conditioning, and comprehensive diagnostics to deliver reliable discrete signal management across process industries. Designed for oil & gas facilities, chemical plants, power generation stations, and manufacturing operations, the 07DC92 ensures precise monitoring and control of field devices including limit switches, proximity sensors, solenoid valves, and status indicators.

Core Features & Benefits

The 07DC92 module integrates sophisticated capabilities that enhance operational reliability while simplifying system maintenance:

• ✓ High-Density Channel Architecture: 24 configurable digital points in compact footprint reduce panel space requirements by 40% compared to legacy I/O systems while lowering installation costs
• ✓ Software-Configurable Channels: Each point operates as discrete input or output via configuration software, eliminating dedicated input-only or output-only modules and reducing spare parts inventory by 60%
• ✓ Advanced Signal Conditioning: Integrated filtering removes contact bounce and electrical noise from mechanical switches, ensuring clean state transitions and preventing false alarms in noisy industrial environments
• ✓ Galvanic Isolation Protection: Complete electrical separation between field circuits and controller logic prevents ground loops and protects sensitive electronics from voltage transients up to 2.5kV
• ✓ Hot-Swap Maintenance: Replace modules during live operation without system shutdown—automatic configuration download restores settings in under 30 seconds, minimizing production interruptions
• ✓ Comprehensive Fault Detection: Per-channel diagnostics with wire break monitoring and short-circuit detection enable rapid troubleshooting, reducing mean time to repair by 50%

Technical Parameters & Selection Guide

Selection Criteria: Choose the 07DC92 when your application requires mixed input/output functionality within a single module, galvanic isolation for electrical noise immunity, or hot-swap capability for high-availability systems. For applications exceeding 0.5A per output channel, consider supplementary relay modules. Verify compatibility with your Advant OCS controller firmware version before ordering.

Typical Application Scenarios

The 07DC92 module addresses diverse discrete signal interfacing requirements across multiple industries:

→ Safety Interlock Systems: In pharmaceutical manufacturing, the module monitors emergency stop circuits, safety gate positions, and light curtain status while controlling safety relay outputs and alarm annunciators. Galvanic isolation ensures fault currents from field devices cannot propagate to safety logic controllers, maintaining SIL 2 integrity.

→ Valve Position Confirmation: Chemical processing plants utilize the 07DC92 to track limit switches on motor-operated valves and pneumatic actuators. Real-time open/closed feedback enables automated batch sequencing while wire break detection alerts operators to sensor failures before process deviations occur.

→ Pump Control & Monitoring: Water treatment facilities interface motor starter auxiliary contacts, thermal overload relays, and vibration switches through the module while controlling start/stop commands. Diagnostic LEDs accelerate troubleshooting during commissioning and reduce unplanned downtime by 35%.

→ Conveyor Material Handling: Automotive assembly lines connect photo-eyes, proximity sensors, and jam detection switches to the 07DC92 while controlling diverter gates and transfer mechanisms. Fast 10ms response time ensures precise part tracking at conveyor speeds up to 120 meters/minute.

→ Tank Level Management: Oil & gas terminals monitor discrete level switches in storage tanks while controlling overflow prevention valves and backup pump activation. Removable terminal blocks enable module replacement during scheduled maintenance without rewiring 24 field connections.

Extended Functions

Beyond standard I/O capabilities, the 07DC92 supports advanced integration features:

IoT Connectivity: When paired with ABB Ability™ gateways, digital I/O states stream to cloud analytics platforms for predictive maintenance algorithms that identify abnormal switching patterns indicating impending sensor failures.

Redundancy Configuration: Deploy dual 07DC92 modules in fault-tolerant architectures where critical I/O points connect to both modules—automatic failover maintains control during module replacement or backplane communication loss.

Custom Channel Mapping: Advanced configuration tools enable complex I/O mapping including pulse counting, frequency measurement, and PWM output generation for specialized applications beyond simple on/off control.

Delivery & Service Assurance

Lead Time: Standard delivery 5-7 business days for in-stock units; custom-configured modules ship within 10-12 business days. Expedited 48-hour shipping available for critical plant outages with premium logistics surcharge.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 60-month protection plans available including advance replacement and on-site spare module programs.

Technical Support: Certified ABB application engineers provide pre-sale consultation for I/O channel planning, wiring design review, and configuration assistance. Post-installation support includes remote diagnostics, firmware updates, and troubleshooting guidance via phone and email.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software, compliance certificates (CE, UL, IEC), and serialized test reports for quality traceability.

Frequently Asked Questions

Q: Can the 07DC92 interface with non-ABB controllers or third-party DCS platforms?
A: The module is designed exclusively for ABB Advant OCS systems using proprietary backplane communication. For third-party controller integration, consider ABB's AC 800M series with open protocol support or standalone I/O gateways with Modbus/Profibus interfaces.

Q: What is the maximum cable length between the module and field devices?
A: For 24 VDC discrete signals, recommended maximum cable length is 300 meters using shielded twisted-pair wire (18 AWG minimum). Longer distances require signal repeaters or 4-20mA transmitters to maintain noise immunity and prevent voltage drop issues.

Q: How does the module handle simultaneous input and output operations?
A: All 24 channels scan asynchronously with independent input filtering and output drivers—simultaneous operation of all channels at maximum switching frequency (100 Hz) is fully supported without performance degradation or cross-channel interference.

Q: Is the 07DC92 suitable for hazardous area installations in Zone 1 or Division 1 locations?
A: The module is rated for Class I Division 2 / Zone 2 hazardous locations when installed in approved enclosures with proper purging or pressurization. For Zone 1 / Division 1 applications, use intrinsically safe barrier modules between field devices and the 07DC92.

Q: What energy efficiency improvements does this module offer compared to relay-based I/O systems?
A: Solid-state outputs consume 85% less power than equivalent electromagnetic relays (typical 2W vs. 15W per channel), reducing panel heat generation by 300W per module and eliminating mechanical wear that causes relay contact failures after 100,000 operations.

Q: Can I mix AC and DC field devices on the same module?
A: No—the 07DC92 is designed exclusively for 24 VDC discrete signals. AC field devices (120/240 VAC) require separate AC input/output modules with appropriate voltage ratings and isolation specifications to prevent equipment damage and safety hazards.

Take the Next Step

Ready to enhance your Advant OCS system with reliable 24-channel digital I/O? Contact our process automation specialists today for application-specific configuration guidance, volume pricing, and expedited delivery options. Request a detailed technical datasheet or schedule a consultation to discuss your discrete signal interfacing requirements.
