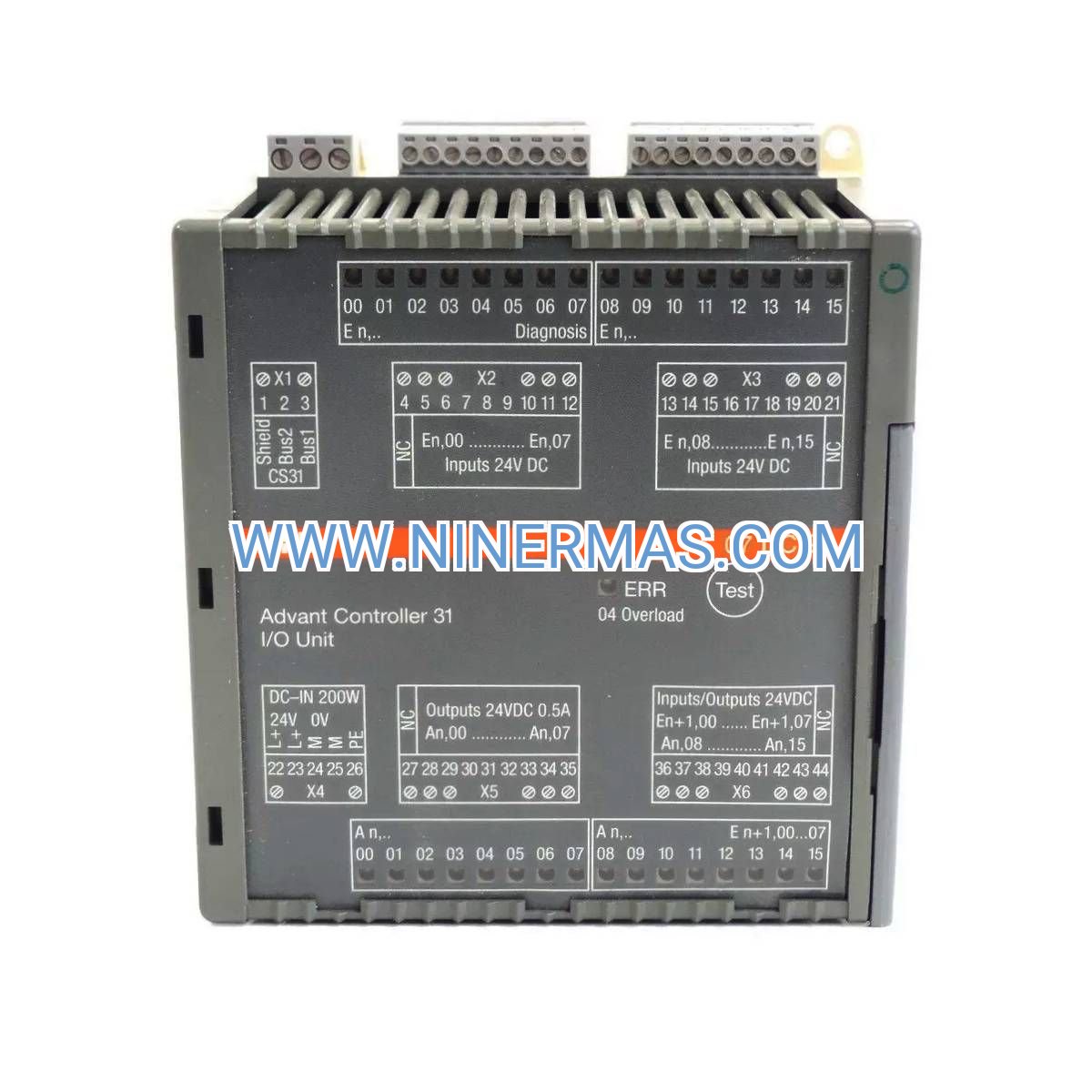

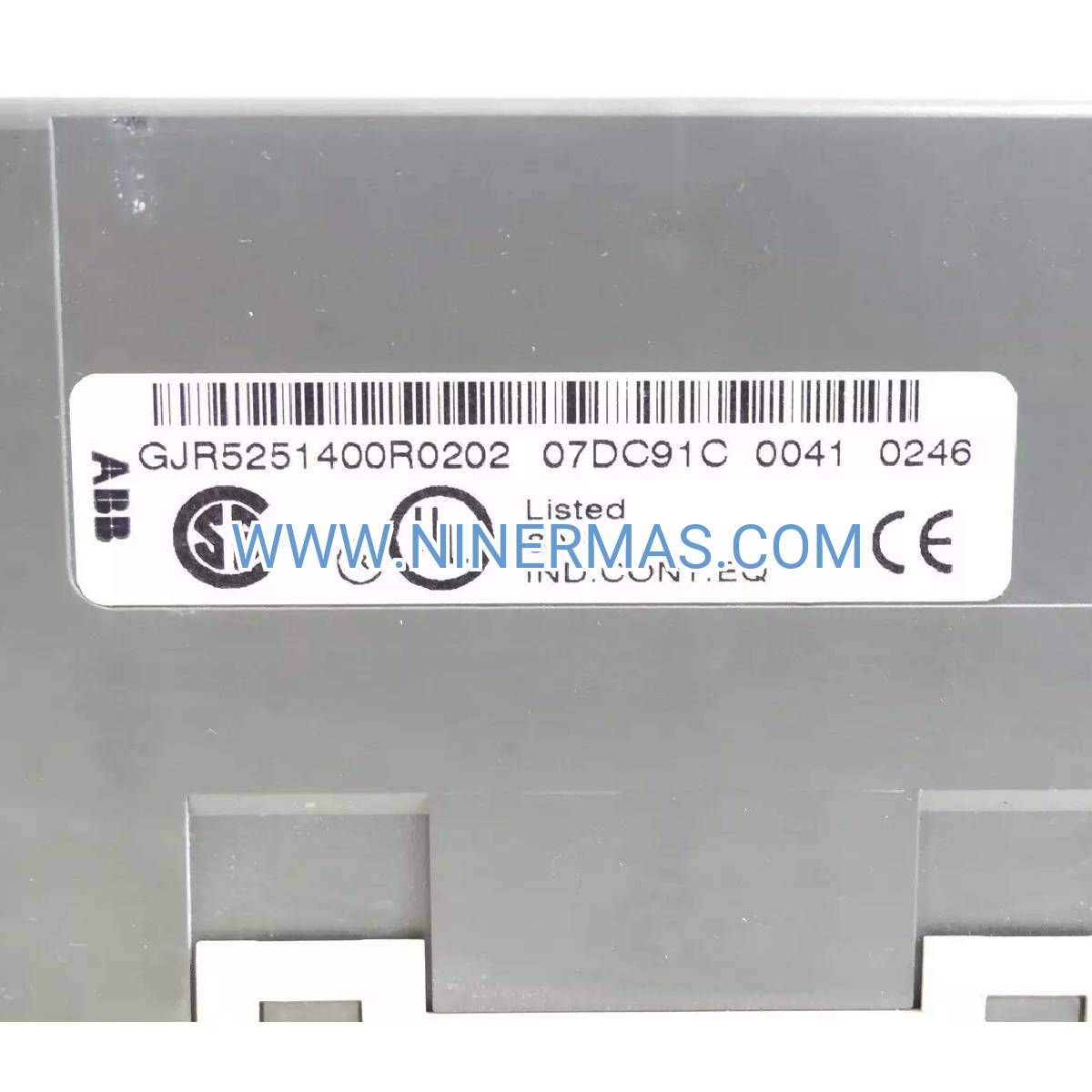

ABB 07DC91 Digital I/O Module — Industrial-Grade Discrete Signal Interface

The ABB 07DC91 (GJR5251400R0202) represents a proven solution for high-density discrete signal management within ABB Advant OCS distributed control platforms. Engineered with 16 digital inputs and 8 digital outputs operating at 24 VDC, this module serves as the critical interface between field instrumentation and control logic across process manufacturing, energy production, and heavy industry applications.

Built for environments demanding continuous uptime and precise signal integrity, the 07DC91 combines optical isolation technology with robust signal conditioning to eliminate noise interference and protect control systems from electrical transients. Whether monitoring safety interlocks, controlling actuated valves, or managing sequential batch operations, this module delivers the reliability that mission-critical processes require.

Designed for seamless integration into existing Advant OCS architectures, the module supports hot-swappable maintenance, removable terminal blocks for rapid replacement, and comprehensive diagnostic capabilities that reduce troubleshooting time by up to 70%. Request technical specifications or place your order today.

Core Features & Industrial Benefits

→ High-Density Channel Architecture
Consolidates 16 input channels and 8 output channels in a single module slot, maximizing cabinet space efficiency while reducing wiring complexity and installation labor costs by approximately 40% compared to distributed I/O configurations.

→ Galvanic Isolation Protection
Optical isolation between field circuits and controller logic prevents ground loops, blocks voltage spikes up to 2.5 kV, and ensures signal integrity even in electrically noisy environments with VFDs, welding equipment, or high-voltage switching gear.

→ Configurable Output Modes
Software-selectable sourcing or sinking output operation adapts to diverse field device requirements—PNP sensors, NPN proximity switches, relay coils, or solenoid valves—without hardware modifications or additional interface modules.

✓ Advanced Signal Conditioning
Integrated debounce filtering eliminates false triggers from mechanical contact bounce, with input response times under 10ms ensuring accurate state detection for high-speed counting, position verification, and safety interlock applications.

✓ Intelligent Diagnostics
Per-channel LED status indicators combined with system-level fault reporting enable technicians to identify wiring errors, short circuits, or open connections within seconds, reducing mean time to repair (MTTR) during commissioning and maintenance.

✓ Industrial Environmental Resilience
Conformal-coated PCBs withstand corrosive atmospheres, humidity fluctuations, and temperature cycling from 0°C to +55°C, ensuring reliable operation in chemical plants, offshore platforms, and outdoor control enclosures.

Typical Application Scenarios

Chemical Batch Processing
Monitors ingredient addition completion sensors, agitator running feedback, and high-temperature limit switches while controlling ingredient isolation valves, mixer motor starters, and transfer pump contactors. Reduces batch cycle time variability and prevents ingredient cross-contamination through precise interlock sequencing.

Oil & Gas Pipeline Operations
Interfaces with pump running status contacts, seal failure alarms, and pipeline pressure switches while operating pump starters, block valves, and emergency shutdown solenoids. Enhances pipeline safety by ensuring proper valve sequencing and preventing pump deadheading conditions.

Power Generation Auxiliary Systems
Tracks boiler flame detection, feedwater low-level cutoffs, and turbine vibration alarms while controlling fuel gas valves, ignition transformers, and lube oil pumps. Supports safe startup/shutdown sequences and protects critical rotating equipment from damage.

Water Treatment Facilities
Monitors clarifier level switches, filter differential pressure indicators, and chlorine leak detectors while operating chemical dosing pumps, backwash valves, and alarm annunciators. Maintains treatment process stability and ensures regulatory compliance for discharge quality.

Manufacturing Assembly Lines
Connects to part presence photo eyes, tool position limit switches, and operator push buttons while controlling pneumatic actuators, conveyor motors, and reject mechanisms. Increases throughput by minimizing false stops and enabling rapid fault recovery.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 07DC91 when your application requires a balanced mix of monitoring and control points within a compact footprint. For input-only applications exceeding 16 points, consider dedicated input modules. For output-heavy applications (motor control, valve manifolds), evaluate higher-current output modules or relay interface cards.

Extended Functions & System Integration

Redundancy Support: When deployed in redundant Advant OCS controller configurations, the module automatically synchronizes output states during controller switchover, ensuring bumpless transfer and preventing process upsets during failover events.

Remote Diagnostics: Integration with ABB's Asset Health Center enables predictive maintenance through trend analysis of channel fault rates, helping identify degrading field wiring or failing sensors before they cause unplanned downtime.

Custom Scaling Options: While standard 24 VDC operation suits most applications, consult factory for custom voltage ranges (12 VDC, 48 VDC) or higher output current ratings (1A, 2A) for specialized equipment interfaces.

Delivery & Service Assurance

Lead Time: Stock items ship within 24-48 hours via express courier. Custom configurations or large quantity orders typically require 2-3 weeks for factory fulfillment and quality verification.

Warranty: 18-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage.

Technical Support: Pre-sale application engineering assistance for I/O point allocation, wiring design, and interlock logic review. Post-sale commissioning support via phone, email, or on-site field service (additional charges apply).

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration software utilities, and compliance certificates (CE Declaration of Conformity, UL listing documentation).

Frequently Asked Questions

Q: Can the 07DC91 module interface directly with 4-20mA analog sensors?
A: No, this module handles discrete (on/off) signals only. For analog signal interfacing, specify ABB analog input modules (AI modules) designed for 4-20mA, 0-10V, or thermocouple/RTD inputs.

Q: What is the maximum cable length between the module and field devices?
A: For 24 VDC discrete signals, cable runs up to 300 meters are typically acceptable with 18 AWG wire. Longer distances may require signal repeaters or consideration of voltage drop, especially for inputs with higher current draw.

Q: Does the module support pulse counting or high-speed input functions?
A: The 07DC91 provides standard discrete input monitoring with ~10ms response time, suitable for contact state detection but not optimized for high-frequency pulse counting. For encoder feedback or flow meter pulse counting, specify dedicated counter modules.

Q: Can I mix sourcing and sinking outputs on the same module?
A: Output mode (sourcing vs. sinking) is configured globally for all 8 output channels via software. Individual per-channel mode selection is not supported. If your application requires mixed output types, use separate modules or external interface relays.

Q: Is the module compatible with ABB AC 800M controllers or only Advant OCS?
A: The 07DC91 is specifically designed for Advant OCS system architecture. For AC 800M controllers, use the S800 I/O family (e.g., DI810, DO810) which provides similar functionality with AC 800M-compatible communication protocols.

Q: What certifications are required for installation in hazardous area applications?
A: The standard 07DC91 is suitable for Class I Division 2 (Zone 2) installations when mounted in properly rated enclosures. For Division 1 (Zone 1) applications, intrinsically safe barriers or purged enclosures are required. Consult your local authority having jurisdiction (AHJ) for specific installation requirements.

Take the Next Step

Optimize your Advant OCS system with proven digital I/O technology. Contact our application engineers for I/O point allocation review, wiring diagram development, or system expansion planning. Request a quote for volume pricing on multi-module orders or complete I/O rack assemblies. Order now for express delivery to your facility with full technical documentation and commissioning support.
