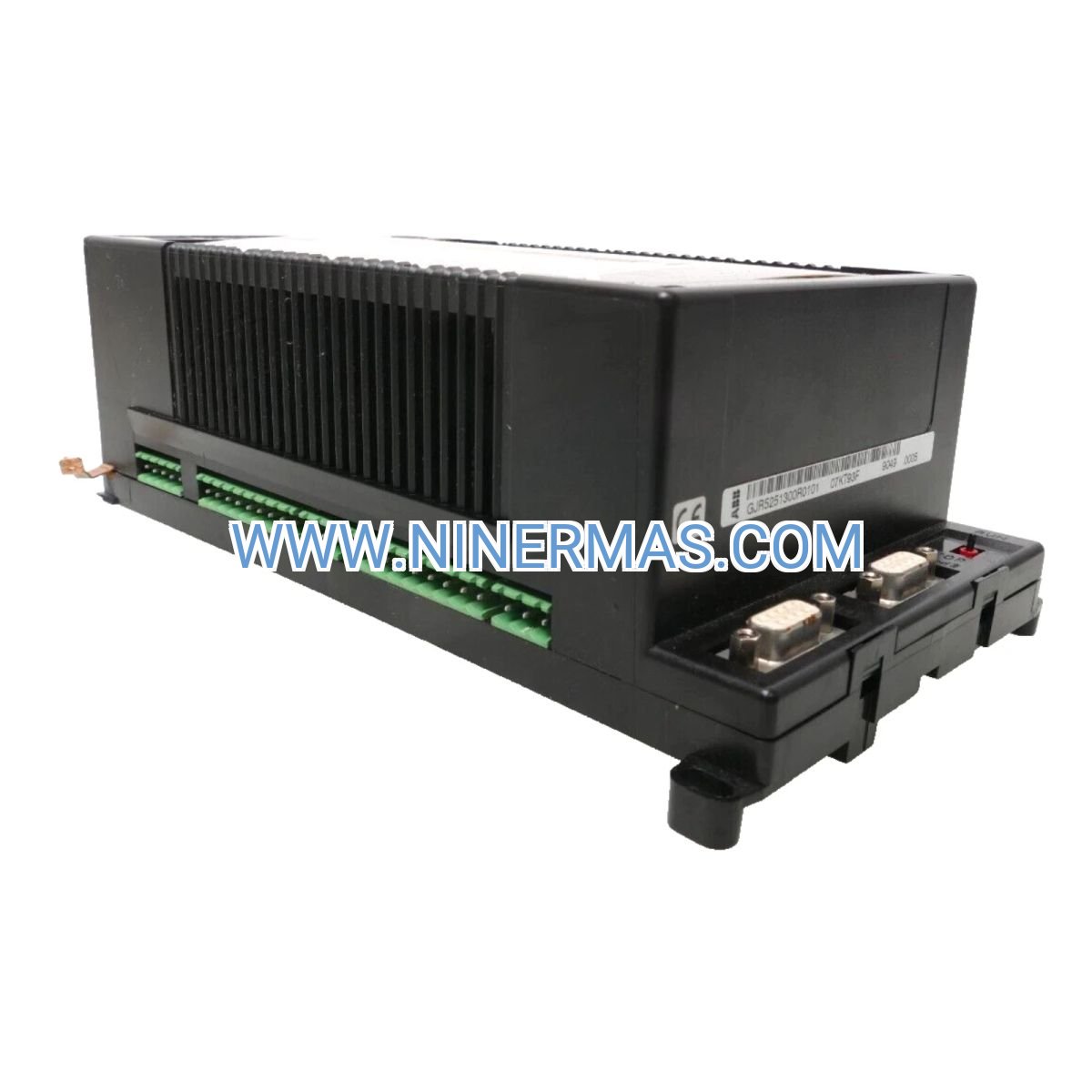

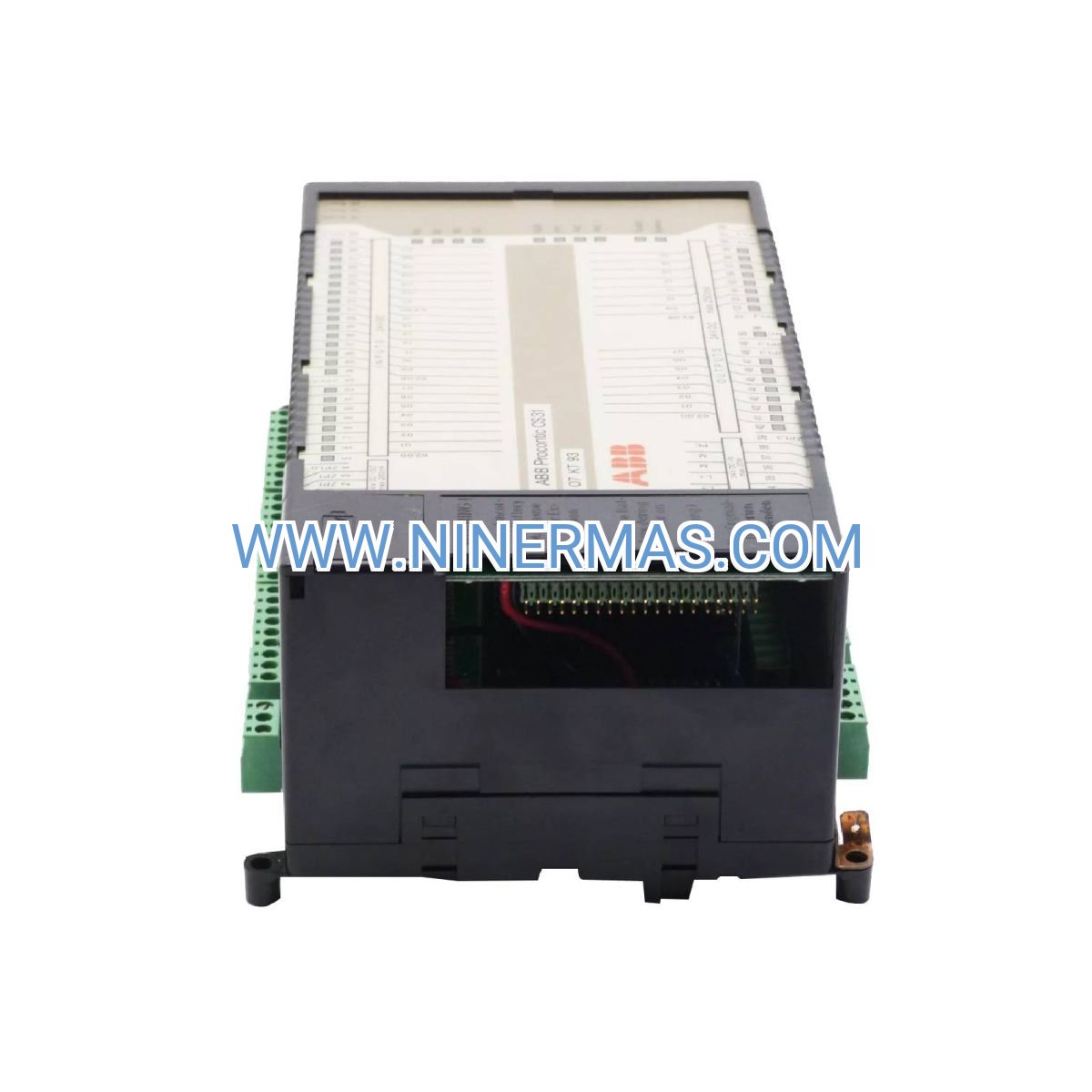

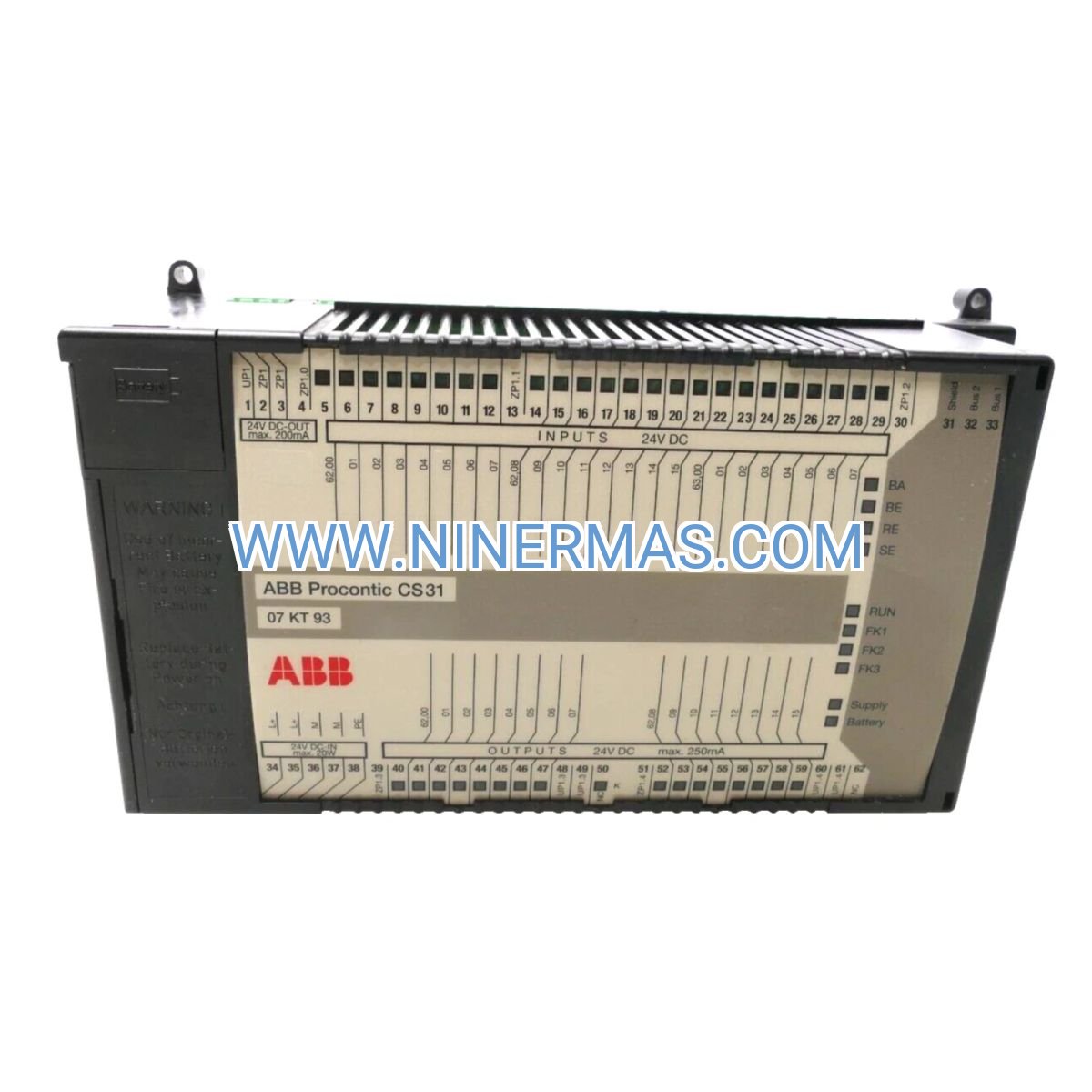

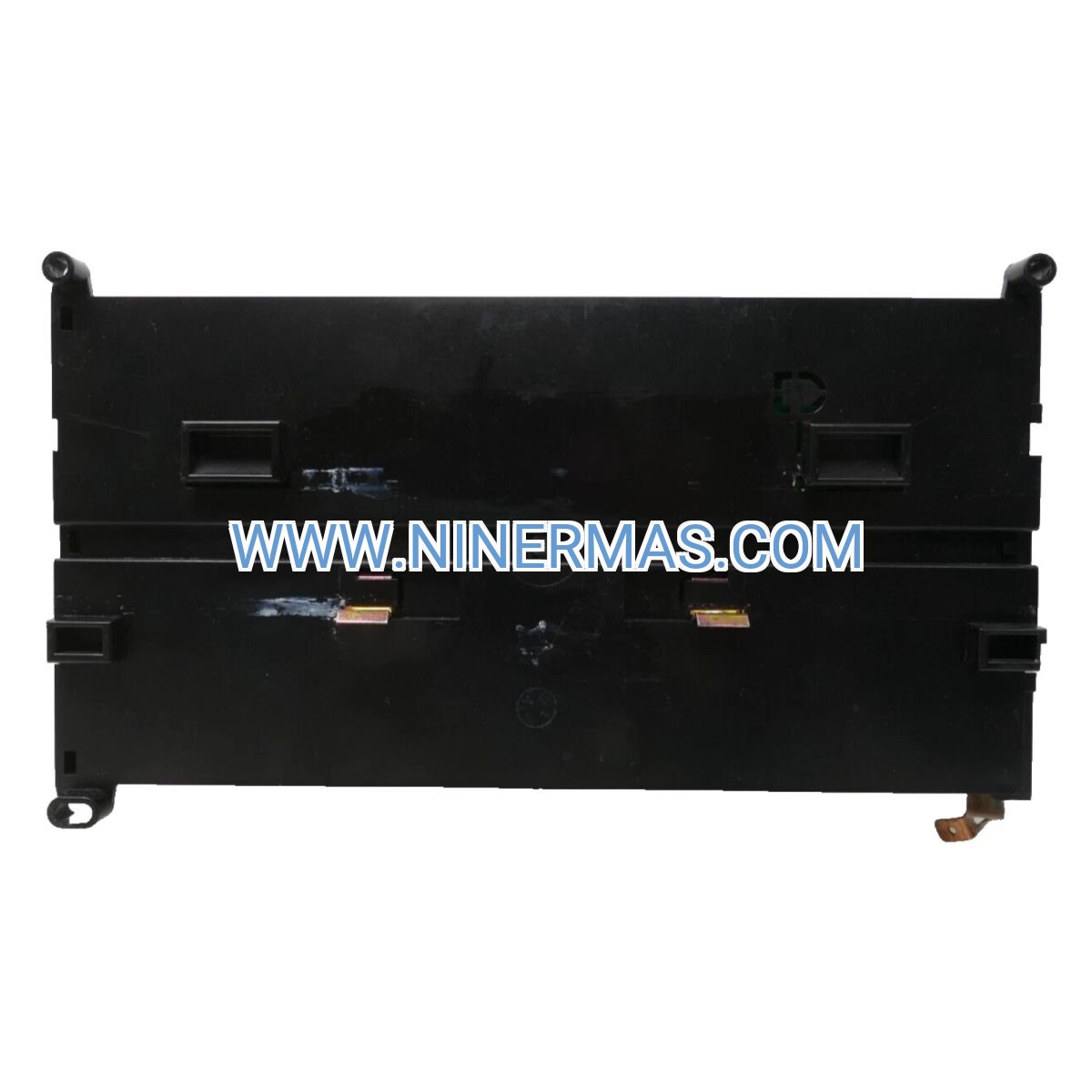

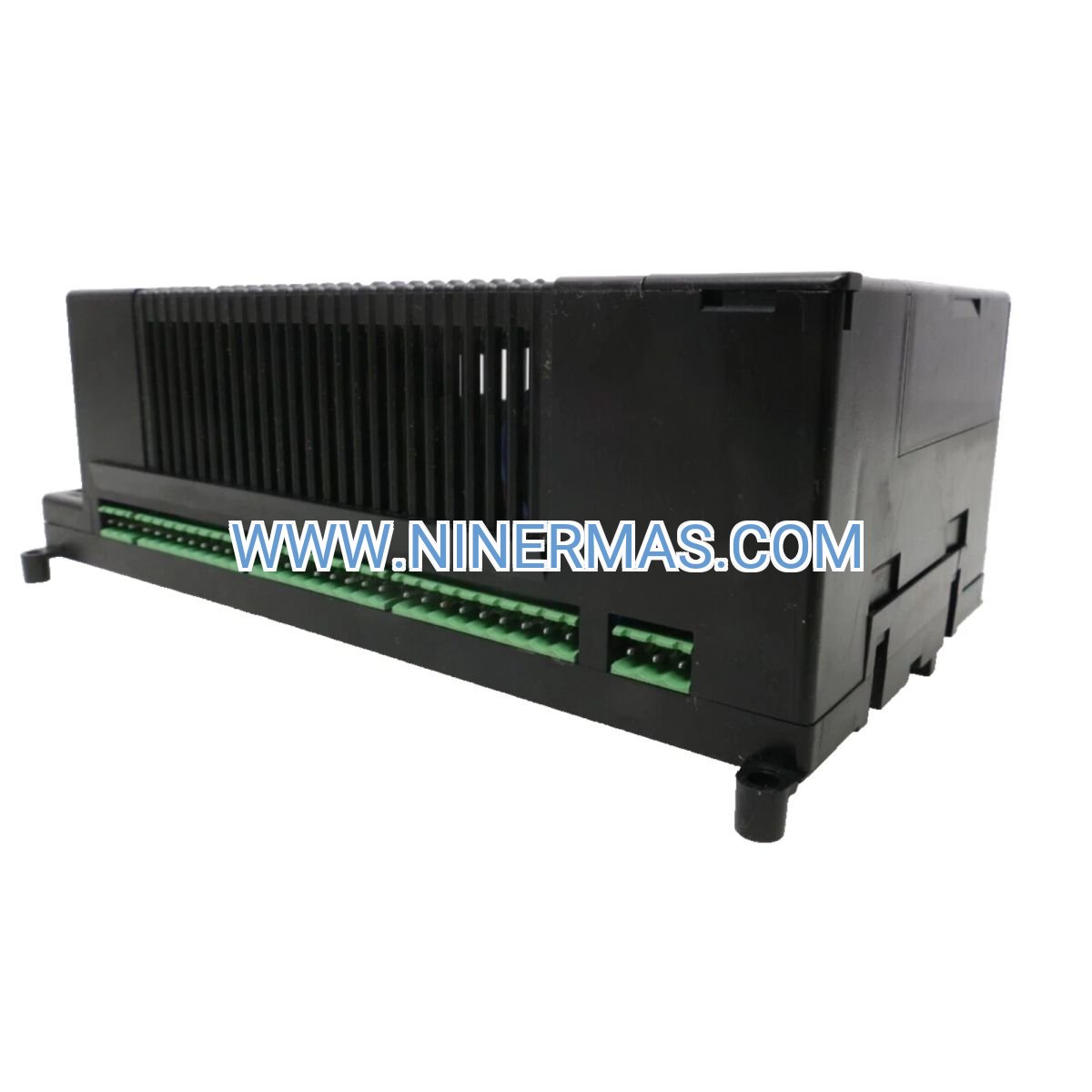

ABB 07KT93 Central Processing Unit (Industrial-Grade DCS Controller)

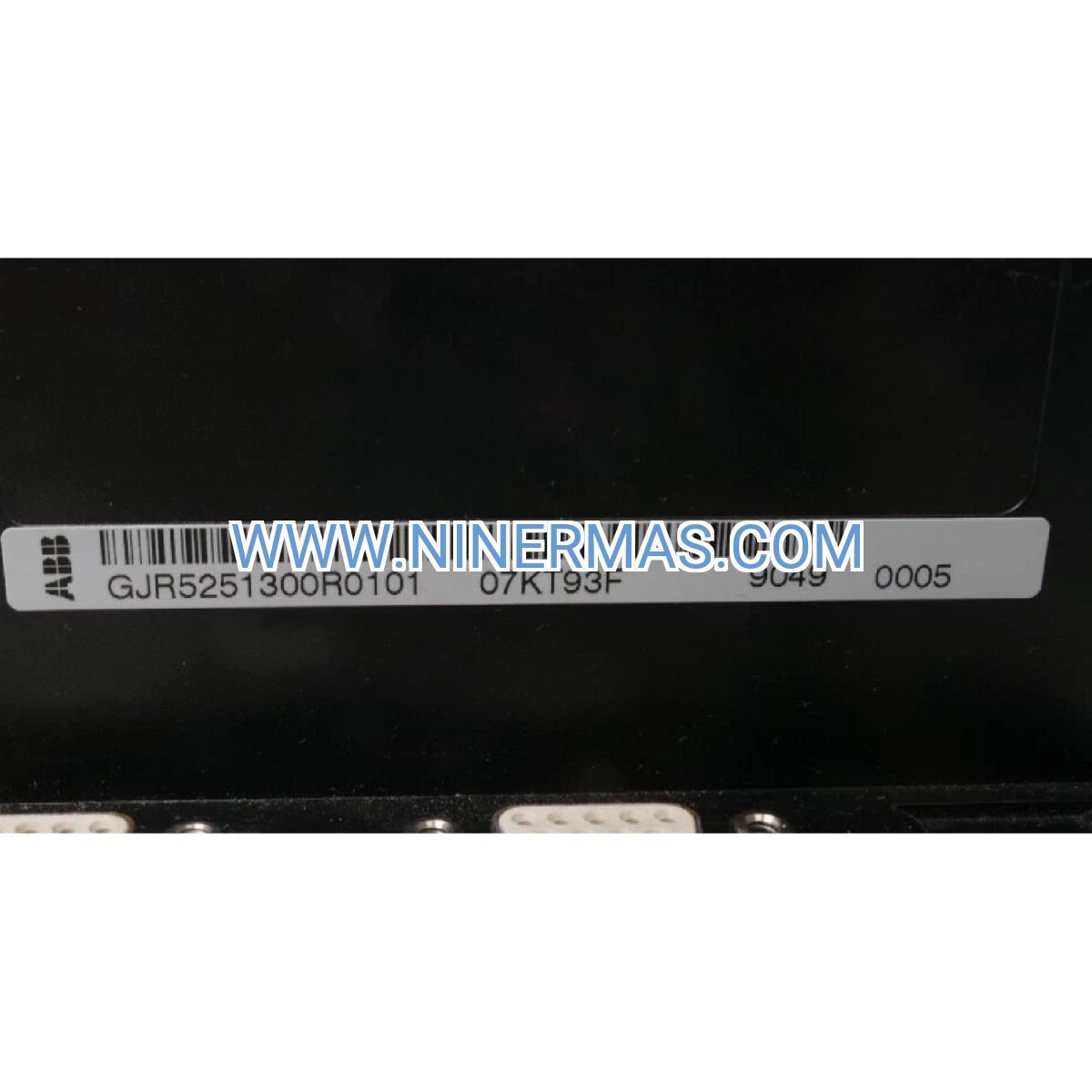

The ABB 07KT93 (GJR5251300R0101) represents a mission-critical computational engine designed for Advant OCS distributed control architectures. This industrial-grade processor delivers deterministic real-time execution, hot-standby redundancy, and extensive I/O scalability for continuous process industries including petrochemical refineries, power generation plants, pharmaceutical manufacturing, and water treatment facilities where uninterrupted control translates directly to production uptime and operational safety.

Built to withstand harsh industrial environments while maintaining microsecond-level timing precision, this CPU addresses the automation challenges faced by process engineers managing complex multi-loop control strategies, sequential batch operations, and safety-instrumented systems. Whether you're modernizing legacy DCS infrastructure or expanding existing Advant OCS installations, the 07KT93 provides proven reliability backed by decades of field deployment across mission-critical applications worldwide.

With support for IEC 61131-3 programming languages, multi-protocol industrial communications, and seamless integration with ABB's engineering ecosystem, this central processing unit empowers automation teams to implement sophisticated control algorithms while maintaining the flexibility to adapt to evolving process requirements and regulatory standards.

Core Capabilities & Business Value

✓ Deterministic Real-Time Performance
Priority-based task scheduler guarantees predictable scan cycle execution from 10ms to 1000ms, eliminating timing jitter that compromises coordinated control across distillation columns, reactor sequences, and turbine governor systems—ensuring product quality consistency and preventing costly process upsets.

✓ Hot-Standby Redundancy Architecture
Dual CPU configuration with automatic failover provides bumpless transfer during component failure or planned maintenance, maintaining continuous process control without operator intervention—reducing unplanned downtime costs averaging $250,000 per hour in refining operations.

✓ Scalable I/O Expansion Capacity
Modular distributed I/O architecture supports thousands of field points through S800 networks, enabling system growth from pilot units to plant-wide installations without processor replacement—protecting capital investment while accommodating production expansion.

✓ Multi-Protocol Industrial Connectivity
Simultaneous Modbus RTU/TCP, Profibus DP, and proprietary ABB network support facilitates integration with legacy field devices, modern smart instruments, SCADA visualization systems, and enterprise MES platforms—eliminating communication bottlenecks and data silos.

✓ Advanced Control Algorithm Execution
Processes complex PID cascades, feedforward compensation, model predictive control, and custom function blocks that optimize energy consumption, maximize yield, and maintain tight specification tolerances—delivering measurable ROI through improved process efficiency.

✓ Comprehensive Diagnostic Intelligence
Continuous self-monitoring of processor health, memory integrity, I/O communication status, and power conditions with predictive fault detection enables proactive maintenance scheduling—reducing emergency callouts and extending mean time between failures beyond 100,000 hours.

Typical Application Scenarios

→ Petroleum Refinery Crude Distillation Units
Challenge: Coordinating 200+ regulatory loops across atmospheric and vacuum towers with millisecond response requirements while maintaining product cut point specifications within ±2°C tolerance.
Solution: 07KT93 redundant pair executes cascade temperature control, pressure compensation, and anti-surge protection with deterministic timing, preventing off-spec production that costs $50,000+ per batch while ensuring safe operation during feed composition changes.

→ Chemical Batch Reactor Control Systems
Challenge: Managing sequential polymerization recipes requiring precise temperature ramping, pressure profiling, and material addition timing with full audit trail compliance for FDA-regulated pharmaceutical intermediates.
Solution: CPU implements IEC 61131-3 Sequential Function Chart (SFC) programming with electronic batch records, automated deviation handling, and 21 CFR Part 11 compliant timestamping—reducing batch cycle time by 15% while maintaining regulatory compliance.

→ Combined-Cycle Power Plant Coordination
Challenge: Synchronizing gas turbine combustion control, heat recovery steam generator (HRSG) level regulation, and steam turbine governor systems with <50ms response time for grid frequency stabilization.
Solution: Dual 07KT93 processors in hot-standby configuration execute coordinated control strategies with automatic load dispatch, emissions monitoring, and protective interlocks—achieving 99.7% availability while meeting NOx emission limits.

→ Pulp Mill Continuous Digester Operations
Challenge: Controlling multi-stage cooking zones with coordinated chip level, liquor flow, temperature profiles, and blow valve sequencing to maintain Kappa number consistency across varying wood species.
Solution: Advanced cascade loops and feedforward compensation algorithms reduce Kappa number standard deviation by 40%, minimizing bleaching chemical consumption and improving paper strength properties—saving $500,000 annually in raw materials.

→ Municipal Wastewater Treatment Automation
Challenge: Optimizing aeration basin dissolved oxygen control, chemical dosing precision, and clarifier sludge blanket management while meeting stringent effluent discharge permits and minimizing energy costs.
Solution: CPU coordinates variable frequency drives, analyzes real-time sensor data, and adjusts process setpoints dynamically—reducing aeration energy consumption by 25% while maintaining consistent effluent quality below regulatory limits.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 07KT93 when your application requires proven DCS-class reliability, hot-standby redundancy for continuous processes, extensive I/O scalability beyond 500 points, or integration with existing ABB Advant OCS infrastructure. For smaller machine control applications with <200 I/O points, consider compact PLC alternatives. For safety-instrumented functions requiring SIL 3 certification, pair with dedicated safety controllers in layered protection architecture.

Extended Functions

Industrial IoT Integration: The 07KT93 supports secure OPC UA server functionality, enabling real-time data streaming to cloud-based analytics platforms, predictive maintenance systems, and enterprise dashboards without compromising control network security through properly configured DMZ architectures and firewall rules.

Advanced Batch Management: When paired with ABB Batch Management software, the CPU executes ISA-88 compliant recipe management, material tracking, genealogy recording, and electronic batch records with full audit trail capabilities meeting pharmaceutical and food industry regulatory requirements.

Cybersecurity Hardening: Embedded security features include role-based access controls with individual user authentication, encrypted communication channels, audit logging of all configuration changes, and intrusion detection capabilities aligned with IEC 62443 industrial cybersecurity standards.

Migration Path Flexibility: Control strategies developed on 07KT93 hardware migrate to modern ABB AC 800M platforms using backward compatibility tools, protecting decades of engineering investment while enabling phased modernization aligned with capital budget cycles and production schedules.

Delivery & Service Assurance

Lead Time: Standard delivery 5-7 business days for in-stock units; custom-configured redundant pairs ship within 10-12 business days including factory testing and documentation preparation.

Warranty Coverage: Comprehensive 24-month manufacturer warranty covering defects in materials and workmanship, with optional extended protection plans available for critical applications requiring rapid replacement guarantees.

Technical Support: Access to certified ABB automation specialists for pre-sale application engineering, system architecture design, redundancy configuration guidance, and post-installation commissioning assistance via phone, email, and remote connectivity.

Documentation Package: Complete technical manual set including hardware installation guide, programming reference, communication protocol specifications, diagnostic troubleshooting procedures, compliance certificates, and CAD drawings for panel layout design.

Training Resources: Complimentary access to online programming tutorials, control strategy examples, migration planning guides, and cybersecurity best practices documentation to accelerate engineering team proficiency.

Frequently Asked Questions

Q: How does the 07KT93 CPU integrate with existing Advant OCS distributed I/O networks?
A: The processor connects directly to S800 I/O modules via high-speed communication networks using standard ABB protocols. Configuration involves assigning I/O addresses through Advant Station engineering software, downloading the I/O configuration to the CPU, and verifying communication status through diagnostic displays. The system supports hot-swappable I/O module replacement without interrupting control execution.

Q: What control capacity and memory limitations should I consider when sizing applications?
A: The 07KT93 handles thousands of I/O points and executes complex control strategies with typical scan cycle times of 50-200ms depending on algorithm complexity. Memory capacity accommodates 10,000+ function blocks, extensive historical data buffering, and multiple communication protocol stacks simultaneously. For applications exceeding these parameters, distributed processing across multiple CPUs is recommended.

Q: Can this CPU achieve measurable energy efficiency improvements in existing process control applications?
A: Yes—advanced control algorithms including model predictive control, cascade optimization, and adaptive tuning typically deliver 5-15% energy consumption reduction in heating/cooling systems, 10-25% improvement in compressed air efficiency, and 15-30% reduction in batch cycle times through optimized sequencing. ROI calculations should factor in current energy costs and production throughput targets.

Q: What are the physical installation requirements and panel space considerations?
A: The CPU mounts on standard 35mm DIN rail or via panel screws in 19" control cabinets. Physical dimensions require approximately 120mm width × 200mm height × 80mm depth including connector clearances. Redundant configurations need dual mounting positions plus space for communication switches and power supplies. Adequate ventilation and temperature control within the 0-55°C operating range is essential.

Q: How do I implement remote monitoring and diagnostic access while maintaining cybersecurity?
A: Secure remote access requires properly configured network architecture with industrial firewalls, VPN tunnels, and demilitarized zones (DMZ) separating control networks from enterprise IT infrastructure. The CPU supports encrypted communication protocols, individual user authentication, and audit logging. Implementation should follow IEC 62443 zone/conduit models with regular security assessments and patch management procedures.

Q: What migration options exist for upgrading from legacy Advant OCS systems to modern platforms?
A: ABB provides migration tools that convert existing control strategies to AC 800M platform formats while maintaining functional equivalence. Migration planning involves application assessment, hardware compatibility verification, testing in parallel with existing systems, and phased cutover strategies minimizing production disruption. Typical migration projects span 6-18 months depending on system complexity and validation requirements.

Take the Next Step

Ready to enhance your process control reliability with proven ABB technology? Our automation specialists are available to discuss your specific application requirements, recommend optimal redundancy configurations, and provide detailed technical specifications. Contact us today for personalized consultation, system architecture design support, or to request a formal quotation with expedited delivery options for your critical automation projects.

Request Technical Consultation → Share your process control challenges and receive expert recommendations within 24 hours
Download Specification Sheet → Access detailed datasheets, CAD drawings, and compliance certificates
Schedule System Assessment → Arrange a comprehensive evaluation of your existing DCS infrastructure and modernization opportunities
