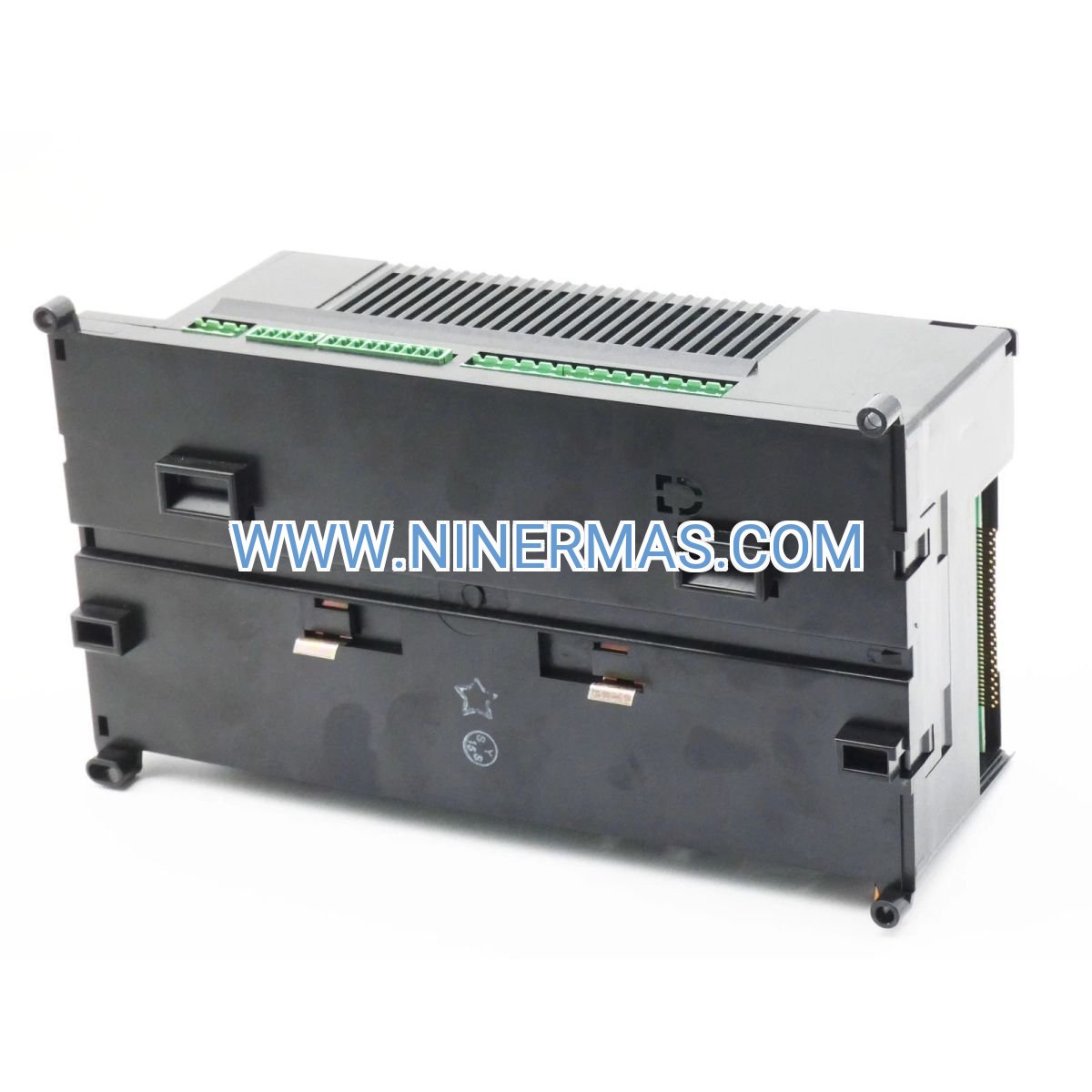

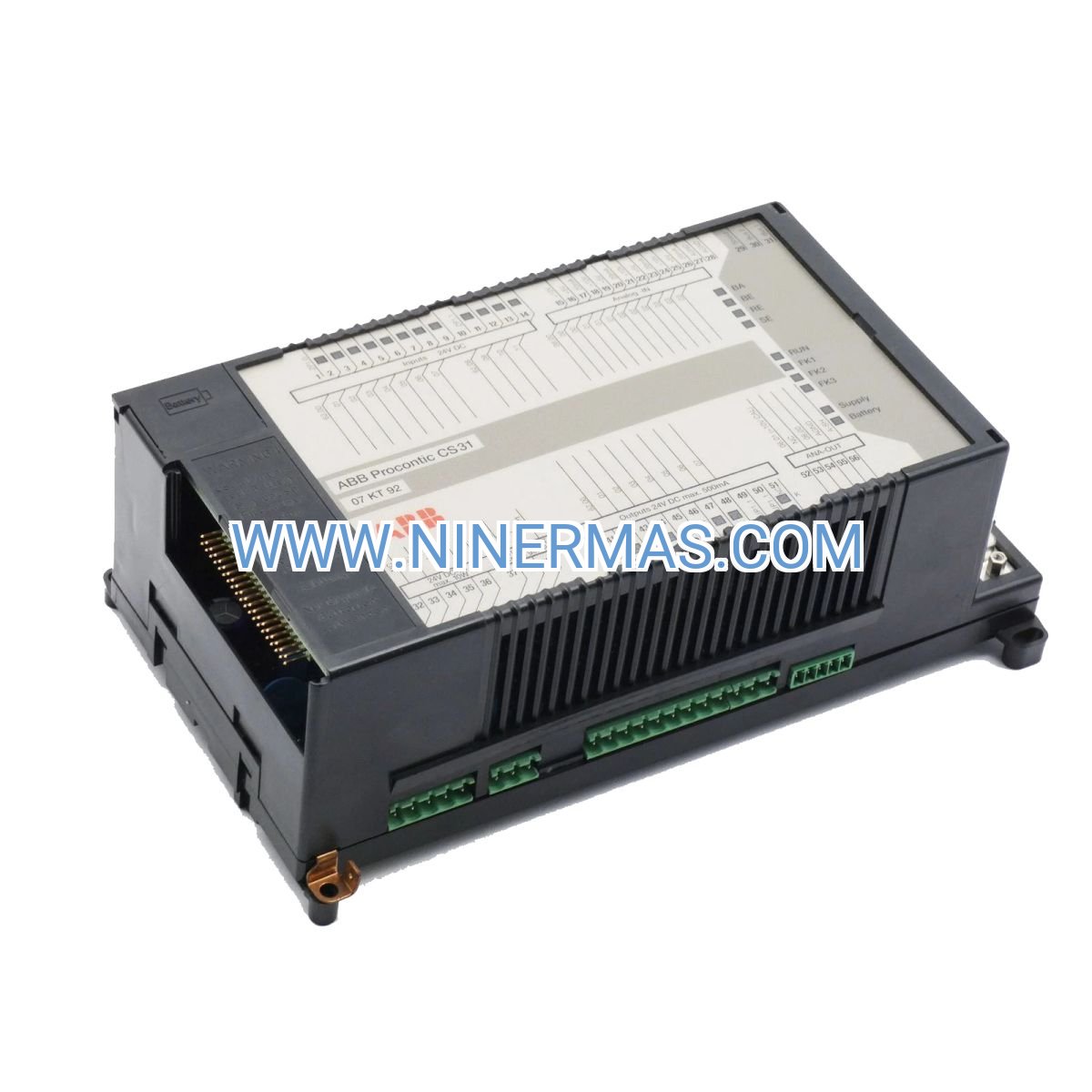

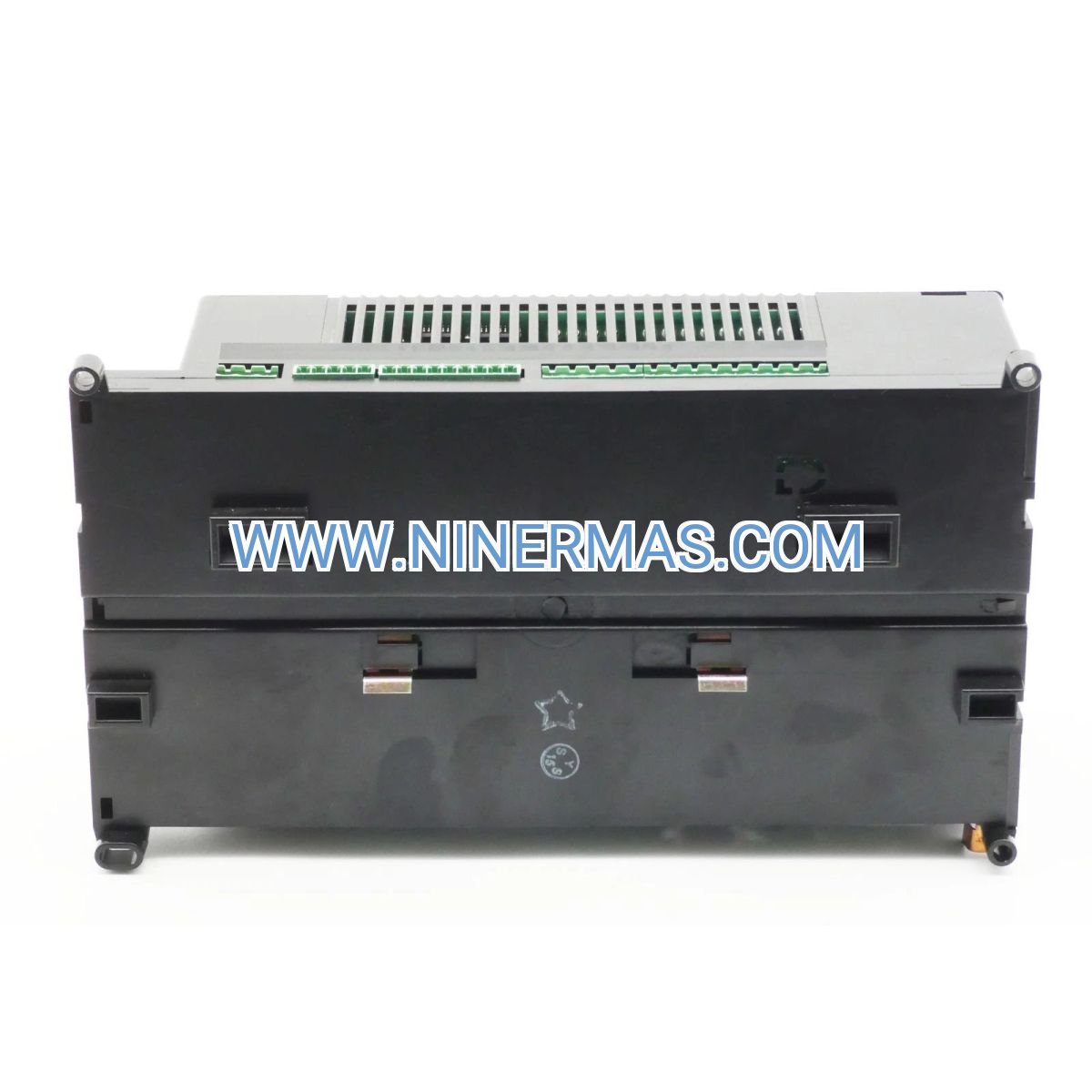

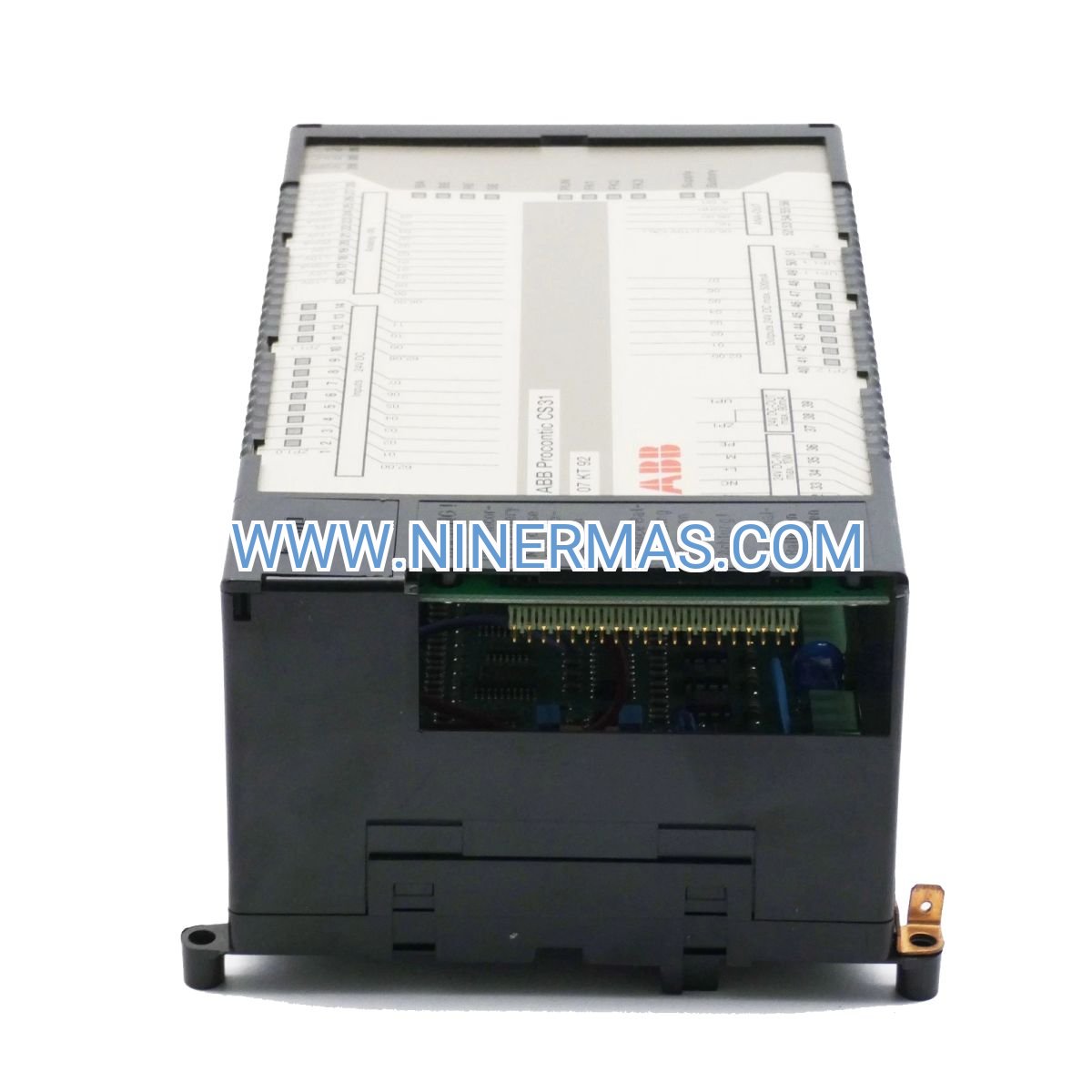

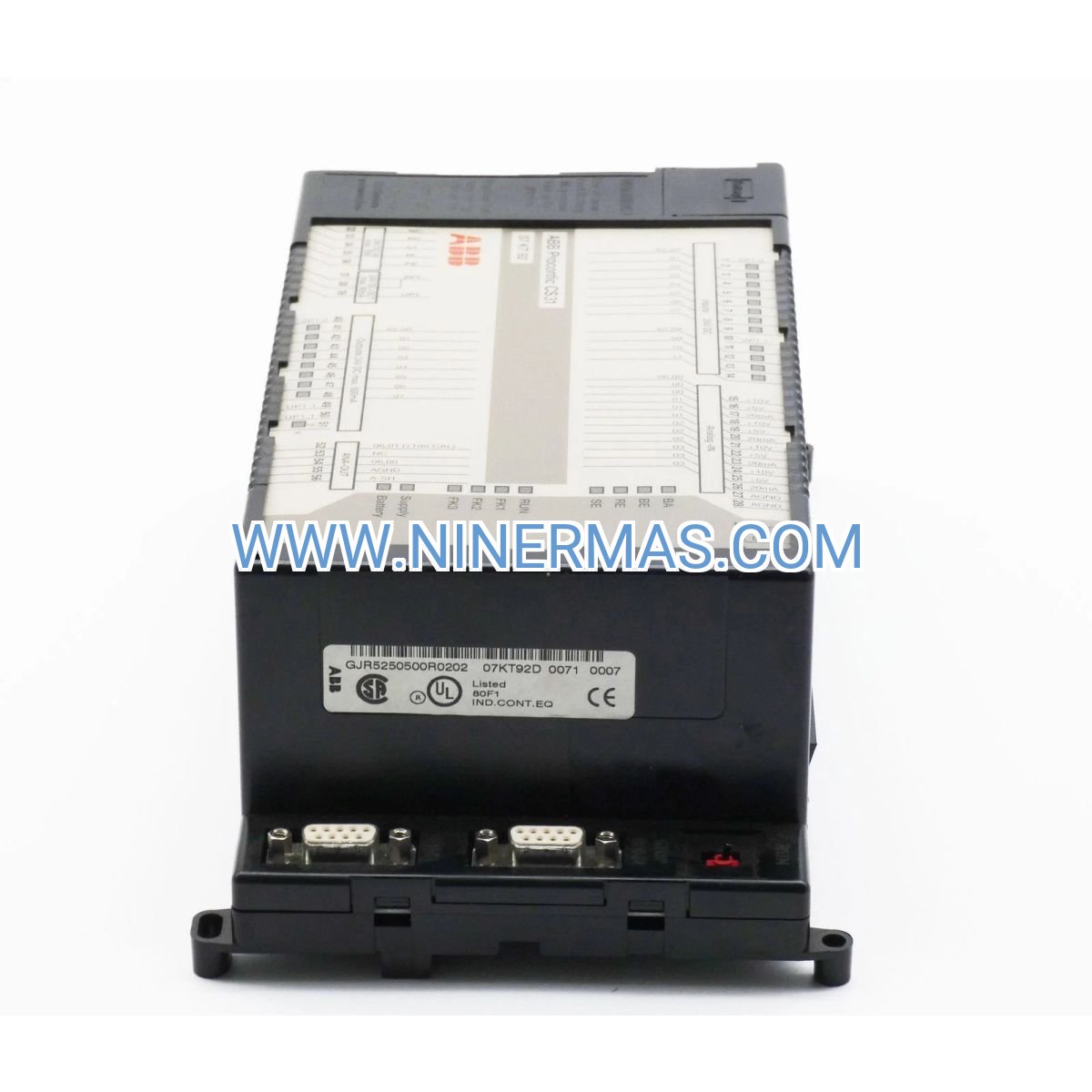

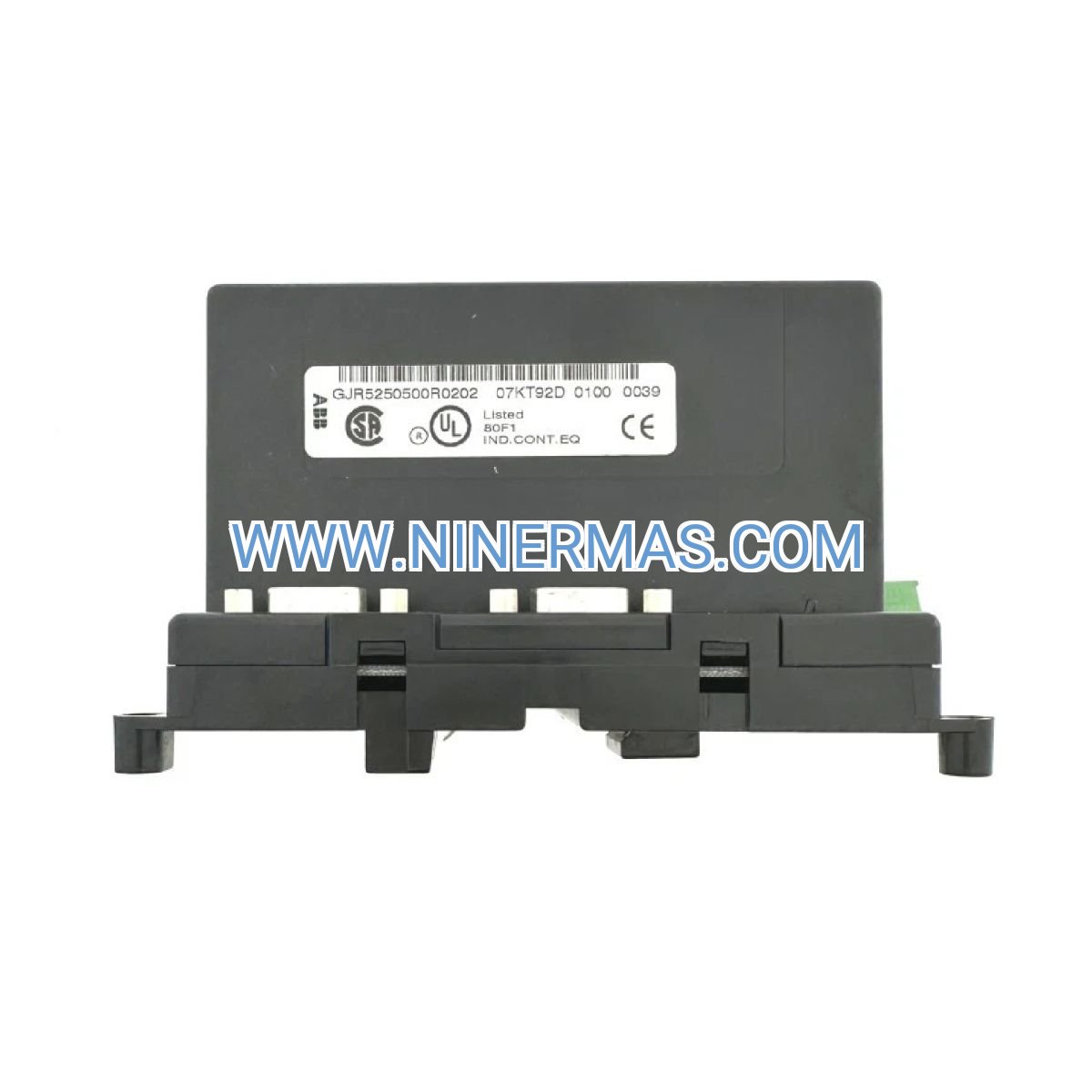

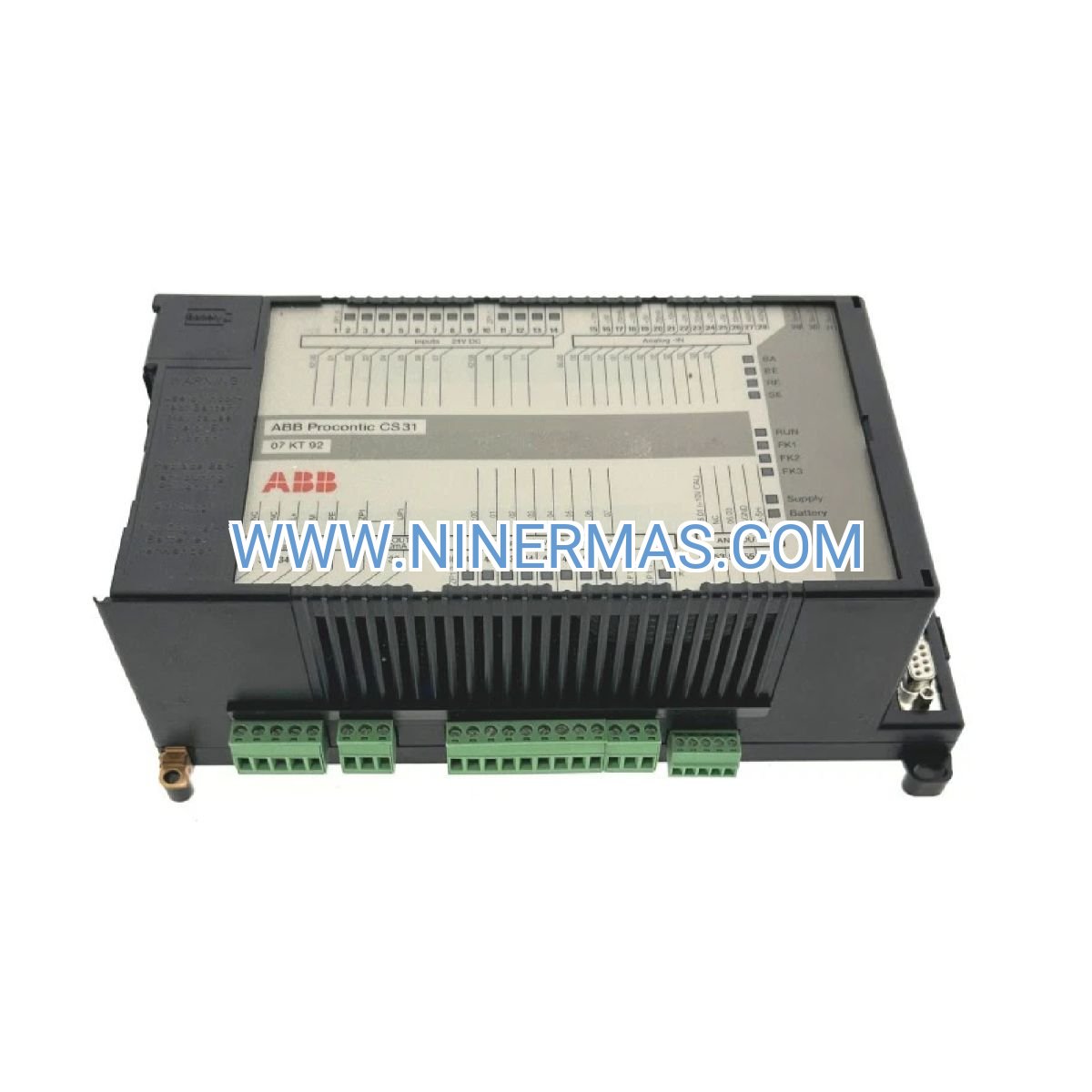

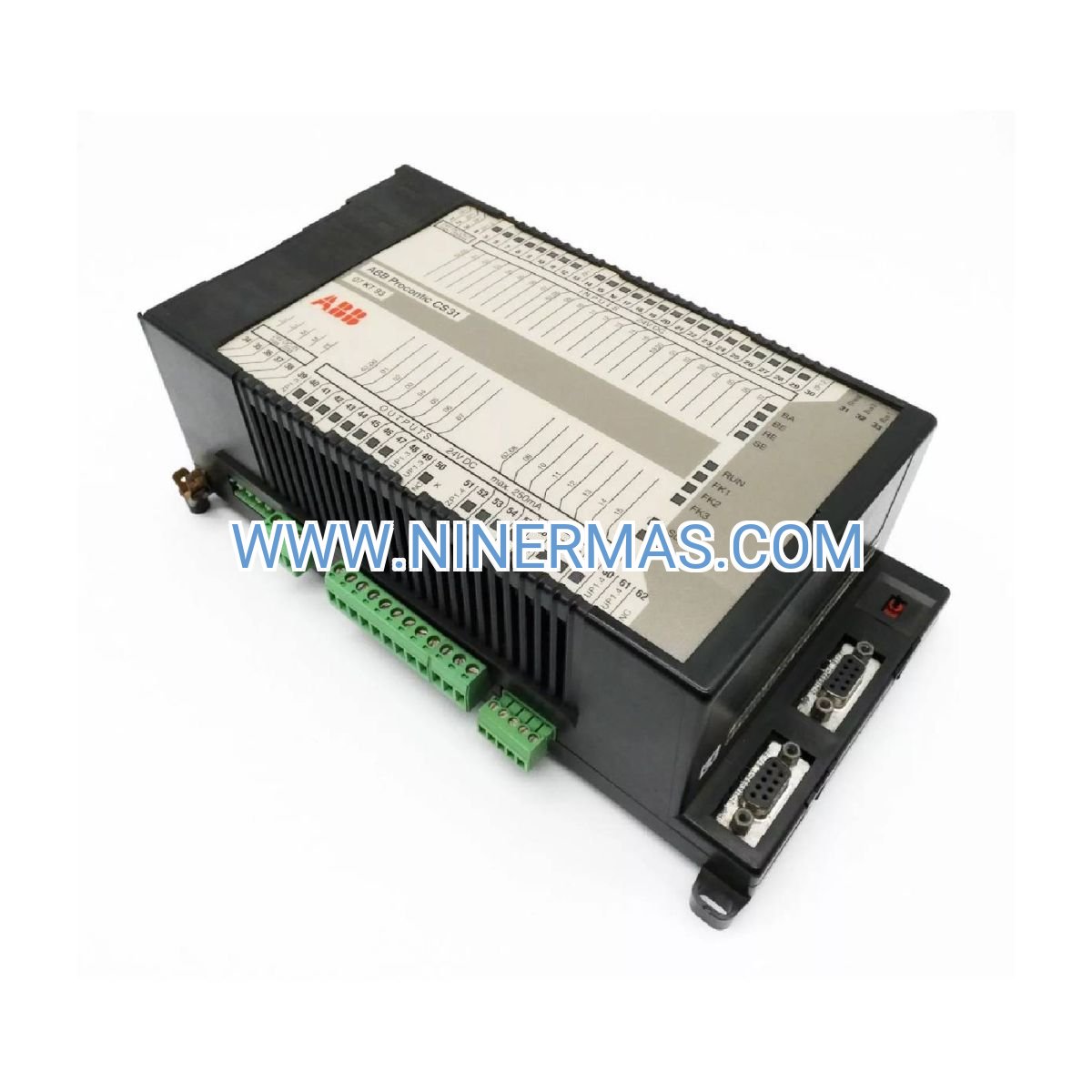

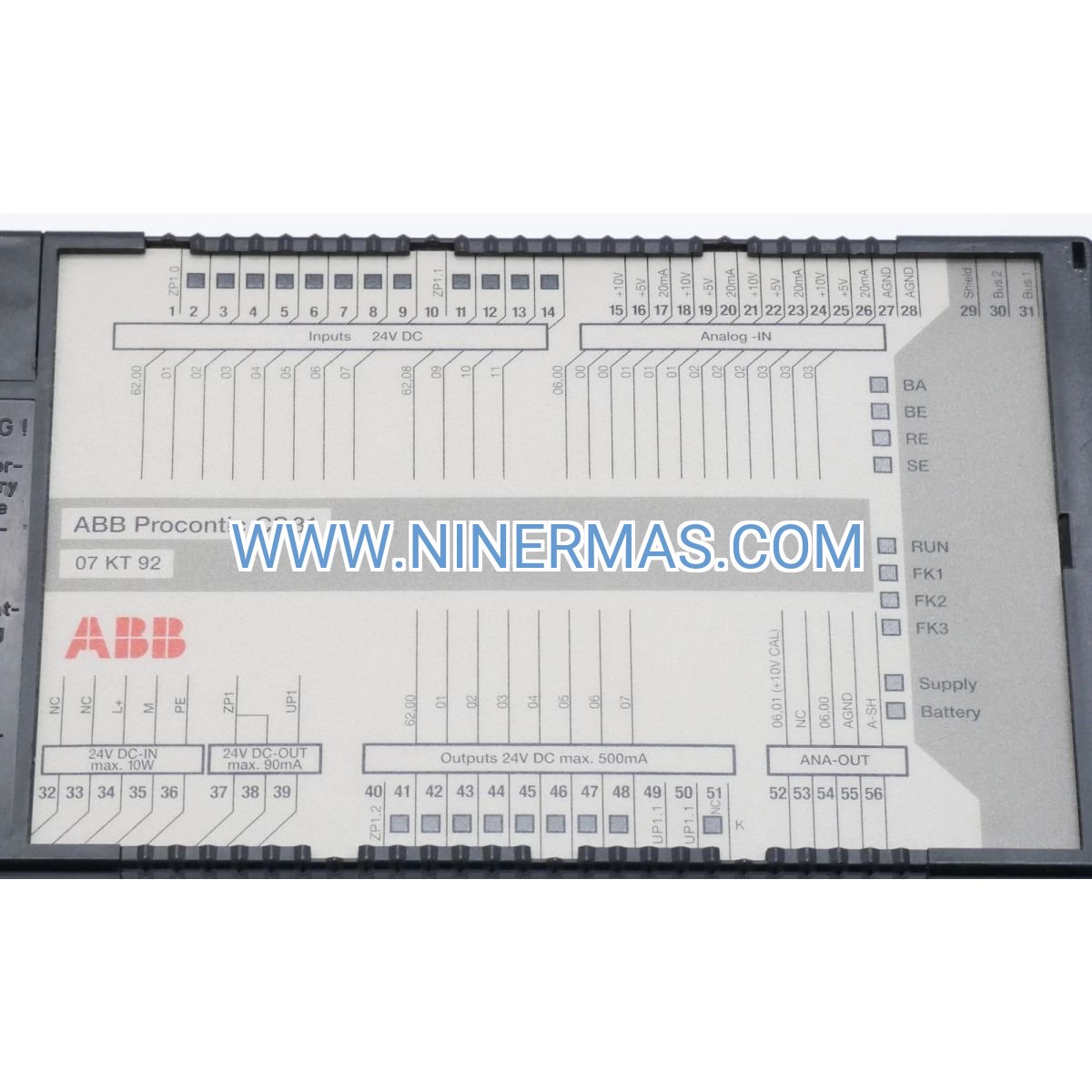

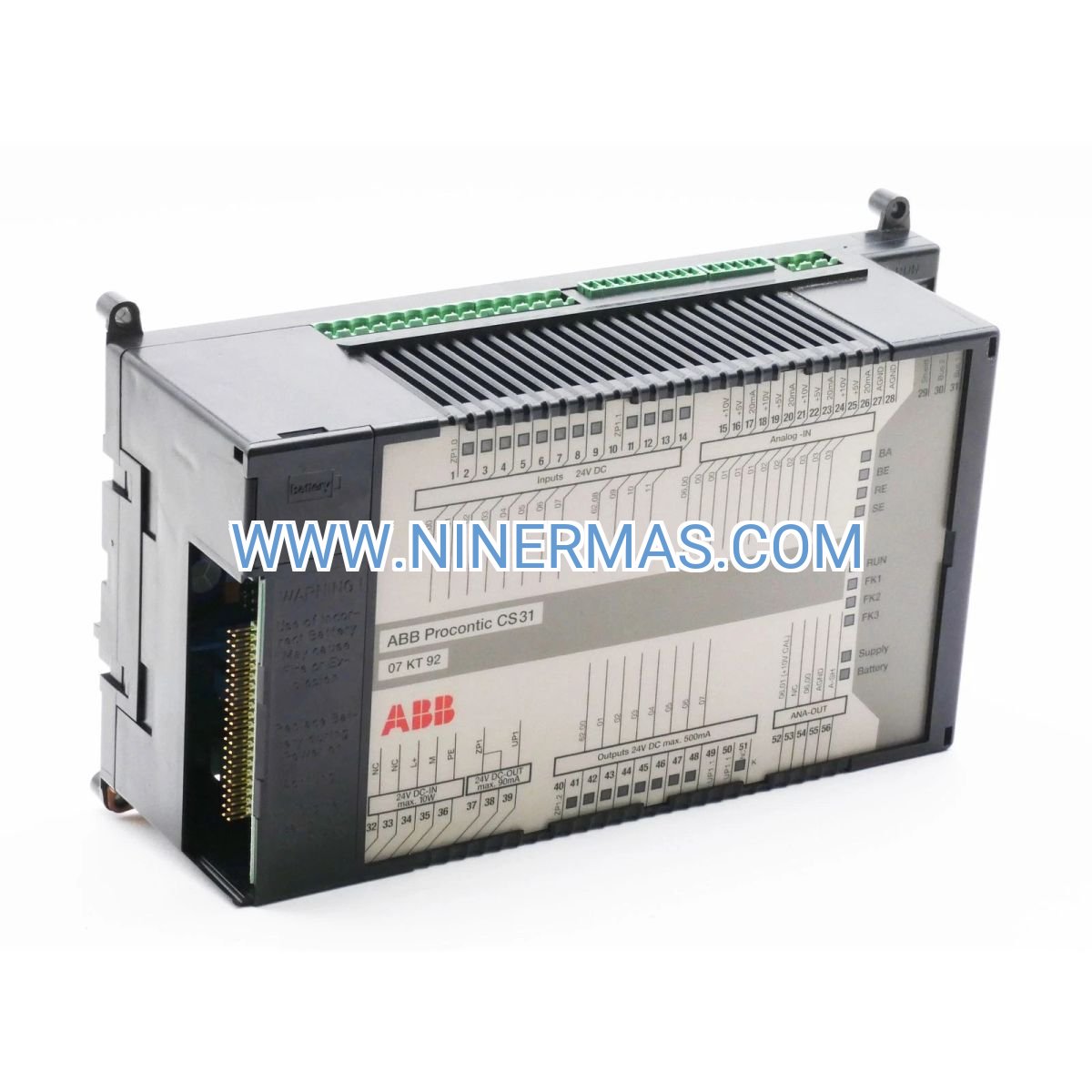

ABB 07KT92 Central Processing Unit (Industrial-Grade DCS Controller)

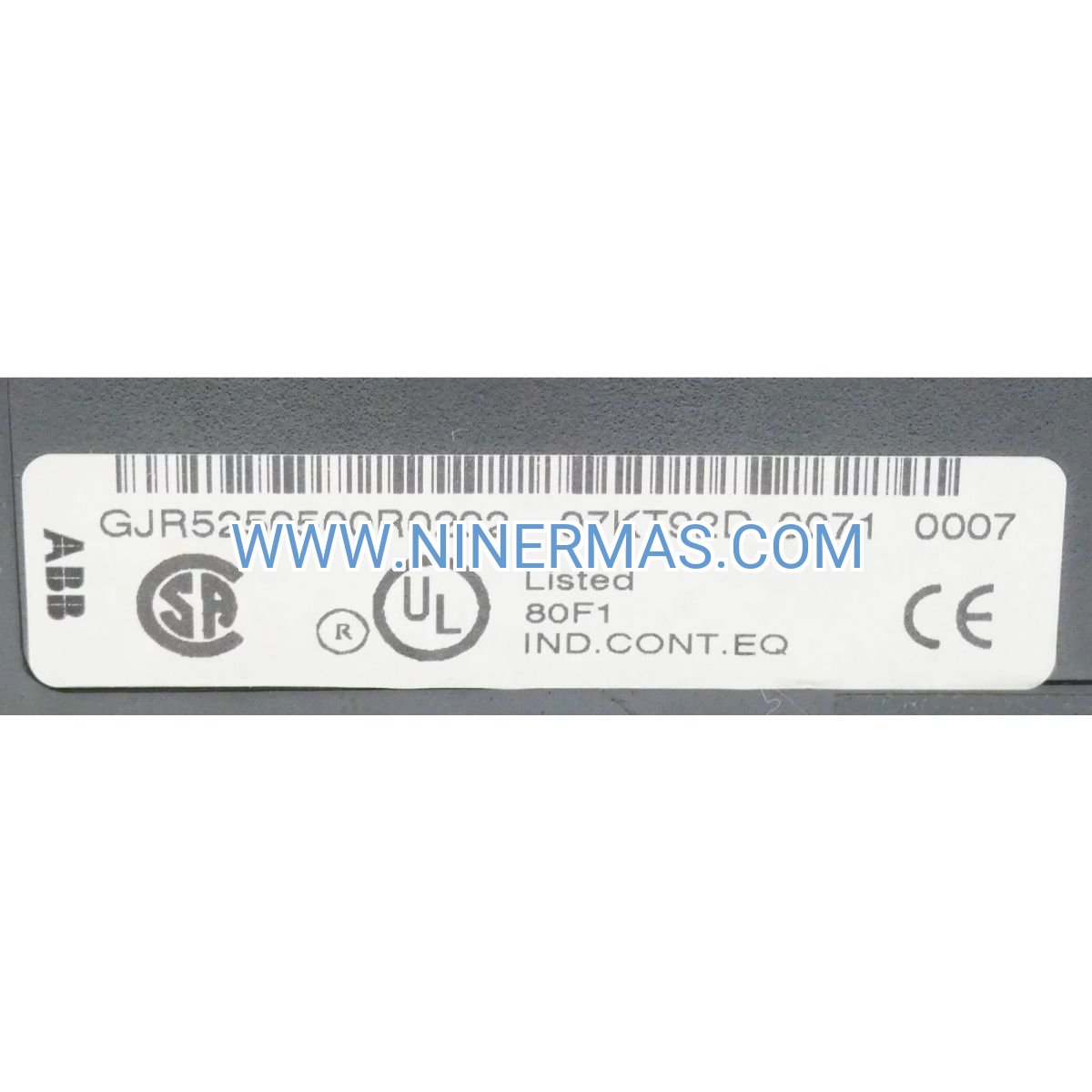

The ABB 07KT92 (GJR5250500R0202) represents a proven industrial-grade central processing unit engineered for mission-critical distributed control applications. Designed to power ABB's Advant OCS platform, this CPU delivers deterministic real-time execution, extensive I/O scalability, and hot-standby redundancy for continuous process industries where downtime translates directly to production losses and safety risks.

Process manufacturers in refining, chemical production, power generation, and pulp processing rely on this controller to execute complex regulatory strategies, coordinate batch sequences, and maintain safety interlocks across plant-wide automation networks. With proven MTBF exceeding 150,000 hours and backward compatibility spanning multiple system generations, the 07KT92 protects decades of engineering investment while enabling phased modernization paths.

Whether you're sustaining legacy Advant OCS installations, expanding existing DCS capacity, or planning redundant controller architectures for high-availability applications, this CPU provides the computational foundation for reliable, long-term industrial automation performance.

Core Capabilities & Technical Advantages

→ Deterministic Real-Time Processing
Priority-based task scheduler ensures predictable scan cycle timing from 10ms to 1000ms, critical for coordinated multi-loop control, sequential batch operations, and time-sensitive safety interlocks. Eliminates jitter and latency issues that compromise control quality in conventional PLCs.

→ Hot-Standby Redundancy Architecture
Paired CPU configuration with continuous state synchronization enables seamless failover during processor failure or planned maintenance. Bumpless transfer maintains uninterrupted process control, protecting against production losses in 24/7 continuous operations.

→ Dual-Port Memory Design
Simultaneous access by processor and communication modules enables high-speed data exchange with HMI stations and engineering workstations without impacting control execution. Supports real-time trending, alarm management, and remote diagnostics during active control.

✓ Battery-Backed Program Retention
Non-volatile RAM preserves control logic, setpoints, tuning parameters, and process variables through power interruptions. Enables rapid restart without reconfiguration, reducing recovery time from minutes to seconds after utility disturbances.

✓ Scalable Distributed I/O Capacity
Supports thousands of distributed I/O points via high-speed S100 I/O bus. Modular architecture scales from small machine control to plant-wide DCS installations without CPU replacement, accommodating facility expansion and process modifications.

✓ IEC 61131-3 Programming Flexibility
Supports Ladder Logic, Function Block Diagram, Structured Text, and Sequential Function Chart languages. Enables control engineers to select optimal programming paradigm for each application—regulatory loops, batch sequences, discrete interlocks, or mathematical calculations.

Industrial Application Scenarios

Petroleum Refining & Petrochemical Processing
Challenge: Crude distillation, catalytic cracking, and alkylation units require hundreds of cascaded PID loops with sub-second response times and safety instrumented functions protecting high-value equipment.
Solution: The 07KT92 executes complex control strategies including advanced regulatory control, feedforward compensation, and override logic while maintaining deterministic scan cycles. Hot-standby redundancy ensures continuous operation during processor maintenance or failure events.

Chemical Manufacturing & Batch Processing
Challenge: Multi-stage reactors demand precise temperature profiling, pressure cascade control, material balance calculations, and recipe-driven sequencing with electronic batch records for regulatory compliance.
Solution: Integrated batch management capabilities coordinate sequential operations, track material genealogy, and generate audit trails meeting 21 CFR Part 11 requirements. Dual-port memory enables simultaneous recipe downloads and real-time process monitoring.

Power Generation & Cogeneration Facilities
Challenge: Boiler combustion optimization, turbine governor control, and emissions monitoring require coordinated control loops with millisecond-level response for load following and grid stability.
Solution: High-frequency execution cycle handles fast-response regulatory loops while managing slower auxiliary systems. Redundant architecture meets availability requirements for baseload generation facilities where unplanned outages incur substantial financial penalties.

Pulp, Paper & Tissue Production
Challenge: Paper machines require coordinated speed references, moisture control loops, and quality feedback systems maintaining tight product specifications across multiple control zones.
Solution: Extensive I/O capacity handles hundreds of analog loops and discrete interlocks. Real-time execution ensures synchronized control across digester cooking, bleaching operations, stock preparation, and machine profiles.

Water Treatment & Municipal Infrastructure
Challenge: Clarification, filtration, chemical dosing, and disinfection processes require regulatory compliance monitoring, alarm management, and historical data retention for environmental reporting.
Solution: Integrated diagnostics and communication protocols enable SCADA integration, remote monitoring, and automated compliance reporting. Battery-backed memory preserves critical process data during utility power interruptions common in municipal facilities.

Technical Parameters & Selection Criteria

Selection Guidelines:

• Choose redundant CPU pairs for processes where unplanned downtime exceeds $10K/hour in lost production
• Verify I/O count requirements including 20-30% expansion margin for future modifications
• Confirm scan cycle requirements—fast batch sequences may need 50-100ms cycles vs. 500ms for slow thermal processes
• Assess communication bandwidth needs for HMI updates, historical data collection, and third-party integration
• Consider legacy compatibility if migrating from earlier Advant OCS generations to preserve engineering investment

Advanced Integration & Connectivity

The 07KT92 CPU integrates seamlessly within ABB's Advant OCS distributed control ecosystem through multiple communication layers. High-speed S100 I/O bus connects distributed I/O modules with deterministic update rates, while redundant Ethernet networks exchange data with operator workstations, engineering stations, and plant information systems. Open protocol support (Modbus RTU/TCP, Profibus DP, OPC DA/UA) enables integration with third-party analyzers, drives, and enterprise systems.

Advant Station engineering environment provides graphical programming tools, advanced diagnostics, alarm management, historical trending, and batch management capabilities. Remote access features enable off-site troubleshooting, program modifications, and performance monitoring through secure VPN connections, reducing mean time to repair and eliminating travel costs for routine maintenance.

Delivery Timeline & Technical Support

Standard Lead Time: 3-5 business days for in-stock units with expedited shipping available for critical outages
Custom Configurations: 2-3 weeks for factory-configured redundant CPU pairs with pre-loaded firmware and tested failover logic
Warranty Coverage: 12-month manufacturer-backed warranty covering defects in materials and workmanship; extended protection plans available
Technical Support: Pre-sale application engineering consultation, post-sale commissioning assistance, programming guidance, and lifecycle migration planning
Documentation Package: Technical manuals, programming guides, wiring diagrams, I/O configuration templates, redundancy setup procedures, and compliance certificates

Frequently Asked Questions

Q: How does the 07KT92 CPU integrate with existing Advant OCS installations from the 1990s?
A: The 07KT92 maintains backward compatibility with earlier Advant OCS generations through standardized S100 I/O bus protocols and Advant Station engineering tools. Existing control programs can be migrated with minimal modifications, preserving decades of tuning and logic development. This enables phased system upgrades without complete control strategy redevelopment.

Q: What I/O capacity and scan cycle performance can I expect for a typical refinery application?
A: A single 07KT92 CPU supports 2,000-4,000 I/O points depending on control complexity and communication loading. Typical refinery applications with 500-1,000 analog loops and 1,500-2,500 discrete points achieve 100-250ms scan cycles. For larger installations, distributed processing across multiple CPUs or migration to newer AC 800M controllers may be recommended.

Q: Does the hot-standby redundancy require specialized programming or automatic failover?
A: Redundancy is transparent to control logic—no special programming required. The standby CPU continuously synchronizes with the active processor, tracking all program execution, variable states, and I/O updates. Upon detecting active CPU failure (watchdog timeout, communication loss, or manual switchover), the standby assumes control within 50-200ms with bumpless transfer. Process control continues without interruption or operator intervention.

Q: Can the 07KT92 meet IEC 61508 SIL 2 requirements for safety instrumented systems?
A: Yes, when configured in redundant architecture with appropriate I/O modules, voting logic, and diagnostic coverage, the 07KT92 achieves SIL 2 certification for safety-instrumented functions. However, for SIL 3 applications or modern safety standards (IEC 61511), ABB recommends dedicated safety controllers from the AC 800M High Integrity or System 800xA Safety families.

Q: What cybersecurity features protect against unauthorized access and network threats?
A: The 07KT92 includes password protection, role-based access controls, audit logging of configuration changes, and communication encryption for remote access sessions. For enhanced cybersecurity in connected environments, implement network segmentation, industrial firewalls, and intrusion detection systems following IEC 62443 defense-in-depth principles.

Q: How do I plan for long-term spare parts availability and system lifecycle management?
A: ABB typically supports Advant OCS components for 15-20 years post-production with spare parts availability and repair services. For installations approaching end-of-life, we recommend maintaining critical spare inventory (redundant CPU, power supplies, communication modules) and developing migration roadmaps to current AC 800M or System 800xA platforms that offer extended support horizons and enhanced capabilities.
