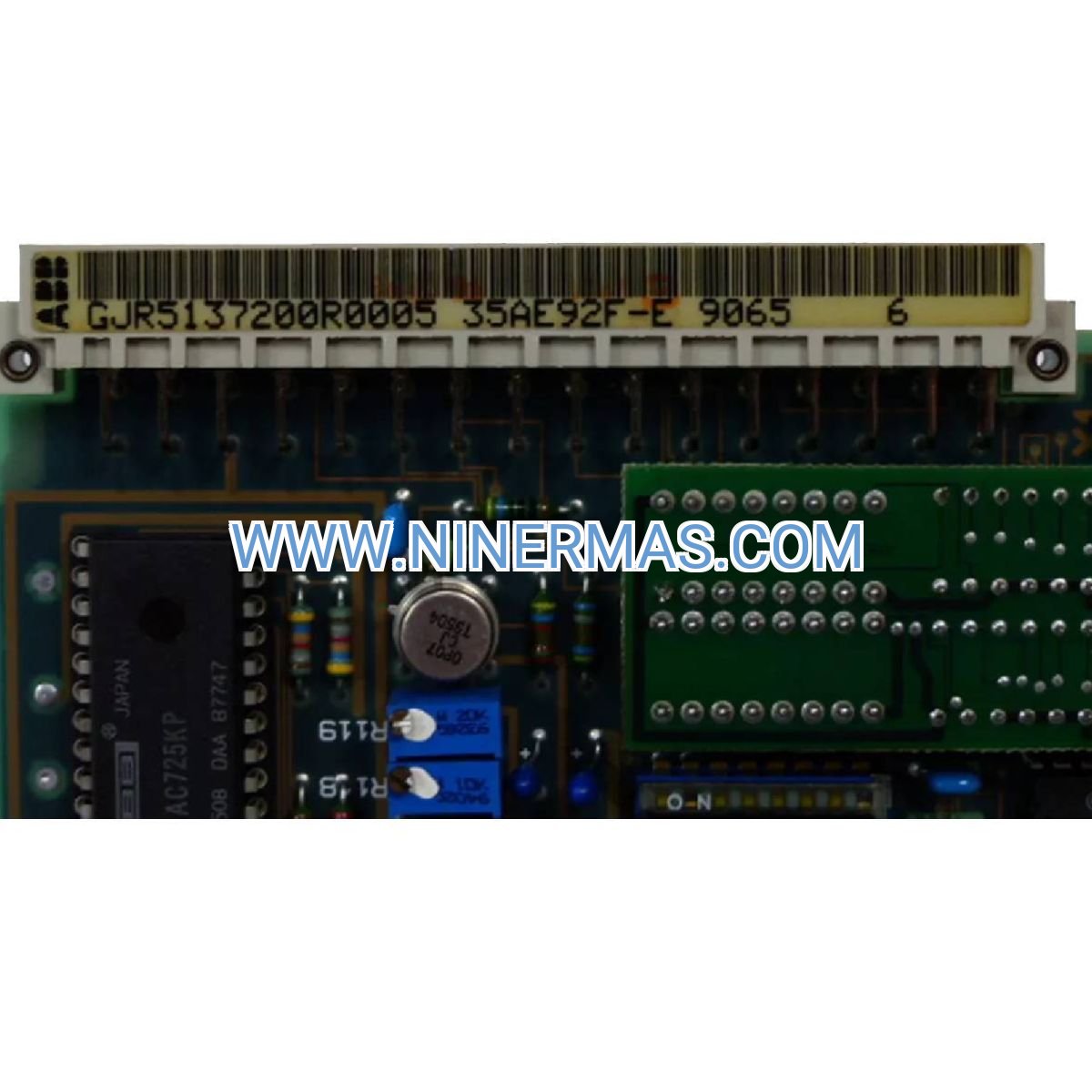

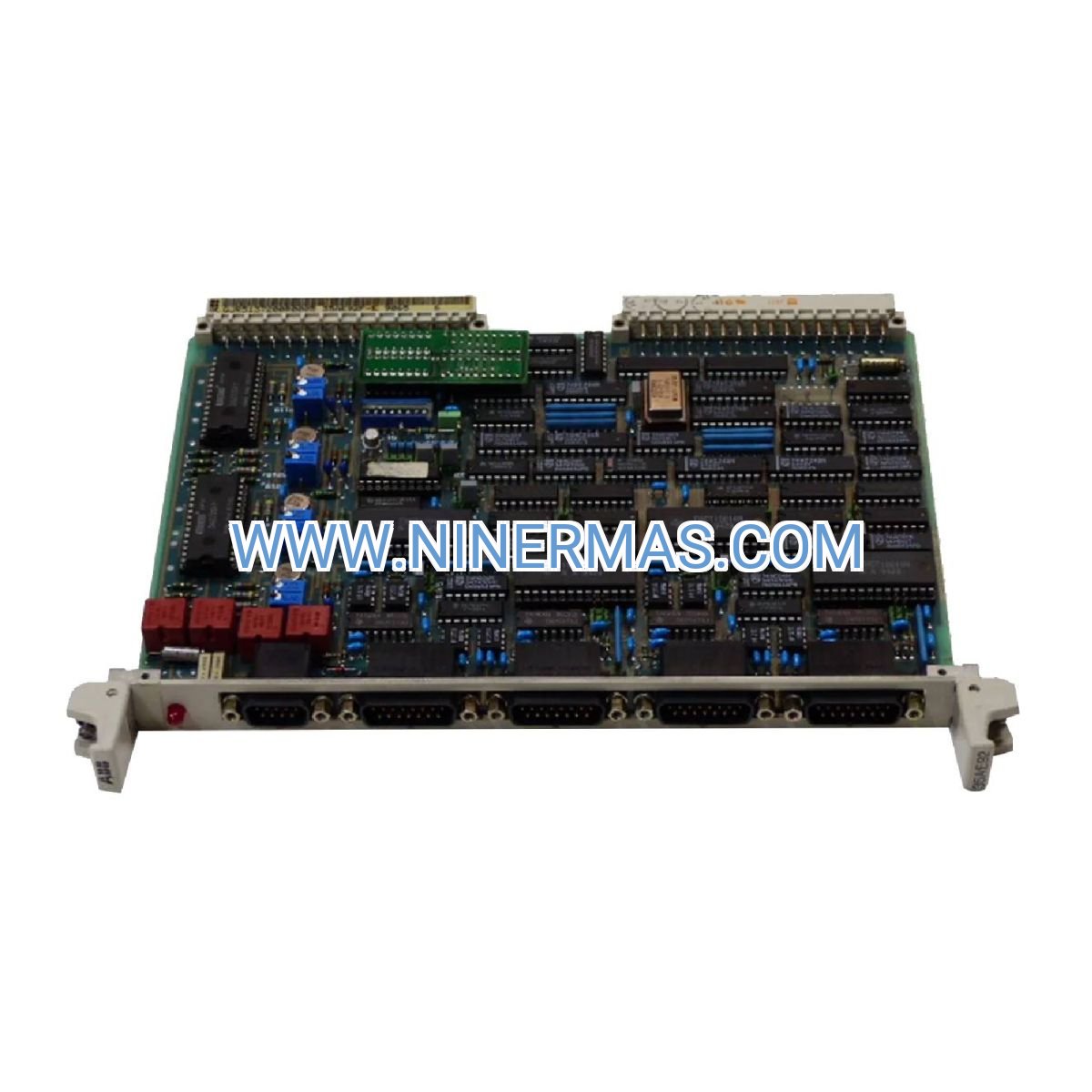

ABB 35AE92F-E Electronic I/O Module (Industrial-Grade Signal Interface)

The ABB 35AE92F-E (GJR5137200R0005) delivers flexible signal interfacing for distributed control architectures. Designed for ABB Advant OCS and 800xA platforms, this module combines 16 programmable I/O channels with universal power input and Modbus RTU connectivity, enabling seamless integration across power generation, chemical processing, and manufacturing automation environments.

Built to withstand -25°C to +60°C operating conditions with 1500V galvanic isolation, the 35AE92F-E ensures reliable field signal acquisition and control output in demanding industrial settings. Hot-swappable design and removable terminal blocks minimize maintenance downtime while supporting mixed analog/digital configurations tailored to specific application needs.

Key advantages: Universal voltage compatibility eliminates inventory complexity, Modbus RTU protocol ensures multi-vendor interoperability, and comprehensive diagnostics accelerate troubleshooting. Ideal for engineers seeking robust I/O expansion with proven ABB reliability.

Core Features & Technical Benefits

→ 16 Configurable I/O Channels
Software-defined channel assignment supports digital inputs (24VDC), digital outputs (relay/transistor), analog inputs (4-20mA/0-10V), and analog outputs in any combination. Eliminates need for multiple module types while adapting to evolving process requirements.

→ Universal 85-264 VAC Power Supply
Wide-range input accepts global voltage standards (110/220VAC) without modification. Reduces spare parts inventory by 60% and enables standardized deployment across multi-site facilities with different electrical infrastructures.

→ Modbus RTU Serial Communication
Industry-standard protocol (9600-115200 bps) integrates with SCADA systems, PLCs, and HMIs from Siemens, Schneider, Rockwell, and other manufacturers. Supports RS-232/422/485 physical layers for distances up to 1200 meters.

→ 1500V Optical Isolation
Galvanic separation between field circuits and logic electronics prevents ground loops, blocks electrical noise, and protects control equipment from voltage spikes. Critical for installations with long cable runs or high EMI environments.

→ Built-In Diagnostic Intelligence
Per-channel LED indicators and Modbus-accessible fault registers identify wiring errors, sensor failures, and communication issues within seconds. Reduces troubleshooting time by 70% compared to modules without status feedback.

→ Hot-Swappable Architecture
Replace failed modules during operation without system shutdown. Address retention and auto-initialization restore functionality in under 2 minutes, maintaining production continuity in 24/7 operations.

Industrial Application Scenarios

✓ Power Generation Facilities
Challenge: Turbine control systems require reliable interfacing of temperature sensors, pressure transmitters, and valve actuators across coal, gas, and combined-cycle plants.
Solution: The 35AE92F-E handles mixed analog inputs (4-20mA RTDs, thermocouples) and relay outputs for MOVs with deterministic 10ms scan rates, ensuring precise load control and safety interlocks.

✓ Chemical Batch Processing
Challenge: Recipe-driven reactors demand flexible I/O for varying sensor types and actuator configurations between production runs.
Solution: Software-reconfigurable channels adapt to different formulations without hardware changes. Modbus integration with batch controllers enables real-time recipe parameter adjustments and SPC data logging.

✓ Water & Wastewater Treatment
Challenge: Municipal plants need cost-effective I/O expansion for pH analyzers, flow meters, and chemical dosing pumps across distributed lift stations.
Solution: Universal power input simplifies installations in remote sites with inconsistent electrical service. RS-485 Modbus supports multi-drop configurations reducing wiring costs by 40% versus point-to-point analog.

✓ Manufacturing Assembly Lines
Challenge: High-speed packaging machinery requires dense I/O for proximity sensors, photoelectric switches, and servo drives in compact control panels.
Solution: DIN rail mounting and removable terminals maximize panel space efficiency. 16-channel density reduces footprint by 50% compared to 8-point modules while maintaining serviceability.

✓ Oil & Gas Wellhead Monitoring
Challenge: Upstream production requires rugged I/O for pressure transmitters and flow computers in extreme temperature environments (-25°C to +60°C).
Solution: Extended temperature rating and conformal coating withstand desert heat and arctic cold. Optical isolation protects against lightning-induced transients common in remote field installations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 35AE92F-E when you need flexible I/O with universal power compatibility and Modbus integration. For applications requiring higher channel density (32+), consider ABB's modular I/O racks. For safety-rated I/O (SIL 2/3), specify ABB's AC800M safety modules. For extreme environments (Class I Div 2), add intrinsic safety barriers.

Extended Functionality & Integration

IoT Connectivity: Pair with ABB Ability™ gateways to publish I/O data to cloud platforms (Azure IoT, AWS IoT Core) for predictive maintenance analytics and remote monitoring dashboards.

Redundancy Options: Deploy dual modules with automatic failover for critical I/O points. Modbus master polls both modules; switchover occurs within 100ms upon communication loss detection.

Custom Firmware: ABB engineering services can develop application-specific firmware for specialized signal conditioning (linearization, filtering, scaling) or proprietary communication protocols.

Third-Party Integration: Modbus RTU ensures compatibility with Wonderware, Ignition, FactoryTalk, and other SCADA platforms. OPC-UA gateways enable integration with modern IIoT ecosystems.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders with custom configurations (extended temperature, special firmware).

Warranty Period: 24 months from shipment date covering manufacturing defects. Extended 60-month warranty available for critical infrastructure projects.

Technical Support: Lifetime access to ABB-certified application engineers for I/O mapping assistance, Modbus troubleshooting, and system integration guidance via phone/email.

Documentation Package: Includes installation manual, Modbus register map, wiring diagrams, AutoCAD panel layout drawings, and CE/UL compliance certificates in PDF format.

Frequently Asked Questions

Q: Can the 35AE92F-E interface with non-ABB PLCs and SCADA systems?
A: Yes. Modbus RTU is vendor-neutral and works with controllers from Siemens, Allen-Bradley, Schneider Electric, Mitsubishi, and others. Ensure your master device supports Modbus RTU serial communication (RS-232/422/485).

Q: What is the maximum cable distance for Modbus RS-485 connections?
A: Up to 1200 meters (4000 feet) at 9600 bps using twisted-pair cable (Belden 3105A or equivalent). Higher baud rates reduce maximum distance; use repeaters for longer runs or fiber optic converters for electrically noisy environments.

Q: How much energy savings can I expect versus traditional relay-based I/O?
A: The 35AE92F-E consumes 15W typical versus 40-60W for equivalent relay modules. In a 100-module installation, this reduces annual energy costs by approximately $800 (at $0.12/kWh) and lowers panel cooling requirements by 2500 BTU/hr.

Q: What installation tools and skills are required for commissioning?
A: Basic electrical skills suffice. You'll need a screwdriver for terminal connections, DIP switch for address setting, and PC with Modbus master software (free tools like ModScan available) for verification. Typical installation time is 30 minutes per module.

Q: Does the module support remote firmware updates over Modbus?
A: Yes. Firmware can be updated via Modbus RTU using ABB's configuration utility. The process takes 5-10 minutes and does not require module removal. Always backup configuration before updating.

Q: Can I mix 4-20mA and 0-10V analog inputs on the same module?
A: Absolutely. Each analog channel is independently configurable via software. You can assign channels 1-4 as 4-20mA inputs, channels 5-8 as 0-10V inputs, and channels 9-16 as digital I/O in a single module.

Start Your Integration Today

Ready to enhance your control system with proven ABB I/O technology? Our automation specialists are standing by to assist with module selection, I/O configuration planning, and Modbus network design. Contact us for a detailed technical consultation and receive a customized integration proposal within 24 hours.

Request a quote now or speak with an engineer to discuss your specific application requirements. We offer expedited shipping for urgent projects and volume discounts for multi-module deployments.
