Industrial-Grade Coaxial FSK Modem for Distributed Control Networks

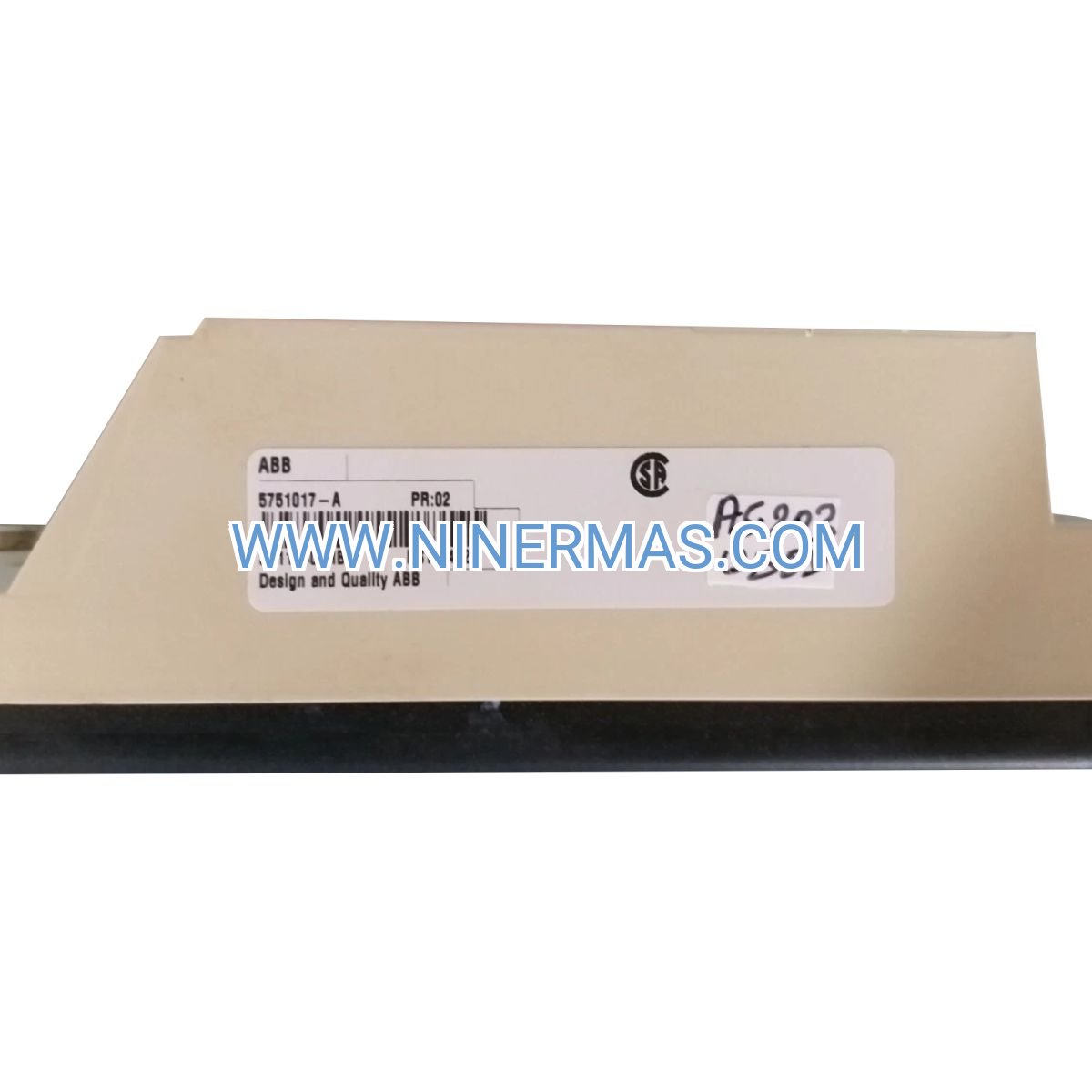

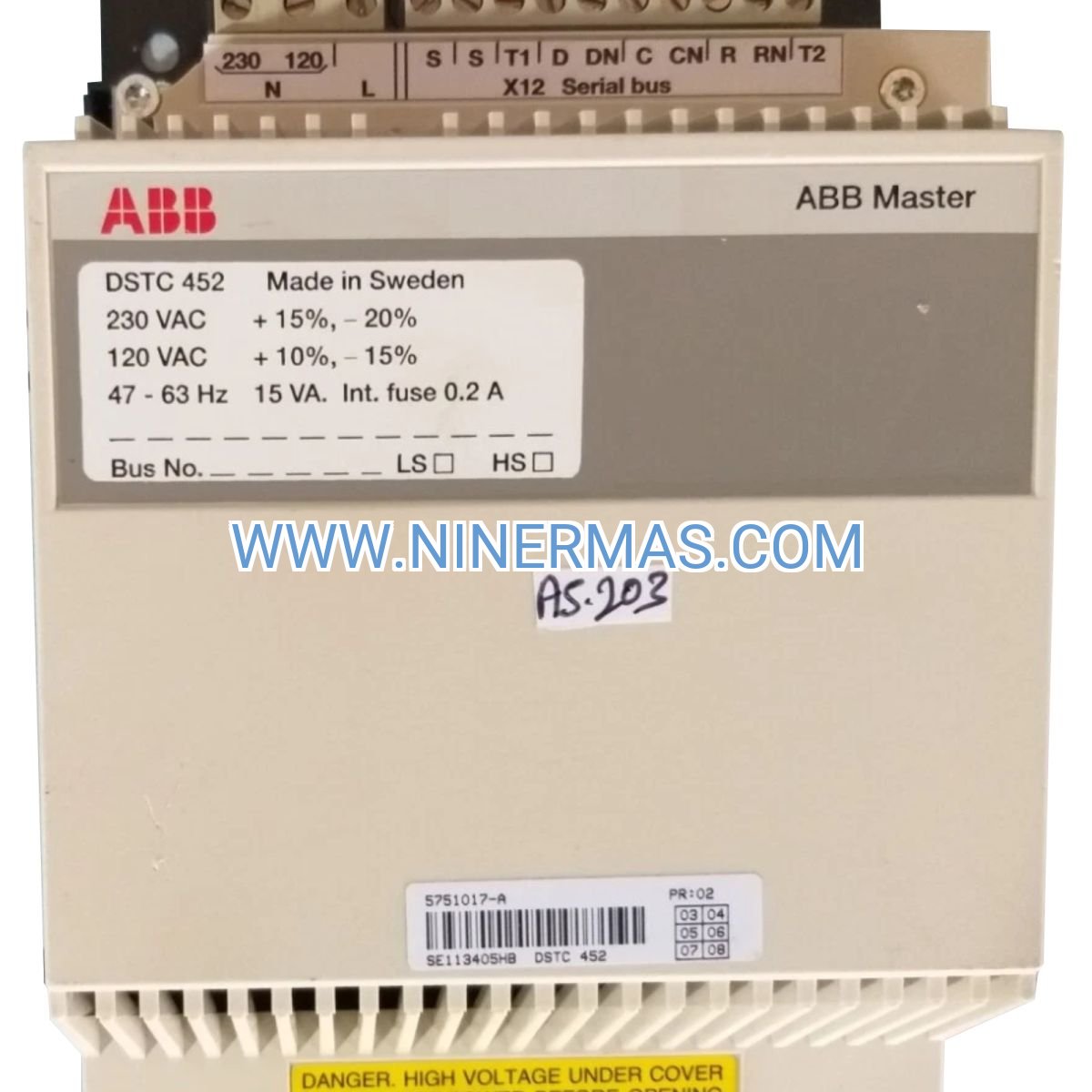

The ABB DSTC452 (Model 5751017-A) delivers deterministic serial communication for mission-critical process automation environments. Designed specifically for ABB Advant Controller 160 and 800xA Master SW platforms, this frequency-shift keying modem transforms coaxial cable infrastructure into a high-reliability data backbone resistant to electromagnetic interference and industrial noise.

Manufacturing facilities requiring real-time I/O coordination across distributed control zones face constant challenges from electrical noise, cable length limitations, and protocol compatibility. The DSTC452 addresses these pain points through proven FSK modulation technology that maintains signal integrity across extended cable runs while integrating seamlessly with legacy Advant architectures—eliminating costly infrastructure replacements during system expansions.

Swiss-engineered for continuous operation in harsh industrial settings, this communication module combines compact 365×260×75mm dimensions with robust coaxial connectivity, enabling reliable data exchange in chemical processing plants, power generation facilities, and automated manufacturing cells where downtime translates directly to production losses.

Core Features & Business Value

→ Frequency-Shift Keying Modulation
Maintains error-free transmission in high-EMI environments where Ethernet and RS-485 protocols fail, reducing troubleshooting costs and unplanned maintenance interventions.

→ Coaxial Cable Physical Layer
Leverages existing coaxial infrastructure for cost-effective network expansion while delivering superior shielding performance compared to twisted-pair alternatives—critical for installations near VFDs and heavy machinery.

✓ Native Advant System Compatibility
Plug-and-play integration with ABB Advant Controller 160 and Master SW platforms eliminates configuration complexity and accelerates commissioning timelines by up to 40% versus third-party communication adapters.

✓ Compact Industrial Form Factor
Space-efficient design fits standard DIN rail mounting systems without requiring cabinet modifications, preserving valuable panel real estate in retrofit scenarios.

✓ RoHS-Compliant Construction
Meets EU Directive 2011/65/EU environmental standards, ensuring regulatory compliance for European installations and multinational corporations with global sustainability mandates.

✓ Swiss Manufacturing Pedigree
Swiss-origin quality assurance (HS Code 8517629900) delivers extended MTBF ratings and predictable lifecycle performance in 24/7 continuous process applications.

Application Scenarios Across Industries

Chemical & Petrochemical Processing
Challenge: Coordinating distributed I/O across reactor zones separated by 200+ meters in Class I Division 2 hazardous areas.
Solution: DSTC452 modems establish noise-immune serial bus links over existing coaxial runs, maintaining real-time control loop integrity despite proximity to high-voltage motor starters and frequency drives.
Outcome: Reduced false trip events by 65% while enabling centralized HMI visibility across multi-zone batch processes.

Power Generation & Substations
Challenge: Integrating legacy Advant OCS controllers with modern SCADA systems without replacing functional control hardware.
Solution: FSK modems bridge serial I/O buses to communication gateways, preserving existing control logic while enabling data historian connectivity.
Outcome: Extended asset lifespan by 8-12 years, deferring $180K+ in controller replacement capital expenditure.

Automotive Manufacturing Cells
Challenge: Synchronizing robotic welding stations with conveyor PLCs across electrically noisy production floors.
Solution: Coaxial FSK communication maintains microsecond-level timing precision immune to arc welding EMI and servo drive switching noise.
Outcome: Achieved 99.7% uptime in high-throughput assembly lines processing 450 units/shift.

Water & Wastewater Treatment
Challenge: Monitoring remote pump stations and clarifier controls across campus-style treatment facilities.
Solution: DSTC452 modems enable cost-effective serial bus extension over underground coaxial conduit, avoiding fiber optic installation expenses.
Outcome: Reduced communication infrastructure costs by 55% versus fiber alternatives while maintaining <2ms latency.

Food & Beverage Processing
Challenge: Coordinating pasteurization temperature controls with CIP system interlocks in stainless steel washdown environments.
Solution: Sealed modem enclosure withstands IP65-rated cleaning protocols while FSK modulation resists interference from variable-speed pump drives.
Outcome: Zero communication-related batch rejections over 18-month validation period.

Technical Parameters & Selection Guide

Selection Criteria for System Integrators:

Choose the DSTC452 when your application requires: (1) Serial I/O bus extension beyond 50 meters in electrically noisy environments, (2) Integration with existing ABB Advant control platforms without protocol conversion overhead, (3) Coaxial cable infrastructure already installed or preferred for EMI immunity, (4) Compliance with European RoHS environmental regulations, (5) Swiss-quality manufacturing standards for critical process control applications.

Not recommended for: Greenfield installations where modern Ethernet-based protocols (PROFINET, EtherNet/IP) are specified, applications requiring data rates exceeding serial bus limitations, or systems outside the ABB Advant product family without appropriate gateway hardware.

Extended Capabilities & Integration Options

MasterFieldbus Network Expansion
Seamlessly integrates into ABB MasterFieldbus architectures, enabling multi-drop configurations with up to 32 nodes per coaxial segment. Supports both point-to-point and multi-point topologies for flexible network design.

Redundancy Configuration Support
Compatible with dual-redundant communication schemes when paired with appropriate ABB redundancy modules, ensuring fault-tolerant operation in safety-critical applications (SIL-rated systems require additional certification verification).

Diagnostic LED Indicators
Front-panel status LEDs provide real-time visibility into power status, transmit/receive activity, and fault conditions—accelerating troubleshooting and reducing mean-time-to-repair during maintenance events.

Hot-Swap Capability
Supports online module replacement in redundant configurations, minimizing process disruption during scheduled maintenance or emergency component swaps (consult system documentation for hot-swap prerequisites).

Custom Cable Length Optimization
Field-configurable termination resistors accommodate cable runs from 10 meters to 500+ meters, with application engineering support available for installations exceeding standard specifications.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units shipping from our Shanghai distribution center. Express 24-hour dispatch available for critical downtime scenarios (subject to inventory availability).

Custom Configuration Lead Time: 7-10 business days for pre-configured units with customer-specific termination settings or tested cable assemblies.

Warranty Coverage: 12-month manufacturer's warranty covering material defects and workmanship failures under normal operating conditions. Extended 36-month warranty programs available for high-reliability applications.

Technical Support: Unlimited email and phone support from ABB-certified application engineers. Remote diagnostic assistance included for troubleshooting communication issues and system integration challenges.

Documentation Package: Each unit ships with installation quick-start guide, wiring diagrams, connector pinout specifications, and digital access to full technical manuals (PDF format). CAD drawings and 3D STEP models available upon request for panel design integration.

Spare Parts Availability: Critical components including connectors (3-position plug 2664197-3, 10-position plug 2664193-10) and protective fuses (200mA fuse 3BSC770001R137) stocked for immediate shipment. Exchange part number EXC5751017-A available for rapid replacement programs.

Frequently Asked Questions

Q: Can the DSTC452 modem interface with non-ABB PLCs or third-party control systems?
A: The DSTC452 is purpose-engineered for ABB Advant Controller 160 and 800xA platforms using proprietary serial I/O bus protocols. Direct interfacing with Siemens, Allen-Bradley, or other vendor PLCs requires protocol gateway hardware. For multi-vendor integration projects, consult our application engineering team to specify appropriate bridge modules and confirm compatibility.

Q: What maximum cable distance can the FSK modem support in typical industrial installations?
A: Standard installations support coaxial cable runs up to 500 meters (1,640 feet) using RG-58 or equivalent 50-ohm cable with proper termination. Actual distance depends on cable quality, number of network nodes, and ambient electrical noise levels. High-EMI environments may require distance reduction to 300-400 meters. For installations exceeding 500 meters, fiber optic repeaters or alternative communication architectures should be evaluated.

Q: Does this communication module reduce energy consumption compared to older serial interface cards?
A: The DSTC452 features low-power FSK circuitry drawing approximately 3.5W during active communication—representing a 40-50% reduction versus legacy serial interface modules. In large distributed control systems with 20+ communication nodes, annual energy savings can reach 600-800 kWh, translating to $80-120 in reduced operating costs (based on $0.12/kWh industrial rates). Additional savings accrue from reduced cooling requirements in climate-controlled control rooms.

Q: What are the specific installation requirements for mounting and wiring the DSTC452 in control cabinets?
A: The modem mounts via standard 35mm DIN rail clips or four M4 panel-mount screws (mounting hardware included). Minimum clearances: 50mm top/bottom for ventilation, 25mm sides for cable routing. Coaxial connections require BNC or TNC connectors (specify during ordering). Power input accepts 24VDC ±10% at 150mA maximum draw. Protective fusing (200mA slow-blow) mandatory per ABB installation standards. Grounding lug must connect to cabinet earth ground via <0.1Ω impedance path for optimal EMI performance.

Q: Is remote monitoring and diagnostics supported for predictive maintenance programs?
A: When integrated with ABB 800xA systems, the DSTC452 exposes diagnostic parameters including signal strength, error counters, and link status to the control system's asset management layer. These parameters can feed into condition-based maintenance algorithms or SCADA alarm systems. Standalone installations without 800xA integration rely on front-panel LED indicators for status monitoring. For advanced predictive analytics, consider pairing with ABB Ability™ digital services platforms.

Q: Can multiple DSTC452 modems operate on the same coaxial cable segment without interference?
A: Yes—the FSK modulation scheme supports multi-drop configurations with up to 32 addressable nodes per coaxial segment using CSMA/CD collision avoidance protocols. Each modem requires unique node addressing configured via DIP switches or software parameters (consult installation manual for addressing procedures). Proper cable termination (50-ohm resistors at segment endpoints) is critical for preventing signal reflections in multi-node topologies.
