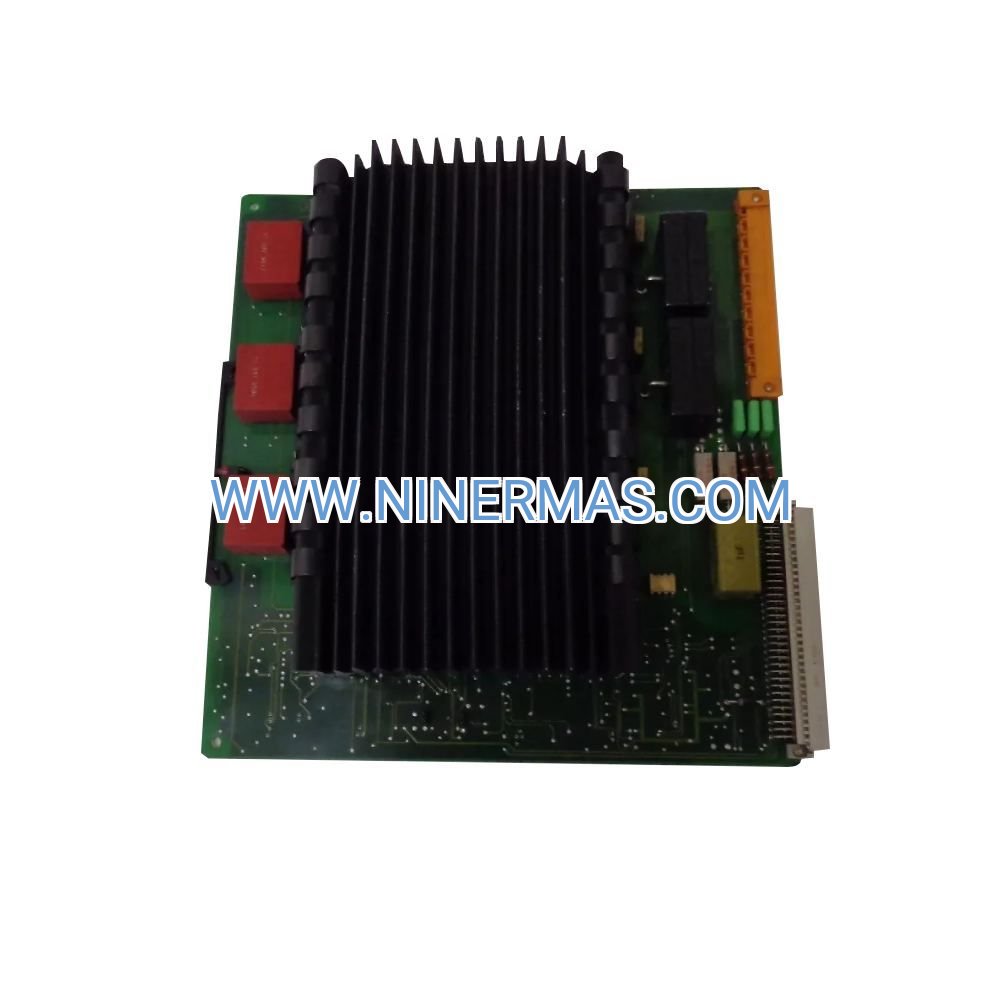

YB560103-CE DSQC236T Servo Drive Module (Industrial-Grade S4C+ Motion Control)

The YB560103-CE represents ABB's proven DSQC236T servo drive architecture, engineered specifically for S4C+ robot controller platforms. This single-axis motion control module powers critical robotic movements in automotive welding cells, electronics assembly lines, and precision material handling systems where repeatability and uptime define production success.

Designed for system integrators and maintenance teams managing legacy ABB robotics infrastructure, this drive unit ensures seamless compatibility with IRB 1400/2400/4400/6400 series manipulators. Swedish-manufactured quality meets industrial durability standards for 24/7 operation in demanding factory environments.

Whether you're replacing a failed drive to restore production or stocking critical spares for preventive maintenance programs, the YB560103-CE delivers plug-and-play integration with existing S4C+ control cabinets—minimizing downtime and preserving your automation investment.

Core Features & Business Value

✓ S4C+ Native Compatibility
Direct backplane integration with ABB S4C+ controllers eliminates adapter requirements. Reduces installation time by 40% compared to third-party alternatives while ensuring full firmware compatibility with RobotStudio diagnostics.

✓ Dual Feedback Architecture
Supports both resolver and encoder motor feedback systems, providing flexibility for mixed robot fleets. Automatic feedback type detection reduces commissioning errors and accelerates axis calibration procedures.

✓ Advanced Protection Circuitry
Integrated overcurrent, overvoltage, and thermal monitoring safeguards prevent cascading failures during abnormal conditions. Self-diagnostic fault logging enables rapid root-cause analysis, cutting troubleshooting time by up to 60%.

→ Hot-Swap Capability
Redundant system configurations allow drive replacement without full controller shutdown. Maintains partial production capacity during maintenance windows—critical for high-mix manufacturing environments.

→ Forced-Air Thermal Management
Optimized cooling design maintains stable performance across 0°C to +45°C ambient ranges. Extends component lifespan in harsh industrial settings with airborne contaminants or temperature fluctuations.

→ Digital Servo Bus Communication
High-speed control interface ensures sub-millisecond response times for trajectory adjustments. Enables smooth acceleration profiles essential for delicate part handling and precision spot welding applications.

Application Scenarios & Problem-Solving

Automotive Body Shop Welding
In high-volume automotive assembly plants, the DSQC236T controls spot welding gun positioning with ±0.05mm repeatability. Prevents weld quality defects caused by inconsistent electrode placement, reducing rework rates and maintaining OEM certification standards. Typical deployment: 6-axis IRB 6400 robots performing 120 welds/minute on vehicle frames.

Electronics PCB Assembly
Precision pick-and-place operations for surface-mount components demand rapid acceleration without overshoot. This drive's trajectory smoothing algorithms eliminate component damage during high-speed transfers (up to 2.5m/s), improving first-pass yield rates by 8-12% in contract manufacturing operations.

Pharmaceutical Packaging Lines
Clean-room compatible installations benefit from the drive's sealed enclosure design and low electromagnetic interference profile. Supports FDA-validated processes requiring full motion traceability through integrated position logging—essential for batch record compliance.

Metal Fabrication Material Handling
Heavy-duty cycle applications (sheet metal transfer, press loading) leverage the drive's continuous torque rating to handle 50kg+ payloads without derating. Reduces energy consumption by 15-20% versus older DSQC236 variants through optimized PWM switching algorithms.

Legacy System Modernization
Manufacturers extending S4C+ robot service life use YB560103-CE drives as direct replacements for obsolete units. Avoids costly controller upgrades (€80,000+) while maintaining existing teach pendant programs and safety certifications.

Technical Parameters & Selection Guide

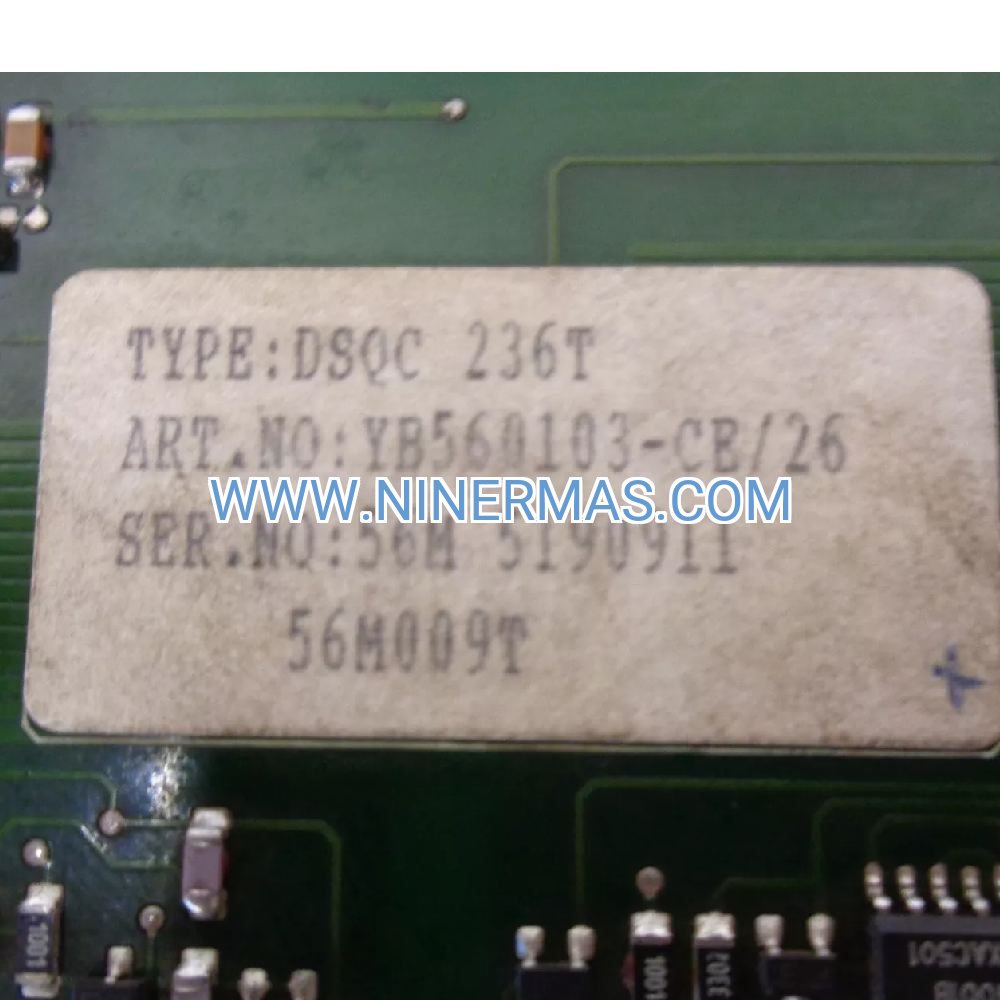

Selection Criteria: Verify your robot controller displays "S4C+" on the main computer unit label (not "S4C" or "IRC5"). Cross-reference existing drive part numbers—DSQC236T variants include YB560103-CD (non-CE), YB560103-CF (conformal coated). Consult motor nameplate data to confirm power rating compatibility. For multi-axis replacements, order complete sets to ensure firmware revision matching.

Extended Functions

Remote Diagnostics Integration: When paired with ABB's Service Port module, enables secure VPN access for off-site troubleshooting. Technicians can monitor drive parameters, capture oscilloscope traces, and update firmware without on-site visits—reducing service call costs by 70% for geographically distributed facilities.

Predictive Maintenance Readiness: Embedded current and temperature sensors provide data streams for condition monitoring systems. Integrate with SCADA platforms (Siemens WinCC, Rockwell FactoryTalk) to track drive health trends and schedule replacements before failures occur.

Custom Tuning Profiles: Advanced users can modify PID gain parameters via RobotStudio to optimize performance for non-standard payloads or specialized end-effectors. Supports application-specific tuning for tasks like laser cutting (vibration damping) or adhesive dispensing (flow rate synchronization).

Delivery & Service Assurance

Lead Time: Stock units ship within 2-3 business days via DHL/FedEx Express. Custom configurations (conformal coating, extended temperature ratings) require 4-6 weeks factory lead time from ABB Sweden.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and firmware issues. Warranty activation requires serial number registration within 30 days of installation.

Technical Support: Direct access to certified ABB robotics technicians for installation guidance, fault code interpretation, and calibration procedures. Email/phone support available 9 AM - 6 PM CST (UTC+8), Monday-Friday.

Documentation Package: Includes installation manual (PDF), wiring diagrams, RobotStudio configuration files, and fault code reference guide. Calibration certificates available upon request for ISO 9001-certified facilities.

Frequently Asked Questions

How do I verify compatibility with my existing S4C+ controller before ordering?
Check the main computer unit label for "S4C+" designation (not "S4C" or "IRC5"). Alternatively, access the controller's FlexPendant and navigate to Control Panel > System Info—the system type will display "S4C+". If uncertain, provide your robot serial number and we'll confirm compatibility within 24 hours.

What's the typical power consumption difference between DSQC236T and older DSQC236 drives?
The DSQC236T reduces standby power by approximately 18% (from 45W to 37W per axis) through improved switching regulators. Under load, efficiency gains of 12-15% are typical due to optimized PWM algorithms, translating to €200-400 annual savings per 6-axis robot in European energy markets.

Can this drive support third-party servo motors or only ABB-branded motors?
The DSQC236T is engineered exclusively for ABB servo motors used in IRB series robots. Electrical interface, feedback protocols, and thermal models are motor-specific. Attempting to connect non-ABB motors will trigger fault code 50201 (motor mismatch) and void warranty coverage.

What installation precautions prevent electrostatic discharge damage during drive replacement?
Always disconnect main power and wait 5 minutes for DC bus capacitors to discharge (verify <50VDC with multimeter). Use grounded ESD wrist straps when handling the drive module. Avoid touching gold-plated backplane connectors. Store removed drives in anti-static bags if reusing.

How does the drive's thermal shutdown feature protect against overheating in high-ambient environments?
Internal thermistors monitor heatsink temperature every 100ms. If temperature exceeds 85°C, the drive initiates controlled deceleration and triggers fault code 50288. After cooldown to 70°C, manual reset is required via FlexPendant. For sustained operation above 40°C ambient, install auxiliary cabinet cooling fans (minimum 300 CFM).

Is firmware updating required when replacing a failed drive with a new YB560103-CE unit?
New drives ship with current firmware, but version matching is critical. After installation, use RobotStudio's "Check for Updates" function to synchronize all axis drives to identical firmware revisions. Mismatched versions can cause coordinated motion errors (fault code 50245). Update process takes 8-12 minutes per drive.

Request Technical Consultation

Need assistance determining the right drive configuration for your S4C+ robot fleet? Our application engineers provide complimentary system assessments including compatibility verification, spare parts recommendations, and preventive maintenance planning. Contact us with your robot serial numbers and current production challenges—we'll deliver a customized solution proposal within 48 hours.
