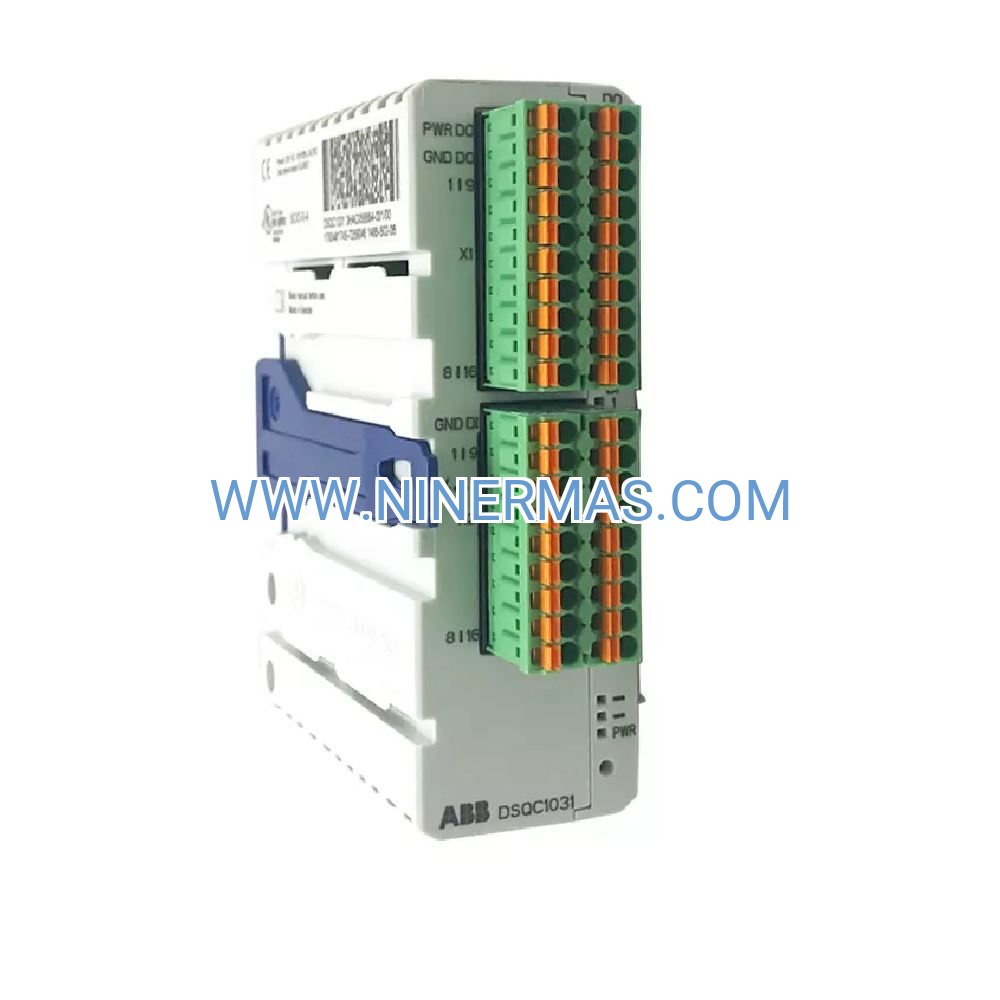

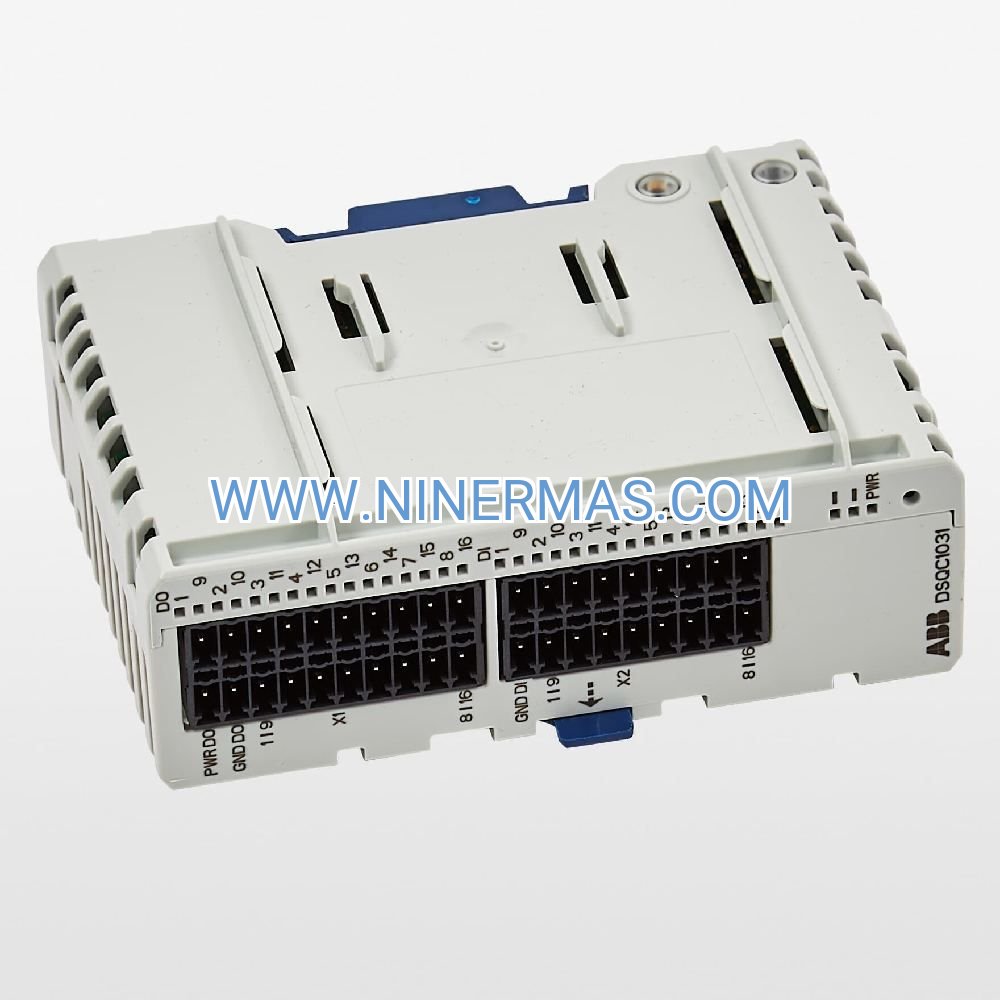

ABB DSQC1031 Digital I/O Expansion Module (Industrial-Grade Robot Controller Add-On)

The ABB DSQC1031 Digital Add-On Module (P/N: 3HAC058664-001) delivers robust I/O channel expansion for ABB IRC5 and S4C+ robot control platforms. Engineered in Sweden to ABB's exacting standards, this compact module enables seamless integration of peripheral devices, sensors, and actuators into your automated production environment. Whether you're coordinating multi-robot cells or interfacing with vision inspection systems, the DSQC1031 provides the reliable signal processing backbone your operation demands.

Designed for manufacturers who require additional digital interfacing capacity without compromising system uptime, this module features hot-swappable architecture and LED-based diagnostics for rapid troubleshooting. Its industrial-grade construction ensures consistent performance in demanding factory conditions, from automotive assembly lines to electronics manufacturing facilities.

With proven compatibility across ABB controller generations and a compact footprint that maximizes cabinet space efficiency, the DSQC1031 represents a cost-effective solution for scaling your automation infrastructure. Backed by comprehensive technical support and a 12-month warranty, this module integrates seamlessly into existing ABB ecosystems.

Core Capabilities & Business Value

✓ Expanded I/O Capacity – Adds digital input/output channels to your controller, eliminating bottlenecks when integrating conveyors, safety circuits, or quality inspection stations. Reduces the need for costly controller upgrades.

✓ Hot-Swap Functionality – Replace or install modules without powering down your entire control system (on compatible backplanes). Minimizes production interruptions and maintenance windows by up to 80%.

✓ Real-Time Diagnostics – Integrated LED status indicators provide instant visibility into module health and signal states. Accelerates fault identification and reduces mean time to repair (MTTR).

✓ Cross-Generation Compatibility – Supports both IRC5 and legacy S4C+ controller families, protecting your investment in existing automation infrastructure while enabling phased upgrades.

✓ Compact Industrial Design – 0.1 kg lightweight construction with optimized dimensions conserves valuable control cabinet real estate. Simplifies installation in space-constrained environments.

✓ Electrical Isolation & Noise Immunity – Robust signal conditioning protects against electromagnetic interference in electrically noisy factory floors, ensuring reliable operation near welding equipment, VFDs, and high-power machinery.

Industry Applications & Use Cases

→ Automotive Assembly Lines
Coordinate spot welding robots with conveyor systems and part presence sensors. The DSQC1031 handles handshake protocols between multiple robots and PLCs, ensuring synchronized material flow and reducing cycle time variability.

→ Electronics Manufacturing
Interface pick-and-place robots with vision inspection systems and reject mechanisms. Digital I/O expansion enables real-time quality feedback loops, reducing defect rates and improving first-pass yield.

→ Safety System Integration
Connect emergency stop circuits, light curtains, and safety relays to your robot controller. Additional I/O channels support redundant safety architectures compliant with ISO 13849 and IEC 61508 standards.

→ Packaging & Palletizing
Synchronize robotic palletizers with upstream filling equipment and downstream stretch wrappers. Expanded digital signals enable complex sequencing logic without external relay panels.

→ Multi-Robot Workcells
Establish communication between collaborative robots sharing a workspace. Digital handshake signals prevent collisions and optimize task allocation in flexible manufacturing cells.

Technical Specifications & Selection Guide

Selection Criteria: Verify your controller model and available backplane slots before ordering. For IRC5 systems, confirm firmware version supports hot-swap capability. Consult your system integrator if interfacing with third-party PLCs or fieldbus networks.

Advanced Integration Options

IoT Connectivity: When paired with ABB's RobotStudio software and appropriate communication modules, the DSQC1031's I/O channels can feed data to cloud-based analytics platforms for predictive maintenance and OEE monitoring.

Custom Signal Mapping: Configure input/output assignments through RobotWare to match your specific application requirements. Supports both standard 24V DC logic and configurable voltage ranges (consult technical documentation).

Fieldbus Integration: Combine with ABB's DeviceNet, PROFIBUS, or EtherNet/IP modules to create hybrid architectures that leverage both discrete I/O and network-based communication.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (subject to availability)
Custom Configuration: 7-10 business days for pre-programmed or tested assemblies
Warranty Coverage: 12 months from delivery date, covering manufacturing defects and component failures
Technical Support: Email and phone assistance for installation, configuration, and troubleshooting
Documentation Included: Installation guide, wiring diagrams, and compatibility matrix

Frequently Asked Questions

Q: What controller firmware versions support the DSQC1031 module?
A: The DSQC1031 is compatible with IRC5 controllers running RobotWare 5.x and later, as well as S4C+ systems with appropriate firmware updates. Contact our technical team to verify compatibility with your specific controller revision.

Q: How many additional I/O points does this module provide?
A: The DSQC1031 typically adds 16 digital input and 16 digital output channels, though exact configuration depends on your controller model and backplane architecture. Consult the technical datasheet for detailed specifications.

Q: Can I install multiple DSQC1031 modules in a single controller?
A: Yes, subject to available backplane slots and power budget constraints. Most IRC5 controllers support 2-4 expansion modules. Verify your system's maximum I/O capacity before ordering multiple units.

Q: What cable specifications are recommended for I/O connections?
A: Use shielded twisted-pair cables rated for industrial environments. Maximum recommended cable length is 30 meters for digital signals to maintain signal integrity. Ground shields at the controller end only to prevent ground loops.

Q: Does the module support remote diagnostics and monitoring?
A: When integrated with ABB's RobotStudio or third-party SCADA systems, I/O status can be monitored remotely. The module's LED indicators provide local diagnostics without requiring software access.

Q: Is the DSQC1031 suitable for harsh industrial environments?
A: Yes, the module is designed for standard industrial control cabinet installations with operating temperatures from 0°C to 45°C. For extreme environments (high humidity, corrosive atmospheres), consult ABB's environmental rating documentation.

Ready to Expand Your Robot Control Capacity?

Contact our automation specialists today to discuss your I/O expansion requirements. We'll help you determine the optimal configuration for your application and provide detailed technical specifications. Request a quote now or schedule a consultation to explore how the DSQC1031 can enhance your production efficiency.
