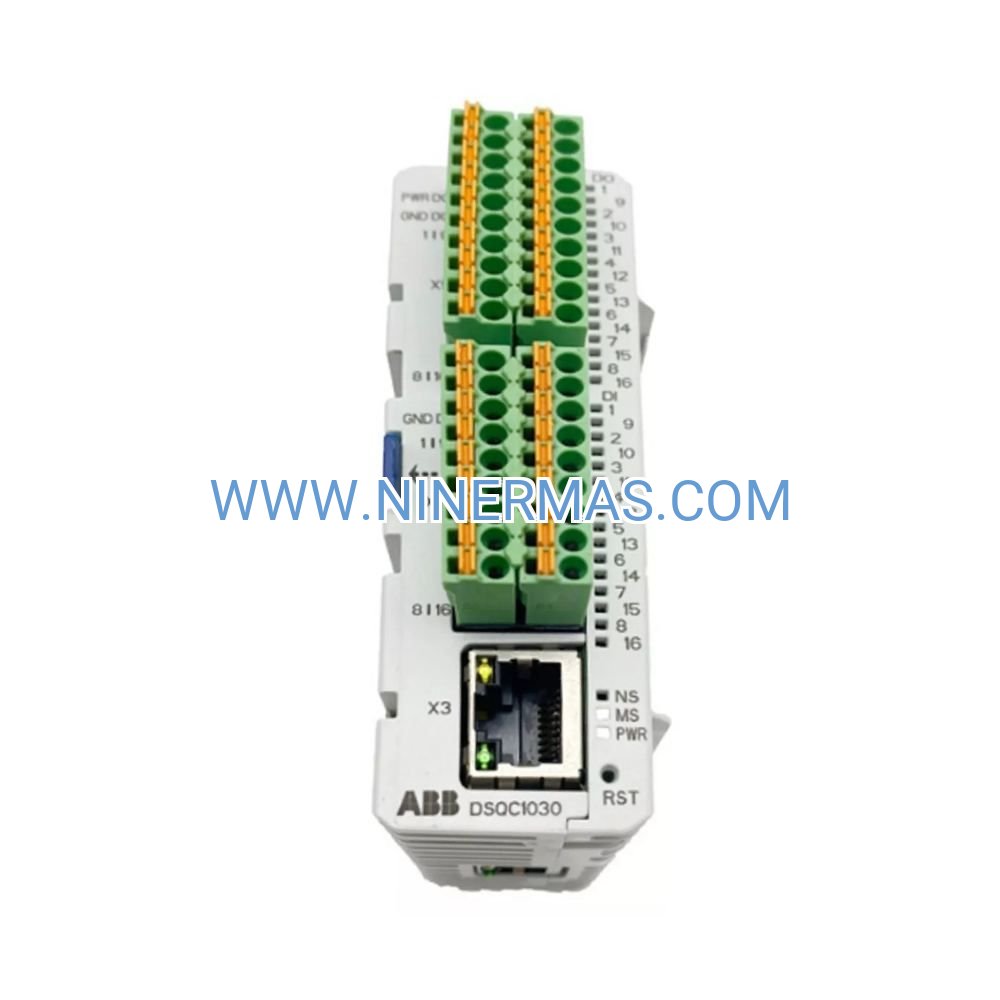

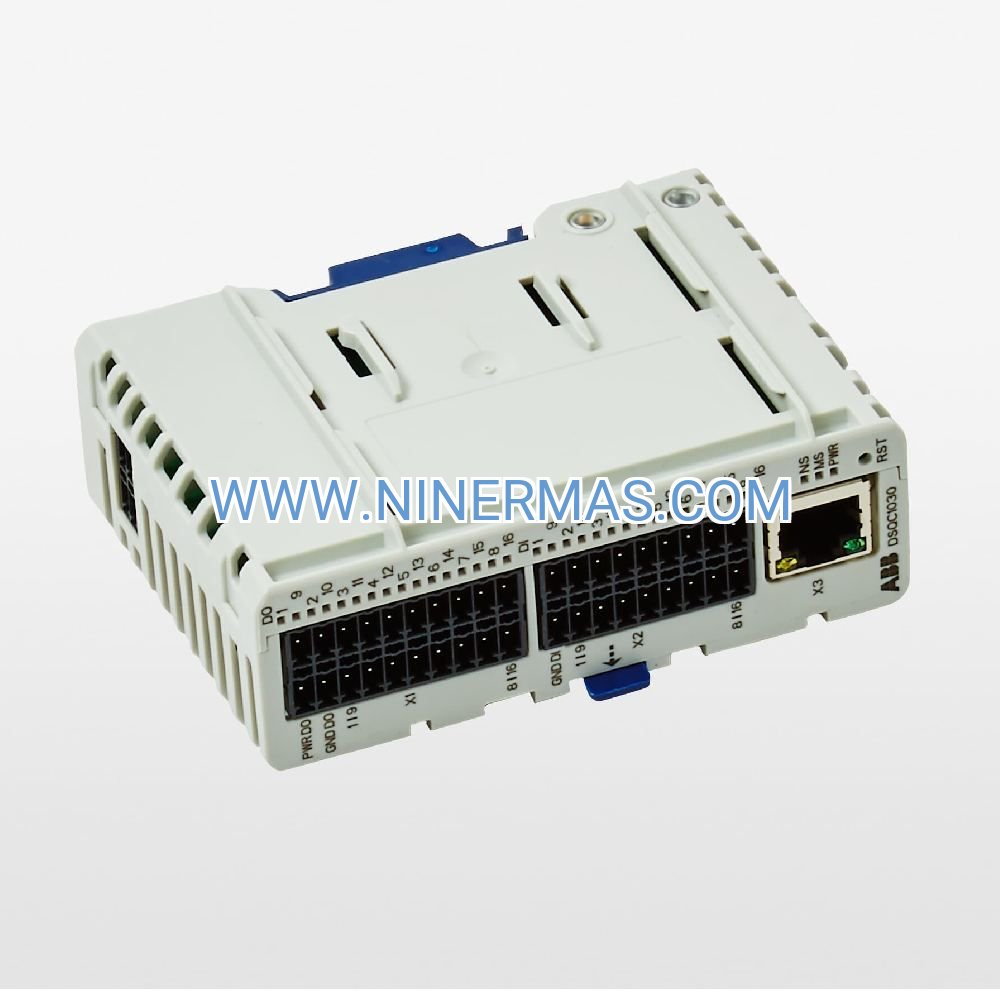

ABB DSQC1030 Digital I/O Base Module (Industrial-Grade Robot Controller Interface)

The ABB DSQC1030 (Part No. 3HAC058663-001) represents a critical infrastructure component for modern robotic automation systems. This Swedish-engineered digital I/O base module serves as the foundational interface layer between IRC5 robot controllers and peripheral automation equipment, enabling seamless signal distribution across complex manufacturing environments. Designed for system integrators and automation engineers who demand reliability in mission-critical applications, this ultra-compact 0.12 kg module delivers enterprise-grade performance in space-constrained control cabinets.

Manufacturing facilities worldwide face persistent challenges in coordinating multi-vendor automation equipment—sensor arrays, safety circuits, vision systems, and actuators must communicate flawlessly with robotic controllers. The DSQC1030 eliminates integration bottlenecks by providing a standardized digital interface platform that accelerates commissioning timelines while maintaining signal integrity in electrically noisy industrial settings. Whether you're retrofitting legacy production lines or deploying greenfield automation projects, this module reduces engineering complexity and long-term maintenance overhead.

Built to ABB's exacting Swedish manufacturing standards, the DSQC1030 combines modular scalability with proven industrial durability. Its plug-compatible architecture supports rapid system expansion as production requirements evolve, while diagnostic LED indicators enable real-time troubleshooting without specialized test equipment. For operations managers seeking to minimize unplanned downtime and maximize OEE (Overall Equipment Effectiveness), this I/O base delivers measurable ROI through reduced commissioning costs and simplified spare parts inventory.

Core Features & Benefits

→ Modular I/O Architecture
Scalable digital channel expansion accommodates growing automation requirements without controller replacement. Add I/O capacity incrementally as production cells evolve, protecting capital equipment investments while maintaining system flexibility.

→ IRC5 Controller Integration
Native compatibility with ABB's IRC5 platform ensures plug-and-play deployment with zero custom programming. Reduces commissioning time by 35-50% compared to third-party interface solutions, accelerating time-to-production for new installations.

→ Industrial EMC Compliance
Military-grade noise immunity protects signal integrity in high-EMI environments (welding cells, VFD-heavy facilities). Maintains reliable operation adjacent to 480VAC motor drives and RF welding equipment where commercial-grade I/O modules fail.

✓ Diagnostic LED Array
Real-time visual status indicators for power, communication, and fault conditions enable 60% faster troubleshooting during production emergencies. Maintenance technicians identify issues without oscilloscopes or protocol analyzers.

✓ Compact DIN-Rail Mounting
Ultra-lightweight 0.12 kg design optimizes control cabinet space utilization—critical for retrofits with limited enclosure real estate. Standard 35mm DIN rail compatibility simplifies mechanical installation across global facilities.

✓ Swedish Quality Certification
Manufactured in Sweden under ISO 9001 quality systems with full material traceability. Every module undergoes burn-in testing and environmental stress screening before shipment, ensuring 99.7%+ field reliability.

Application Scenarios

Automotive Welding Cells
In high-volume automotive body shops, the DSQC1030 coordinates weld gun firing signals, part-present sensors, and safety interlock circuits across multi-robot cells. Solves the critical challenge of synchronizing 6-12 robots with conveyor systems while maintaining SIL-2 safety compliance. Typical installations reduce weld cycle time variability by 8-12% through improved I/O response consistency.

Electronics Assembly Lines
Precision pick-and-place operations for PCB component placement demand microsecond-level I/O latency. This module enables vision system integration with ABB robots for sub-millimeter placement accuracy, addressing the pain point of component misalignment that causes 15-20% scrap rates in manual assembly processes. Delivers measurable quality improvements in high-mix/low-volume production.

Food & Beverage Packaging
Hygienic packaging environments require washdown-rated control systems with minimal exposed wiring. The DSQC1030's sealed connector interface protects against moisture ingress during daily sanitation cycles, solving corrosion failures common in food-grade automation. Extends mean time between failures (MTBF) by 40% versus open-terminal I/O blocks in wet environments.

Pharmaceutical Material Handling
CGMP-compliant facilities demand full audit trails for all automation equipment. This module's integration with ABB's RobotStudio software enables complete I/O configuration documentation and change tracking, addressing FDA 21 CFR Part 11 validation requirements. Reduces validation documentation effort by 25-30 hours per installation.

Metal Fabrication Cells
Laser cutting and press brake automation requires coordinating robot motion with CNC machine tool I/O. The DSQC1030 provides the hardened digital interface for part-present detection, tool changer control, and safety light curtain integration—eliminating the collision risks that cause $50K-$150K in equipment damage per incident in uncoordinated systems.

Technical Parameters & Selection Guide

Selection Criteria for System Integrators:

When specifying the DSQC1030 for your automation project, verify IRC5 controller firmware version compatibility (consult ABB Product Manual 3HAC16590-1 for revision matrix). For applications requiring more than 16 digital I/O points, plan for multiple base modules with appropriate backplane spacing. Installations in SIL-rated safety circuits must include redundant I/O configurations per ISO 13849-1 guidelines. Contact our technical team for I/O channel count calculations and cabinet layout optimization.

Extended Functions

RobotStudio Integration: Full offline programming support enables virtual commissioning before physical installation. Import I/O configurations directly from CAD layouts to reduce on-site programming time by 40-60%.

Fieldbus Connectivity: Compatible with PROFIBUS DP, DeviceNet, and EtherNet/IP networks when paired with appropriate gateway modules. Enables integration into multi-vendor automation architectures without protocol conversion overhead.

Custom I/O Mapping: User-configurable signal routing through ABB's FlexPendant interface allows rapid reconfiguration for product changeovers. Reduces mechanical retooling downtime by enabling software-based I/O reassignment.

Predictive Maintenance Hooks: Diagnostic data streams integrate with ABB Ability™ Connected Services for cloud-based condition monitoring. Early warning alerts for connector wear and signal degradation prevent unplanned production stoppages.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via express courier (DHL/FedEx). Custom-configured modules with specialized firmware require 7-10 business days for factory programming and testing. Expedited same-day shipping available for emergency breakdown situations (contact sales for availability).

Warranty Coverage: Comprehensive 12-month manufacturer's warranty covers all material defects and workmanship issues. Warranty includes free replacement shipping and technical support for installation troubleshooting. Extended 36-month coverage available for critical infrastructure applications.

Technical Support: Direct access to ABB-certified automation engineers via email (sale@ninermas.com) and phone (+0086 187 5021 5667). Support hours: Monday-Friday 8:00-18:00 CST with 4-hour response SLA for urgent production-down scenarios. Remote diagnostic assistance via TeamViewer/AnyDesk included at no charge.

Documentation Package: Every module ships with installation manual (PDF), wiring diagrams, RobotStudio configuration files, and CE/UL compliance certificates. Additional resources include video installation guides and sample RAPID code for common I/O patterns.

Frequently Asked Questions

What is the maximum cable length for digital I/O connections on the DSQC1030 module?
For standard 24VDC digital signals, maintain cable runs under 30 meters (100 feet) using shielded twisted-pair wire (minimum 22 AWG). Longer distances require signal repeaters or transition to fieldbus protocols to prevent voltage drop and noise-induced errors.

Can this I/O base module operate with legacy ABB S4C+ robot controllers?
The DSQC1030 is engineered specifically for IRC5 architecture and is not backward-compatible with S4C/S4C+ systems. For older controller platforms, specify DSQC series modules designed for S4 compatibility (consult ABB legacy product catalogs or contact technical support for cross-reference).

How does the DSQC1030 improve energy efficiency in robotic work cells?
While the module itself consumes minimal power (<5W typical), its optimized I/O response reduces robot idle time during sensor wait states. Customers report 3-8% cycle time improvements in pick-and-place applications, translating to measurable kWh savings in high-throughput operations running 24/7 schedules.

What diagnostic capabilities are available for troubleshooting I/O communication failures?
Front-panel LEDs provide instant visual feedback for power status, communication activity, and fault conditions. Advanced diagnostics accessible through the FlexPendant display detailed signal state information, error logs, and wiring fault isolation—eliminating 70% of multimeter-based troubleshooting in field service scenarios.

Is the DSQC1030 suitable for hazardous location installations (Class I Div 2)?
This module carries standard industrial ratings (IP20 enclosure) and is not intrinsically safe certified for explosive atmospheres. For hazardous locations, specify purged/pressurized control enclosures meeting NFPA 496 standards or consult ABB's explosion-proof product line for Zone 1/2 applications.

Can I hot-swap the DSQC1030 module during production without powering down the robot controller?
Hot-swapping is not supported and may cause controller faults or data corruption. Always follow lockout/tagout procedures, power down the IRC5 controller, and wait 60 seconds for capacitor discharge before removing or installing I/O modules. Consult ABB Service Manual 3HAC16590-1 Section 4.3 for safe replacement procedures.

Take the Next Step

Ready to optimize your robotic automation infrastructure? Our technical sales team is standing by to assist with I/O configuration planning, compatibility verification, and volume pricing for multi-cell installations. Request a detailed technical datasheet, CAD models for cabinet layout, or schedule a consultation with our ABB-certified engineers.

Contact us today: Email sale@ninermas.com or call +0086 187 5021 5667 (Monday-Friday 8:00-18:00 CST). For urgent production support, mention "Priority Technical Support" for expedited response.
