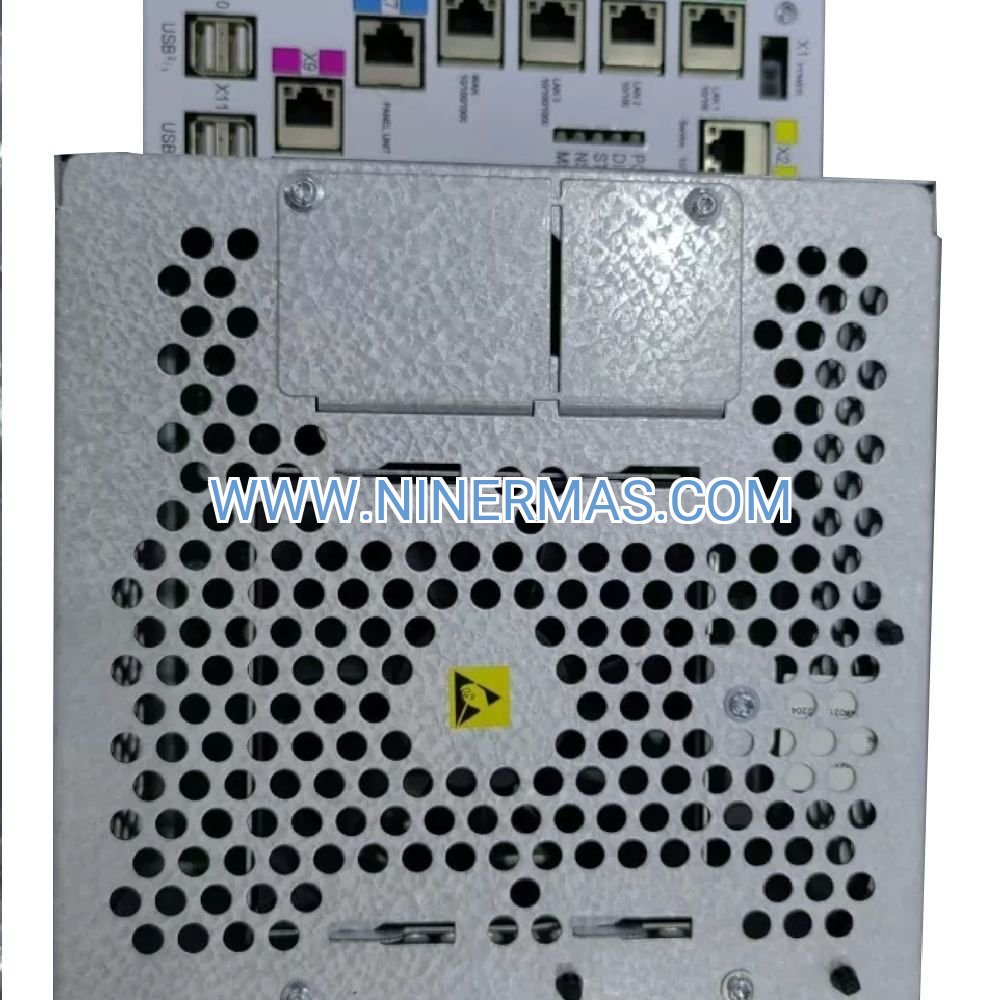

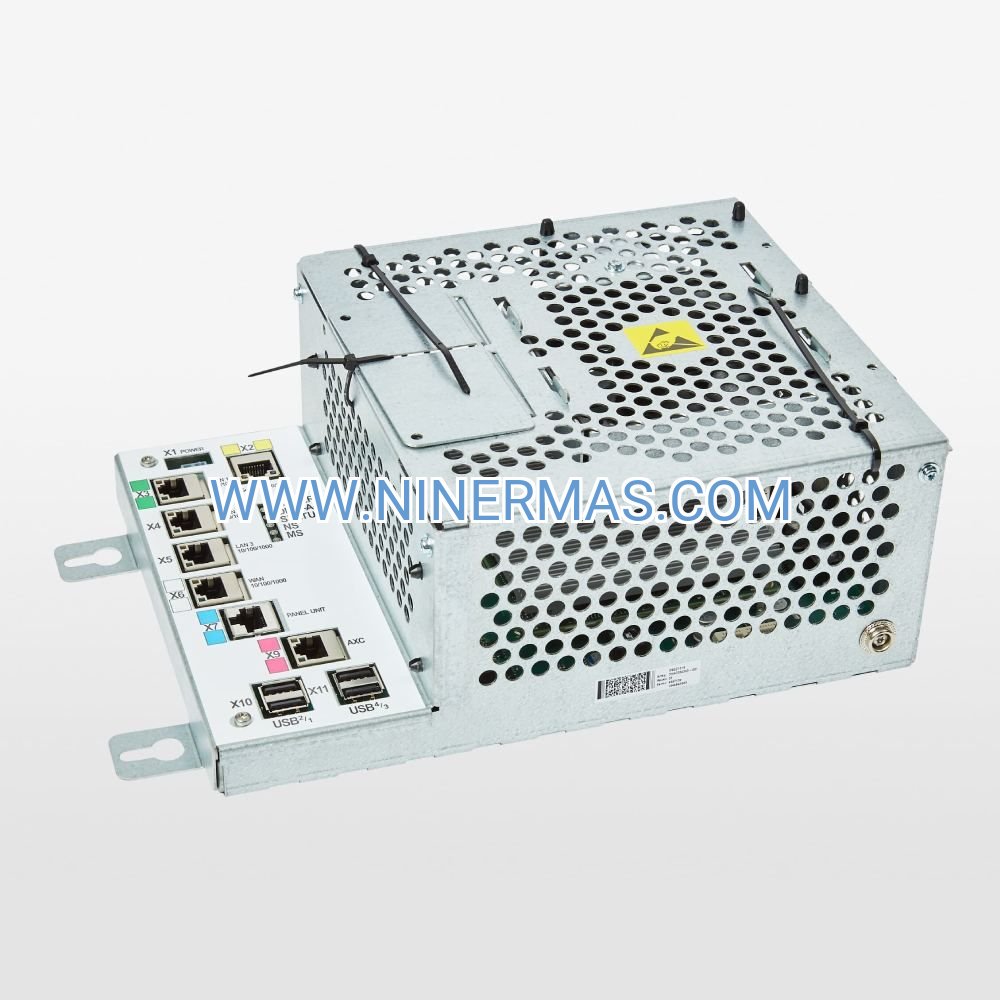

3HAC058366-001 DSQC1024 Industrial Computer (IRC5-Compatible Control Unit)

The 3HAC058366-001 represents ABB's flagship industrial computing solution engineered specifically for IRC5 robotic control architectures. This DSQC1024-series computer unit delivers enterprise-grade processing power, deterministic real-time performance, and mission-critical reliability for automated manufacturing environments demanding precision motion control, multi-axis coordination, and 24/7 operational uptime.

Designed for integrators and OEMs deploying advanced robotic workcells, this computer serves as the computational backbone for automotive assembly lines, aerospace fabrication systems, and high-throughput packaging operations. Its ruggedized construction withstands industrial electromagnetic interference, temperature fluctuations, and vibration exposure while maintaining sub-4ms control loop execution.

Whether you're upgrading legacy IRC5 systems, scaling production capacity, or building greenfield automation projects, the DSQC1024 provides the processing headroom and software compatibility required for next-generation manufacturing intelligence—from vision-guided picking to predictive maintenance analytics.

Technical Advantages & Business Value

→ Quad-Core Processing Architecture
Intel Core i7 processor (3.0 GHz base clock) enables parallel execution of motion planning, safety logic, and communication protocols without performance degradation—supporting up to 36-axis MultiMove configurations while maintaining deterministic scan cycles.

✓ Industrial-Grade Reliability Engineering
8GB ECC memory with automatic error correction, 128GB SSD with wear-leveling algorithms, and redundant cooling fans deliver MTBF exceeding 50,000 hours—reducing unplanned downtime costs by up to 40% compared to commercial-grade computing platforms.

✓ Seamless RobotWare Integration
Native support for RobotWare 6.08+ unlocks advanced capabilities including Integrated Vision, SafeMove collaborative functions, and ABB Ability Connected Services—future-proofing your automation investment as software features evolve.

→ Hot-Swap Serviceability
DIN-rail mounting with plug-and-play backplane connectivity allows replacement during scheduled maintenance windows without full system reconfiguration—minimizing production interruptions and simplifying spare parts management.

✓ Dual Network Segregation
Separate Gigabit Ethernet ports for production traffic (EtherNet/IP, PROFINET) and service access prevent diagnostic activities from impacting real-time control performance—critical for FDA-regulated and automotive IATF 16949 environments.

→ Extended Environmental Tolerance
0°C to +55°C operating range with conformal-coated PCBs withstands foundry heat, cold storage applications, and outdoor installations—expanding deployment possibilities beyond climate-controlled facilities.

Industry Application Scenarios

Automotive Body-in-White Welding
Orchestrates synchronized motion across 8-robot spot welding cells with sub-millisecond timing precision, executing 60+ welds per minute while maintaining ±0.2mm positional repeatability—critical for structural integrity and crash test compliance in vehicle assembly.

Aerospace Drilling & Fastening
Manages complex 5-axis toolpath execution for automated drilling of wing spar assemblies, coordinating drill feed rates, spindle speeds, and clamp sequences across 12-meter work envelopes with ±0.05mm hole-to-hole accuracy per Boeing specifications.

Electronics PCB Handling
Controls high-speed delta robots performing vision-guided component placement at 35,000 picks per hour, processing camera data and executing trajectory corrections within 8ms latency—enabling lights-out SMT production with 99.97% placement accuracy.

Pharmaceutical Aseptic Packaging
Executes validated motion sequences for sterile vial handling in ISO Class 5 cleanrooms, maintaining audit trails for every robot movement per 21 CFR Part 11 requirements while interfacing with serialization systems via OPC UA protocols.

Metal Fabrication Laser Cutting
Synchronizes 6-axis robot motion with fiber laser power modulation for 3D tube cutting applications, adjusting cutting parameters in real-time based on material thickness sensors—achieving 15% faster cycle times versus fixed-parameter programming.

Technical Specifications & Selection Criteria

Selection Criteria: Choose DSQC1024 when upgrading from DSQC1000 for RobotWare 6.08+ features, deploying MultiMove systems with 3+ robots, or requiring Integrated Vision processing. For RobotWare 5.x systems or single-robot applications, DSQC1000 may suffice at lower cost.

Advanced Integration Capabilities

ABB Ability Connected Services
Built-in connectivity enables cloud-based condition monitoring, analyzing motor current signatures, joint temperature trends, and program execution patterns to predict component failures 2-4 weeks in advance—shifting maintenance from reactive to scheduled.

Third-Party Vision System Integration
Ethernet/IP and TCP/IP socket interfaces support Cognex In-Sight, Keyence CV-X, and SICK Inspector vision systems for part localization, quality inspection, and barcode reading—with sub-50ms image acquisition to robot motion latency.

MES/ERP Connectivity
OPC UA server functionality enables bidirectional data exchange with SAP, Rockwell FactoryTalk, and Siemens Opcenter systems—streaming production counts, cycle times, and alarm histories for real-time OEE dashboards without custom middleware.

Custom RAPID Function Development
C++ SDK access allows development of proprietary motion algorithms, sensor fusion routines, or machine learning inference modules that execute within the RobotWare environment—protecting intellectual property while leveraging ABB's motion control foundation.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (North America, Europe, Asia-Pacific warehouses)
Custom Configuration: 10-15 business days for pre-loaded RobotWare licenses or specific firmware versions
Warranty Coverage: 12 months parts and labor, extendable to 36 months with ABB Service Agreement
Technical Support: Installation guidance, RobotWare configuration assistance, network troubleshooting (email/phone/remote desktop)
Documentation Included: Installation manual, RobotWare compatibility matrix, network configuration guide, spare parts list

Frequently Asked Questions

What RobotWare versions are compatible with the DSQC1024 computer?
The DSQC1024 requires RobotWare 6.08 or newer. It is not backward-compatible with RobotWare 5.x versions. If your system currently runs RW 5.15 or earlier, you must upgrade to RW 6.08+ (license purchase required) or continue using the DSQC1000 computer.

Can I replace a DSQC1000 with this DSQC1024 unit without reconfiguration?
Physical installation is plug-and-play via DIN rail and backplane connectors. However, you must update RobotWare to version 6.08+ and perform a system restart. Existing robot programs and calibration data remain intact, but new RW 6.x features require license activation.

How many robots can one DSQC1024 computer control simultaneously?
With MultiMove functionality enabled, the DSQC1024 supports up to 4 independent robots (maximum 36 total axes) in coordinated motion. Single-robot applications can utilize the full processing capacity for vision processing, advanced path planning, or external sensor integration.

Does the computer support wireless connectivity for remote diagnostics?
The DSQC1024 includes wired Ethernet only. For wireless access, connect an industrial-grade WiFi bridge (e.g., Moxa AWK-3131A) to one of the Ethernet ports. ABB recommends segregating wireless traffic to the service network port to prevent interference with real-time control.

What is the recommended backup strategy for this computer?
Perform weekly automatic backups to USB drive using the FlexPendant Backup & Restore function (stores programs, configurations, calibration). For disaster recovery, maintain a spare DSQC1024 with pre-loaded RobotWare image—restoration from USB takes 15-20 minutes.

Is the DSQC1024 suitable for outdoor or extreme-temperature installations?
The 0°C to +55°C operating range covers most industrial environments. For outdoor installations or temperatures outside this range, install the IRC5 cabinet in a climate-controlled enclosure with NEMA 4X rating. Conformal coating protects against humidity but not direct water exposure.

Request Technical Consultation

Our automation engineers provide complimentary pre-sales support to ensure the DSQC1024 meets your application requirements. Contact us with your robot model, RobotWare version, and integration needs for a detailed compatibility assessment and implementation roadmap.
