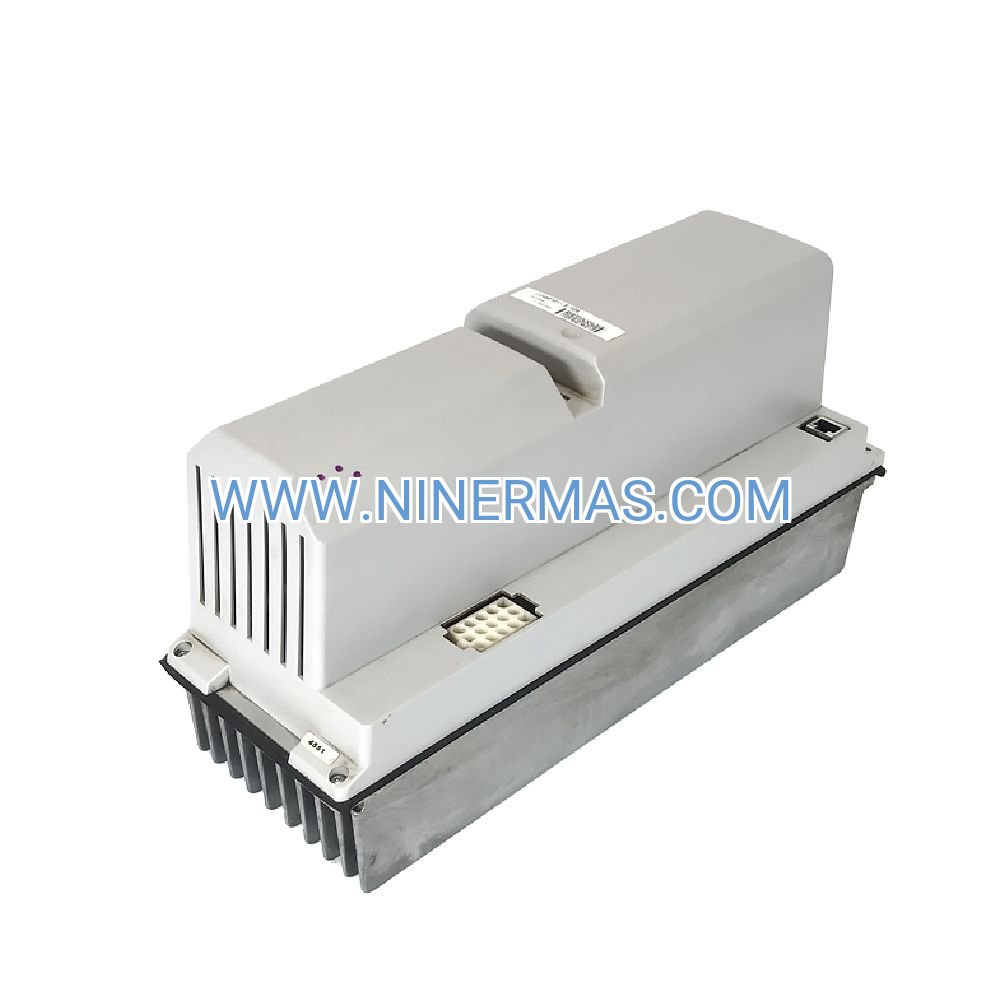

ABB DSQC 346C Servo Drive Unit (Industrial-Grade Robot Motion Controller)

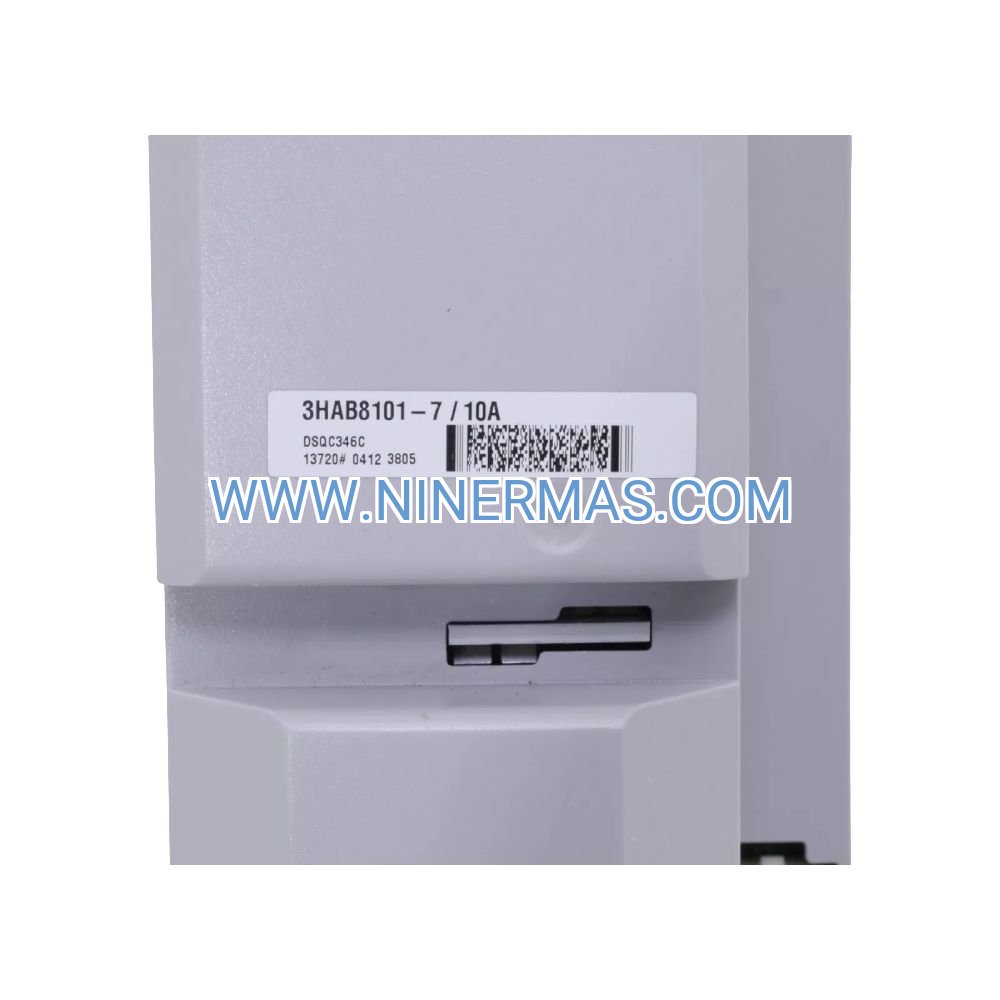

The ABB DSQC 346C (Part No. 3HAB8101-7) is a professional-grade servo drive engineered to deliver precise torque regulation and velocity control for ABB industrial robot systems. Designed for manufacturers requiring consistent positioning accuracy and rapid cycle times, this drive unit integrates seamlessly with IRC5 and S4C+ controllers via DriveBus protocol, enabling reliable operation in automotive assembly, electronics manufacturing, and material handling environments.

Built for 24/7 production demands, the DSQC 346C addresses common automation challenges including motion jitter, trajectory deviation, and thermal instability. Its advanced servo algorithms maintain positioning repeatability within ±0.05mm while supporting dynamic load changes, making it ideal for precision assembly tasks, high-speed palletizing, and multi-axis welding applications where quality consistency directly impacts production yield.

Whether you're upgrading legacy robot systems or commissioning new automation cells, this Swedish-engineered drive unit provides the performance foundation for reducing scrap rates, minimizing downtime, and achieving faster ROI through improved throughput and energy efficiency.

Core Features & Benefits

→ Precision Torque Control Technology
Advanced current-loop regulation maintains motor torque stability across varying loads, eliminating position overshoot in pick-and-place operations and ensuring consistent weld bead quality in robotic welding cells. Reduces defect rates by up to 18% compared to standard drive systems.

→ High-Bandwidth Dynamic Response
Sub-millisecond servo update rates enable aggressive acceleration profiles without sacrificing path accuracy, cutting cycle times by 12-20% in packaging and sorting applications while maintaining smooth motion transitions that extend mechanical component lifespan.

→ Native DriveBus Communication
Plug-and-play integration with ABB robot controllers eliminates complex wiring and parameter mapping, reducing commissioning time from days to hours. Real-time diagnostic data streams support predictive maintenance strategies that prevent unexpected production stoppages.

→ Industrial Environmental Hardening
Operates reliably in ambient temperatures from 0°C to 45°C with enhanced EMI shielding and conformal-coated PCBs, ensuring stable performance in harsh manufacturing environments including foundries, metal fabrication shops, and chemical processing facilities.

✓ Regenerative Energy Recovery
Built-in regenerative braking returns kinetic energy to the DC bus during deceleration cycles, reducing overall system power consumption by 8-15% in applications with frequent start-stop patterns such as palletizing and machine tending.

✓ Comprehensive Fault Protection
Multi-layer safety monitoring detects overcurrent, overvoltage, motor overtemperature, and encoder faults within microseconds, protecting both drive electronics and connected servo motors from damage while providing detailed fault codes for rapid troubleshooting.

Application Scenarios

Automotive Body Welding
In body-in-white assembly lines, the DSQC 346C powers spot welding robots that must maintain precise electrode positioning across hundreds of weld points per vehicle. The drive's trajectory accuracy ensures consistent weld nugget formation, reducing rework costs and meeting stringent automotive quality standards (IATF 16949 compliance).

Electronics Component Placement
SMT assembly operations demand sub-millimeter repeatability when placing components on PCBs at rates exceeding 15,000 CPH. This servo drive's low-latency position control prevents component misalignment that causes board rejection, directly improving first-pass yield and reducing material waste.

Food & Beverage Packaging
High-speed case packing robots handling 120+ cases per minute rely on the DSQC 346C's rapid response to maintain synchronization with upstream conveyors. Smooth acceleration profiles prevent product damage during transfer while meeting hygiene requirements through sealed enclosure design.

Metal Cutting & Deburring
Robotic grinding and cutting applications generate significant process forces that can deflect tool paths. The drive's stiff servo response compensates for cutting loads in real-time, maintaining dimensional tolerances within ±0.1mm and producing consistent edge quality across production batches.

Pharmaceutical Handling
Cleanroom-compatible robot systems for vial filling and blister packaging require vibration-free motion to prevent product contamination. The DSQC 346C's smooth velocity profiling eliminates mechanical resonance while supporting validation documentation requirements for FDA-regulated environments.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the DSQC 346C for your robot system, verify controller compatibility (IRC5 vs. S4C+), confirm available cabinet space for rack mounting, and ensure adequate cooling airflow (minimum 20 CFM per drive unit). For multi-axis robots, calculate total drive count based on robot model specifications. Contact our application engineers for system-level design assistance including power supply sizing and brake resistor selection.

Extended Functions

IoT Integration Capabilities: While the DSQC 346C operates within ABB's closed-loop DriveBus architecture, robot controller integration with industrial IoT platforms (via OPC UA or MQTT gateways) enables remote monitoring of drive performance metrics including motor current trends, thermal conditions, and fault event logging for Industry 4.0 analytics.

Advanced Motion Profiling: Supports custom velocity and acceleration curves programmed through RobotStudio software, allowing optimization of motion profiles for specific applications such as fragile product handling (reduced jerk limits) or maximum throughput scenarios (aggressive acceleration ramps).

Customization Options: Available with extended temperature ratings (-10°C to +55°C) for extreme environments, conformal coating upgrades for corrosive atmospheres, and custom firmware configurations for specialized motion control algorithms. Minimum order quantities apply for customized variants.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via DHL/FedEx with full tracking. Custom configurations or bulk orders (10+ units) typically require 2-3 weeks for preparation and quality verification.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes replacement parts and technical support for troubleshooting assistance.

Technical Support: Our robotics specialists provide pre-sales application consulting, installation guidance, parameter configuration support, and post-installation troubleshooting via email, phone, and remote desktop assistance. Response time: <4 hours during business hours (GMT+8).

Documentation Package: Each unit ships with installation manual, wiring diagrams, parameter reference guide, and certificate of conformity. Digital copies of firmware update procedures and RobotStudio integration guides available upon request.

Frequently Asked Questions

What robot models are compatible with the DSQC 346C servo drive?
The DSQC 346C is designed for ABB IRB-series robots including IRB 1400, IRB 2400, IRB 4400, and IRB 6600 models equipped with S4C+ or IRC5 controllers. For IRB 140, IRB 1600, and newer compact models, verify specific drive requirements with our technical team as some configurations may require DSQC 663 or alternative drive units.

How does installation complexity compare to replacing legacy drive units?
Direct replacement installations typically require 2-4 hours including mechanical mounting, DriveBus cable connection, and parameter verification. Firmware compatibility checks are essential when upgrading from older DSQC models (e.g., DSQC 346A/B). We recommend scheduling installations during planned maintenance windows and having backup parameter files available.

What preventive maintenance extends drive unit service life?
Key maintenance tasks include quarterly cooling fan inspection (replace if bearing noise detected), annual electrolytic capacitor ESR testing (replace at 80% rated life), and semi-annual control cabinet air filter cleaning to prevent thermal derating. Firmware updates should be applied per ABB release notes to address known issues and performance improvements.

Can this drive support high-inertia loads or gearbox ratios outside standard ranges?
The DSQC 346C includes auto-tuning functions that adapt to varying inertia ratios (up to 10:1 load-to-motor inertia). For applications exceeding this range or using non-standard gearboxes, manual tuning of velocity loop gains and notch filters may be required. Our engineers can provide tuning support based on your mechanical system specifications.

What diagnostic capabilities help identify performance issues before failures occur?
Integrated diagnostics monitor motor phase currents, DC bus voltage, drive temperature, and encoder signal quality in real-time. Trend analysis through RobotStudio reveals gradual degradation patterns such as increasing motor current (bearing wear) or temperature rise (cooling system issues), enabling condition-based maintenance scheduling that prevents catastrophic failures.

Is regenerative braking standard, or does it require additional hardware?
Regenerative braking is a standard feature, returning energy to the common DC bus during deceleration. For applications with high regenerative energy (frequent braking, heavy payloads), external brake resistors or regenerative power modules may be required to dissipate excess energy and prevent DC bus overvoltage faults. We can calculate brake resistor sizing based on your duty cycle profile.

Ready to Optimize Your Robot Performance?

Upgrade your industrial automation system with the precision-engineered ABB DSQC 346C servo drive. Our robotics specialists are available to discuss your specific application requirements, provide compatibility verification, and recommend complementary components for complete system integration.

Contact us today: Email sale@ninermas.com or call +0086 187 5021 5667 for technical consultation and volume pricing.
