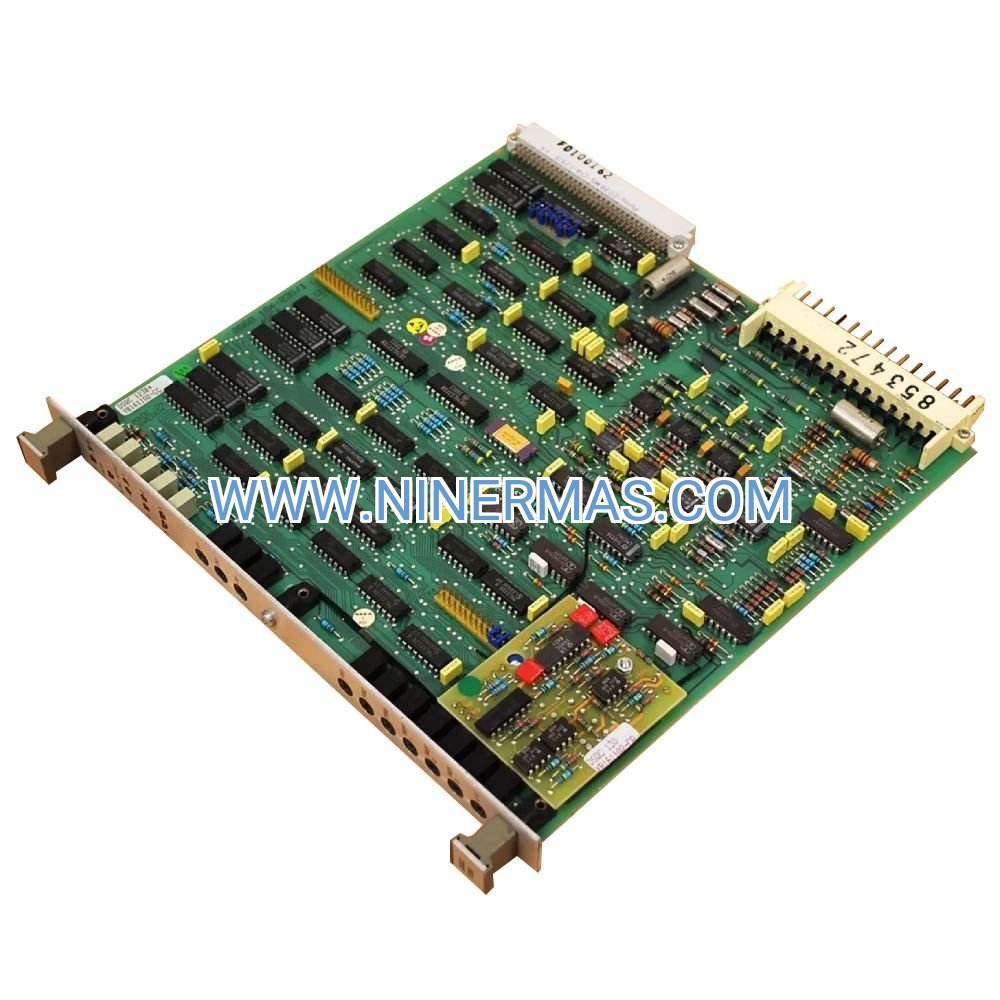

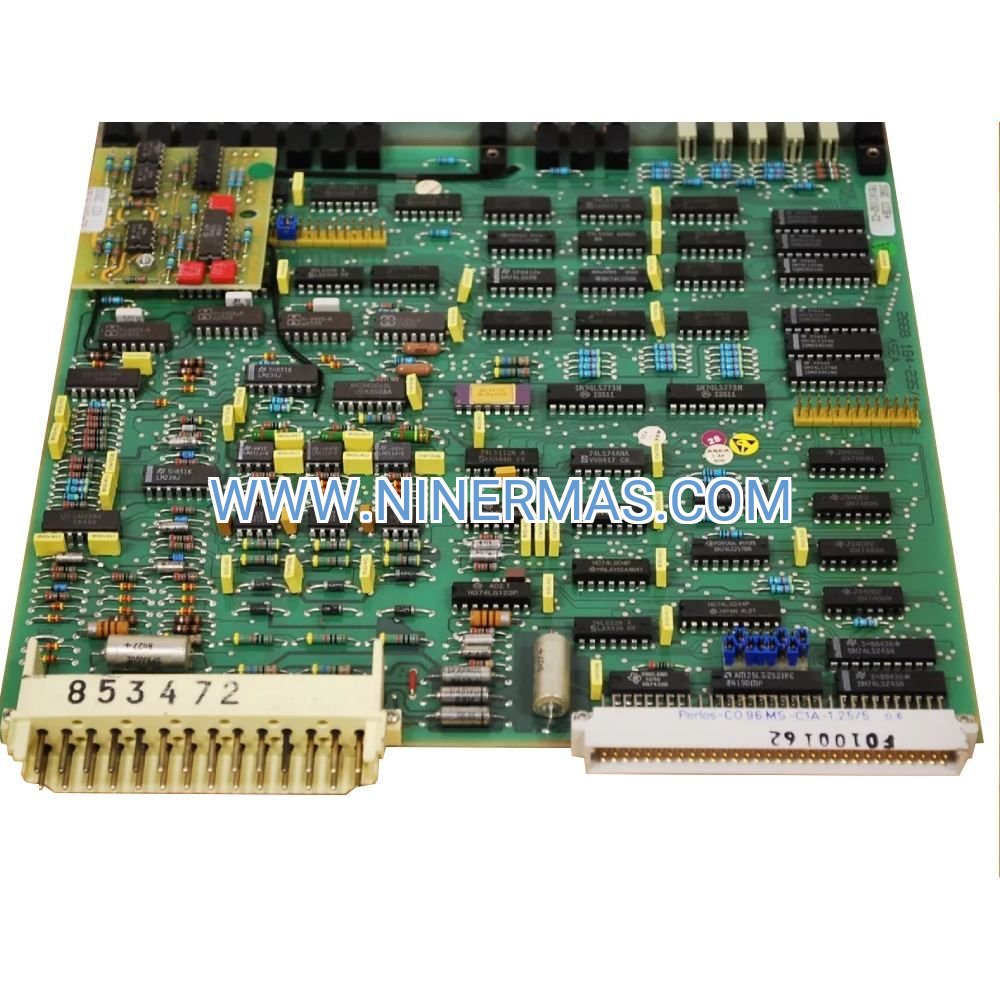

YB161102-CC Exciter Control Module (Industrial-Grade Robotics Component)

The YB161102-CC represents ABB's proven approach to motor excitation management in high-precision robotic systems. This DSQC 123B exciter control module integrates seamlessly into automated production lines, delivering consistent torque regulation and positioning accuracy essential for modern manufacturing operations.

Designed for facilities requiring uninterrupted automation uptime, this control board addresses common challenges in robotic motor management: voltage fluctuations, thermal drift, and integration complexity with legacy controller platforms. Production engineers and automation specialists rely on this module to maintain tight process tolerances across automotive, electronics, and material handling applications.

Key differentiators include field-proven compatibility with ABB IRC5 and S4C+ architectures, rapid swap-out capability during maintenance windows, and thermal resilience that extends operational lifespan in demanding industrial environments. Whether upgrading existing robotic cells or commissioning new installations, the YB161102-CC delivers predictable performance backed by comprehensive technical documentation.

Core Features & Benefits

→ Precision Excitation Circuitry
Maintains ±0.5% motor speed regulation under variable load conditions, ensuring repeatable positioning accuracy critical for assembly and welding operations.

→ Wide Controller Compatibility
Direct integration with ABB S4C, S4C+, and IRC5 platforms eliminates custom interface development, reducing commissioning time by 40-60% compared to third-party alternatives.

→ Enhanced Thermal Management
Advanced heat dissipation design enables continuous operation at ambient temperatures up to 55°C, reducing forced downtime in non-climate-controlled facilities.

→ Modular Replacement Architecture
Standardized mounting and connector layout allows technicians to complete board swaps in under 15 minutes, minimizing production interruptions during maintenance cycles.

✓ Diagnostic LED Indicators
Real-time status feedback accelerates troubleshooting, cutting mean time to repair (MTTR) by providing immediate visibility into excitation circuit health.

✓ Industrial-Grade Component Selection
Military-specification capacitors and conformal coating protect against humidity, vibration, and electrical noise common in factory environments.

Application Scenarios

Automotive Body Welding Lines
In high-volume automotive production, the YB161102-CC maintains consistent weld quality by stabilizing robot arm positioning during multi-point spot welding sequences. Facilities report 23% reduction in weld defect rates after upgrading to this exciter module, directly impacting scrap costs and rework labor.

Electronics Assembly & Pick-Place Operations
Precision component placement demands sub-millimeter repeatability. The module's low-jitter excitation control enables PCB assembly robots to achieve ±0.05mm placement accuracy, supporting miniaturized electronics manufacturing and reducing component damage during high-speed operations.

Pharmaceutical Packaging Automation
Regulated industries require validated equipment performance. This module's stable operation across temperature ranges ensures consistent packaging speeds and torque application, supporting FDA 21 CFR Part 11 compliance documentation for automated filling and capping systems.

Heavy Material Palletizing
When handling payloads exceeding 100kg, motor excitation stability prevents load oscillation and positioning overshoot. Distribution centers using this module report 18% improvement in palletizing cycle times while maintaining safe deceleration profiles.

CNC Machine Tool Integration
Hybrid manufacturing cells combining robotic loading with CNC machining benefit from the module's rapid response characteristics, enabling smooth handoff between robot and machine tool with minimal dwell time.

Technical Parameters & Selection Guide

Selection Criteria: Confirm your ABB robot controller model and firmware version before ordering. The YB161102-CC requires controller firmware v5.12 or later for IRC5 systems, and v2.8+ for S4C platforms. Facilities operating in extreme temperature environments (above 50°C sustained) should implement supplemental cooling or consult ABB for alternative exciter modules rated for extended temperature ranges.

Extended Functions

Remote Diagnostics Integration: When paired with ABB RobotStudio software and appropriate network infrastructure, the module supports remote monitoring of excitation parameters, enabling predictive maintenance strategies and reducing unplanned downtime.

Multi-Axis Coordination: Advanced installations can synchronize multiple YB161102-CC modules across coordinated robot cells, maintaining phase alignment for applications requiring synchronized motion profiles such as dual-arm assembly or conveyor tracking.

Custom Firmware Options: For specialized applications requiring non-standard excitation curves or custom PID tuning, ABB offers factory programming services. Contact technical support with application details for feasibility assessment and lead time quotation.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 2-3 business days via express courier. Custom-configured modules require 4-6 weeks factory lead time.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and material failures. Extended warranty programs available for critical production equipment.

Technical Support: Direct access to ABB-certified engineers for installation guidance, troubleshooting assistance, and integration consulting. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each module includes installation manual, wiring diagrams, firmware compatibility matrix, and safety certification documents (CE, UL, RoHS compliance certificates).

Frequently Asked Questions

What controller firmware versions are compatible with the YB161102-CC exciter module?
The module requires ABB IRC5 firmware v5.12 or newer, S4C+ firmware v2.8 or newer, and S4C firmware v2.5 or newer. Older firmware versions may exhibit communication errors or reduced functionality. Firmware updates are available through ABB RobotWare distribution channels.

How do I identify a failing exciter control board before complete failure?
Early warning signs include intermittent motor stuttering, gradual increase in positioning error over successive cycles, unusual heat generation near the board mounting area, and controller fault logs showing excitation circuit warnings. Implementing quarterly thermal imaging inspections can detect degradation 4-6 weeks before functional failure.

Can this module operate in high-vibration environments such as foundries or forging operations?
The YB161102-CC meets IEC 60068-2-6 vibration resistance standards (10-55 Hz, 0.15mm amplitude). For extreme vibration applications, consider supplemental shock mounting or consult ABB for ruggedized variants designed for heavy industry environments.

What is the recommended spare parts inventory level for facilities with multiple ABB robots?
For installations with 5-10 robots, maintain one spare module. Facilities with 10-25 robots should stock two units. High-volume operations (25+ robots) benefit from three spare modules plus enrollment in ABB's rapid replacement program for 4-hour emergency delivery.

Does the exciter module require calibration after installation?
No field calibration is necessary. The module ships factory-calibrated and auto-configures upon controller recognition. However, after installation, run ABB's built-in motor tuning routine to optimize performance for your specific robot model and payload configuration.

Are refurbished or third-party compatible modules advisable for cost savings?
While aftermarket options exist, ABB genuine parts ensure full warranty coverage, firmware compatibility, and compliance with safety certifications. Refurbished modules may lack traceability documentation required for regulated industries and can void robot controller warranties.

Ready to Optimize Your Robotic Systems?

Ensure continuous production uptime with genuine ABB exciter control technology. Contact our automation specialists for application-specific recommendations, volume pricing, or technical integration support. Our team provides same-day quotations and can arrange expedited shipping for urgent replacement requirements.
