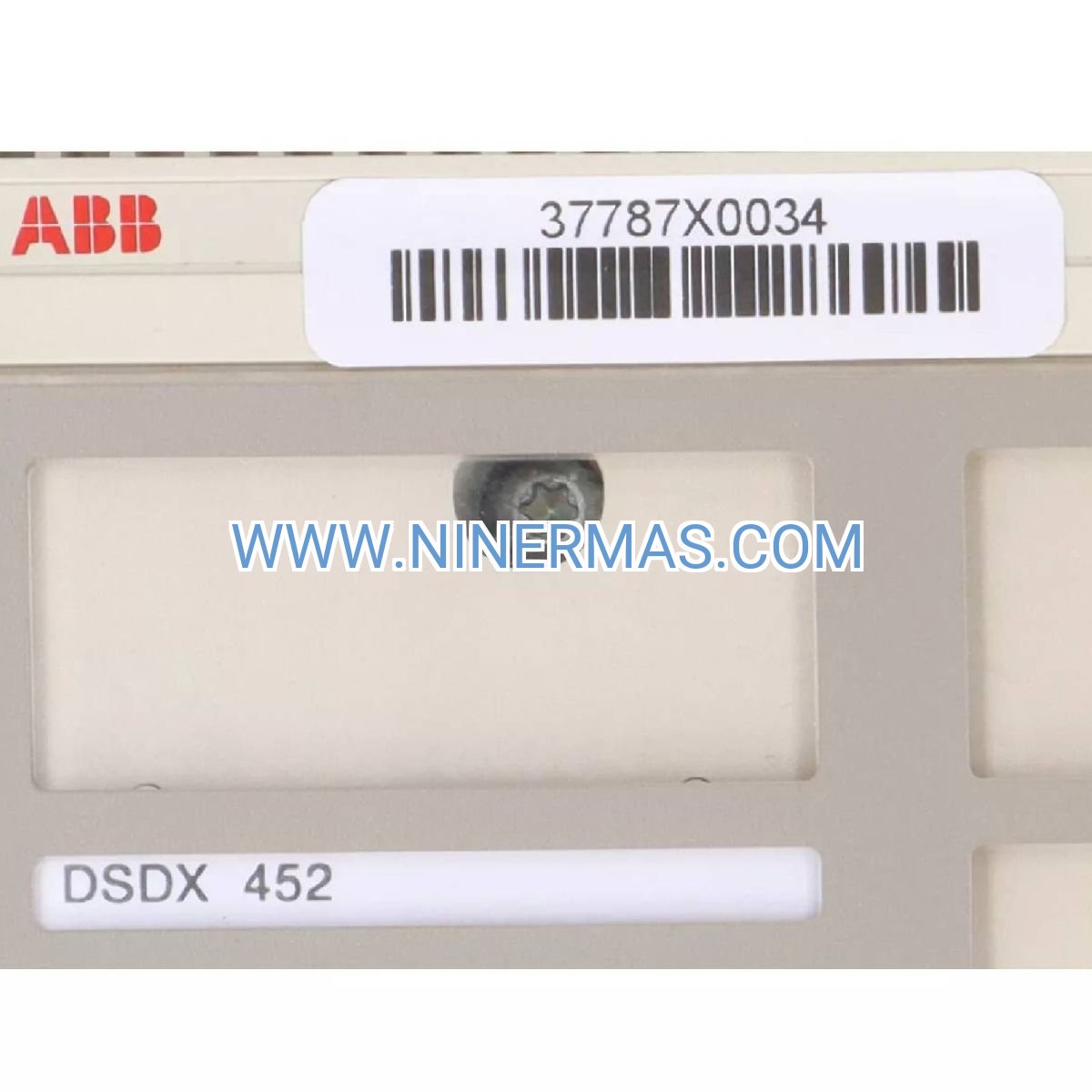

ABB DSDX452 Digital I/O Module (Industrial-Grade S800 Interface)

The ABB DSDX452 (Model Y5716075-P) represents a field-proven digital interface solution within the S800 I/O family, purpose-built for industrial control systems requiring deterministic signal processing and uncompromising reliability. This module serves as the critical bridge between field instrumentation and ABB AC 800M controllers, delivering real-time data exchange in process automation, discrete manufacturing, and infrastructure control applications.

Engineered for environments where downtime translates to significant operational losses, the DSDX452 combines Swiss manufacturing precision with advanced diagnostic capabilities. Its modular architecture integrates seamlessly into existing S800 installations while providing the flexibility to scale I/O capacity as production demands evolve.

Whether you're upgrading legacy control systems or designing greenfield automation projects, this digital I/O module delivers the performance, serviceability, and long-term availability that mission-critical operations demand. Request technical specifications and application guidance from our automation specialists today.

Core Features & Technical Advantages

✓ Configurable Digital Channels: Flexible input/output mapping adapts to diverse field device requirements, from discrete sensors to actuator control circuits
✓ Galvanic Isolation Protection: Channel-to-channel and channel-to-bus isolation safeguards control systems from ground loops and electrical transients
✓ ModuleBus High-Speed Communication: 1.5 Mbps cluster bus ensures sub-millisecond scan cycles for time-critical control loops
✓ Hot-Swap Field Serviceability: Replace modules during live operation without process interruption or controller shutdown
✓ Extended Temperature Range: -40°C to +70°C operational capability suits extreme industrial environments from Arctic facilities to desert installations
✓ Integrated Diagnostics: Per-channel LED indicators and self-test routines accelerate troubleshooting and reduce mean time to repair

Typical Application Scenarios

→ Automotive Manufacturing Lines
Coordinates pneumatic press controls, conveyor interlocks, and robotic cell safety circuits in body-in-white assembly operations. The module's fast response time ensures precise synchronization of multi-station transfer systems while isolated channels prevent electrical noise from welding equipment affecting control signals.

→ Chemical Batch Processing
Interfaces with intrinsically safe barriers for hazardous area instrumentation, managing valve sequencing, pump permissives, and emergency shutdown logic. Conformal coating protects circuitry from corrosive vapors while maintaining signal integrity in Class I Division 2 control rooms.

→ Water & Wastewater Treatment
Handles distributed pump station control, clarifier rake monitoring, and chlorination system interlocks across SCADA networks. Multiple DSDX452 modules provide the I/O density required for large treatment plants while hot-swap capability enables maintenance without service disruption.

→ Steel & Metals Production
Withstands vibration and electromagnetic interference in rolling mill environments, controlling hydraulic actuators, cooling system valves, and material handling equipment. Rugged construction ensures reliable operation in ambient temperatures exceeding 60°C.

→ Power Generation Facilities
Supports turbine control auxiliaries, boiler feedwater systems, and emissions monitoring equipment where regulatory compliance demands documented I/O performance and traceability.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DSDX452 when your application requires configurable digital I/O with isolation protection, hot-swap serviceability, and proven compatibility with ABB AC 800M control platforms. For applications demanding higher channel density, consider pairing with DI810 (32-input) or DO880 (16-output) modules. Installations requiring fieldbus distribution should incorporate CI522A interface modules for AF100 network connectivity.

Extended Functions & Integration Capabilities

Control Builder M Integration: Configure channel parameters, alarm thresholds, and scaling factors through ABB's graphical engineering environment. Function block libraries accelerate application development while built-in simulation tools validate logic before commissioning.

Redundant Controller Support: Automatic failover switching maintains I/O communication during controller redundancy transitions, ensuring zero data loss in high-availability architectures.

OPC UA Connectivity: Native support for Industry 4.0 protocols enables direct integration with MES, historian, and cloud analytics platforms without middleware gateways.

Customization Options: Factory configuration services available for pre-programmed modules, custom labeling, and application-specific testing to reduce on-site commissioning time.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for stock items; expedited shipping available for urgent requirements
Custom Configuration: 7-10 business days for factory-programmed modules with application-specific parameters
Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship
Technical Support: Direct access to ABB-certified automation engineers for application assistance, troubleshooting, and system optimization
Documentation Package: Includes installation manual, wiring diagrams, Control Builder M configuration files, and compliance certificates (CE, UL, ATEX where applicable)

Frequently Asked Questions

Q: How does the DSDX452 interface with existing S800 I/O installations?
A: The module mounts directly on TU8xx termination units using standard DIN rail clips. ModuleBus communication auto-configures when powered, with addressing managed through Control Builder M software. No special adapters or converters required for integration with AC 800M controllers.

Q: What channel capacity and configuration options are available?
A: The DSDX452 provides configurable digital I/O channels with flexible input/output mapping defined during engineering. Exact channel count and voltage specifications should be confirmed against your application requirements—contact our team for detailed configuration worksheets.

Q: Can this module reduce energy consumption in my control system?
A: While primarily focused on signal processing rather than power management, the DSDX452's efficient 24V DC operation and low quiescent current draw (typically <2W per module) contribute to overall panel energy efficiency. Its diagnostic capabilities also prevent unnecessary equipment runtime by detecting faults early.

Q: What are the installation requirements for panel mounting?
A: Requires TU8xx termination unit (sold separately), 24V DC power supply with adequate current capacity, and minimum 50mm vertical clearance for airflow. Spring-clamp terminals accept 0.5-2.5mm² wire; screw terminals accommodate up to 4mm² conductors. IP20 rating requires installation in protected enclosures.

Q: Does the DSDX452 support remote monitoring and diagnostics?
A: Yes—module status, channel health, and communication diagnostics are accessible via AC 800M controller web interface, OPC UA clients, or third-party SCADA systems. Real-time alerts notify operators of wiring faults, power anomalies, or communication errors before they impact production.

Q: How does hot-swap functionality work during live operation?
A: The S800 architecture maintains bus communication while individual modules are removed or inserted. Upon installation, the replacement module auto-synchronizes configuration from the controller, resuming I/O processing within seconds. This capability is critical for 24/7 operations where scheduled downtime is not feasible.

Take the Next Step

Upgrade your industrial control infrastructure with the proven reliability of ABB S800 I/O technology. Our automation specialists are ready to assist with system design, product selection, and technical integration support. Contact us today for application-specific recommendations, volume pricing, or to request a detailed quotation.
