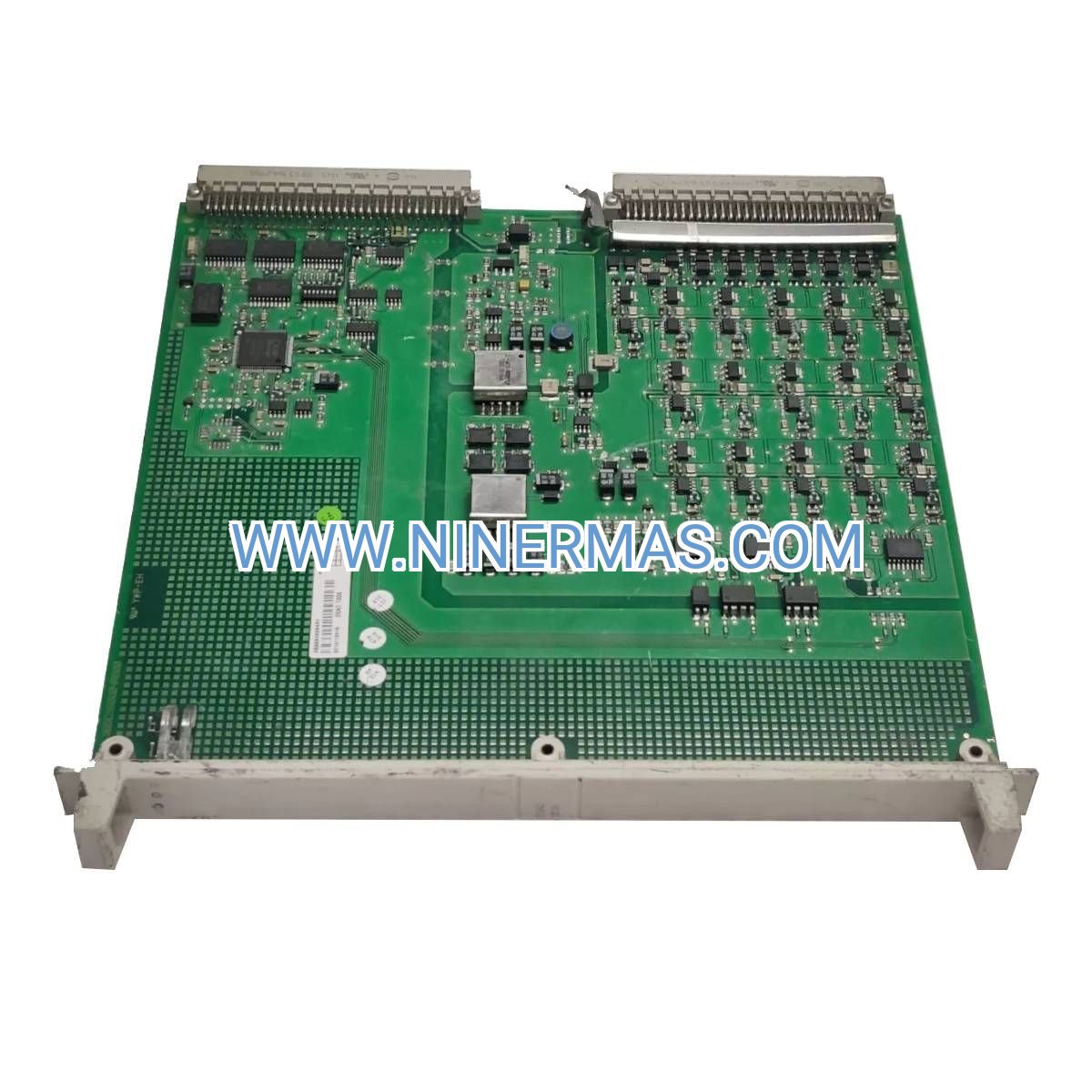

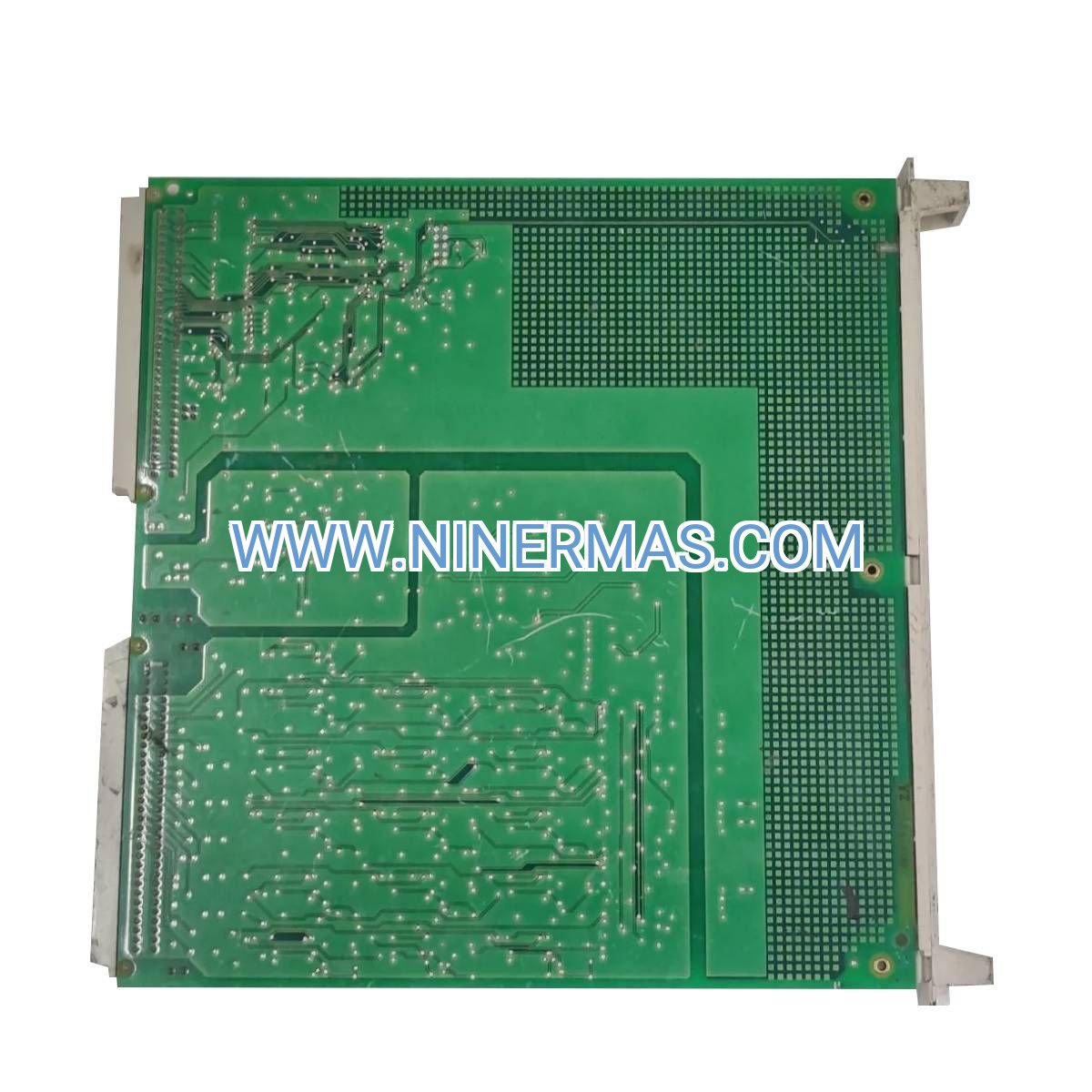

ABB DSAO130A 16-Channel Analog Output Module (Industrial-Grade Digital-to-Analog Converter)

The ABB DSAO130A (Part Number: U3BSE018294R1) represents a professional-grade analog output solution engineered for mission-critical industrial automation systems. As a core component of the ABB S800 I/O ecosystem, this 16-channel DAC module transforms digital control signals into precise analog outputs, enabling seamless integration between programmable logic controllers and field instrumentation across process industries.

Designed for environments where signal accuracy directly impacts product quality and operational safety, the DSAO130A addresses the fundamental challenge of maintaining output stability under electrical noise, temperature fluctuations, and electromagnetic interference. Target users include automation engineers, system integrators, and plant maintenance teams managing distributed control systems in chemical processing, oil refineries, pharmaceutical manufacturing, and power generation facilities.

What sets this module apart is its combination of channel density, isolation architecture, and hot-swap capability—delivering 16 independently controlled outputs with channel-to-channel isolation while supporting live replacement without system shutdown. This translates to reduced cabinet footprint, enhanced system reliability, and minimized production interruptions during maintenance cycles.

Core Features & Benefits

✓ 16 Independent Analog Output Channels
Maximize control density with simultaneous multi-point signal generation, reducing hardware costs by consolidating multiple single-channel modules into one compact unit while simplifying wiring and cabinet design.

✓ 12-Bit Resolution with ±0.1% Full-Scale Accuracy
Achieve precise process variable control with 4096 discrete output levels, ensuring tight regulation of valve positions, motor speeds, and actuator movements critical for product consistency and energy efficiency.

✓ Comprehensive Galvanic Isolation
Protect sensitive control systems from ground loops and electrical transients through channel-to-channel and channel-to-backplane isolation, preventing cross-contamination of signals and extending equipment lifespan in electrically noisy industrial environments.

✓ Extended Temperature Range (-40°C to +70°C)
Maintain operational reliability across extreme ambient conditions without performance degradation, eliminating the need for climate-controlled enclosures in outdoor installations or harsh production areas.

✓ Hot-Swap Capability with Automatic Configuration
Replace failed modules during live operation without halting production processes, while automatic parameter restoration from controller memory eliminates manual reconfiguration and reduces mean time to repair.

✓ Integrated Diagnostic Monitoring
Detect open circuits, short circuits, and out-of-range conditions in real-time through built-in self-diagnostics, enabling predictive maintenance strategies that prevent unplanned downtime and reduce troubleshooting time by up to 60%.

Typical Application Scenarios

→ Chemical Batch Processing
Control multiple reactor temperature zones, reagent flow rates, and pressure regulation valves simultaneously. The DSAO130A's multi-channel architecture enables precise recipe execution while its isolation prevents signal interference between adjacent process loops, ensuring batch-to-batch consistency and regulatory compliance.

→ Oil & Gas Pipeline Management
Regulate compressor speeds, valve actuators, and pressure control systems across distributed pumping stations. Extended temperature rating supports outdoor installations, while diagnostic capabilities enable remote monitoring of signal integrity across long cable runs in hazardous area classifications.

→ Power Generation Turbine Control
Manage fuel valve positioning, steam temperature control, and generator excitation systems with the accuracy required for grid synchronization. Hot-swap functionality allows module replacement during scheduled maintenance windows without taking generating units offline.

→ Water Treatment Plant Automation
Drive chemical dosing pumps, pH adjustment systems, and filtration process controls with consistent output signals. Channel isolation prevents electrical noise from variable frequency drives affecting sensitive analytical instrument control loops.

→ Pharmaceutical Manufacturing
Control cleanroom HVAC dampers, sterile filtration systems, and bioreactor environmental parameters with the precision and traceability demanded by FDA 21 CFR Part 11 compliance requirements.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DSAO130A when your application requires more than 8 analog outputs per control point, when cabinet space is limited, or when channel isolation is necessary to prevent ground loop interference. For applications requiring HART protocol communication or fewer channels, consider the AO845A (8-channel HART) or DSAO120A (8-channel standard) alternatives. Verify that your ABB AC 800M controller firmware version supports the DSAO130A module revision before ordering.

Extended Functions

Advanced Calibration Modes: Factory calibration ensures out-of-box accuracy, while field calibration procedures allow on-site adjustment using precision voltage/current sources to compensate for long cable runs or specific instrumentation requirements.

Redundancy Support: When configured in redundant S800 I/O systems, the DSAO130A supports automatic failover with bumpless transfer, maintaining output signals during controller switchover events without process disturbances.

Integration with ABB Ability™: Connect to ABB's Industrial IoT platform for cloud-based analytics, enabling remote diagnostics, performance trending, and predictive maintenance scheduling based on module operating hours and environmental stress factors.

Custom Output Scaling: Configure non-linear output curves through controller programming to match specific actuator characteristics, valve flow coefficients, or sensor compensation requirements without external signal conditioning hardware.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking
Custom Configuration: 10-15 business days for pre-programmed or tested assemblies
Warranty Period: 24 months from shipment date covering manufacturing defects
Technical Support: Lifetime email/phone support for configuration, troubleshooting, and integration assistance
Documentation Package: Installation manual, wiring diagrams, configuration software, and sample control code included

Frequently Asked Questions

Q: How do I interface the DSAO130A with my existing ABB AC 800M controller?
A: The module connects via the S800 I/O backplane using standard ModuleBus communication. Install the module in any available slot on your S800 rack, power cycle the system, and the AC 800M will automatically detect and configure the module. Use ABB Control Builder software to assign I/O addresses and configure output ranges.

Q: What is the maximum cable length between the DSAO130A and field devices?
A: For current outputs (4-20mA), cable runs up to 1000 meters are supported with minimal signal degradation. Voltage outputs (0-10V) should be limited to 100 meters to maintain accuracy. Use shielded twisted-pair cable with proper grounding to minimize electromagnetic interference in both cases.

Q: Can this module reduce energy consumption in my process control system?
A: Yes—the DSAO130A's high accuracy enables tighter process control, reducing overshoot and oscillation in control loops. This translates to optimized energy usage in heating/cooling systems, motor drives, and valve positioning. Customers typically report 5-15% energy savings in temperature control applications after upgrading from lower-resolution output modules.

Q: What are the installation requirements for hazardous area applications?
A: The DSAO130A carries ATEX and IECEx certifications for Zone 2/Division 2 installations when mounted in approved enclosures. Ensure proper grounding, use intrinsically safe barriers for field wiring if required by area classification, and follow local electrical codes. Consult ABB's hazardous area installation guide (document 3BSE018295) for detailed requirements.

Q: Does the module support remote monitoring and diagnostics?
A: Yes—when connected to an AC 800M controller with network connectivity, all diagnostic data (channel status, calibration drift, operating temperature) is accessible via OPC UA, Modbus TCP, or ABB's proprietary protocols. This enables integration with SCADA systems, historian databases, and cloud-based condition monitoring platforms.

Q: How does the DSAO130A compare to competitive 16-channel analog output modules?
A: Key differentiators include superior channel-to-channel isolation (500 VDC vs. typical 50-250 VDC), extended temperature range without derating, and seamless integration with ABB's ecosystem. While initial cost may be 10-20% higher than generic alternatives, total cost of ownership is lower due to reduced wiring labor, fewer spare parts, and longer mean time between failures.

Ready to Optimize Your Process Control System?

Contact our automation specialists today for application-specific configuration guidance, volume pricing, or technical consultation. Our team can assist with system design, migration planning from legacy I/O systems, and integration with your existing control architecture.

Request a Quote: Email your system requirements and we'll respond within 4 business hours
Technical Consultation: Schedule a call with our certified ABB engineers
Sample Program: Qualified system integrators can request evaluation units for project validation
