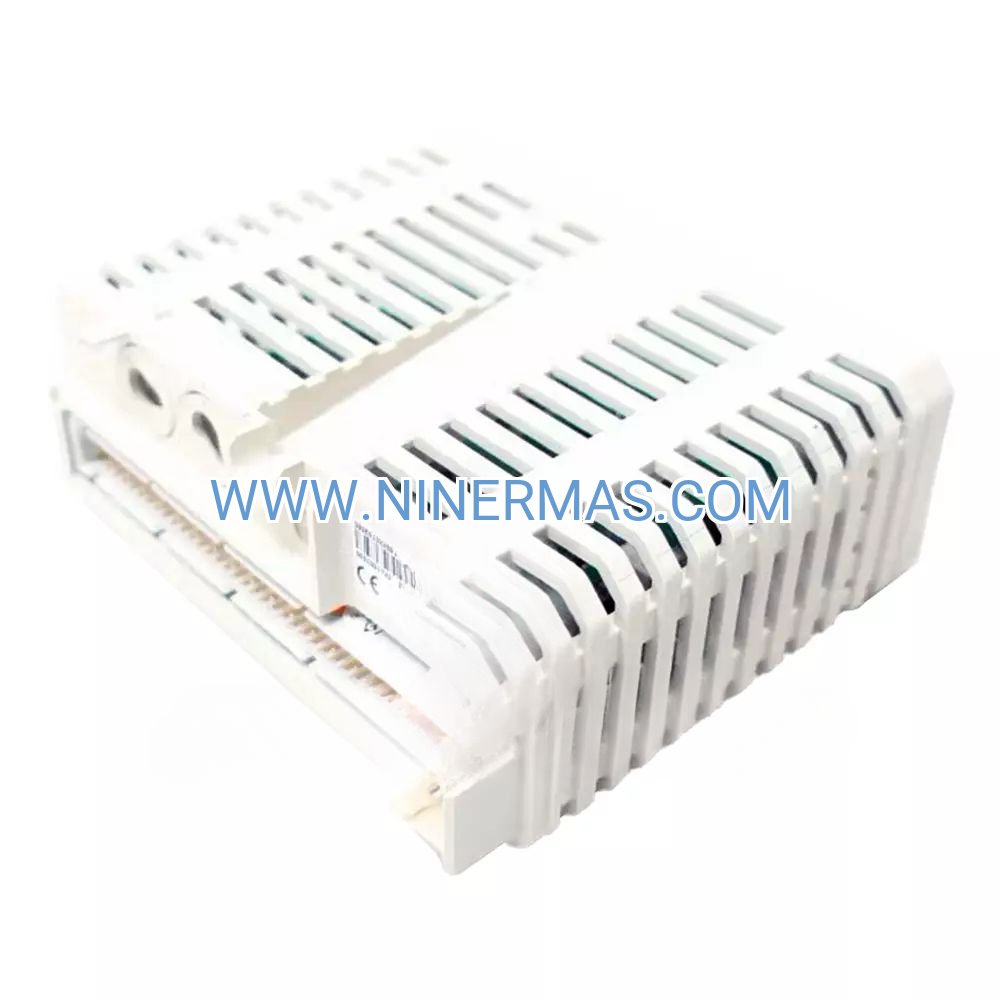

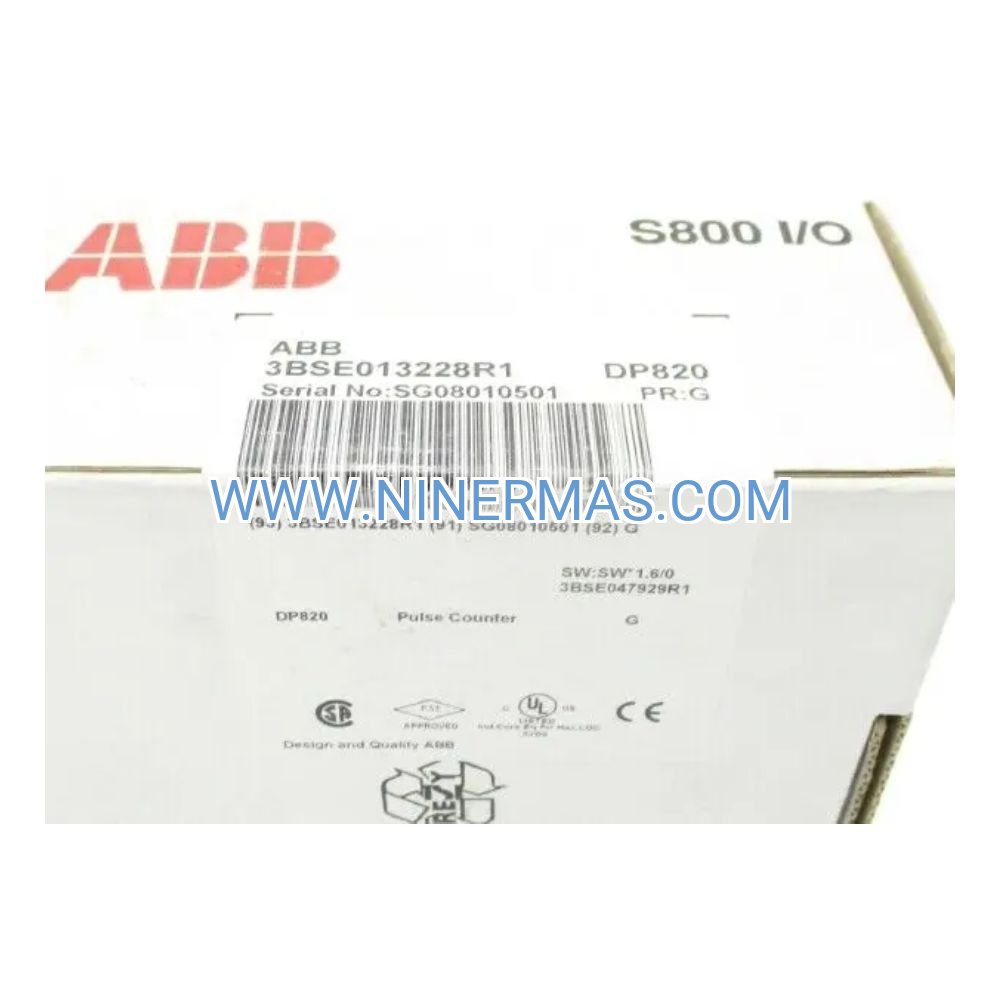

ABB DP820 Bidirectional Pulse Counter (Industrial-Grade S800 I/O Module)

The ABB DP820 (3BSE013228R1) delivers precision pulse counting and frequency measurement for demanding industrial automation environments. Engineered with dual independent channels supporting up to 1.5 MHz input frequencies, this S800 I/O module handles bidirectional counting across multiple signal types—RS-422 differential, current loop, and voltage levels (5V/12V/24V DC)—eliminating the need for external signal conditioning hardware.

Process engineers rely on the DP820 for critical applications where pulse totalization accuracy directly impacts production quality, regulatory compliance, and operational efficiency. From flow meter integration in chemical dosing systems to high-speed encoder feedback in packaging machinery, this module bridges the gap between field instrumentation and 800xA DCS control layers with hot-swappable reliability and automatic configuration capabilities.

Designed for 24/7 industrial operations, the DP820 integrates seamlessly with AC800M controllers and all S800 termination units (TU810/812/814/830/833), providing the measurement foundation for flow totalization, production counting, position tracking, and energy metering across process industries, manufacturing facilities, and utility infrastructure.

Core Features & Benefits

→ Dual-Channel Architecture: Two independent bidirectional counters operate simultaneously without crosstalk, enabling parallel measurement of forward/reverse flow in dual-stream processes or simultaneous monitoring of production line inputs and outputs—reducing hardware costs by 40% compared to single-channel alternatives.

→ 1.5 MHz High-Frequency Capability: Captures pulse trains from high-resolution encoders (up to 10,000 PPR) and turbine flow meters operating at peak velocities without count loss, ensuring ±0.1% measurement accuracy critical for custody transfer applications and precision motion control systems.

→ Multi-Voltage Input Flexibility: Native support for RS-422, current, 5V, 12V, and 24V DC signals eliminates $200-500 per channel in signal conditioning equipment while simplifying wiring and reducing installation time by 30% across diverse sensor ecosystems.

✓ Bidirectional Counting Intelligence: Up/down counter logic automatically tracks direction changes in reversible conveyors, bi-directional flow meters, and quadrature encoders, providing net totalization essential for material balance calculations and inventory reconciliation in batch manufacturing.

✓ Hot-Swappable Design: Online module replacement with automatic 800xA configuration reduces mean time to repair (MTTR) from 4 hours to under 15 minutes, minimizing production losses in continuous processes where downtime costs exceed $50,000 per hour.

✓ 50V Rated Isolation: Channel-to-channel and channel-to-backplane isolation protects control systems from ground loops and electrical noise in harsh industrial environments with variable frequency drives, welding equipment, and high-power motor loads.

Application Scenarios

Flow Metering & Custody Transfer:
Chemical plants and water utilities integrate the DP820 with turbine flow meters and positive displacement meters for totalizing 10,000 to 1,000,000 pulses per transaction. The module's bidirectional capability tracks forward flow during normal operations and reverse flow during system purges, providing net totalization accuracy of ±0.1% required for fiscal metering, EPA reporting, and ISO 17025 calibration compliance. Typical installations reduce metering discrepancies by 85% compared to mechanical totalizers.

High-Speed Encoder Feedback:
Packaging machinery and web handling systems utilize the DP820 to process quadrature encoder signals at speeds up to 90,000 RPM (1.5 MHz with 1000 PPR encoders). Bidirectional counting enables precise position tracking during forward production runs and reverse jog operations, while frequency measurement provides real-time speed feedback for tension control and registration systems. Manufacturers report 60% reduction in material waste and 40% improvement in print registration accuracy.

Production Counting & OEE Analytics:
Bottling lines, assembly machines, and pharmaceutical packaging equipment connect proximity sensors and photoelectric eyes to the DP820 for counting 100 to 10,000 units per minute. Pulse totals trigger automatic batch changeovers, quality sampling intervals, and downtime alerts, feeding production data to MES systems for real-time OEE calculations. Facilities achieve 25% improvement in overall equipment effectiveness through data-driven maintenance scheduling.

Energy & Utility Submetering:
Building management systems and industrial energy monitoring platforms use the DP820 to totalize pulses from electric kWh meters, natural gas meters, and steam flow meters. Long-term pulse accumulation (days to months) provides consumption data for cost allocation, demand response programs, and ISO 50001 energy management certification, with typical installations identifying 15-20% energy savings opportunities within the first quarter.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DP820 when your application requires pulse counting above 100 kHz, bidirectional totalization, or multi-voltage input compatibility. For applications under 50 kHz with unidirectional counting needs, consider the DI810 digital input module. For frequency measurement without totalization, the AI810 analog input module with frequency conversion may offer cost advantages in simple monitoring applications.

Extended Functions

800xA Integration: The DP820 appears as a standard function block in Control Builder, enabling drag-and-drop configuration with pre-built scaling, alarming, and trending capabilities. Engineers configure pulse-to-engineering unit conversion (pulses to gallons, meters, or kilowatt-hours) directly in the control logic without custom programming.

Diagnostic Capabilities: Built-in diagnostics monitor signal quality, detect wiring faults, and report module health status to the 800xA operator interface. Predictive maintenance alerts identify degrading sensor connections before count errors occur, reducing unplanned downtime by 70% in critical measurement loops.

Redundancy Support: In redundant S800 I/O configurations, dual DP820 modules provide measurement continuity during controller failover events, ensuring zero data loss in custody transfer and safety-critical counting applications where regulatory compliance mandates 99.99% uptime.

Delivery & Service Assurance

Lead Time: Standard delivery 3-5 business days for in-stock units; custom-configured modules with factory testing ship within 10-15 business days. Expedited shipping available for emergency replacements in critical process applications.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for installations in extreme environments (offshore platforms, mining operations, desert climates).

Technical Support: Access to ABB's global support network includes 24/7 phone support, online troubleshooting resources, and field service engineers for on-site commissioning assistance. Average response time under 4 hours for critical system issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, 800xA configuration templates, and factory test certificates. Online access to firmware updates, application notes, and integration guides for common flow meters and encoder models.

Frequently Asked Questions

Q: Can the DP820 interface directly with quadrature encoders for position tracking?
A: Yes, the DP820 accepts quadrature encoder signals (A/B channels) when configured in bidirectional mode. Connect the A-channel to one input and B-channel to the direction input. The module automatically increments or decrements the counter based on phase relationship, providing position feedback for conveyor systems, web handling equipment, and material handling applications requiring ±0.01mm positioning accuracy.

Q: What is the maximum pulse count capacity before counter rollover?
A: The DP820 uses a 32-bit counter providing a maximum count of 4,294,967,295 pulses before rollover. In typical flow metering applications with 10,000 pulses per gallon, this represents 429,496 gallons of totalization capacity. The 800xA control system can reset counters automatically at batch boundaries or accumulate totals in higher-precision variables for long-term trending.

Q: How does the module handle noise and false counts in electrically noisy environments?
A: The DP820 incorporates hardware input filtering with adjustable time constants (1-100 microseconds) to reject electrical noise from VFDs, welding equipment, and motor starters. The 50V isolation rating prevents ground loop currents from corrupting counts. For extreme noise environments, use RS-422 differential inputs which provide superior common-mode noise rejection compared to single-ended voltage inputs.

Q: Can I monitor both pulse count totals and instantaneous frequency simultaneously?
A: Absolutely. The DP820 provides both accumulated pulse count (totalization) and real-time frequency measurement (Hz) as separate data points in the 800xA system. This dual capability enables flow totalizing while simultaneously monitoring flow rate, or production counting while tracking line speed—essential for batch control systems that require both quantity and rate information for recipe management.

Q: What termination unit should I select for installation in hazardous area applications?
A: For Zone 2 / Division 2 hazardous areas, use the TU833 termination unit which provides intrinsically safe barriers for field wiring. For non-hazardous areas, the TU810 (standard density) or TU830 (high density) termination units offer the most cost-effective installation. All termination units support the same DP820 functionality; selection depends on I/O density requirements and area classification.

Q: Is the DP820 compatible with legacy S800 I/O systems installed before 2015?
A: Yes, the DP820 maintains backward compatibility with all S800 I/O generations dating back to the original 1999 release. The module operates with AC800M controllers running any firmware version and integrates with 800xA systems from version 5.0 forward. This ensures seamless upgrades and expansions of existing installations without requiring controller or software updates.

Get Your ABB DP820 Module Today

Ready to enhance your pulse counting and frequency measurement capabilities? Contact our industrial automation specialists for application-specific configuration guidance, volume pricing, and integration support. Whether you're upgrading legacy metering systems or designing new process control architectures, the DP820 delivers the precision and reliability your operations demand.

Request a quote now or speak with our technical team to discuss your specific measurement requirements. We provide complete S800 I/O system design services, including termination unit selection, wiring diagrams, and 800xA configuration templates tailored to your application.
