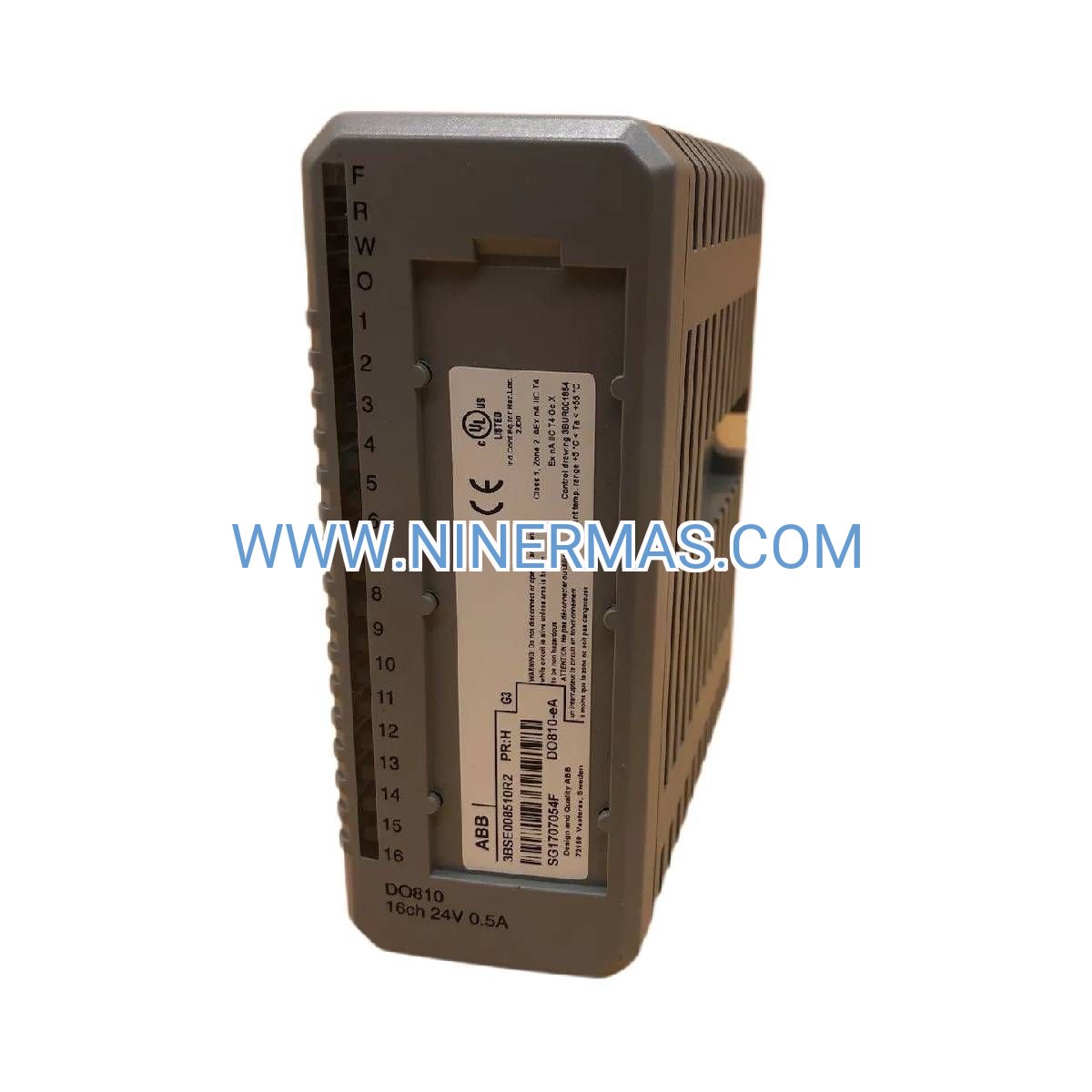

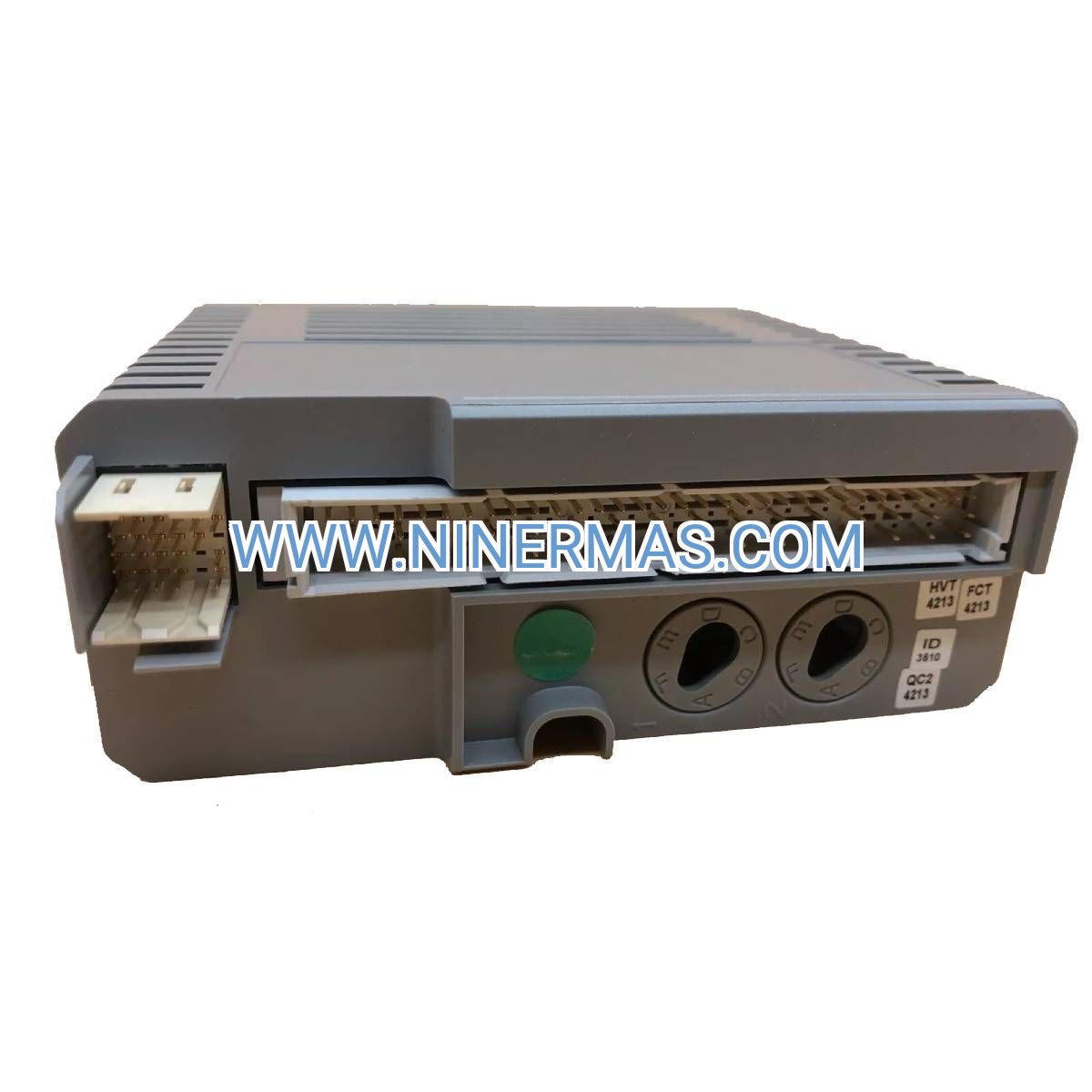

ABB DO810-eA 16-Channel Digital Output Module (Industrial-Grade S800 Platform)

The ABB DO810-eA (Part No. 3BSE008510R2) is a high-reliability digital output module engineered for industrial automation systems requiring precise 24V DC switching control. As a core component of ABB's S800 I/O family, this module delivers 16 independent output channels with robust protection, fast response times, and seamless integration into distributed control systems (DCS), programmable logic controllers (PLC), and SCADA networks.

Designed for process industries, manufacturing facilities, and critical infrastructure applications, the DO810-eA addresses the challenge of controlling multiple actuators, valves, and indicators from a centralized automation platform. Its enhanced 'eA' variant offers superior electromagnetic compatibility (EMC) and extended environmental tolerance compared to legacy models, making it the preferred choice for both greenfield installations and brownfield upgrades.

With channel-to-channel isolation, diagnostic feedback, and hot-swap capability, this module minimizes downtime while maximizing operational flexibility. Whether you're managing chemical batch processes, coordinating assembly line sequences, or controlling utility distribution systems, the DO810-eA provides the performance and dependability your operations demand.

Core Features & Technical Advantages

→ 16 Independent Output Channels
Control up to 16 discrete devices simultaneously with isolated 24V DC outputs rated at 0.5A per channel, enabling parallel operation of solenoid valves, motor starters, indicator lamps, and relay coils without cross-interference.

→ Sub-Millisecond Switching Performance
Typical response time under 1ms ensures real-time control for time-critical processes, reducing lag in sequential operations and improving overall system throughput by up to 15% in high-speed applications.

→ Comprehensive Output Protection
Built-in short-circuit detection, overload shutdown, and reverse polarity safeguards protect both the module and connected field devices, reducing maintenance costs and preventing costly equipment damage in harsh industrial environments.

✓ Hot-Swap Architecture
Replace or add modules without shutting down the entire I/O rack, maintaining production continuity during scheduled maintenance or emergency repairs—critical for 24/7 operations in pharmaceutical, food processing, and continuous manufacturing sectors.

✓ Enhanced EMC Compliance (eA Variant)
Meets stringent CE, UL, and ATEX certification requirements with improved noise immunity, making it suitable for electrically noisy environments such as steel mills, mining operations, and high-voltage substations.

✓ Visual Diagnostic Indicators
Channel-specific LED status lights accelerate troubleshooting by 40%, allowing technicians to identify faulty outputs, wiring errors, or load failures at a glance without specialized diagnostic tools.

Industrial Application Scenarios

Chemical & Petrochemical Processing
Control pneumatic actuators on isolation valves, manage dosing pump sequences, and switch process indicators across multi-stage reactors. The module's ATEX Zone 2 compatibility and corrosion-resistant housing ensure safe operation in hazardous atmospheres with explosive gas risks.

Water & Wastewater Treatment
Operate sluice gates, activate chlorination systems, and coordinate filtration cycles in municipal treatment plants. Extended temperature range (-40°C to +70°C) maintains reliability in outdoor installations and unheated pump stations.

Automotive Manufacturing Lines
Drive robotic gripper solenoids, trigger paint booth ventilation dampers, and sequence conveyor diverters in just-in-time assembly operations. Fast switching minimizes cycle time while hot-swap capability reduces line downtime during module replacement.

Power Generation & Distribution
Switch auxiliary relays in substation control panels, manage generator cooling fan contactors, and control annunciator panels in control rooms. Channel isolation prevents ground loop interference in electrically complex environments.

Pharmaceutical Production
Activate clean-in-place (CIP) valve manifolds, control sterile air dampers, and manage material transfer pumps in GMP-compliant facilities. Diagnostic LEDs support validation protocols and audit trail requirements.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DO810-eA when your application requires standard 24V DC logic-level outputs for controlling low-to-medium current loads. For higher current switching (up to 2A), consider the DO820 relay output variant. If you need higher channel density, the DO880 offers 16 channels in a more compact footprint. Verify that your connected loads do not exceed 0.5A per channel; for inductive loads (solenoids, relay coils), add external flyback diodes to prevent voltage spikes.

Extended Functionality & Integration Options

Multi-Protocol Controller Compatibility
While optimized for ABB AC 800M controllers, the DO810-eA integrates with third-party automation platforms via S800 I/O communication modules supporting PROFIBUS DP, Modbus RTU, and Foundation Fieldbus protocols—enabling hybrid system architectures.

Redundancy Configuration Support
Deploy in redundant I/O configurations for safety-critical applications (SIL 2 rated when paired with appropriate safety controllers), ensuring continuous operation even during single-point module failures in emergency shutdown systems.

Remote Monitoring & Diagnostics
Integrate with ABB's 800xA DCS platform or third-party SCADA systems to access real-time channel status, load current monitoring, and predictive maintenance alerts—reducing unplanned downtime by up to 30% through condition-based servicing.

Custom Configuration Services
NINERMAS offers pre-configured modules with customer-specific I/O mapping, tested assemblies with terminal blocks and wiring harnesses, and application-specific documentation packages to accelerate commissioning timelines.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units (express shipping available to major industrial hubs)
Custom Configuration: 7-10 business days for pre-wired assemblies or tested rack configurations
Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship
Technical Support: Lifetime access to application engineers for integration assistance, troubleshooting guidance, and replacement part sourcing
Documentation Package: Includes installation manual, wiring diagrams, CAD drawings (STEP/DWG formats), and sample PLC code for common applications

Frequently Asked Questions

How do I connect the DO810-eA to my existing ABB AC 800M controller?
The module mounts on any S800 I/O rack (TB807/TB820 series) and communicates via the ModuleBus backplane. Simply insert the module into an available slot, configure the I/O mapping in Control Builder software, and download the configuration to your controller—no additional gateways required.

What is the maximum cable length between the module and field devices?
For 24V DC outputs, maintain cable runs under 100 meters (328 feet) using shielded twisted-pair wire (minimum 18 AWG) to prevent voltage drop and noise interference. For longer distances, use local I/O racks or signal repeaters.

Can this module reduce energy consumption in my control system?
Yes—the DO810-eA consumes only 2.5W for module logic (excluding load current), approximately 60% less than equivalent relay-based output modules. When controlling energy-efficient actuators and LED indicators, total system power consumption can decrease by 20-35% compared to legacy relay panels.

What installation clearances are required for proper cooling?
Maintain 50mm (2 inches) clearance above and below the I/O rack for natural convection cooling. In high-density installations or ambient temperatures exceeding 50°C, add forced-air ventilation or reduce the number of modules per rack to prevent thermal derating.

Does the module support remote firmware updates?
The DO810-eA uses fixed firmware embedded in hardware; no field updates are required or supported. Configuration changes are managed through the host controller's engineering software without affecting module operation.

How quickly can I replace a failed module during production?
With hot-swap capability, replacement takes under 60 seconds: remove the failed module, insert the new unit, and the system automatically recognizes and configures it based on the rack position—no manual re-addressing or controller restart needed.

Get Your ABB DO810-eA Module Today

Ready to upgrade your industrial control system with proven S800 I/O technology? Contact our automation specialists for application-specific recommendations, volume pricing, or technical integration support. We stock genuine ABB modules with full traceability and offer same-day shipping for urgent requirements.

Request a Quote: Email your system specifications to sale@ninermas.com
Technical Consultation: Call +0086 187 5021 5667 (English/Mandarin support)
Bulk Orders: Volume discounts available for orders of 10+ modules
