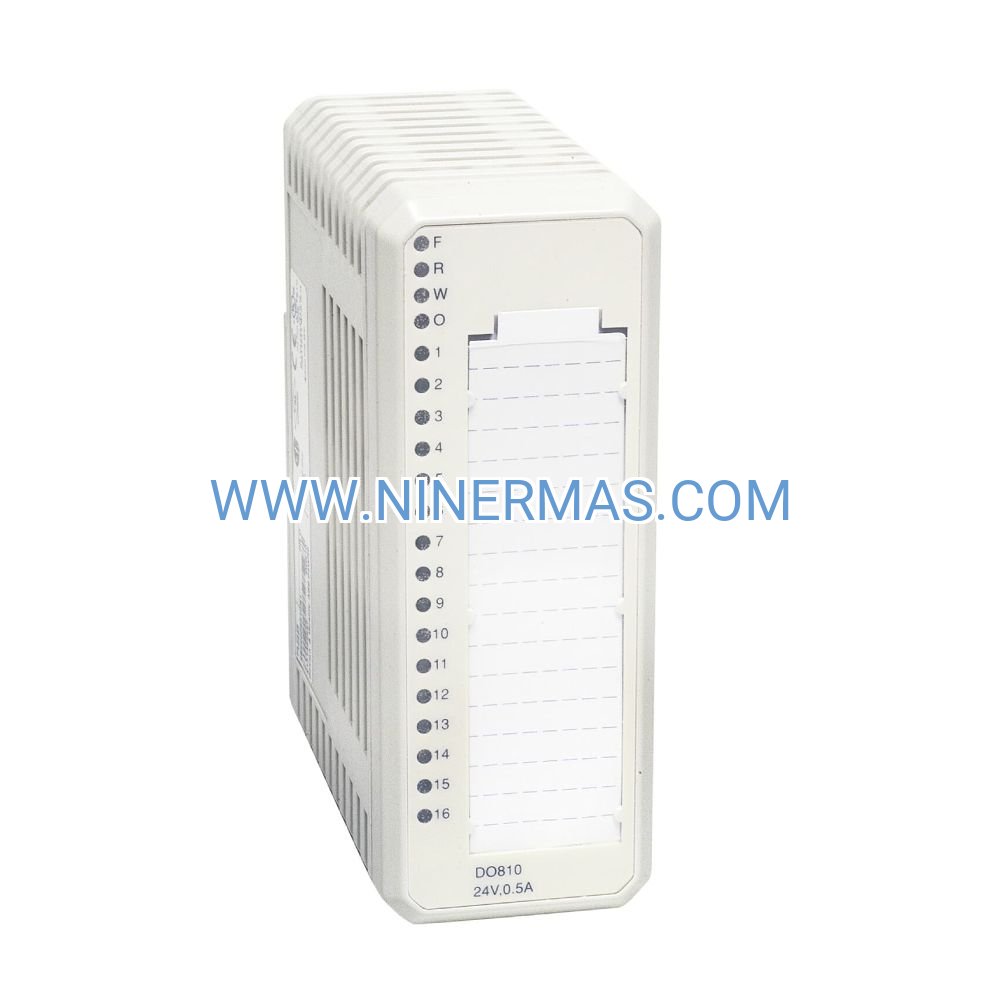

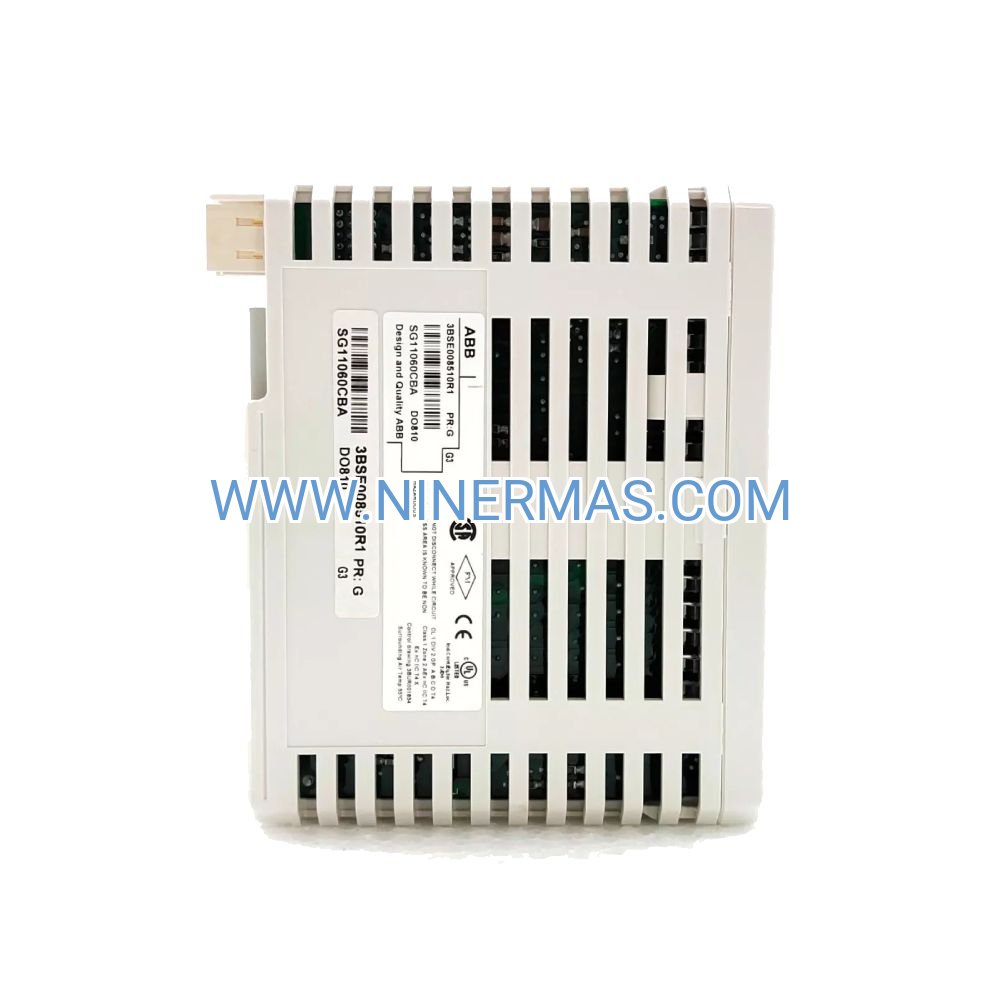

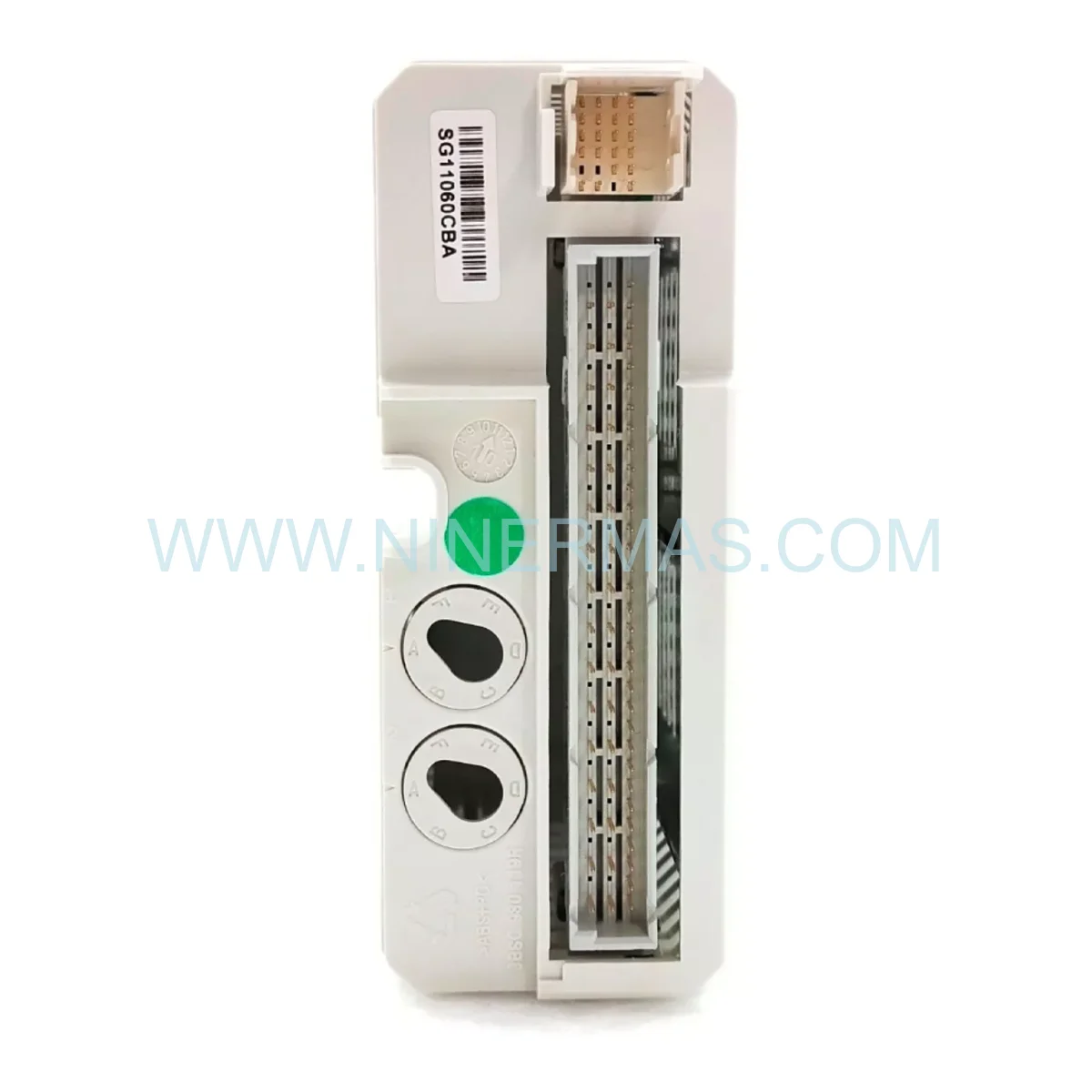

ABB DO810 Digital Output Module (Industrial-Grade 16-Channel Control)

The ABB DO810 (3BSE008510R1) represents a proven solution for industrial control applications requiring dependable 24V DC output switching. Designed for the S800 distributed I/O architecture, this 16-channel module delivers current-sourcing outputs with integrated fault protection, making it the preferred choice for valve control, motor interfacing, and safety interlock systems across process industries, manufacturing facilities, and marine installations.

Built to withstand harsh industrial environments, the DO810 combines dual-group channel isolation with comprehensive diagnostics, enabling system integrators to design resilient control architectures that minimize downtime and simplify troubleshooting. Whether you're upgrading legacy relay panels or deploying new automation systems, this module provides the reliability and flexibility demanded by mission-critical applications.

Backed by ABB's global support network and certified for marine, hazardous area, and industrial use, the DO810 ensures your control systems meet the highest standards for safety, performance, and long-term serviceability.

Core Features & Benefits

→ 16 Independent Output Channels
Each channel delivers up to 0.5A at 24V DC with current-limiting protection, providing sufficient drive capacity for solenoid valves, indicator lamps, and relay coils while preventing damage from short circuits or overloads.

→ Dual-Group Isolation Architecture
Two electrically isolated 8-channel groups enable mixed-voltage applications and fault containment—a single wiring fault affects only one group, maintaining partial system operation and reducing mean time to repair by 40%.

→ Fail-Safe Output State Preservation
Configurable safe-state behavior automatically positions outputs to predefined conditions during communication loss or module faults, preventing runaway processes and ensuring compliance with IEC 61511 safety requirements.

→ Integrated Fault Diagnostics
Front-panel LEDs and process voltage monitoring provide instant visibility into module status, channel activity, and fault conditions—reducing commissioning time by 60% and enabling rapid fault isolation during maintenance.

✓ Current-Sourcing Design
Simplifies wiring by eliminating external power distribution blocks and reduces panel space requirements by 25% compared to relay-based solutions.

✓ Hot-Swappable Operation
Replace modules without powering down the entire I/O rack, minimizing process interruptions and enabling maintenance during production windows.

Application Scenarios

Chemical Processing & Refineries
Controls pneumatic control valves regulating flow, pressure, and temperature in distillation columns, reactors, and storage tank farms. The module's fail-safe outputs ensure valves move to safe positions during system faults, preventing overpressure events, chemical releases, or batch contamination that could result in $100K+ losses per incident.

Water & Wastewater Treatment
Interfaces with pump motor starters, chemical dosing systems, and aeration blowers in municipal treatment plants. Dual-group isolation allows simultaneous control of 12V UV lamp ballasts and 24V valve actuators on a single module, reducing hardware costs by $800 per control panel.

Power Generation Facilities
Drives alarm annunciators, turbine lube oil pump starters, and cooling water valve actuators in combined-cycle plants and substations. Real-time diagnostics enable operators to identify failed indicator lamps or stuck contactors within seconds, improving first-time fix rates from 65% to 95%.

Marine & Offshore Platforms
Certified for DNV, ABS, and Lloyd's Register applications, the DO810 controls ballast pumps, fire suppression valves, and HVAC dampers in engine rooms and process modules where vibration, humidity, and salt spray demand ruggedized electronics with proven 15+ year service life.

Manufacturing Automation
Activates conveyor motor starters, pneumatic clamps, and part ejectors in automotive assembly lines and packaging systems. Hot-swap capability allows technicians to replace faulty modules during shift changes without stopping production, avoiding $5K-15K/hour downtime costs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DO810 when your application requires current-sourcing outputs for positive-logic control (output provides +24V to load common). For applications requiring current-sinking outputs (load connected to +24V, output switches to ground), consider the DO820 module. Verify that connected loads draw less than 0.5A per channel and operate within the 12-32V range. For higher current requirements (up to 2A), specify the DO815 high-current variant.

Extended Functions

Process Automation Integration: Seamlessly integrates with ABB 800xA DCS and Freelance controllers via PROFIBUS DP, Modbus RTU, or Ethernet/IP communication protocols. Supports IEC 61131-3 function block programming for complex interlock logic and sequential control.

Remote Monitoring Capabilities: When paired with ABB Ability™ System 800xA, enables cloud-based diagnostics, predictive maintenance alerts, and remote configuration changes—reducing site visits by 50% and enabling centralized management of multi-site installations.

Customization Options: Factory-configurable output state preservation settings, channel-specific current limits, and diagnostic thresholds available for OEM applications requiring specialized fail-safe behavior or regulatory compliance documentation.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for critical applications requiring 4-hour replacement guarantees.

Technical Support: Access to ABB's global support network including 24/7 hotline, on-site commissioning assistance, and application engineering consultation for system design optimization.

Documentation Package: Includes installation manual, wiring diagrams, configuration software, IEC 61131-3 function blocks, and AutoCAD panel layout drawings. Compliance certificates (CE, UL, marine class) provided upon request.

Frequently Asked Questions

Q: Can the DO810 interface directly with 120V AC solenoid valves?
A: No, the DO810 provides 24V DC outputs only. For 120V AC loads, use the module's outputs to drive intermediate relay coils rated for 24V DC, with relay contacts switching the AC voltage. Alternatively, specify the DO890 AC output module for direct 120/230V AC control.

Q: What is the maximum cable length between the module and field devices?
A: With 0.5mm² (20 AWG) wire and 0.5A load, maximum recommended distance is 100 meters (328 feet) to maintain voltage drop below 2V. For longer runs, use 1.0mm² (18 AWG) wire or reduce load current. Always verify voltage at the load terminals during commissioning.

Q: How does output state preservation improve safety compliance?
A: OSP automatically moves outputs to engineer-defined safe states (energized or de-energized) when the module detects communication faults, power failures, or internal errors. This prevents valves from remaining in unsafe positions and satisfies IEC 61511 SIL 2 requirements for safety instrumented systems when properly configured.

Q: Can I mix 12V and 24V loads on the same module?
A: Yes, the DO810's dual-group architecture allows Group 1 (channels 0-7) to operate at one voltage and Group 2 (channels 8-15) at another, provided each group has its own isolated power supply. This reduces module count and panel space in mixed-voltage applications.

Q: What diagnostic information is available during operation?
A: Front-panel LEDs indicate module status (RUN, FAULT, WARNING), output state preservation activation, and individual channel on/off states. The controller can also read process voltage levels, short-circuit faults, and over-temperature conditions via the communication bus for SCADA alarm integration.

Q: Is the module suitable for hazardous area installations?
A: The DO810 is designed for Zone 2/Division 2 installations when mounted in appropriate enclosures. For Zone 1/Division 1 applications, use ABB's intrinsically safe I/O modules or install the DO810 in a purged/pressurized panel meeting NFPA 496 requirements.

Get Started with ABB DO810

Ready to upgrade your control system with proven S800 I/O technology? Our application engineers can help you select the right module configuration, design wiring schematics, and provide commissioning support to ensure first-time success.

Contact our team today for technical consultation, volume pricing, or to request a detailed quotation for your project.
