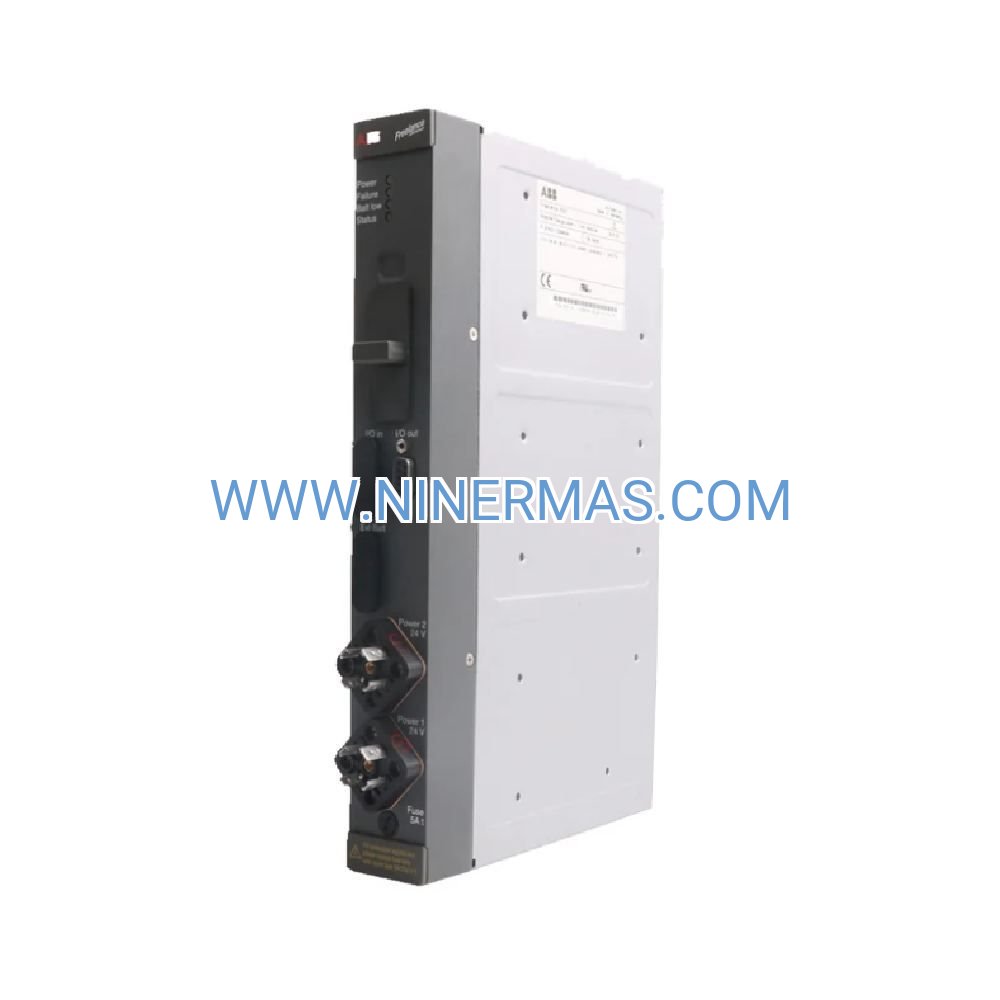

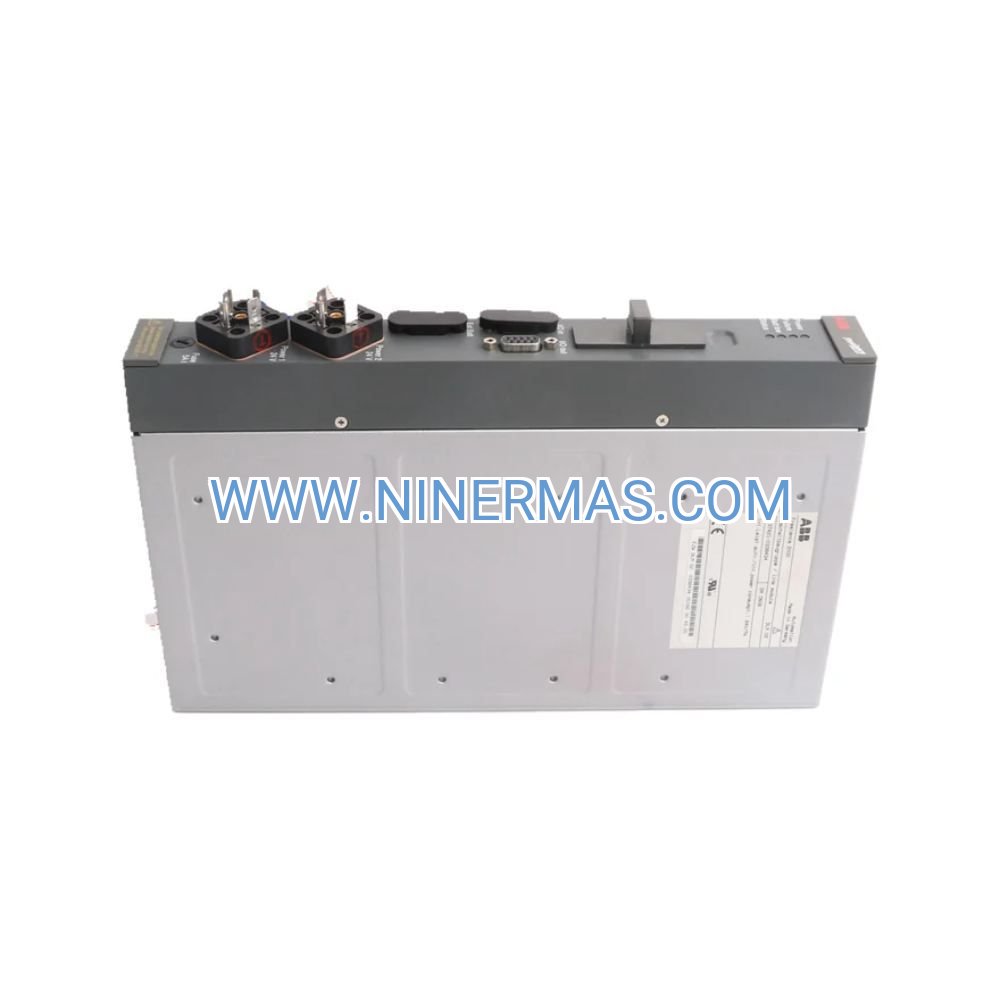

ABB DLM02 Communication Module – Industrial-Grade Network Interface for Freelance 2000 Systems

The ABB DLM02 Link Module (P37421-4-0338434) delivers deterministic, high-throughput communication for distributed control networks in process-intensive industries. Engineered in Germany, this module establishes the data backbone between controller stations, remote I/O assemblies, and HMI workstations within H&B Freelance 2000 architectures, ensuring microsecond-precision synchronization for mission-critical automation tasks.

Designed for chemical processing, pharmaceutical manufacturing, and energy generation facilities, the DLM02 addresses the core challenge of maintaining real-time data integrity across geographically dispersed control points. Its dual-channel redundancy and ring topology support eliminate single points of failure, while built-in diagnostics enable predictive maintenance before network degradation impacts production uptime.

Whether you're scaling an existing Freelance 2000 installation or building a greenfield DCS network, the DLM02 provides the foundation for reliable, low-latency communication that meets the demands of continuous process control, batch sequencing, and safety-instrumented systems.

Core Features & Benefits

• ✓ 12 Mbps Deterministic Data Transfer: Guarantees sub-15ms latency across fully loaded 32-node networks, enabling closed-loop control for fast-response processes like reactor temperature regulation and flow balancing
• ✓ Dual-Channel Redundancy Architecture: Automatic failover between primary and backup communication paths ensures zero-downtime operation during cable faults or module replacement, protecting against production losses in 24/7 facilities
• ✓ Extended Network Reach (1200m): Supports long-distance installations across multi-building campuses using shielded twisted-pair cabling, reducing infrastructure costs compared to fiber-optic alternatives while maintaining signal integrity
• ✓ Hot-Swappable Installation: Field-replaceable during live operation without disrupting active communication channels, minimizing maintenance windows and eliminating scheduled downtime for hardware upgrades
• ✓ Integrated Network Diagnostics: Real-time monitoring of signal quality, collision rates, and node availability through Freelance Engineering Studio, enabling proactive troubleshooting before faults escalate to system failures
• ✓ Plug-and-Play Configuration: Software-defined node addressing and baud rate settings eliminate manual DIP switch configuration, accelerating commissioning timelines and reducing human error during installation

Typical Application Scenarios

Chemical Batch Processing:
In multi-reactor facilities producing specialty chemicals, the DLM02 synchronizes recipe execution across distributed control stations, linking batch controllers with remote valve manifolds and analyzer systems. The module's deterministic communication ensures precise timing for sequential operations like reagent addition, temperature ramping, and pressure relief, where delays of even 100ms can compromise product quality or trigger safety interlocks.

Pharmaceutical Clean Manufacturing:
For aseptic filling lines and API synthesis plants, the DLM02 connects cleanroom-rated I/O modules with central control systems while maintaining FDA 21 CFR Part 11 audit trail compliance. Its redundant architecture prevents communication failures that could invalidate entire production batches, while diagnostic logging provides the traceability required for regulatory inspections.

Power Plant Turbine Control:
In combined-cycle power stations, the module coordinates data exchange between turbine governors, boiler management systems, and emissions monitoring equipment. The ring topology ensures that loss of a single cable segment doesn't disrupt critical control loops, maintaining grid stability and preventing costly emergency shutdowns.

Water Treatment SCADA Networks:
Across municipal water facilities spanning multiple square kilometers, the DLM02 links central SCADA servers with remote pump stations, chlorination systems, and flow meters. The 1200-meter cable reach reduces the need for intermediate repeaters, simplifying network architecture and lowering total cost of ownership.

Refinery Hazardous Area Integration:
For crude distillation and catalytic cracking units, the module establishes communication between control rooms and Zone 1/Division 1-rated I/O cabinets in explosive atmospheres. Its robust signal integrity prevents data corruption from electromagnetic interference generated by high-power motor drives and switching equipment.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DLM02 when your Freelance 2000 network requires deterministic performance for time-critical control loops (scan cycles ≤100ms), redundant communication paths for high-availability applications (≥99.9% uptime), or extended cable runs across industrial campuses. For integration with non-ABB devices, pair with appropriate gateway modules supporting Modbus RTU, PROFIBUS DP, or Ethernet/IP protocols.

Extended Functions

Network Scalability: Multiple DLM02 modules can be cascaded using ABB network repeaters to extend total network reach beyond 5 kilometers while preserving deterministic scan cycles, enabling control of geographically dispersed processes from a single operator interface.

Over-the-Network Firmware Updates: Deploy firmware revisions and security patches remotely through Freelance Engineering Studio without physical EPROM replacement, reducing maintenance costs and minimizing exposure to hazardous production areas.

Advanced Diagnostics Integration: Export communication statistics (packet loss, retransmission rates, signal-to-noise ratios) to plant-wide asset management systems for predictive maintenance scheduling and network performance trending.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules with pre-loaded firmware or specialized cable assemblies require 2-3 weeks for preparation.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship, covering both hardware failures and firmware-related issues.

Technical Support: Our engineering team provides network topology design assistance, cable specification guidance (impedance matching, shielding requirements), commissioning support, and remote troubleshooting for communication faults.

Documentation Package: Each module includes installation manual, wiring diagrams, network configuration templates for Freelance Engineering Studio, and compliance certificates (CE, UL, ATEX where applicable).

Frequently Asked Questions

How does the DLM02 module integrate with third-party control systems?
The DLM02 uses a proprietary ABB Freelance protocol optimized for deterministic control and is not directly compatible with third-party devices. For integration with Modbus, PROFIBUS, or Ethernet/IP equipment, deploy ABB's protocol gateway modules (e.g., CI854A for PROFIBUS, CI858 for Modbus TCP) to bridge communication between the Freelance network and external systems.

What is the typical network latency when operating at maximum node capacity?
In a fully populated 32-node network running at 12 Mbps, worst-case end-to-end latency for priority messages is typically 12-15 milliseconds, making the DLM02 suitable for closed-loop PID control applications with scan cycles down to 50ms. Non-priority data transfers may experience latencies up to 30ms under peak traffic conditions.

Can the module support fiber optic cabling for long-distance installations?
The standard DLM02 is designed for copper shielded twisted-pair cabling. For installations requiring fiber optic links (distances exceeding 1200 meters or environments with severe electromagnetic interference), use ABB's DLM02-FO variant or deploy media converters at cable endpoints to convert between copper and fiber transmission media.

What diagnostic tools are available for troubleshooting communication failures?
The module's front-panel LEDs provide immediate indication of power status, transmit/receive activity, and fault conditions. For advanced diagnostics, the Freelance Engineering Studio includes a network analyzer that displays real-time traffic statistics, identifies cable faults through time-domain reflectometry, detects address conflicts, and measures signal degradation across network segments.

Is the DLM02 compatible with newer ABB control platforms like AC 800M?
No, the DLM02 is specifically engineered for H&B Freelance 2000 architectures and is not compatible with AC 800M, AC 800F, or Symphony Plus systems. For newer ABB platforms, use the appropriate communication modules from the AC 800M series (e.g., CI854A, CI858) or Symphony Plus network interface cards.

How do I calculate the required number of modules for my network?
Each DLM02 module supports one communication port. For redundant ring topologies, you'll need two modules per controller station (one for each ring segment). For star topologies, deploy one module per node. Factor in 10-15% spare capacity for future expansion and emergency replacements. Our engineering team can provide detailed network sizing calculations based on your I/O count, scan cycle requirements, and redundancy policies.

Ready to Optimize Your Freelance 2000 Network?

Contact our industrial automation specialists for network design consultation, compatibility verification with your existing Freelance 2000 installation, or technical specifications for custom cable assemblies. We provide same-day quotations and can expedite delivery for critical maintenance shutdowns.
