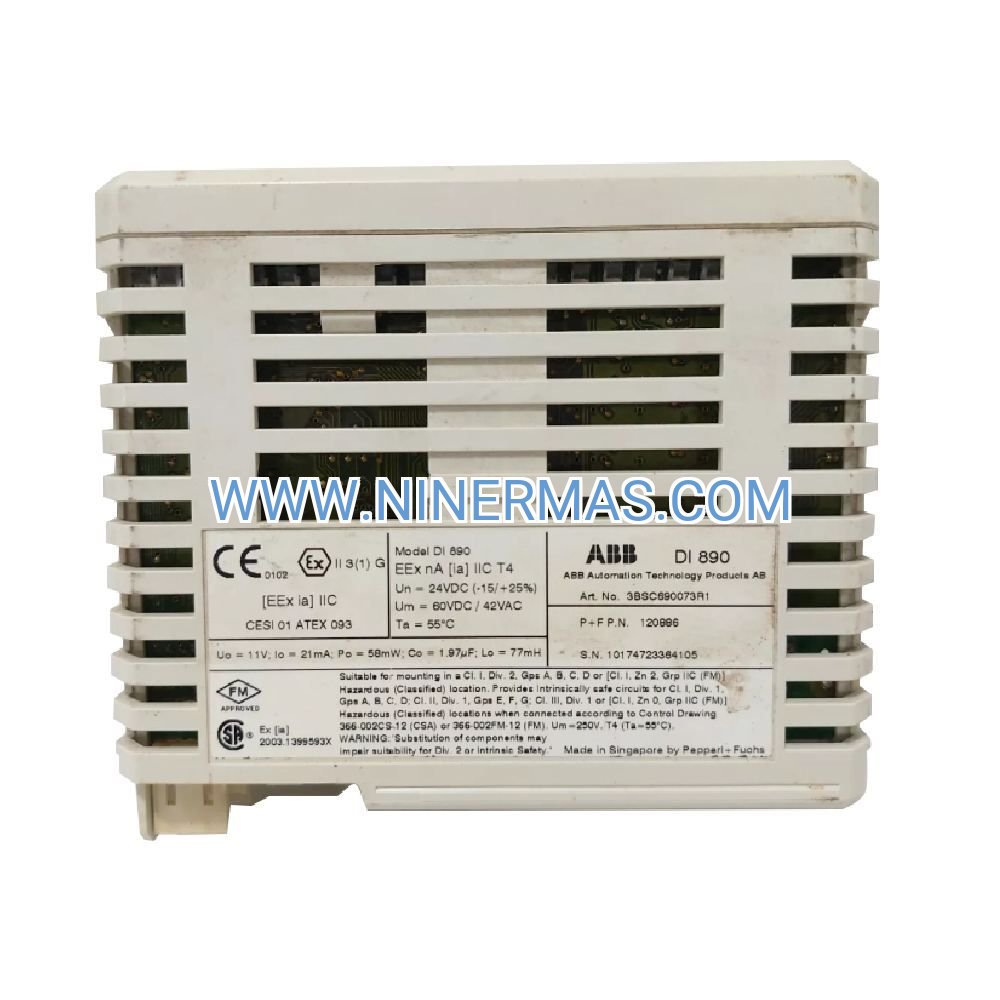

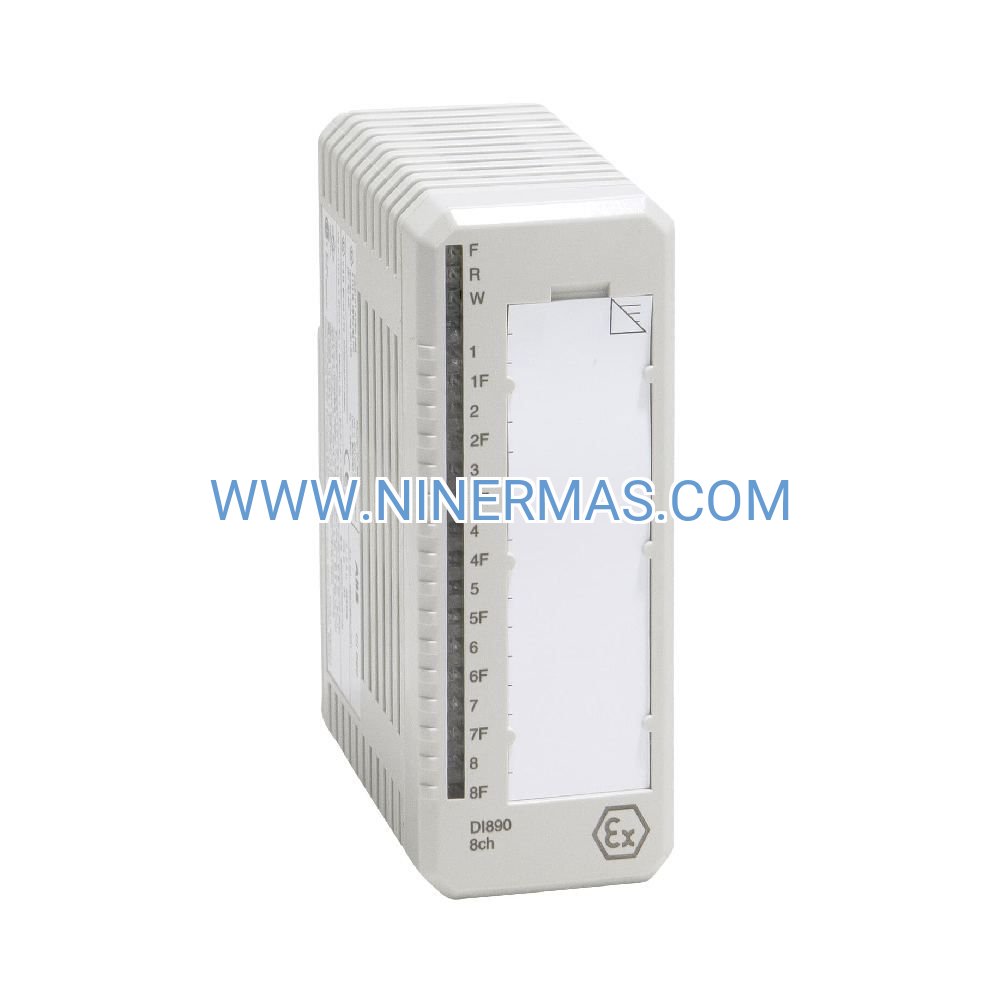

DI890 NAMUR Digital Input Module (Industrial-Grade Intrinsic Safety Solution)

The ABB DI890 (3BSC690073R1) is an eight-channel NAMUR-compliant digital input module engineered for intrinsically safe signal acquisition in hazardous industrial environments. Designed as an integral component of the S800 I/O ecosystem, this module combines current-limited sensor power distribution with advanced fault detection capabilities, enabling reliable process monitoring in chemical plants, pharmaceutical facilities, oil refineries, and mining operations where explosive atmospheres demand certified safety compliance.

Process engineers and automation specialists deploy the DI890 to interface two-wire NAMUR proximity sensors with distributed control systems while maintaining intrinsic safety barriers at the I/O level. This architecture eliminates external safety isolators in many applications, reducing panel footprint by up to 40% compared to conventional barrier-based designs. The module addresses critical challenges in hazardous area instrumentation: sensor power management, wire fault detection, and hot-swappable redundancy—all within a compact DIN-rail mountable form factor.

Key differentiators include IEC 60947-5-6 compliance for universal NAMUR sensor compatibility, integrated diagnostics that distinguish between sensor faults and process conditions, and seamless integration with ABB's 800xA control platform for unified asset management. Whether you're retrofitting legacy systems or designing greenfield installations, the DI890 delivers the reliability and safety certification required for Zone 1 and Zone 2 hazardous location monitoring.

Core Features & Benefits

✓ Eight NAMUR-Compliant Input Channels – Supports standard two-wire proximity sensors (inductive, capacitive, magnetic) with automatic current limiting to 8.2mA per channel, ensuring intrinsic safety compliance without external barriers in many applications.

✓ Integrated Sensor Power Supply – Provides regulated current-limited power directly to field sensors, eliminating separate power distribution requirements and reducing wiring complexity by 30-50% compared to traditional architectures.

✓ Advanced Fault Diagnostics – Continuously monitors each channel for wire break, short circuit, and sensor malfunction conditions with separate status reporting, enabling predictive maintenance strategies that reduce unplanned downtime by up to 25%.

✓ Hot-Swappable Redundancy Support – Enables online module replacement in redundant S800 configurations with bumpless transfer, maintaining process continuity during maintenance operations and achieving 99.99% system availability.

✓ Compact Modular Design – DIN-rail mountable form factor (0.2 kg weight) allows high-density I/O configurations with up to 64 input points per meter of panel space, optimizing cabinet utilization in space-constrained installations.

→ Simplified Certification Compliance – Factory-certified intrinsic safety design streamlines hazardous area documentation and reduces commissioning time by eliminating field-level safety barrier calculations and third-party verification requirements.

Application Scenarios

Chemical Processing Plants
Monitor valve position feedback, level switch states, and emergency shutdown device status in reactors and distillation columns located in Zone 1 classified areas. The DI890's intrinsic safety design allows direct connection to NAMUR sensors in flammable vapor environments, while diagnostic capabilities detect corroded wiring or failing sensors before they cause process upsets. Typical installations achieve 15-20% faster commissioning compared to barrier-based systems.

Pharmaceutical Manufacturing
Interface with proximity sensors monitoring CIP (clean-in-place) valve positions, filter integrity switches, and sterile barrier status in aseptic processing zones. The module's contamination-free design (no external barriers in hazardous zones) supports FDA 21 CFR Part 11 compliance, while fault diagnostics enable condition-based maintenance that reduces validation downtime by 30%.

Oil & Gas Upstream Facilities
Acquire signals from wellhead safety devices, separator level switches, and compressor vibration monitors in Zone 2 offshore platforms and onshore production sites. The DI890's redundancy support ensures continuous operation during module replacement, while its -40°C to +70°C operating range handles extreme environmental conditions without auxiliary cooling.

Mining Operations
Connect conveyor belt alignment sensors, crusher blockage detectors, and ventilation damper position switches in underground coal mines and surface processing plants with methane gas hazards. The module's robust diagnostics identify cable damage from mobile equipment before catastrophic failures occur, improving worker safety and reducing emergency shutdowns by 40%.

Food & Beverage Production
Monitor packaging line sensors, tank level switches, and pasteurization equipment status in facilities handling flammable solvents or combustible dust atmospheres. The DI890's hygienic design principles and stainless steel compatibility support washdown environments, while its diagnostic data integrates with MES systems for OEE optimization.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DI890 when your application requires NAMUR sensor interfacing in hazardous areas with intrinsic safety requirements. For standard 24VDC discrete inputs without NAMUR compliance, consider the DI810 or DI820 modules. If your sensor count exceeds eight channels, deploy multiple DI890 modules on the same S800 cluster (up to 12 modules per communication interface). For applications requiring analog NAMUR transmitter inputs (4-20mA HART), specify the AI890 module instead. Verify that your NAMUR sensors operate within the 8.2mA current limit—most standard proximity sensors comply, but confirm with sensor datasheets before procurement.

Extended Functions

800xA System Integration: The DI890 seamlessly integrates with ABB's 800xA distributed control system, providing unified configuration, diagnostics, and asset management through the Control Builder M engineering environment. Each input channel appears as an individual object with configurable alarm limits, historical trending, and maintenance scheduling.

Redundancy Architecture: Deploy in redundant S800 I/O configurations using dual communication interfaces (CI854A or CI858) for fault-tolerant operation. The module supports automatic failover with input state synchronization, ensuring zero data loss during communication path failures or planned maintenance.

Third-Party Protocol Support: While optimized for ABB control systems, the DI890 operates with PROFIBUS DP, Modbus TCP, and FOUNDATION Fieldbus communication interfaces through appropriate S800 cluster controllers, enabling integration with Siemens, Rockwell, Schneider, and Honeywell DCS platforms.

Customization Options: Factory configuration services available for pre-programmed channel assignments, custom diagnostic thresholds, and application-specific firmware variants. Contact our engineering team for projects requiring 50+ modules with standardized settings.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited delivery available for critical shutdowns (24-48 hour emergency service with premium freight).

Warranty Coverage: 12-month comprehensive warranty from shipment date, covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for up to 5 years with annual health checks.

Technical Support: Lifetime application engineering assistance including configuration guidance, troubleshooting support, and firmware update consultation. Access to ABB-certified technicians via email (response within 4 hours) and phone hotline (24/7 for critical issues).

Documentation Package: Each module ships with installation manual, wiring diagrams, certification documents (ATEX/IECEx where applicable), and configuration templates for 800xA, Control Builder M, and third-party DCS platforms. Digital documentation library includes 3D CAD models (STEP format) and spare parts catalogs.

Frequently Asked Questions

Q: What types of NAMUR sensors can I connect to the DI890 module?
A: The DI890 supports all two-wire NAMUR proximity sensors compliant with IEC 60947-5-6, including inductive sensors (for metal detection), capacitive sensors (for non-metallic materials and level sensing), and magnetic sensors (for position detection). Compatible brands include Pepperl+Fuchs, Turck, IFM, Balluff, and Sick. Verify that your sensor operates within the 8.2mA current limit specified in its datasheet.

Q: How does the module's intrinsic safety design reduce installation costs?
A: By integrating current-limited sensor power at the I/O module level, the DI890 eliminates the need for external safety barriers (Zener barriers or galvanic isolators) in many applications. This reduces panel space requirements by 30-40%, simplifies wiring (fewer terminal blocks and marshalling points), and cuts commissioning time by 15-20% since you avoid field-level barrier calculations and third-party safety verification.

Q: Can the DI890 detect sensor failures before they cause process problems?
A: Yes. The module continuously monitors each input channel for three fault conditions: wire break (open circuit), short circuit (excessive current), and sensor malfunction (out-of-range signal levels). These diagnostic states are reported separately from normal input on/off status, allowing your control system to trigger maintenance alerts before sensor failures cause false trips or missed alarms. Typical implementations achieve 25-30% reduction in unplanned downtime.

Q: What communication protocols does the S800 I/O system support for DI890 integration?
A: The DI890 operates within S800 I/O clusters that support multiple fieldbus protocols depending on the communication interface module selected: PROFIBUS DP (CI801), Modbus TCP (CI867), FOUNDATION Fieldbus (CI868), and ABB's proprietary ModuleBus (CI854A/CI858 for 800xA systems). This flexibility enables integration with virtually any DCS or PLC platform including Siemens PCS7, Rockwell PlantPAx, Schneider EcoStruxure, and Honeywell Experion.

Q: Is hot-swapping supported during live process operation?
A: Yes, when deployed in redundant S800 configurations with dual communication interfaces. The system maintains input state continuity during module replacement through automatic failover to the backup I/O path. For non-redundant installations, module replacement requires a brief process interruption (typically 10-15 seconds for physical swap plus initialization).

Q: What environmental conditions can the DI890 withstand?
A: The module operates reliably across -40°C to +70°C ambient temperature range (extended industrial grade), withstands 95% relative humidity (non-condensing), and meets IEC 60068-2 vibration/shock specifications for industrial environments. For installations in extreme conditions (offshore platforms, desert climates, arctic facilities), consult our application engineers for enclosure recommendations and thermal management strategies.

Ready to Enhance Your Hazardous Area Monitoring?

Request a detailed quotation for the ABB DI890 NAMUR input module or consult with our automation specialists to design a complete S800 I/O solution tailored to your facility's safety requirements. Our team provides application engineering support, system integration guidance, and lifecycle cost analysis to optimize your investment.
