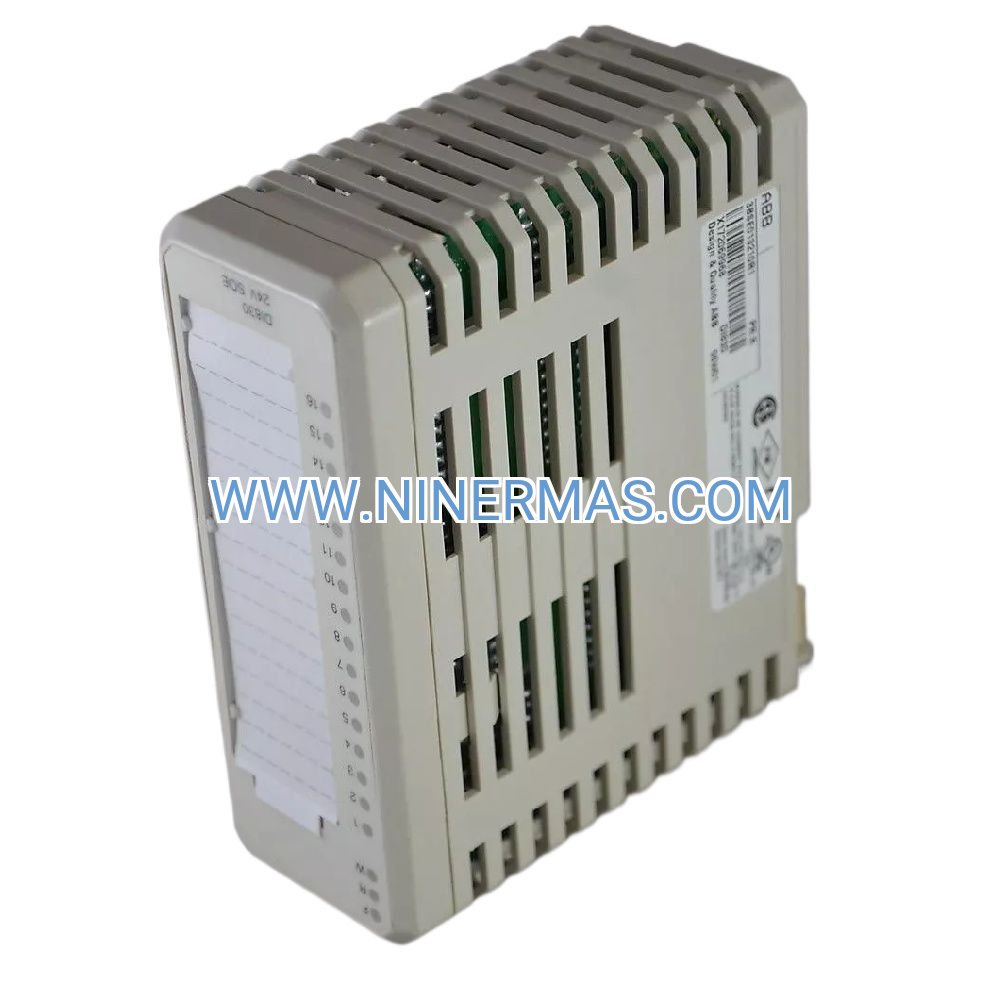

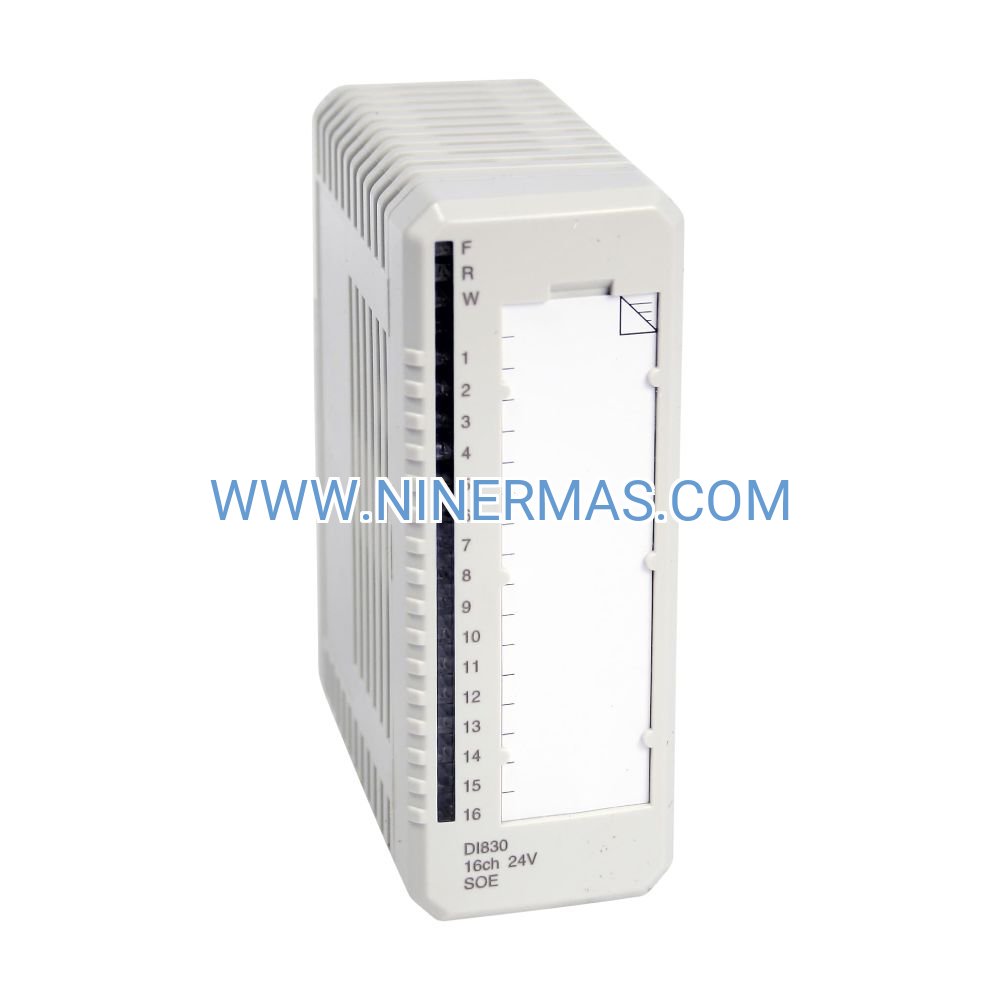

ABB DI830 (Industrial-Grade 16-Channel Digital Input Module)

The ABB DI830 digital input module (Part Number: 3BSE013210R1) represents a proven solution for acquiring discrete signals in mission-critical industrial environments. Engineered as part of the S800 I/O ecosystem, this 16-channel module interfaces seamlessly with field sensors, switches, and discrete devices using current sinking topology—delivering dependable signal processing for process industries, discrete manufacturing, and infrastructure control applications.

Designed for system integrators and automation engineers who demand reliability, the DI830 addresses common challenges in signal acquisition: electrical noise immunity through 500V galvanic isolation, diagnostic transparency via channel-level LED indicators, and operational flexibility across -40°C to +70°C temperature extremes. Whether you're modernizing legacy control systems or deploying greenfield automation projects, this module provides the foundation for robust digital signal monitoring.

Key advantages include hot-swap serviceability for zero-downtime maintenance, compatibility with standard NPN sensors prevalent in global markets, and integration-ready architecture that works with ABB AC 800M controllers, AC 700F safety systems, and third-party automation platforms via industry-standard protocols.

Core Features & Benefits

→ 16 Independent Input Channels
Monitor up to 16 discrete signals per module with individual channel isolation and diagnostics, reducing wiring complexity and cabinet space requirements compared to distributed I/O alternatives.

→ Current Sinking Architecture (NPN Compatible)
Direct compatibility with two-wire proximity sensors, mechanical contacts, and solid-state outputs commonly specified in European and Asian automation standards—eliminating the need for signal conditioning interfaces.

→ 500V Galvanic Isolation
Channel-to-backplane isolation protects control systems from ground potential differences and electrical transients, ensuring signal integrity in electrically noisy industrial environments with VFDs, welders, and high-power switching equipment.

✓ Sub-3ms Response Time
Configurable input filtering balances noise rejection with fast signal acquisition, suitable for high-speed packaging lines, emergency stop circuits, and time-sensitive interlock monitoring.

✓ Extended Temperature Operation
Qualified for -40°C to +70°C ambient conditions, enabling deployment in outdoor enclosures, unheated facilities, and harsh process areas without supplemental climate control.

✓ Hot-Swap Capability
Replace modules during operation without system shutdown when configured in redundant S800 I/O clusters—critical for continuous process industries where unplanned downtime costs thousands per hour.

Application Scenarios

Chemical & Petrochemical Processing
Monitor valve limit switches, emergency shutdown circuits, and process interlock chains in hazardous area control systems. The DI830's isolation and diagnostic features support SIL-rated safety applications when integrated with ABB AC 700F safety controllers.

Water & Wastewater Treatment
Interface with float switches, flow sensors, and pump status contacts across distributed lift stations and treatment facilities. The module's extended temperature rating suits outdoor installations in pump houses and remote monitoring stations.

Automotive Manufacturing
Coordinate conveyor position sensors, part-present detection, and robotic cell interlocks in body shops and assembly lines. Fast response times enable precise material handling synchronization in high-throughput production environments.

Power Generation & Distribution
Acquire turbine protection signals, breaker status indications, and auxiliary equipment monitoring in substations and generating facilities. Galvanic isolation provides defense against electrical surges common in high-voltage switching environments.

Food & Beverage Processing
Track packaging line photoeyes, fill-level sensors, and CIP (clean-in-place) system status indicators. The module's sealed construction and wide temperature tolerance support washdown-rated enclosures and refrigerated processing areas.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DI830 when your field devices use NPN (current sinking) outputs or mechanical contacts referenced to 0V. For PNP (current sourcing) sensors, specify the DI810 variant instead. Verify your sensor supply voltage matches the 24V DC nominal specification—higher voltage applications require the DI811 (48V DC) model. Consider channel count requirements: the DI830 provides 16 inputs, while the DI801 offers 8 channels for smaller I/O point counts.

Extended Functions

Diagnostic Capabilities: Each input channel features independent LED status indication for real-time visual diagnostics at the module level. The DI830 continuously executes self-test routines that monitor signal integrity, detect open-circuit conditions, and report anomalies to the host controller via S800 backplane communication—enabling predictive maintenance strategies.

Redundancy Support: When deployed in redundant S800 I/O configurations with dual cluster modems and redundant controllers, the DI830 enables fault-tolerant signal acquisition for safety-critical applications. Automatic failover ensures continuous operation even during module replacement or communication path failures.

Configuration Flexibility: ABB Control Builder Plus software provides comprehensive configuration tools for channel mapping, input filter time constants (0.2ms to 20ms), and diagnostic threshold settings. Save and replicate configurations across multiple modules to accelerate commissioning of standardized machine designs.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom-configured modules or large-quantity orders typically require 7-10 business days for preparation and quality verification.

Warranty Coverage: Every ABB DI830 module includes a comprehensive 12-month warranty against manufacturing defects and component failures. Warranty covers replacement parts and technical support for troubleshooting assistance.

Technical Support: Our automation specialists provide configuration guidance, system integration consulting, and rapid troubleshooting support via email and phone. Access to ABB technical documentation, wiring diagrams, and Control Builder Plus configuration examples included with purchase.

Documentation Package: Each module ships with installation instructions, technical specifications datasheet, and safety compliance certificates (CE, UL, ATEX where applicable). Digital access to full S800 I/O system manuals and application notes provided.

Frequently Asked Questions

How do I determine if my sensors are compatible with the DI830's current sinking inputs?
Check your sensor's output specification: NPN (negative switching), current sinking, or "switches to 0V" outputs are compatible. If your sensor datasheet specifies PNP (positive switching) or current sourcing, you need the DI810 module instead. When in doubt, measure the sensor's output voltage when active—NPN sensors pull close to 0V, while PNP sensors output near supply voltage.

What's the maximum cable distance between field sensors and the DI830 module?
Recommended maximum cable length is 100 meters using shielded twisted-pair cable with 0.5-1.5 mm² conductor cross-section in standard industrial environments. Longer distances up to 300 meters are possible with low-capacitance cable and reduced switching frequencies, but consult ABB application guidelines for specific installations.

Can the DI830 monitor both 24V sensors and dry contact switches simultaneously?
Yes, the module accepts both powered 24V sensors and voltage-free contacts (relay outputs, pushbuttons, limit switches). For dry contacts, connect one side to the input terminal and the other to the module's common (0V) terminal. The module's internal circuitry provides the necessary excitation current.

Does the module support high-speed counting or pulse input applications?
The DI830 is optimized for discrete state monitoring rather than high-frequency counting. For pulse counting, frequency measurement, or encoder applications, specify ABB's dedicated counter modules (CI810 series) which offer hardware counters up to 100 kHz input frequencies.

How many DI830 modules can I install on a single S800 I/O cluster?
Up to 12 I/O modules (any combination of digital input, digital output, analog input, and analog output) can be installed per cluster modem, subject to total power budget constraints. Each DI830 consumes 1.8W maximum from the backplane—verify your TB807/TB808 base unit and power supply can support the total module count.

Is special programming required to integrate the DI830 with non-ABB controllers?
The DI830 communicates via the S800 I/O cluster modem, which supports standard fieldbus protocols (PROFIBUS DP, Modbus, DeviceNet depending on modem model). Third-party PLCs access DI830 inputs as standard discrete input registers—no proprietary protocols or special function blocks required. Consult the cluster modem documentation for specific register mapping.

Ready to Enhance Your Control System?

The ABB DI830 digital input module delivers the reliability and performance your automation infrastructure demands. Whether you're upgrading existing S800 I/O systems or designing new control architectures, our technical team is ready to assist with product selection, configuration guidance, and integration support.

Contact our automation specialists today: Request a detailed quotation, discuss your specific application requirements, or schedule a technical consultation to ensure the DI830 meets your project specifications. We provide rapid response to technical inquiries and competitive pricing for both single-unit purchases and volume orders.
