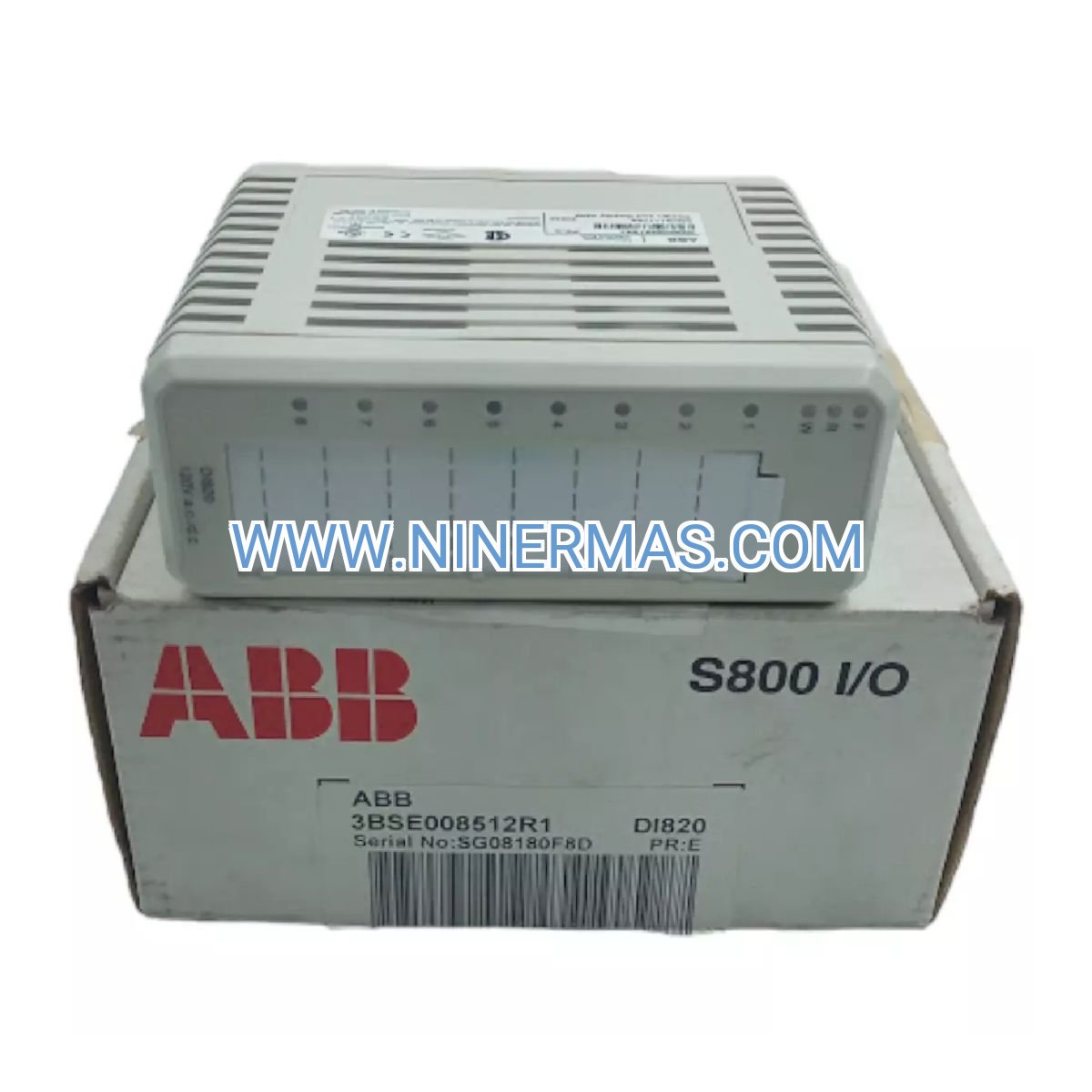

DI820 Industrial-Grade 120V AC Digital Input Module

The ABB DI820 (3BSE008512R1) represents a precision-engineered solution for acquiring discrete 120V AC signals in demanding industrial environments. Designed for ABB's S800 I/O distributed architecture, this module integrates eight independently isolated input channels that safeguard control systems from electrical interference, voltage transients, and ground potential differences inherent in high-voltage AC monitoring applications.

Built for power distribution, building automation, and process control sectors, the DI820 eliminates the need for external signal conditioning when interfacing with standard North American control power circuits. Each channel's galvanic isolation barrier withstands 2.5kV transient overvoltages while maintaining signal integrity across temperature extremes from -40°C to +70°C, ensuring continuous operation in utility substations, manufacturing facilities, and critical infrastructure installations.

Seamless integration with ABB 800xA DCS platforms and compatibility with five termination unit variants enable flexible deployment strategies. Whether monitoring motor starter auxiliaries, safety relay outputs, or switchgear status contacts, the DI820 delivers deterministic signal acquisition with diagnostic transparency for predictive maintenance programs.

Core Capabilities & Technical Advantages

→ Individual Channel Isolation Architecture
Unlike group-isolated designs, each of the eight inputs operates with dedicated galvanic separation. This prevents fault propagation between channels and eliminates ground loop currents when monitoring signals from multiple power sources or equipment with different ground references.

✓ Native 120V AC Signal Compatibility
Direct connection to 85-132V AC control circuits without voltage conversion hardware. Reduces panel space, wiring complexity, and potential failure points compared to systems requiring intermediate relays or transformers.

✓ Hot-Swap Capability for Zero-Downtime Maintenance
Replace modules during operation when deployed with redundant power configurations. Auto-detection and configuration restoration minimize service interruption in 24/7 production environments.

✓ Extended Environmental Tolerance
Operates reliably across industrial temperature ranges with conformal coating protection against humidity, dust, and chemical exposure. Suitable for outdoor enclosures, harsh manufacturing zones, and uncontrolled ambient conditions.

✓ Comprehensive Diagnostic Integration
Channel-level health monitoring through 800xA operator interfaces provides real-time visibility into signal status, isolation barrier integrity, and communication performance. Predictive alerts enable proactive maintenance scheduling.

✓ Multi-Platform System Compatibility
Supports ABB 800xA versions 4.0 through 6.0, Compact Product Suite, and legacy Advant OCS systems. Protects automation infrastructure investments during phased system upgrades.

Industrial Application Scenarios

Electrical Substation Monitoring
Acquire circuit breaker auxiliary contacts, disconnect switch positions, and protective relay trip outputs in utility-grade installations. The 120V AC input rating matches standard substation control power, while isolation barriers meet utility industry requirements for noise immunity and fault tolerance in high-EMI environments near switchgear and transformers.

Commercial HVAC Control Integration
Monitor rooftop unit contactors, air handler status, chiller run confirmations, and pump starter auxiliaries across multi-building facilities. Galvanic isolation prevents ground loop interference between distributed building automation networks and centralized mechanical equipment, ensuring accurate status reporting for energy management systems.

Manufacturing Equipment Interface
Connect to motor control center (MCC) auxiliary outputs, VFD run/fault signals, conveyor system interlocks, and process equipment status indicators. The module's ability to handle signals from multiple power distribution panels without common reference requirements simplifies integration in facilities with complex electrical architectures.

Safety System Signal Acquisition
Interface with emergency stop circuits, safety relay outputs, guard door interlocks, and light curtain status signals operating at 120V AC. Individual channel isolation ensures that a short circuit or ground fault on one safety device cannot compromise adjacent safety inputs, supporting IEC 61508 functional safety compliance.

Water & Wastewater Treatment
Monitor pump station controls, valve actuator limit switches, level switch outputs, and chemical feed system status in municipal and industrial treatment facilities. The extended temperature rating and environmental protection enable installation in outdoor pump houses and wet well enclosures.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the DI820 when monitoring 120V AC control signals in North American installations or systems using 110-120V control power. For European 230V AC applications, specify the DI821 variant. When input signals originate from 24V DC sources, select the DI801 or DI811 modules based on required isolation architecture.

Advanced Integration Features

Termination Unit Flexibility
The S800 I/O architecture separates field wiring (termination unit) from signal processing (I/O module). This design enables module replacement without disturbing field wiring, reducing maintenance time and error risk. Select termination units based on installation requirements:

• TU811: Screw terminals for permanent installations with infrequent wiring changes
• TU813: Spring-clamp terminals for vibration-prone environments and rapid commissioning
• TU831: High-density configuration for space-constrained control panels
• TU839: Removable terminal blocks enabling pre-wiring and simplified troubleshooting
• TU851: Extended voltage rating for specialized high-voltage monitoring applications

Software Configuration & Commissioning
Configure the DI820 through ABB Control Builder engineering software for 800xA systems. The module auto-detects upon installation and presents adjustable parameters including input debounce filtering, alarm delay timers, and diagnostic thresholds. Configuration templates accelerate deployment for standardized applications, while custom parameter sets accommodate unique process requirements.

Redundancy & Fault Tolerance
Deploy in redundant I/O configurations for critical monitoring applications. The module supports online insertion and removal (hot-swap) when used with redundant power supplies, enabling maintenance without process interruption. Automatic failover mechanisms ensure continuous signal acquisition during module replacement or communication path failures.

Installation & Commissioning Workflow

Step 1: Mechanical Assembly
Align the DI820 module with the selected termination unit's mounting rails. Slide the module onto the termination unit until the mechanical locking mechanism engages. Verify secure retention by attempting to remove the module without releasing the locking tab.

Step 2: Field Wiring Connections
Connect 120V AC field signals to termination unit screw positions according to channel assignments documented in the wiring diagram. Use 14-22 AWG wire sized for circuit current and voltage drop requirements. Maintain minimum 50mm separation between 120V AC wiring and low-voltage communication cables to prevent capacitive coupling.

Step 3: System Configuration
Launch Control Builder software and navigate to the I/O configuration tree. The DI820 module appears automatically after system scan. Assign channel tags, configure input filtering parameters, and set alarm thresholds based on application requirements. Download configuration to the controller.

Step 4: Functional Verification
Test each input channel individually by applying known signal states. Verify correct logic level detection, alarm response, and diagnostic status reporting. Document baseline performance metrics for future troubleshooting reference.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock modules; 2-3 weeks for factory orders
Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship
Technical Support: Pre-sales application engineering assistance, post-sales configuration guidance, and troubleshooting support
Documentation Package: Installation manual, termination unit compatibility matrix, configuration templates, and CAD drawings

Frequently Asked Questions

Q: Can the DI820 monitor 24V DC signals in addition to 120V AC inputs?
A: No, the DI820 is specifically designed for 120V AC signal acquisition. For 24V DC monitoring, specify the ABB DI801 (group isolation) or DI811 (individual isolation) modules from the S800 I/O family.

Q: What is the maximum cable length between field devices and the DI820 module?
A: Cable length depends on wire gauge and capacitance. For 14 AWG wire, distances up to 300 meters are typical. Consult the installation manual for derating factors based on cable capacitance and environmental conditions.

Q: Does the module require external power supplies for the input channels?
A: No, the DI820 derives power from the S800 I/O backplane. Field devices must provide the 120V AC signal; the module does not source power to external circuits.

Q: How do I select the appropriate termination unit for my application?
A: Consider wiring method (screw vs. spring-clamp), panel space constraints, and maintenance requirements. TU813 spring-clamp terminals offer the fastest installation, while TU839 removable blocks simplify pre-wiring and troubleshooting.

Q: Is the DI820 compatible with third-party DCS platforms via Modbus or OPC?
A: The DI820 operates exclusively within ABB's S800 I/O architecture. For integration with non-ABB control systems, use ABB communication gateways that provide Modbus TCP, OPC UA, or PROFINET interfaces to the S800 I/O network.

Q: What diagnostic capabilities are available for predictive maintenance?
A: The module reports channel-level signal status, isolation barrier health, communication errors, and power supply voltage. Trend these parameters in the 800xA historian to identify degradation patterns before failures occur.

Request Technical Consultation

Our application engineering team provides complimentary pre-sales support to ensure optimal module selection for your specific voltage, isolation, and environmental requirements. Contact us with your project specifications for termination unit recommendations, wiring diagrams, and configuration templates tailored to your application.

Ready to integrate reliable 120V AC signal acquisition into your control system? Order the ABB DI820 today with confidence in genuine components, full manufacturer traceability, and expert technical support throughout your project lifecycle.
