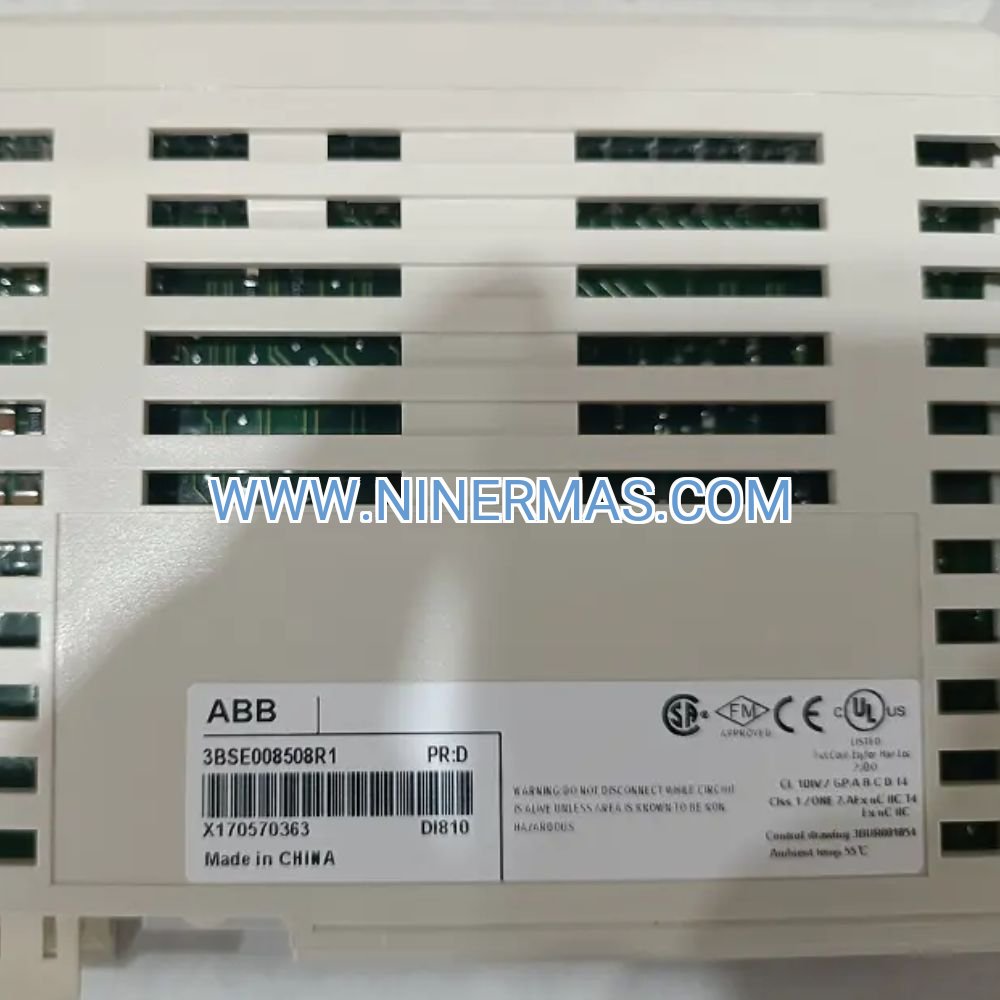

ABB DI810 3BSE008508R1 Digital Input Module (Industrial-Grade 24V DC Signal Processing)

The ABB DI810 (3BSE008508R1) represents a cornerstone solution for high-reliability digital signal acquisition in modern industrial control architectures. As a core component of the globally deployed S800 I/O ecosystem, this 16-channel input module transforms discrete field signals into actionable data streams for process automation, manufacturing execution systems, and critical infrastructure monitoring. Built to ABB's exacting standards, the DI810 combines electrical isolation, rapid response times, and field-proven durability to meet the demands of continuous operation in harsh industrial environments.

Designed for seamless integration with ABB AC 800M controllers and third-party DCS platforms, this module serves as the essential interface between your control logic and real-world sensors—limit switches, proximity detectors, push buttons, and safety interlocks. Whether you're upgrading legacy systems or deploying greenfield automation projects, the DI810 delivers the performance consistency and configuration flexibility that process engineers depend on.

With certifications spanning CE, UL, ATEX, and IECEx standards, the DI810 meets global compliance requirements for deployment across oil & gas, chemical processing, power generation, water treatment, and discrete manufacturing sectors. Its hot-swap capability ensures maintenance activities never compromise production uptime, while comprehensive diagnostic LEDs accelerate troubleshooting and reduce mean time to repair.

Core Features & Technical Advantages

→ 16 Isolated Digital Inputs
Each channel features 500V channel-to-bus and 50V channel-to-channel galvanic isolation, protecting your control system from ground loops, electrical noise, and transient voltage spikes common in industrial power distribution networks.

→ Universal Sensor Compatibility
Configurable sink/source operation via terminal unit jumpers accommodates both PNP and NPN sensor types without additional signal conditioning hardware, reducing installation complexity and component costs.

→ Sub-3ms Response Time
Typical input response under 3 milliseconds enables real-time monitoring of high-speed production lines, emergency shutdown sequences, and time-critical safety interlocks where signal latency directly impacts operational safety.

→ Extended Operating Range
Rated for -40°C to +70°C ambient temperatures with 19-30V DC input tolerance, the module maintains specification performance in uncontrolled environments—outdoor enclosures, furnace proximity zones, and arctic climate installations.

✓ Hot-Swap Field Replacement
Replace failed modules during live operation without controller shutdown or process interruption. The ModuleBus architecture automatically detects module insertion/removal and resumes I/O scanning within seconds.

✓ Integrated Diagnostics
Per-channel LED indicators provide instant visual confirmation of input states, power supply status, and communication health—critical for rapid fault isolation during commissioning and troubleshooting.

Industrial Application Scenarios

Oil & Gas Production Facilities
Monitor wellhead pressure switches, valve position feedback, and emergency shutdown (ESD) system inputs across offshore platforms and onshore processing plants. The DI810's ATEX/IECEx certifications and robust isolation make it suitable for Zone 2/Division 2 classified areas when paired with appropriate barriers.

Chemical & Pharmaceutical Manufacturing
Track reactor vessel level switches, agitator motor status contacts, and batch process sequencing signals in GMP-compliant production environments. The module's wide temperature range supports installation in temperature-controlled clean rooms and high-ambient process areas alike.

Power Generation & Distribution
Interface with circuit breaker auxiliary contacts, transformer temperature alarms, and generator protection relay outputs in substations and power plants. Electrical isolation prevents ground potential differences between field equipment and control room systems from causing measurement errors or equipment damage.

Water & Wastewater Treatment
Acquire pump run status, tank high/low level alarms, and valve limit switch positions across distributed lift stations and treatment facilities. The DI810's extended cable length capability (100m+ with proper shielding) reduces the need for intermediate marshalling panels in large-footprint installations.

Automotive & Discrete Manufacturing
Capture conveyor jam sensors, robotic cell safety gates, and part presence detectors on assembly lines requiring rapid cycle times. The module's <3ms response ensures your control logic receives input state changes fast enough to prevent product damage or safety incidents.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DI810 when your application requires 24V DC digital input monitoring with channel counts up to 16 per module. For 48V DC systems, consider the DI811 variant. If your sensor count exceeds 16 channels, deploy multiple DI810 modules on the same ModuleBus cluster (up to 12 modules per cluster). Ensure your terminal unit selection (TU810V1 for screw terminals, TU830V1 for spring-cage terminals) matches your field wiring preferences and maintenance practices.

Advanced Integration Capabilities

Multi-Protocol Communication Support
While the DI810 natively communicates via ABB's proprietary ModuleBus, the S800 I/O system supports PROFIBUS DP, PROFINET IO, Modbus TCP, and Foundation Fieldbus through appropriate communication interface modules (CI522A, CI532V09, CI626A, CI627A). This protocol flexibility enables integration with Siemens, Rockwell, Schneider Electric, and Honeywell control platforms.

Redundant Controller Architectures
Deploy DI810 modules in redundant AC 800M controller configurations for mission-critical applications requiring fault-tolerant operation. The S800 I/O system automatically manages controller switchover without input signal interruption or data loss.

Remote I/O Extension
Extend I/O capacity beyond the central control room using fiber-optic or Ethernet-based communication modules. The DI810 can be deployed in remote marshalling cabinets up to several kilometers from the primary controller, reducing copper field wiring costs in large-footprint facilities.

Cybersecurity Features
When paired with modern ABB controllers and communication interfaces, the S800 I/O system supports encrypted communication protocols, role-based access control, and audit logging to meet IEC 62443 industrial cybersecurity standards.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders requiring configuration or large quantities. Expedited shipping available for critical outage situations.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship from date of shipment. Extended warranty programs available through authorized ABB service partners.

Technical Assistance: Access to application engineering support for system design, configuration assistance, and troubleshooting guidance. On-site commissioning services available for complex installations or greenfield projects.

Documentation Package: Each module ships with installation manual, technical datasheet, and certificate of conformity. Complete system integration guides, CAD drawings, and configuration software available via ABB Library portal.

Frequently Asked Questions

What sensor types are compatible with the DI810 input module?
The module accepts any two-wire or three-wire proximity sensor, photoelectric sensor, limit switch, or dry contact rated for 24V DC operation. Configure the terminal unit for sink (NPN) or source (PNP) operation based on your sensor output type. Wet contact sensors require external power supply connections to the terminal unit.

How many DI810 modules can I install on a single I/O cluster?
Up to 12 I/O modules (any combination of digital input, digital output, analog input, and analog output types) can share one ModuleBus cluster. Each cluster connects to the controller via a single communication interface module (e.g., CI522A for PROFIBUS or CI532V09 for PROFINET).

Does the DI810 support pulse counting or frequency measurement?
No, the standard DI810 is optimized for discrete state monitoring. For pulse counting applications (flow meters, encoders), use the ABB CI626A communication interface with integrated counter functionality, or consider the ABB CI854A interface module which supports high-speed counting up to 10kHz.

Can I replace a DI810 module without shutting down my process?
Yes, the S800 I/O architecture fully supports hot-swap module replacement. Simply pull the module from its terminal unit while the system is running—the controller will detect the removal, and I/O scanning resumes automatically when you insert the replacement module. Ensure you have the correct module type and configuration before performing the swap.

What cable specifications are recommended for field wiring?
Use shielded twisted-pair cable (minimum 0.5mm² conductor size) for runs up to 100 meters in typical industrial environments. For longer distances or electrically noisy areas, increase conductor size to 0.75mm² and ensure continuous shield grounding at the terminal unit end only. Maintain separation from high-voltage power cables per local electrical codes.

Is the DI810 suitable for safety-instrumented system (SIS) applications?
The standard DI810 is designed for basic process control I/O and does not carry SIL certification. For safety applications requiring SIL 2 or SIL 3 integrity levels, specify ABB's dedicated safety I/O modules from the SPDSI series, which include built-in diagnostics and certified failure rates.

Ready to Optimize Your Control System?

Contact our industrial automation specialists today for application-specific guidance, system architecture recommendations, and competitive pricing on the ABB DI810 and complete S800 I/O solutions. Whether you're retrofitting existing installations or designing new control systems, our team provides the technical expertise to ensure successful project outcomes.

Request a quote now or speak with an automation engineer about your digital input requirements.
