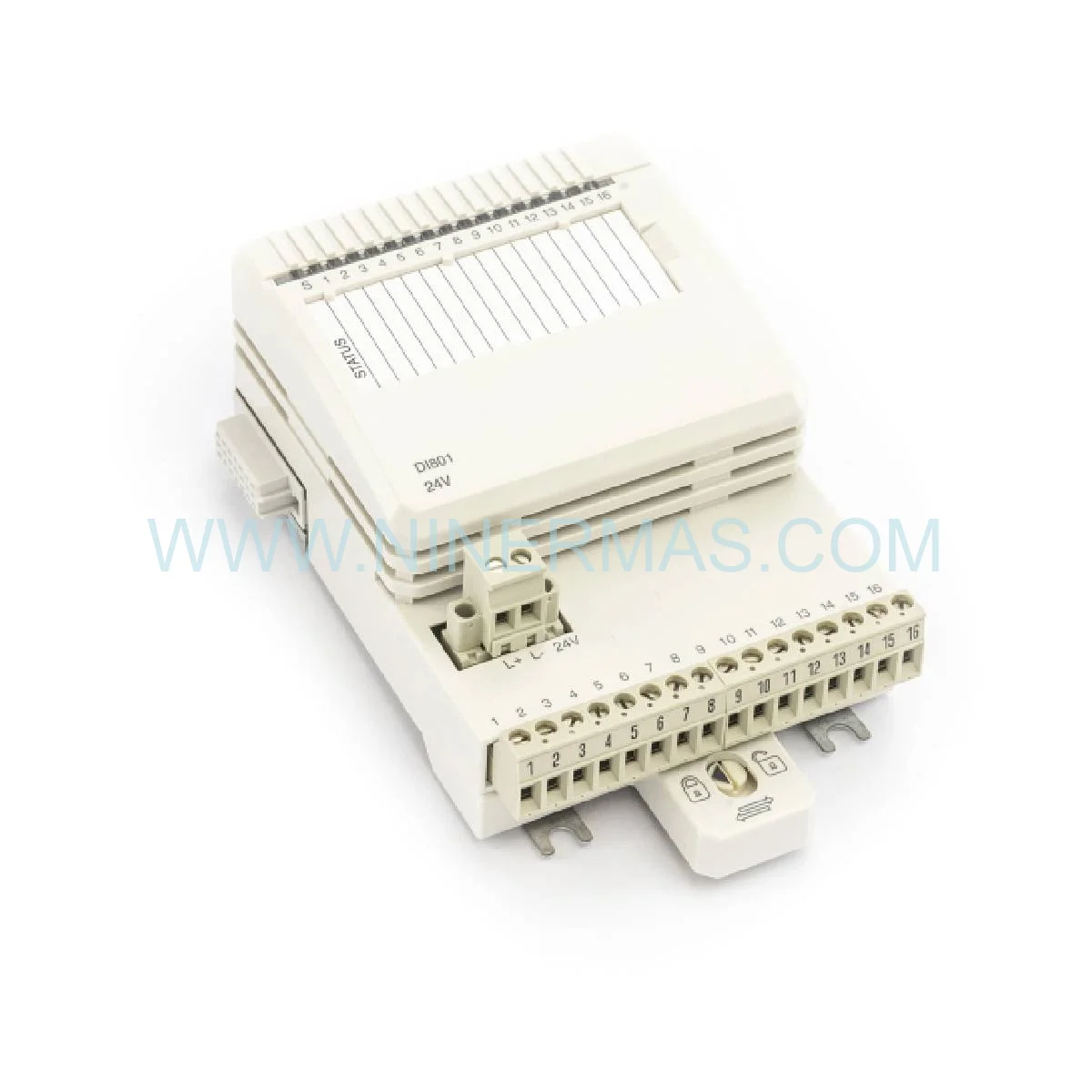

ABB DI801 3BSE020508R1 – Industrial-Grade 16-Channel Digital Input Module

The ABB DI801 (3BSE020508R1) represents a field-proven solution for discrete signal acquisition in process automation and distributed control architectures. Engineered for 24V DC current sink applications, this 16-input module delivers deterministic performance across pharmaceutical manufacturing, utilities infrastructure, and continuous process industries.

Designed for seamless integration with ABB Advant OCS and 800xA platforms, the DI801 addresses critical challenges in signal integrity, system uptime, and diagnostic visibility. Its hot-swappable architecture enables maintenance without process interruption, while galvanic isolation safeguards against ground loop interference and electrical transients.

Whether you're upgrading legacy I/O infrastructure or deploying greenfield automation projects, the DI801 provides the reliability and interoperability demanded by mission-critical operations. Backed by ABB's global service network and comprehensive documentation ecosystem.

Core Capabilities & Technical Advantages

✓ 16 Isolated Digital Inputs
Current sink topology with 24V DC nominal voltage ensures compatibility with standard industrial sensors, proximity switches, and safety devices. Each channel features independent galvanic isolation for superior noise immunity.

✓ Hot-Swap Serviceability
Field-replaceable design allows module extraction and insertion under power, reducing mean time to repair (MTTR) by up to 70% compared to traditional fixed-mount I/O systems.

✓ Integrated Diagnostics
Channel-level fault detection with LED status indicators and system-level alarms enable predictive maintenance strategies. Diagnostic data streams directly to 800xA operator workstations for centralized monitoring.

✓ Compact DIN-Rail Mounting
Space-efficient form factor optimizes cabinet real estate—critical for retrofit projects with limited panel space. Standard 35mm DIN rail compatibility simplifies mechanical installation.

✓ RoHS & CE Compliance
Meets international environmental and safety directives for global deployment. Manufactured under ISO 9001 quality management systems with full material traceability.

✓ Extended Temperature Range
Operational from -40°C to +70°C ambient, suitable for harsh industrial environments including outdoor enclosures and non-climate-controlled facilities.

Industry Applications & Use Cases

→ Pharmaceutical & Biotech Production
Monitor valve position feedback, filter differential pressure switches, and clean-in-place (CIP) cycle interlocks in FDA 21 CFR Part 11 compliant batch control systems. The module's deterministic scan rates support critical alarm response times.

→ Water & Wastewater Treatment
Acquire signals from level transmitters, flow switches, and pump status contacts across SCADA networks. Galvanic isolation prevents ground potential differences between remote pump stations and central control rooms.

→ Oil & Gas Midstream Operations
Interface with emergency shutdown (ESD) systems, fire & gas detection panels, and pipeline valve position indicators. SIL-capable when configured per IEC 61508 guidelines for safety instrumented functions.

→ Power Generation & Distribution
Collect breaker auxiliary contacts, transformer alarm signals, and generator protection relay outputs in substation automation projects. Supports IEC 61850 communication protocols via 800xA gateways.

→ Food & Beverage Processing
Track conveyor jam sensors, metal detector outputs, and pasteurization cycle confirmations in hygienic production lines. Conformal coating options available for washdown environments.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the DI801 when your application requires current sink inputs with 24V DC field devices. For current source applications, consider the DI810 variant. Verify compatibility with your specific 800xA system version—consult ABB's Product Compatibility Matrix (PCM) for firmware dependencies. For safety-critical functions, implement redundant configurations per IEC 61511 requirements.

Advanced Integration Features

800xA Native Connectivity
Plug-and-play recognition within ABB's Extended Automation System 800xA. Automatic device configuration via electronic keying eliminates manual parameter entry errors. Supports Asset Optimization strategies with embedded NAMUR NE107 diagnostics.

Cybersecurity Hardening
When deployed with 800xA 6.1 or later, benefits from role-based access controls, encrypted configuration downloads, and audit trail logging compliant with IEC 62443 industrial cybersecurity standards.

Scalable Architecture
Combine with ABB's AI/AO/DI/DO module families to build distributed I/O networks up to 12,000 points per controller. Supports both local and remote I/O topologies via PROFIBUS DP, Modbus TCP, or ABB's proprietary S800 I/O bus.

Customization Options
Factory configuration services available for pre-programmed channel assignments, custom labeling, and FAT documentation packages. Consult with ABB's application engineering team for project-specific requirements.

Delivery, Warranty & Technical Support

Lead Times:
• Standard stock items: 3-5 business days (Asia-Pacific region)
• Factory-fresh units: 4-6 weeks (subject to ABB production schedules)
• Configured assemblies: 6-8 weeks including FAT documentation

Warranty Coverage:
18-month manufacturer's warranty from shipment date, covering material defects and workmanship. Extended warranty programs available through ABB Ability™ Service Agreements—includes preventive maintenance visits and priority spare parts allocation.

Technical Resources:
Comprehensive installation manuals, CAD drawings (STEP/DWG formats), and configuration software provided at no charge. Access to ABB's global technical support hotline with 24/7 coverage for critical process industries. On-site commissioning assistance available in major industrial regions.

Included Documentation:
• Product datasheet with electrical specifications
• Installation & wiring guide (multi-language)
• 800xA integration manual
• Compliance certificates (CE/RoHS/ATEX)
• Material safety data sheet (MSDS)

Frequently Asked Questions

Q: Can the DI801 interface with third-party PLCs outside the ABB ecosystem?
A: Yes, when used with ABB's S800 I/O communication modules (CI820/CI840 series), the DI801 can connect to Siemens, Rockwell, Schneider, and other major PLC brands via PROFIBUS, PROFINET, or Modbus protocols. Consult the S800 I/O System Manual for specific gateway configurations.

Q: What is the maximum cable length between field devices and the DI801 module?
A: For 24V DC signals, recommended maximum cable run is 100 meters using shielded twisted-pair wire (0.75mm² minimum). Longer distances require signal repeaters or 4-20mA transmitters to maintain signal integrity. Always follow local electrical codes for hazardous area installations.

Q: How does the DI801 contribute to energy efficiency in automation systems?
A: The module's low power consumption (typically 2.5W) reduces cabinet cooling requirements by 15-20% compared to legacy relay-based input systems. When combined with 800xA's energy monitoring applications, enables real-time tracking of equipment runtime and idle periods for optimization initiatives.

Q: Are there specific installation requirements for vibration-prone environments?
A: The DI801 is rated for 2g continuous vibration (10-150 Hz) per IEC 60068-2-6. For applications exceeding this threshold—such as reciprocating compressor skids—use vibration-damping DIN rail mounts or relocate I/O to a remote, isolated enclosure. Conformal coating (option code -CC) provides additional mechanical protection.

Q: Can I monitor the DI801's health status remotely through cloud platforms?
A: When integrated with ABB Ability™ Edgenius or third-party SCADA systems supporting OPC UA, diagnostic data (channel status, module temperature, communication errors) can be streamed to cloud analytics platforms. This enables predictive maintenance models and remote troubleshooting by service teams.

Q: What is the typical failure rate and expected service life?
A: ABB specifies MTBF (Mean Time Between Failures) of >500,000 hours under standard industrial conditions. Expected service life exceeds 15 years with proper environmental controls. Proactive replacement recommended after 10 years in safety-critical applications per ISA-84/IEC 61511 proof test intervals.

Ready to Optimize Your Control System?

Contact our automation specialists for application-specific guidance, volume pricing, and integration support. We provide pre-sales technical consultations, custom configuration services, and post-installation commissioning assistance across Asia-Pacific, Middle East, and European markets.

Request a quote today or download the complete technical datasheet to evaluate the DI801 for your next project. Our team responds to inquiries within 4 business hours with detailed proposals and delivery timelines.
