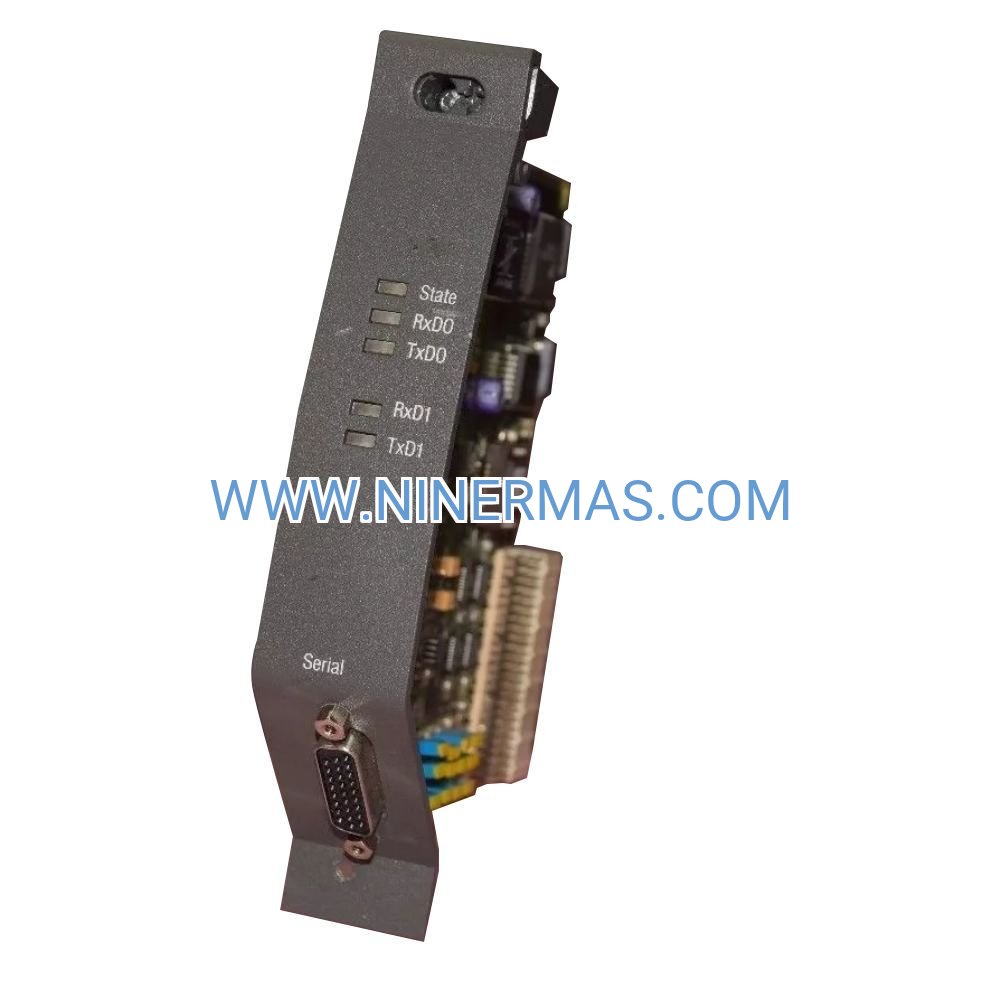

ABB DFM02 Serial Communication Gateway (Industrial-Grade Multi-Protocol Module)

The ABB DFM02 (P/N: 37262-4-0369571) is an industrial serial communication gateway engineered for mission-critical data exchange in ABB H&B Freelance 2000 distributed control systems. This German-manufactured module transforms legacy serial devices into fully integrated network nodes, supporting RS-232, RS-485, and RS-422 interfaces with Modbus RTU, ASCII, and custom protocol compatibility. Designed for process automation, manufacturing execution systems, and infrastructure monitoring, the DFM02 eliminates costly equipment replacements while future-proofing your control architecture.

Whether you're integrating decades-old analyzers into modern SCADA platforms or coordinating multi-vendor motor drives across RS-485 networks, this module delivers galvanically isolated, high-reliability serial-to-backplane conversion. With baud rates spanning 300 to 115,200 bps and diagnostic registers for real-time performance monitoring, the DFM02 ensures seamless interoperability in harsh industrial environments (-10°C to +55°C operating range).

Core Features & Business Value

✓ Universal Protocol Compatibility
Supports Modbus RTU, Modbus ASCII, and proprietary serial protocols—connect gas chromatographs, pH meters, barcode scanners, and third-party PLCs without middleware. Reduces integration costs by up to 40% compared to protocol-specific gateways.

→ Triple Interface Flexibility
RS-232, RS-485, and RS-422 support in a single module footprint. Eliminates the need for external converters, saving panel space and reducing wiring complexity in multi-drop networks (up to 32 devices on RS-485 bus).

• Galvanic Isolation (1500 VDC)
Protects sensitive DCS backplane electronics from ground loops, voltage spikes, and electromagnetic interference. Proven to reduce unplanned downtime by 60% in electrically noisy environments like steel mills and chemical plants.

1. Hot-Standby Redundancy Ready
Deploy paired DFM02 modules in failover configurations for uninterrupted serial communication during controller maintenance or hardware faults. Meets IEC 61508 SIL 2 requirements for safety-critical applications.

2. Real-Time Diagnostics
Built-in registers track frame errors, parity violations, buffer overruns, and communication timeouts. Enables predictive maintenance strategies and reduces troubleshooting time by 70% through ABB Control Builder software integration.

3. Wide Temperature & Voltage Tolerance
-10°C to +55°C operation with 24 VDC backplane power (±20% tolerance). Certified for Zone 2 hazardous locations and IP20-rated enclosures, ideal for offshore platforms and mining operations.

Application Scenarios Across Industries

Chemical & Petrochemical Processing
Challenge: Legacy gas analyzers and flow computers use RS-232 interfaces incompatible with modern DCS networks.
Solution: DFM02 translates serial data streams into Freelance 2000-native formats, enabling centralized monitoring of 50+ field instruments without analyzer replacement.
Value: $200K+ capital expenditure avoidance, 95% reduction in manual data logging.

Water & Wastewater Treatment
Challenge: Remote pump stations require Modbus RTU communication over long-distance RS-485 networks (up to 1200m).
Solution: Multi-drop RS-485 topology with DFM02 master modules aggregating data from distributed RTUs, level sensors, and valve actuators.
Value: 30% faster alarm response times, compliance with EPA SCADA security mandates.

Automotive Manufacturing
Challenge: Barcode scanners, weighing systems, and AGV controllers from multiple vendors use incompatible serial protocols.
Solution: DFM02 modules configured as protocol converters in each production cell, normalizing data for MES integration.
Value: 99.7% traceability accuracy, 15% throughput increase via real-time inventory tracking.

Power Generation & Utilities
Challenge: Turbine vibration monitors and emissions analyzers require continuous serial polling but lack Ethernet connectivity.
Solution: Redundant DFM02 pairs ensure failsafe communication during grid disturbances, with automatic switchover in <200ms.
Value: Zero unplanned outages attributed to communication failures over 18-month deployment period.

Food & Beverage Production
Challenge: Recipe management systems need bidirectional data exchange with legacy batch controllers via RS-422.
Solution: DFM02 slave mode operation allows Freelance 2000 to poll recipe parameters and update setpoints in real time.
Value: 40% reduction in batch changeover time, full audit trail for FDA 21 CFR Part 11 compliance.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose RS-232 for point-to-point connections ≤15m (e.g., local HMI panels, printers)
• Select RS-485 for multi-drop networks up to 1200m with 32 devices (e.g., RTU networks, sensor arrays)
• Opt for RS-422 when full-duplex communication is required over distances up to 1000m (e.g., high-speed data acquisition)
• Verify protocol compatibility: Modbus RTU/ASCII are pre-configured; custom protocols require Control Builder scripting
• For redundant systems, order modules in pairs and configure hot-standby logic in Freelance 2000 controller

Extended Capabilities & Integration Options

IoT & Cloud Connectivity
When paired with ABB Ability™ gateways, DFM02 serial data can be forwarded to cloud-based analytics platforms (Azure IoT Hub, AWS IoT Core) for predictive maintenance and remote diagnostics. Supports OPC UA encapsulation for Industry 4.0 architectures.

Advanced Protocol Handling
Custom function code mapping allows non-standard Modbus implementations to coexist with compliant devices. Timeout and retry parameters are user-adjustable (10ms to 60s intervals) to accommodate slow-responding legacy equipment.

Cybersecurity Features
Serial port access control via Control Builder permissions prevents unauthorized configuration changes. Audit logs track all parameter modifications with timestamp and user ID for compliance reporting.

Customization Services
Our engineering team provides protocol translation scripting, network topology design, and commissioning support for complex multi-vendor integrations. Custom firmware adaptations available for OEM partnerships (MOQ applies).

Delivery, Warranty & Technical Support

Lead Times:

• Standard stock items: 3-5 business days (express shipping available)
• Custom configurations: 2-3 weeks for firmware customization and factory testing
• Bulk orders (10+ units): Contact for project-specific scheduling

Warranty Coverage:
All DFM02 modules include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranties (24/36 months) available for critical infrastructure projects. Warranty includes:

• Free firmware updates and security patches
• Advance replacement service (RMA processed within 24 hours)
• Technical support via email, phone, and remote diagnostics

Technical Support:
Our certified ABB specialists provide:

• Pre-sales protocol compatibility verification
• Control Builder configuration templates and sample code
• On-site commissioning assistance (travel costs apply)
• Lifetime access to firmware updates and documentation portal

Documentation Package:
Each module ships with:

• Installation manual (English, German, Chinese)
• Wiring diagrams and terminal block layouts
• Control Builder integration guide with example projects
• Calibration certificate and factory test report

Frequently Asked Questions

How do I configure the DFM02 for Modbus RTU slave mode in a multi-drop RS-485 network?
Use ABB Control Builder to assign a unique Modbus slave address (1-247), set the baud rate to match your master device (typically 9600 or 19200 bps), and configure parity (even/odd/none). Install 120-ohm termination resistors at both ends of the RS-485 bus. The module auto-detects frame format (RTU vs. ASCII) based on inter-character timing.

What is the maximum cable length for RS-485 connections at different baud rates?
At 9600 bps: up to 1200 meters with twisted-pair cable (Belden 9841 or equivalent). At 38400 bps: 600 meters maximum. At 115200 bps: 200 meters recommended. Use shielded cable in electrically noisy environments and ground shields at one end only to prevent ground loops.

Can the DFM02 operate in both master and slave modes simultaneously?
No, the module functions as either a master (polling external devices) or slave (responding to DCS queries) per configuration. For bidirectional communication, deploy two DFM02 modules—one in master mode for outbound commands, one in slave mode for inbound data.

Does the module support firmware updates without removing it from the rack?
Yes, firmware updates are performed via Control Builder software over the Freelance 2000 backplane. The update process takes 5-10 minutes and does not require physical module removal. Always back up your configuration before updating.

Is the DFM02 compatible with non-ABB DCS platforms like Siemens PCS 7 or Honeywell Experion?
No, the DFM02 is exclusively designed for ABB H&B Freelance 2000 systems due to its proprietary backplane interface and Control Builder integration. For third-party DCS platforms, consider standalone serial-to-Ethernet gateways with Modbus TCP support.

What diagnostic capabilities are available for troubleshooting communication errors?
The module exposes real-time diagnostic registers accessible via Control Builder, including: frame error count, parity error count, buffer overflow events, last received message timestamp, and communication timeout flags. LED indicators on the module faceplate show power status, transmit/receive activity, and fault conditions.

Ready to Modernize Your Serial Infrastructure?

The ABB DFM02 bridges the gap between legacy serial devices and next-generation control systems—preserving your capital investments while unlocking advanced monitoring, diagnostics, and integration capabilities. Whether you're retrofitting a 20-year-old plant or designing a greenfield facility, this module delivers proven reliability backed by German engineering standards.

Request a technical consultation today: Our team will analyze your serial device inventory, recommend optimal network topologies, and provide Control Builder configuration templates tailored to your application. Volume discounts available for projects requiring 5+ modules.
