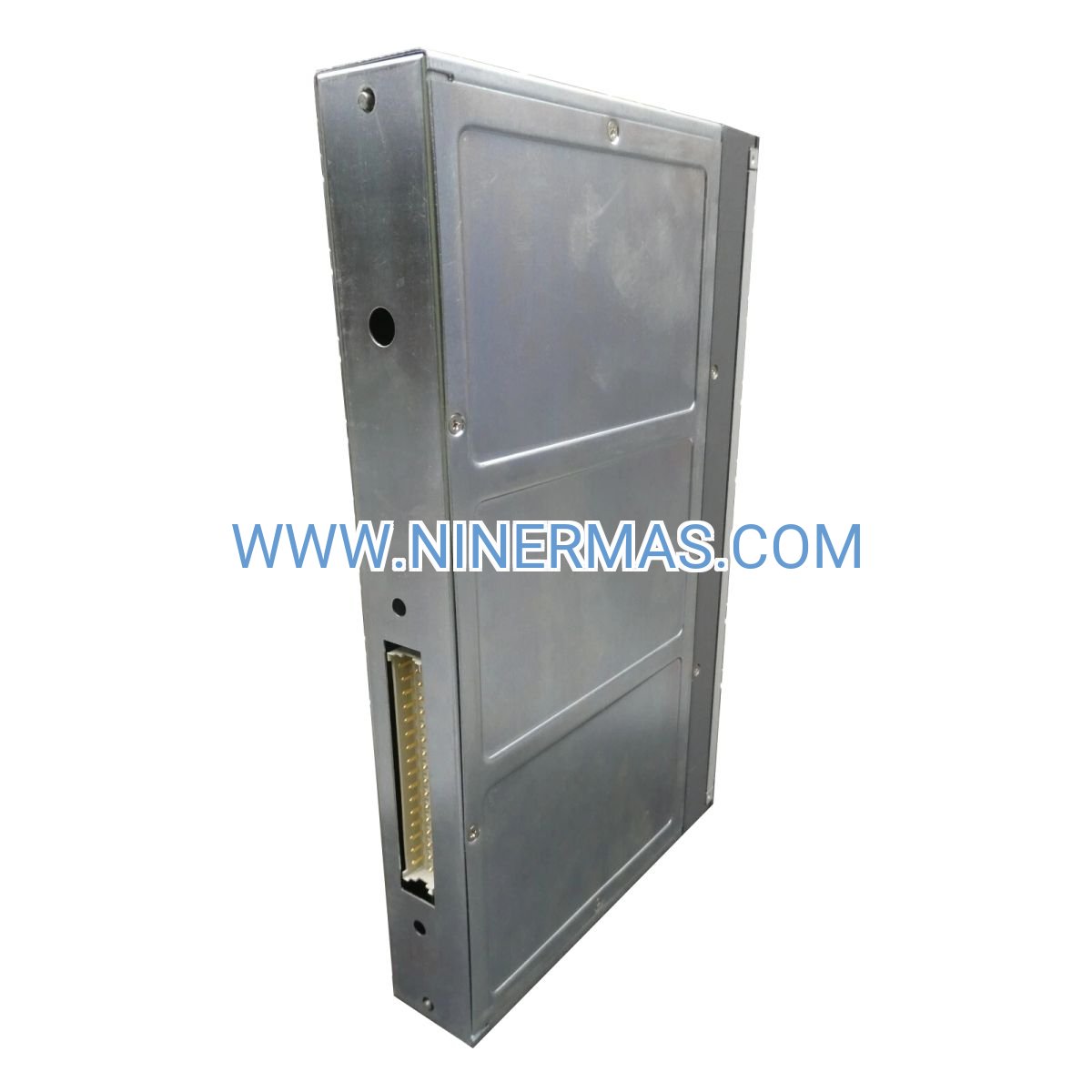

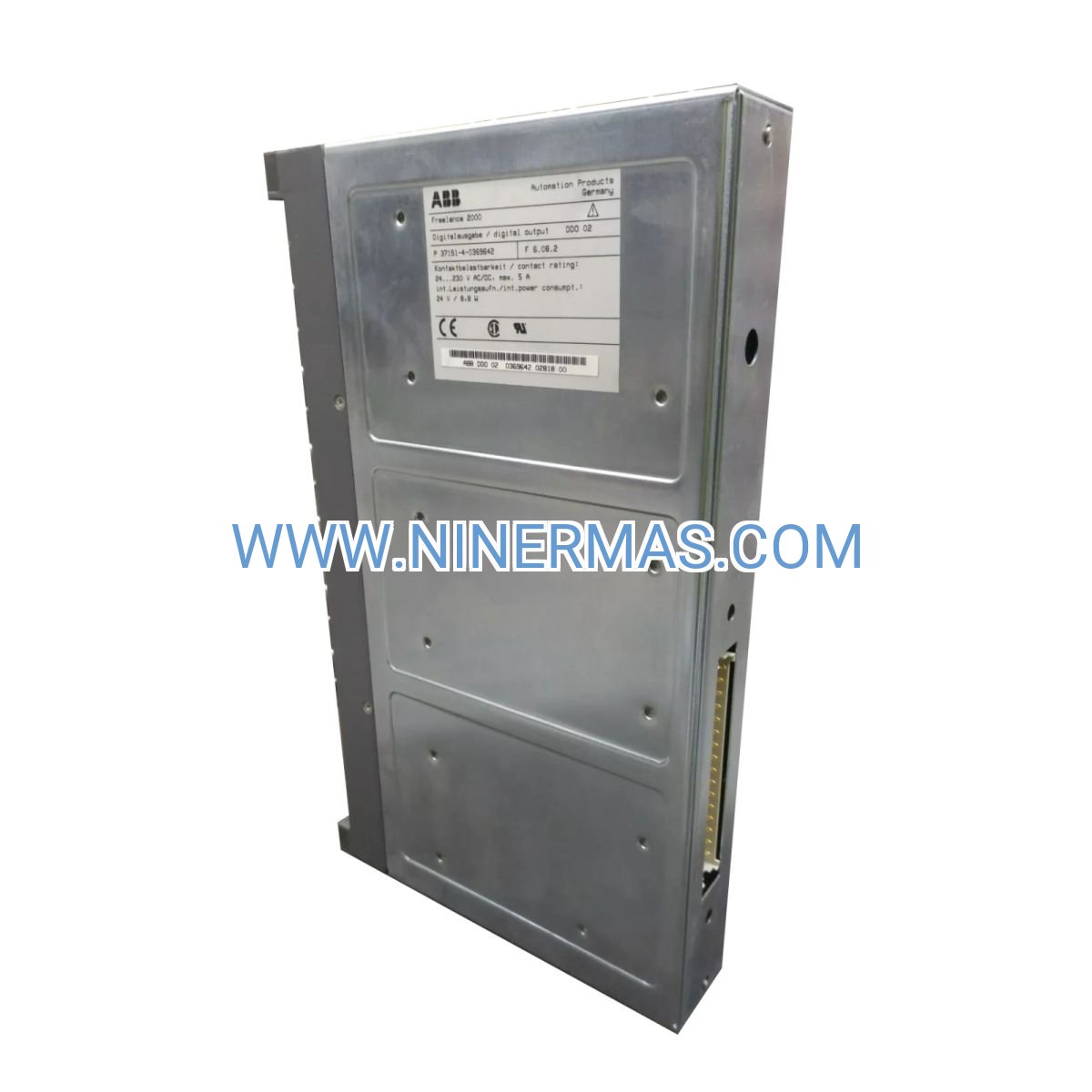

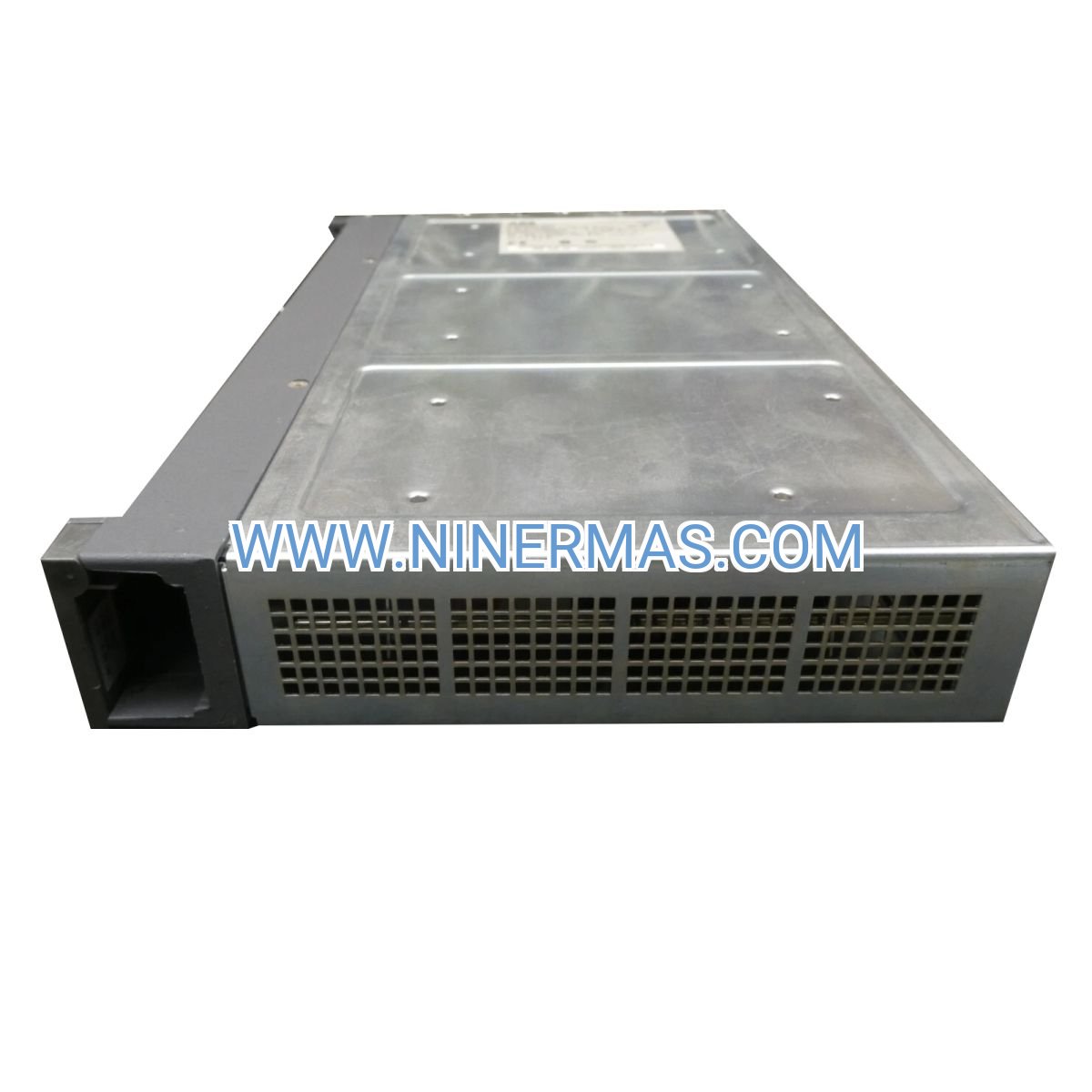

DDO02 Digital Output Module (Industrial-Grade DCS Interface)

The DDO02 (0369642MR) serves as a critical interface component within ABB Freelance 2000 distributed control systems, converting controller logic into physical switching actions that drive motors, valves, actuators, and alarm devices. Built for continuous operation in harsh industrial environments, this module combines robust circuit protection with diagnostic intelligence to ensure reliable field device control across process manufacturing, utilities, and infrastructure applications.

Designed for system integrators and plant engineers managing complex automation networks, the DDO02 addresses the fundamental challenge of translating digital commands into real-world actions while maintaining electrical isolation and fault tolerance. Whether you're upgrading legacy DCS installations or expanding existing Freelance 2000 architectures, this output module delivers the performance consistency demanded by mission-critical control loops.

With proven compatibility across ABB's Freelance ecosystem and straightforward integration into standard control cabinets, the DDO02 reduces commissioning time while providing the scalability needed for multi-zone process control. Each channel undergoes factory testing to verify switching accuracy, load handling, and protection circuit response before shipment.

Core Capabilities & Technical Advantages

→ Multi-Channel Digital Switching
Independent output channels enable simultaneous control of multiple field devices from a single module, reducing rack space requirements and simplifying cabinet wiring. Each channel operates autonomously with dedicated protection circuitry.

✓ Electrical Isolation Architecture
Galvanic isolation between control logic and field power prevents ground loops and voltage transients from propagating into your DCS backplane, protecting sensitive controller electronics while maintaining signal integrity across long cable runs.

✓ Integrated Fault Diagnostics
Real-time monitoring of output status, short-circuit conditions, and open-load scenarios enables predictive maintenance strategies. Diagnostic data streams directly to your Freelance controller for alarm generation and event logging.

→ DIN-Rail Mounting System
Standardized mechanical interface allows tool-free installation in 35mm DIN rail cabinets, facilitating rapid module replacement during maintenance windows without disrupting adjacent I/O points or requiring panel modifications.

✓ Industrial Temperature Range
Qualified for -20°C to +60°C operation, the DDO02 maintains switching accuracy in unheated control rooms, outdoor enclosures, and high-ambient process areas where commercial-grade electronics would fail.

→ Hot-Swap Capability
Remove and replace modules during system operation without powering down the entire I/O rack, minimizing downtime during troubleshooting or capacity expansion projects (when used with compatible Freelance racks).

Industry Applications & Use Cases

Chemical & Petrochemical Processing
Control reactor heating jackets, emergency shutdown valves, and material transfer pumps with deterministic on/off switching. The module's isolation design prevents electrical noise from analytical instruments and variable frequency drives from corrupting output signals during batch sequencing operations.

Power Generation & Distribution
Interface with circuit breaker trip coils, generator excitation systems, and substation alarm annunciators. Diagnostic feedback enables operators to verify breaker position and detect coil failures before they impact grid reliability.

Water & Wastewater Treatment
Coordinate chemical dosing pump activation, clarifier rake drives, and UV disinfection lamp banks across multi-stage treatment processes. The module's fault detection identifies stuck contactors or failed actuators that could compromise effluent quality.

Food & Beverage Manufacturing
Manage CIP (clean-in-place) valve sequencing, pasteurizer heating elements, and packaging line diverters with precise timing control. Electrical isolation prevents cross-contamination between sanitary process zones and utility power systems.

Building Automation & HVAC
Drive damper actuators, chiller compressor contactors, and emergency ventilation fans in commercial facilities. Integration with Freelance controllers enables energy optimization algorithms while maintaining life-safety override capabilities.

Technical Specifications & Selection Criteria

Selection Guidelines: Match output voltage and current ratings to your field device requirements. For inductive loads (motors, solenoids), verify the module's surge suppression capability. In hazardous area installations, confirm the DDO02 variant meets your zone classification and temperature code requirements. Consult ABB's I/O capacity planning tools to determine optimal channel distribution across multiple modules.

Advanced Integration Options

The DDO02 supports ABB's Control Builder engineering environment, enabling graphical configuration of output assignments, alarm thresholds, and diagnostic parameters. For redundant DCS architectures, pair modules across dual controllers to achieve bumpless failover during primary controller faults. The module's firmware supports IEC 61131-3 function block programming, allowing custom interlocking logic and sequence control directly within the I/O layer.

When integrated with ABB's 800xA extended automation platform, the DDO02 participates in system-wide asset management workflows. Track module serial numbers, calibration dates, and maintenance history through centralized databases. Remote diagnostic access via Ethernet-based Freelance gateways enables off-site troubleshooting and performance monitoring without site visits.

For IoT-enabled facilities, combine DDO02 outputs with edge computing gateways to publish switching events to cloud analytics platforms. Monitor duty cycles, detect abnormal actuation patterns, and correlate output behavior with process quality metrics for continuous improvement initiatives.

Delivery Timeline & Support Services

Standard Delivery: 5-7 business days for in-stock modules via express courier to major industrial centers. Expedited 2-3 day shipping available for critical outage scenarios.

Custom Configuration: 10-14 business days for pre-programmed modules with customer-specific I/O mapping and diagnostic settings loaded prior to shipment.

Warranty Coverage: 12-month functional warranty covering manufacturing defects and component failures. Extended coverage plans available for high-criticality applications.

Technical Assistance: Pre-sales application engineering support for system design questions, wiring diagram review, and compatibility verification. Post-sales troubleshooting guidance via phone and email during commissioning and operation.

Documentation Package: Each module ships with installation manual, terminal wiring diagrams, configuration examples, and dimensional drawings. Digital access to firmware release notes and service bulletins provided via customer portal.

Frequently Asked Questions

How does the DDO02 integrate with existing Freelance 2000 controller racks?
The module mounts directly into standard Freelance I/O racks using DIN-rail clips. Backplane communication auto-configures upon power-up, with the controller recognizing the module type and channel count. Use Control Builder software to assign I/O addresses and map outputs to control logic.

What output channel capacity does the DDO02 provide for field device control?
Channel count varies by module variant—verify your specific model's datasheet for exact specifications. Typical configurations range from 8 to 16 discrete outputs per module, with each channel rated for independent load switching.

Can the DDO02 achieve energy savings in motor control applications?
While the module itself is an on/off switching device, integrating it with Freelance control strategies enables demand-based equipment cycling, reducing unnecessary runtime. Diagnostic feedback helps identify motors with excessive start/stop cycles that may benefit from VFD upgrades.

What installation requirements apply to DDO02 mounting in control cabinets?
Requires 35mm DIN rail, adequate ventilation for heat dissipation (typically 50mm clearance above/below), and field wiring access to screw terminals or spring-cage connectors. Ensure cabinet grounding meets ABB's EMC guidelines to maintain isolation effectiveness.

Does the DDO02 support remote monitoring of output status and faults?
Yes—diagnostic data transmits via the Freelance backplane to the controller, where it's accessible through HMI displays, SCADA systems, or ABB's 800xA operator workstations. Configure alarm notifications for short-circuit, open-load, or communication loss conditions.

How do I verify DDO02 compatibility with third-party field devices?
Check voltage and current ratings against your device specifications. For relay outputs, confirm contact ratings exceed inrush current during motor starting. For solid-state outputs, verify leakage current won't cause false triggering of sensitive loads. ABB's technical support can review device datasheets for compatibility confirmation.

Take the Next Step

Ready to enhance your Freelance 2000 system with reliable digital output control? Contact our automation specialists to verify DDO02 compatibility with your existing infrastructure, request detailed wiring diagrams, or place your order. We provide application engineering support to ensure seamless integration and optimal performance from day one.
