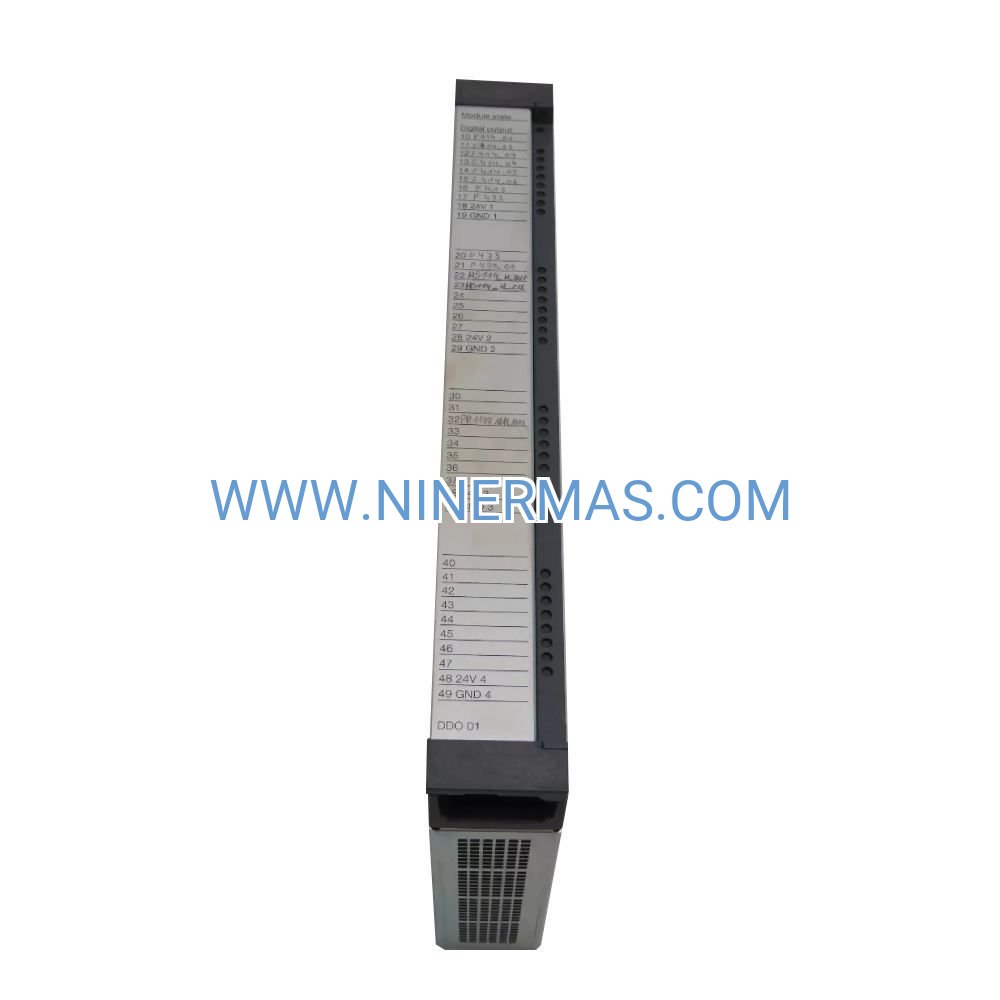

ABB DDO01 Output Module (Industrial-Grade Multi-Channel Controller)

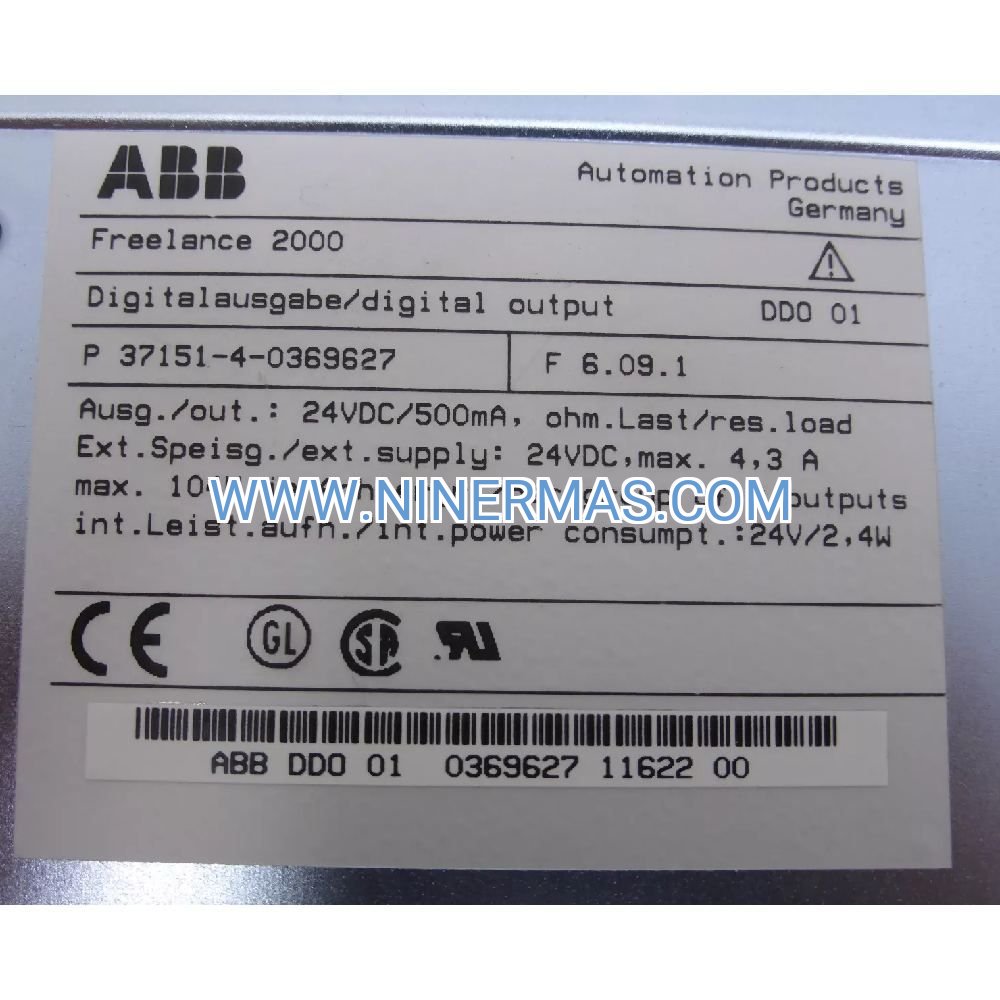

The ABB DDO01 (P37151-4-0369627) represents a cornerstone solution for industrial facilities requiring high-density digital switching with uncompromising reliability. This German-engineered output module integrates seamlessly into ABB H&B Freelance 2000 distributed control systems, delivering 32 independent channels of 24 VDC output capability at 0.5 amperes per channel. Designed for process industries where valve sequencing, solenoid actuation, and relay interfacing demand deterministic performance, the DDO01 combines robust electrical isolation with comprehensive diagnostic capabilities to ensure operational continuity in mission-critical environments.

Plant engineers and system integrators choose the DDO01 when control architecture requires scalable I/O density without sacrificing response time or fault tolerance. Whether coordinating emergency shutdown sequences in petrochemical facilities, managing multi-stage batch processes in pharmaceutical manufacturing, or orchestrating conveyor logic in automotive assembly lines, this module provides the foundation for precise, repeatable control actions. Its hot-swappable design and redundancy support minimize unplanned downtime, while native integration with ABB's engineering tools accelerates commissioning and reduces lifecycle costs.

With proven deployment across water treatment, power generation, and discrete manufacturing sectors, the DDO01 addresses the fundamental challenge of translating control logic into reliable physical action. Each output channel features short-circuit protection, overload detection, and wire-break monitoring, with real-time status feedback to the supervisory layer. This comprehensive approach to output management ensures that your control strategy executes exactly as designed, every cycle, every shift.

Core Capabilities & Technical Advantages

→ High-Density Output Architecture: 32 discrete channels in a single module footprint reduce panel space requirements by up to 60% compared to legacy relay-based designs, while simplifying wiring and lowering installation labor costs.

✓ Deterministic Response Performance: Backplane communication delivers sub-10 millisecond update cycles, ensuring valve timing accuracy critical for batch recipe execution, emergency trip sequences, and synchronized motion control applications.

→ Comprehensive Channel Diagnostics: Individual LED indicators and system-level fault reporting provide immediate visibility into short-circuit conditions, load failures, and wiring errors, reducing troubleshooting time from hours to minutes during commissioning and maintenance.

✓ Industrial-Grade Electrical Protection: Each output incorporates overcurrent limiting, thermal shutdown, and transient suppression to withstand harsh electrical environments including inductive load switching, voltage spikes, and ground potential differences.

→ Hot-Swap Serviceability: Field-replaceable design allows module exchange during operation without system shutdown, supporting continuous process industries where unplanned downtime translates directly to production losses and revenue impact.

✓ Redundancy-Ready Configuration: Native support for dual-controller architectures ensures seamless failover in high-availability applications, with automatic state synchronization and bumpless transfer during controller switchover events.

Industry Applications & Use Cases

Chemical Processing & Batch Manufacturing: The DDO01 excels in multi-recipe batch operations requiring precise valve sequencing across heating, mixing, and transfer stages. A specialty chemicals producer reduced batch cycle variability by 23% after migrating from relay logic to DDO01-based control, achieving tighter temperature profiles and improved product consistency. The module's diagnostic capabilities identified three intermittent solenoid failures during commissioning that would have caused quality deviations in production.

Municipal Water & Wastewater Treatment: Pump stations and filtration plants leverage the DDO01 for coordinating motor starters, gate actuators, and chemical dosing valves across distributed lift stations. One regional utility manages 47 remote sites through Freelance 2000 systems, with DDO01 modules controlling over 1,500 output points. The hot-swap capability allows maintenance during normal operations, eliminating the need for bypass pumping and reducing service costs by $180,000 annually.

Power Generation & Substation Automation: Auxiliary systems in combined-cycle plants and renewable energy facilities use DDO01 modules for breaker control, isolator positioning, and cooling system management. The module's electrical isolation withstands the high-noise environments typical of switchyards, while redundant configurations ensure protective relay commands execute reliably during fault conditions.

Automotive & Discrete Manufacturing: Assembly line control systems integrate DDO01 modules for pneumatic actuator sequencing, conveyor routing, and part presence verification. A tier-1 automotive supplier achieved 99.7% uptime across 12 production cells by implementing redundant Freelance 2000 controllers with DDO01 output modules, eliminating single points of failure in their material handling logic.

Oil & Gas Production Facilities: Offshore platforms and onshore processing plants deploy DDO01 modules within safety instrumented systems (SIS) for emergency shutdown valve control and fire suppression activation. The module's diagnostic features support SIL-rated applications by providing proof-test capabilities and continuous monitoring of output circuit integrity.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the DDO01 when your application requires high-density discrete output control within an ABB Freelance 2000 architecture. The 0.5 A per channel rating suits standard industrial solenoid valves, pilot relays, and indicator lamps. For higher current loads (up to 2 A), consider the DDO02 variant. Applications involving PWM control or analog positioning should evaluate ABB's analog output module portfolio. Verify that your total I/O count and update rate requirements align with the Freelance 2000 controller's processing capacity and backplane bandwidth.

Advanced Integration & Connectivity Options

The DDO01 module operates as a native component within the Freelance 2000 distributed I/O framework, communicating via the system's proprietary backplane protocol. This architecture eliminates the latency and complexity associated with fieldbuses, while enabling centralized configuration through ABB's Control Builder engineering environment. Engineers can define output behavior, alarm thresholds, and diagnostic responses within the same software platform used for control logic development, streamlining commissioning and reducing configuration errors.

For facilities pursuing Industrial IoT initiatives, the Freelance 2000 system provides OPC UA and Modbus TCP gateways that expose DDO01 channel status and diagnostic data to SCADA platforms, historian databases, and cloud analytics services. This connectivity enables predictive maintenance strategies based on output cycling frequency, load current trends, and fault event patterns. One food processing plant reduced unplanned valve replacements by 40% after implementing condition monitoring on DDO01-controlled solenoids, using current signature analysis to detect early-stage coil degradation.

Custom I/O configurations are supported through the module's flexible addressing scheme, allowing engineers to organize outputs by process area, equipment type, or functional group. This logical structuring simplifies troubleshooting and supports modular machine design, where standardized control panels can be replicated across multiple production lines with minimal engineering rework.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock units ship within 2-3 business days via express courier, with typical delivery to North American destinations in 5-7 days. European and Asia-Pacific shipments arrive within 7-10 days. Custom configurations or quantity orders may require 3-4 weeks; contact our sales team for project-specific scheduling.

Warranty Coverage: All DDO01 modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes advance replacement to minimize downtime, with return shipping prepaid. Extended warranty programs are available for critical applications requiring multi-year coverage.

Technical Assistance: Our application engineering team provides pre-sale consultation on system architecture, I/O sizing, and redundancy design. Post-sale support includes configuration file review, wiring diagram verification, and remote commissioning assistance via screen-sharing sessions. Access to ABB's technical documentation library, including CAD drawings, terminal layout diagrams, and sample control code, is included with every purchase.

Documentation Package: Each module ships with installation quick-start guide, safety certifications (CE, UL), and calibration certificate. Complete technical manuals, spare parts lists, and firmware release notes are available for download from our support portal.

Frequently Asked Questions

Can the DDO01 module interface with non-ABB control systems or third-party PLCs?
No, the DDO01 is designed exclusively for ABB H&B Freelance 2000 distributed control systems and requires the proprietary backplane interface for communication and power distribution. For multi-vendor integration, consider using the Freelance 2000 controller's fieldbus gateways (Profibus, Modbus, etc.) to exchange data with external systems while maintaining DDO01 modules within the ABB I/O framework.

What is the maximum cable distance between the DDO01 module and field devices?
Typical installations support up to 100 meters (328 feet) of shielded cable per output channel when driving standard 24 VDC solenoid loads. Actual distance depends on cable gauge, load current, and acceptable voltage drop. For extended runs beyond 100 meters, use intermediate relay amplifiers or consider distributed I/O placement closer to field devices to maintain signal integrity and reduce wiring costs.

How does the DDO01 module handle output short-circuit conditions during operation?
Each channel incorporates electronic current limiting that automatically disables the affected output when short-circuit current exceeds the 0.5 A threshold. The module illuminates a fault LED for the specific channel and reports the condition to the controller for alarm generation. Once the short-circuit is cleared, the output can be re-enabled through software command or automatic retry logic, depending on your control strategy configuration.

Is it possible to mix DDO01 modules with analog I/O and communication modules in the same chassis?
Yes, the Freelance 2000 architecture supports heterogeneous I/O configurations within a single rack, allowing DDO01 digital output modules to coexist with DDI01 digital input, DAI04 analog input, and DAO01 analog output modules. The primary constraint is the chassis power budget; verify that total module consumption does not exceed the power supply rating. Consult the Freelance 2000 system planning manual for detailed power calculations.

Does the DDO01 support pulse-width modulation or variable-frequency output for motor speed control?
No, the DDO01 provides discrete on/off switching only, with output states controlled by the logic program in the Freelance 2000 controller. For applications requiring PWM signals, analog voltage/current outputs, or frequency generation, evaluate ABB's analog output modules (DAO series) or dedicated motion control cards. The DDO01 is optimized for solenoid valves, relay coils, indicator lamps, and other two-state devices.

What diagnostic capabilities are available for troubleshooting output circuit problems?
The DDO01 offers per-channel diagnostics including short-circuit detection, overload protection, and wire-break monitoring (when used with appropriate load configurations). Each channel has an individual status LED on the module faceplate, and diagnostic data is transmitted to the controller for integration into alarm management systems. Advanced troubleshooting can leverage the Control Builder software's online monitoring tools to observe real-time output states, current draw, and fault history.

Take the Next Step in Control System Optimization

Ready to enhance your process control architecture with proven German engineering? Our technical sales team is available to discuss your specific application requirements, provide system sizing recommendations, and develop a customized quotation for your project. Whether you're upgrading legacy relay panels, expanding an existing Freelance 2000 installation, or designing a new facility from the ground up, we'll ensure the DDO01 module integrates seamlessly into your control strategy.

Contact us today: Email sale@ninermas.com or call +0086 187 5021 5667 to speak with an application engineer. Request a detailed datasheet, CAD drawings, or sample control code to accelerate your engineering timeline.
