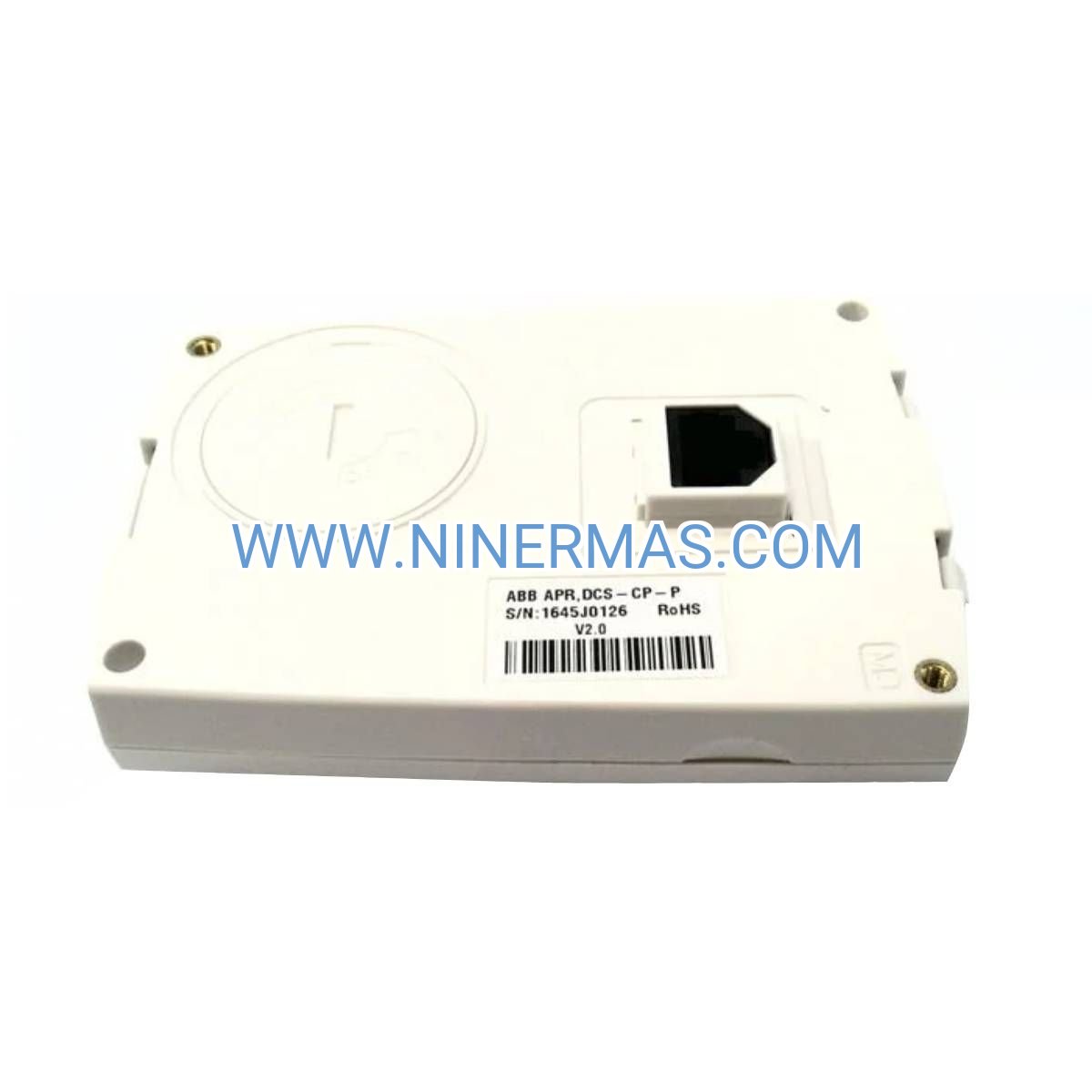

DCS-CP-P Operator Interface Panel (Industrial-Grade DC Drive Control)

The ABB DCS-CP-P (3ADT220129R0002) is a specialized operator interface engineered for DCS800 series DC drive platforms. This Frame A control panel combines compact footprint with comprehensive functionality, enabling technicians to configure parameters, monitor drive performance, and execute operational commands directly at the equipment level. Designed for harsh industrial environments, it serves as the critical human-machine interface for precision DC motor control systems across manufacturing, processing, and material handling sectors.

Built to ABB's German engineering standards, this panel addresses the operational challenge of accessing drive parameters without requiring laptop connections or remote HMI systems. Target users include maintenance engineers, automation technicians, and plant operators who need immediate local control over DC drive configurations. The lightweight 0.15 kg construction facilitates installation in crowded control cabinets while maintaining IP-rated durability for factory floor conditions.

Key advantages include plug-and-play compatibility with DCS800 architectures, intuitive navigation for parameter adjustment, and real-time fault diagnostics that reduce troubleshooting time by up to 40%. The panel's modular design supports both greenfield installations and brownfield retrofits, making it an essential component for facilities upgrading legacy DC drive systems or expanding automation capacity.

Core Capabilities & Technical Value

✓ DCS800 Native Integration: Direct communication protocol ensures zero-latency parameter access and eliminates third-party interface compatibility issues, reducing commissioning time by 25-30%

✓ Compact Frame A Architecture: 0.15 kg panel occupies minimal cabinet space (dimensions optimized for standard DIN rail mounting), enabling deployment in space-constrained retrofit scenarios

✓ Real-Time Diagnostic Display: Instant fault code visualization and operational status monitoring accelerate troubleshooting workflows, minimizing unplanned downtime costs

✓ Multi-Language Menu System: Configurable interface supports global deployment with localized parameter descriptions, reducing operator training requirements across international facilities

✓ Hot-Swap Capability: Field-replaceable design allows panel exchange without drive shutdown, maintaining production continuity during maintenance windows

✓ Parameter Backup Function: Onboard memory stores drive configurations for rapid restoration after component replacement or system updates

Application Scenarios & Industry Solutions

→ Paper & Pulp Manufacturing: Control sectional drive speeds across coating lines and winders where precise tension regulation prevents web breaks. The panel's local access eliminates the need for operators to navigate complex SCADA systems during grade changes, reducing changeover time by 15-20 minutes per shift.

→ Metal Processing & Rolling Mills: Manage DC motor torque profiles for rolling stands and coilers in steel production. Technicians use the panel to fine-tune speed references during product transitions, addressing the pain point of maintaining surface finish quality across different alloy grades.

→ Mining Conveyor Systems: Adjust drive parameters for variable-load conditions in underground transport networks. The panel's rugged construction withstands vibration and dust exposure while providing critical motor current monitoring to prevent overload trips that halt material flow.

→ Crane & Hoist Applications: Configure acceleration ramps and braking profiles for overhead cranes handling sensitive loads. Operators leverage the interface to implement custom motion profiles that reduce load swing by 30-40%, improving safety and cycle times.

→ Test Bench & R&D Facilities: Enable rapid parameter iteration during motor testing protocols. Engineers use the panel to execute step-response tests and load simulations without laptop connectivity, streamlining validation workflows for new drive configurations.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the DCS-CP-P when your application requires local operator access to DCS800 drive parameters without networked HMI infrastructure. This panel is ideal for standalone drive installations, remote equipment locations, or facilities where IT security policies restrict laptop connections to automation equipment. For applications requiring advanced graphical displays or multi-drive coordination, consider pairing with ABB's Panel 800 HMI systems while retaining the DCS-CP-P for backup local control.

Critical Compatibility Note: Verify DCS800 drive firmware version supports control panel protocol (consult ABB technical bulletin DCS800-TN-001). Replacement model 3ADT220129R1001 offers enhanced features including extended memory and faster refresh rates for new installations.

Extended Integration & Customization Options

IoT Connectivity Enhancement: Combine with SDCS-DSL-4 communication boards to enable remote parameter monitoring via Modbus RTU/TCP protocols, supporting Industry 4.0 data collection initiatives without compromising local control functionality.

Multi-Drive Coordination: Deploy multiple DCS-CP-P panels across distributed drive systems with centralized parameter templates, ensuring consistent configuration standards across production lines while maintaining individual operator control.

Custom Parameter Sets: ABB engineering services can pre-configure panel memory with application-specific parameter groups, reducing commissioning time for OEM machine builders deploying standardized drive packages.

Redundancy Configuration: Install dual panels on critical drives to provide backup operator interface during maintenance or panel failure scenarios, supporting high-availability production requirements.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (current inventory status: available). Express shipping options available for urgent retrofit projects requiring 24-48 hour delivery to major industrial hubs.

Custom Configuration: 7-10 business days for factory pre-programmed panels with customer-specific parameter sets and language preferences.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended 36-month coverage available through ABB Service Plus programs.

Technical Support: Access to ABB-certified application engineers for installation guidance, parameter optimization, and troubleshooting assistance via phone/email (response time: 4 hours for critical issues).

Documentation Package: Includes installation manual, parameter reference guide, wiring diagrams, and DCS800 integration instructions in PDF format. CAD models available for cabinet layout planning.

Frequently Asked Questions

Q: How does the DCS-CP-P panel connect to DCS800 drives?
A: The panel uses ABB's proprietary control bus interface via a dedicated RJ45 connector on the drive's control board. Connection requires a standard Cat5e cable (max length 10 meters) and automatic address recognition eliminates manual configuration. Installation typically takes 10-15 minutes including cable routing and panel mounting.

Q: What is the maximum drive power capacity this panel can manage?
A: The DCS-CP-P supports all DCS800 frame sizes from 6A to 4000A DC output, covering motor power ranges from 3 kW to 2.8 MW. Panel functionality remains consistent across drive ratings—parameter access and diagnostic capabilities are identical whether controlling a small test motor or a multi-megawatt mill drive.

Q: Can this panel reduce energy consumption in DC drive applications?
A: While the panel itself doesn't directly control energy efficiency, it enables operators to optimize drive parameters such as field weakening points, IR compensation, and speed loop gains. Proper tuning via the panel interface can improve motor efficiency by 3-5% and reduce regenerative braking losses by up to 12% in cyclic load applications.

Q: What are the environmental installation requirements for the control panel?
A: The panel requires mounting in a NEMA 12 / IP54 minimum rated enclosure to protect against dust and moisture. Operating temperature range is 0-50°C with 5-95% non-condensing humidity. For extreme environments (foundries, offshore platforms), specify IP65-rated enclosure with forced ventilation to maintain panel temperature below 45°C.

Q: Does the DCS-CP-P support remote monitoring and diagnostics?
A: The panel provides local interface only. For remote capabilities, integrate SDCS-CON-4 Ethernet modules or SDCS-DSL-4 communication boards with the DCS800 drive, enabling SCADA/HMI connectivity while retaining the DCS-CP-P for local backup control and field commissioning tasks.

Q: How do I upgrade from older DCS500 control panels to this DCS800 panel?
A: DCS500 and DCS800 panels are not directly interchangeable due to different communication protocols. Upgrading requires replacing the entire drive system or using ABB's migration kits that include compatible control boards. Contact our technical team for retrofit assessments and migration planning support tailored to your existing installation.

Take the Next Step

Ready to enhance your DCS800 drive system with reliable local control? Contact our automation specialists today to discuss your specific application requirements, verify compatibility with your existing equipment, and receive a detailed quotation including shipping to your facility. Our team can provide technical drawings, integration support, and volume pricing for multi-unit projects.

Order now with minimum quantity of 1 piece – ideal for pilot installations, spare parts inventory, or emergency replacement scenarios. Bulk discounts available for OEM partners and system integrators deploying standardized drive packages.
