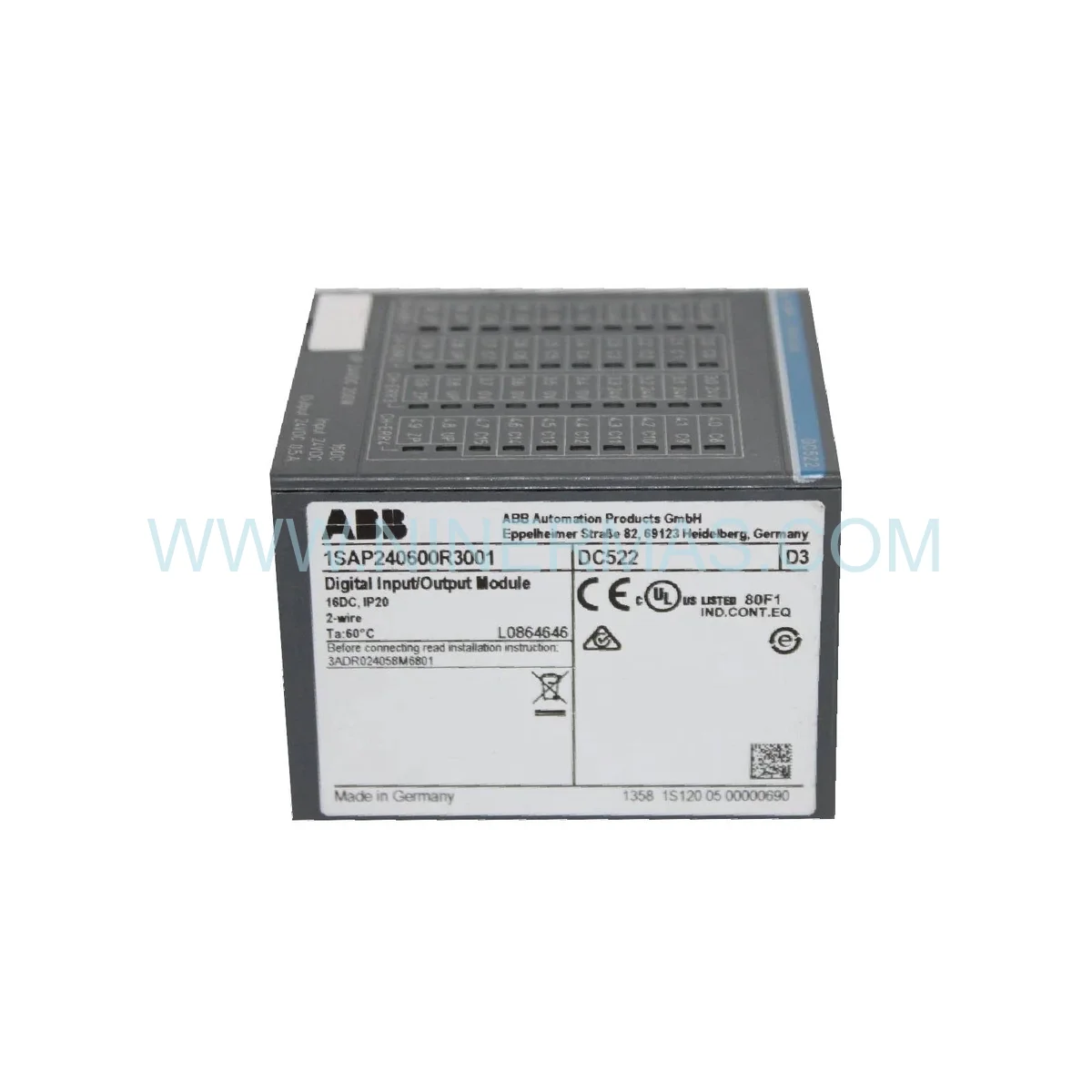

ABB DC522 Configurable Digital I/O Module (Industrial-Grade Multi-Function Interface)

The ABB DC522 (1SAP240600R0001) represents a breakthrough in flexible industrial I/O architecture, delivering 16 independently programmable digital channels within a single compact module. Designed for ABB's proven S500 and S800 I/O ecosystems, this dual-mode interface eliminates traditional boundaries between input and output modules—each channel adapts to your application requirements through software configuration, reducing hardware complexity and panel footprint by up to 40%.

Built for demanding process industries and discrete manufacturing environments, the DC522 addresses the critical challenge of evolving automation requirements. When production lines shift between products, batch recipes change, or facility expansions demand new sensor integration, this module reconfigures without rewiring—saving engineering hours and minimizing downtime. Its 24VDC operation with 0.5A per-channel output capacity handles standard industrial sensors, solenoid valves, indicator lights, and control relays with equal proficiency.

Engineered for mission-critical applications, the DC522 combines hot-swappable maintenance capability with comprehensive diagnostics. Channel-level LED indicators accelerate troubleshooting, while built-in short-circuit and overload protection safeguards connected devices. Whether you're modernizing legacy systems or designing greenfield installations, this module delivers the adaptability and reliability that industrial automation demands.

Core Capabilities & Business Value

✓ Software-Defined Channel Architecture
Each of the 16 channels operates as input or output based on controller configuration—no jumpers, DIP switches, or hardware modifications required. This flexibility reduces spare parts inventory costs and simplifies system documentation, as a single module type serves multiple functions across your facility.

✓ Proven S800 Platform Integration
Seamless compatibility with ABB AC 800M controllers and S800 remote I/O stations ensures deterministic ModuleBus communication with sub-millisecond response times. The module's standardized footprint and connector system accelerate installation while maintaining backward compatibility with existing S800 infrastructure.

✓ Industrial-Hardened Construction
Operates reliably across -25°C to +60°C temperature ranges, withstanding vibration, electrical noise, and harsh industrial environments. Conformal-coated circuitry and robust terminal blocks deliver long-term performance in chemical processing, water treatment, and heavy manufacturing applications.

✓ Maintenance-Friendly Design
Hot-swap capability allows module replacement during operation without process interruption—the controller maintains continuity through redundant I/O mapping. DIN rail mounting and tool-free connector release enable rapid service, minimizing mean time to repair (MTTR).

✓ Comprehensive Diagnostic Visibility
Dual-color LEDs provide instant channel status indication, while the controller's engineering interface delivers detailed fault reporting including wire-break detection, overload conditions, and communication errors. This transparency accelerates commissioning and reduces troubleshooting time by 60%.

✓ Scalable System Architecture
Expand your I/O capacity incrementally as production demands grow—the S800 platform supports up to 12 modules per cluster with distributed power architecture. Mix DC522 modules with analog I/O, safety modules, and specialty interfaces to build precisely tailored control solutions.

Application Scenarios Across Industries

Chemical & Pharmaceutical Batch Processing
Batch reactors require different sensor and actuator configurations for each product recipe. The DC522's reconfigurable channels adapt to varying valve counts, agitator controls, and safety interlocks without hardware changes. During recipe transitions, engineers reassign I/O functions through the control system—eliminating field wiring modifications that risk contamination or safety violations. Result: 75% reduction in changeover time and improved regulatory compliance.

Packaging Line Flexibility
Modern packaging operations handle multiple container sizes and product types on the same line. The DC522 interfaces with format-specific sensors (fill-level detectors, label presence switches, reject gates) that change with each product run. Its dual-mode capability means a single module handles both input signals from new sensors and output commands to reconfigured actuators—reducing panel space by 30% compared to fixed-function I/O.

Water & Wastewater Treatment
Municipal treatment facilities monitor hundreds of discrete signals (pump status, valve positions, alarm contacts) while controlling solenoid valves, chemical feed pumps, and status indicators. The DC522 consolidates these mixed I/O requirements into fewer modules, simplifying panel layouts and reducing wiring labor. Its industrial temperature rating ensures reliable operation in outdoor pump stations and chemical storage areas.

Material Handling & Conveyor Systems
Distributed conveyor networks use proximity sensors, photoelectric switches, and limit switches (inputs) alongside diverter controls, motor starters, and indicator lights (outputs). The DC522's software configuration allows maintenance teams to repurpose channels as system layouts evolve—when a new conveyor branch adds sensors, simply reconfigure existing output channels rather than installing additional modules.

Building Automation & HVAC
Commercial facilities integrate HVAC controls, lighting systems, and access management through centralized automation. The DC522 interfaces with occupancy sensors, temperature switches, and door contacts while controlling damper actuators, fan relays, and status panels. Its compact design fits standard electrical enclosures, and the 24VDC operation aligns with low-voltage building codes.

Technical Specifications & Selection Guide

Selection Criteria: Choose the DC522 when your application requires I/O flexibility for future expansion or frequent process changes. For fixed-function applications with stable I/O requirements, dedicated input (DI810) or output (DO810) modules may offer cost advantages. If your system demands higher output current (>0.5A per channel), consider the DO820 module with 2A capability. For safety-critical applications, integrate the DC522 with ABB's safety I/O modules that provide SIL-rated functionality.

Advanced Integration Features

ModuleBus Connectivity
The DC522 communicates via ABB's deterministic ModuleBus protocol, ensuring predictable scan times regardless of network load. This real-time performance supports coordinated motion control, safety interlocks, and high-speed packaging applications where timing precision is critical.

Redundancy Support
When deployed in redundant S800 configurations, the DC522 automatically synchronizes with backup controllers. During primary controller failure, the standby system assumes control without I/O interruption—critical for continuous process industries where unplanned shutdowns cost thousands per minute.

Remote Configuration & Diagnostics
ABB's Control Builder engineering software enables remote I/O configuration, firmware updates, and diagnostic data retrieval over Ethernet networks. Maintenance teams troubleshoot issues from central control rooms, reducing travel time to remote sites and accelerating problem resolution.

Third-Party System Integration
The S800 platform supports OPC UA, Modbus TCP, and PROFINET communication protocols, allowing the DC522 to integrate with non-ABB controllers and SCADA systems. This interoperability protects existing automation investments while enabling phased system upgrades.

Delivery, Warranty & Technical Support

Lead Times:
→ Stock items: 3–5 business days (express shipping available)
→ Custom configurations: 2–3 weeks
→ Bulk orders (>50 units): Contact for project scheduling

Warranty Coverage:
→ 24-month manufacturer warranty covering defects in materials and workmanship
→ Extended warranty programs available for critical applications
→ Advance replacement service for minimized downtime

Technical Assistance:
→ Pre-sales application engineering support
→ Post-sales commissioning guidance and troubleshooting
→ Access to ABB's global technical support network
→ Online knowledge base with configuration examples and best practices

Documentation Included:
→ Installation and wiring manual (multi-language)
→ Configuration guide with sample programs
→ Dimensional drawings and panel layout templates
→ Compliance certificates (CE, UL, ATEX)

Frequently Asked Questions

Can I mix input and output functions on the same DC522 module?
Yes—each of the 16 channels configures independently as either input or output through the controller's engineering software. You might use channels 1–8 for sensor inputs and channels 9–16 for valve outputs, or any other combination that suits your application. This flexibility is the DC522's primary advantage over fixed-function modules.

What's the maximum cable length between the DC522 and field devices?
For 24VDC digital signals, maintain cable runs under 100 meters (328 feet) using shielded twisted-pair wire to minimize noise susceptibility. Longer distances may require signal conditioning or the use of ABB's remote I/O stations positioned closer to field devices. Always follow local electrical codes for low-voltage wiring practices.

Does the DC522 support pulse counting or high-speed inputs?
The DC522's 3ms input response time suits standard discrete sensing applications (limit switches, proximity sensors, pushbuttons). For pulse counting, frequency measurement, or high-speed event capture (>100Hz), specify ABB's dedicated counter modules (CI810 series) designed for these functions with microsecond resolution.

How do I calculate power consumption for system sizing?
The DC522 module itself draws approximately 1.5W from the 24VDC supply. Additionally, budget 0.5A × 24V = 12W per output channel when fully loaded. For a worst-case scenario with all 16 channels configured as outputs at maximum current, total consumption reaches 193W. Use ABB's S800 power calculator tool to size power supplies for complete systems.

Can I replace a DC522 module without stopping the process?
Yes, when deployed in redundant controller configurations. The backup controller maintains I/O control while you swap the module. For non-redundant systems, plan replacements during scheduled maintenance windows. Always follow lockout/tagout procedures and verify the replacement module's firmware version matches your system configuration.

What diagnostic information does the DC522 provide?
The module reports channel-level status including wire-break detection (for inputs), overload conditions (for outputs), short-circuit faults, and communication errors. Green LEDs indicate normal operation, while red LEDs signal faults. The controller's engineering interface displays detailed diagnostic messages with recommended corrective actions, significantly reducing troubleshooting time.

Get Started with ABB DC522 Integration

Ready to simplify your I/O architecture with configurable digital channels? Our application engineers help you determine optimal module quantities, plan system layouts, and configure channel assignments for your specific process requirements. Contact us for project consultation, technical datasheets, or volume pricing on multi-module deployments.

Request a quote today and discover how the DC522's flexibility reduces installation costs while future-proofing your automation investment.
