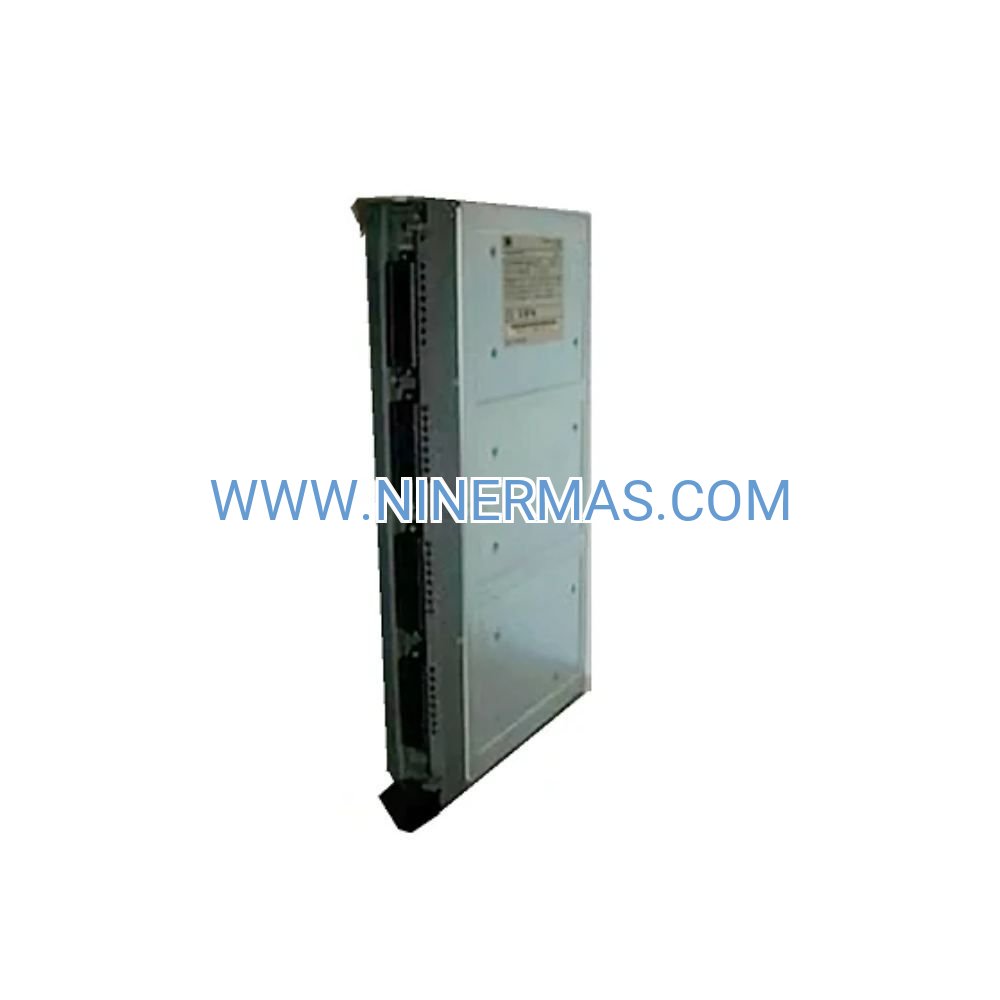

ABB DAO01 Analog Output Module (Industrial-Grade Signal Converter)

The ABB DAO01 (P3717-4-0369629) represents a professional-grade analog output solution engineered for mission-critical process control environments. This 8-channel module converts digital control signals into precise analog outputs, bridging the gap between your Freelance 2000 distributed control system and field instrumentation. Whether you're regulating valve positions, controlling variable speed drives, or transmitting setpoints to remote devices, the DAO01 delivers the accuracy and reliability that industrial operations demand.

Designed for process engineers and automation specialists managing complex control loops, this module addresses the fundamental challenge of maintaining signal integrity in electrically harsh environments. With 1500V channel-to-bus isolation and ±0.1% accuracy, it eliminates ground loop interference while ensuring your control commands translate into predictable field device responses. The result: tighter process control, reduced variability, and improved product quality across your operations.

Built on ABB's proven Freelance 2000 architecture, the DAO01 combines hot-swappable convenience with comprehensive diagnostics, enabling maintenance teams to minimize downtime while maximizing system availability. From chemical batch reactors to water treatment pH control, this module serves as the critical link between digital intelligence and analog actuation.

Core Features & Benefits

→ 8 Isolated Analog Outputs
Independent channel isolation prevents cross-talk and ground loops, ensuring each output maintains signal integrity even when adjacent channels experience faults or electrical noise.

→ Dual Output Modes (4-20mA / 0-10V)
Field-configurable current or voltage output adapts to diverse instrumentation requirements without hardware changes, reducing spare parts inventory and simplifying standardization.

→ 12-Bit DAC Resolution
Precision digital-to-analog conversion delivers 4096 discrete output levels, enabling fine-grained control for applications requiring tight tolerance maintenance such as pharmaceutical dosing or semiconductor processing.

→ Built-In Diagnostics
Real-time wire-break detection, output current monitoring, and channel fault indication provide immediate visibility into field wiring issues, accelerating troubleshooting and reducing mean time to repair by up to 40%.

→ Hot-Swappable Design
DIN rail mounting with backplane connectivity allows module replacement during operation without system shutdown, supporting continuous production requirements in 24/7 manufacturing environments.

→ Extended Temperature Range (-40°C to +70°C)
Industrial-grade components withstand extreme ambient conditions found in outdoor enclosures, boiler rooms, and uncontrolled industrial spaces without performance degradation.

Application Scenarios

Chemical Processing & Batch Control
In pharmaceutical manufacturing and specialty chemical production, the DAO01 regulates reactor temperature by controlling steam valve positions with 0.1°C precision. The module's isolated outputs prevent electrical interference from high-power mixing motors, while wire-break detection alerts operators to sensor failures before batch quality is compromised.

Water & Wastewater Treatment
Municipal treatment facilities deploy the DAO01 for pH neutralization control, transmitting precise setpoints to chemical dosing pumps. The 4-20mA current loop output maintains signal integrity across 500-meter cable runs between control rooms and remote dosing stations, eliminating voltage drop issues common with voltage-based systems.

HVAC & Building Automation
Commercial building management systems utilize the module to modulate chilled water valve positions and VFD speed references. The 100ms update rate ensures responsive temperature control, while the 0-10V output mode directly interfaces with standard HVAC actuators without signal conditioning.

Oil & Gas Production
Offshore platforms and remote wellhead installations leverage the DAO01's extended temperature rating and robust isolation for separator level control and compressor anti-surge valve positioning. The module's low 5W power consumption reduces heat generation in hazardous area enclosures.

Food & Beverage Manufacturing
Breweries and dairy processors employ the module for pasteurization temperature control and CIP (clean-in-place) chemical concentration regulation. Hot-swap capability allows preventive maintenance during production changeovers without impacting scheduled runs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DAO01 when your application requires isolated analog outputs within an ABB Freelance 2000 system architecture. For applications needing more than 8 channels, deploy multiple modules in the same rack. If your DCS platform is AC 800M or System 800xA, consider the AO845 series instead. For standalone applications outside the Freelance ecosystem, evaluate the DSAO120A board with its own power supply and communication interface.

Extended Functions

Custom Scaling & Linearization
Control Builder F software enables user-defined scaling algorithms, allowing direct engineering unit input (e.g., "75% valve position") without manual calculation. Square root extraction for flow control and custom polynomial curves for non-linear actuators are supported.

Alarm & Limit Configuration
Programmable high/low alarm thresholds generate system alerts when output values exceed safe operating ranges, providing an additional layer of process safety beyond primary control logic.

Simulation Mode
Built-in test functionality allows technicians to force output values during commissioning and troubleshooting without modifying control logic, accelerating startup and reducing commissioning time by 30%.

Redundancy Support
When deployed in redundant Freelance 2000 configurations, the module supports bumpless transfer between primary and backup controllers, maintaining output continuity during controller failover events.

Delivery & Service Assurance

✓ Standard Delivery: 3-5 business days for in-stock units via express courier with tracking
✓ Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific scaling
✓ Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
✓ Technical Support: Direct access to ABB-certified engineers for configuration assistance, troubleshooting, and integration guidance
✓ Documentation Package: Installation manual, wiring diagrams, Control Builder F configuration examples, and dimensional drawings included with every shipment

Frequently Asked Questions

Can the DAO01 module power 4-20mA loop-powered transmitters directly?
Yes, each channel includes an internal 24VDC supply capable of powering two-wire transmitters drawing up to 30mA. This eliminates the need for external loop power supplies in many applications, simplifying panel design and reducing component count.

What diagnostic capabilities help identify field wiring problems?
The module continuously monitors output current on each channel, detecting open circuits (wire breaks), short circuits, and out-of-range loads. Fault status is reported to the DCS in real-time, with LED indicators on the module faceplate providing local visual confirmation without requiring diagnostic software.

How does channel isolation improve system reliability?
1500V isolation between each output channel and the system backplane prevents ground potential differences from creating current loops that distort signals. In multi-building facilities where field devices may be grounded at different electrical services, this isolation is critical for maintaining ±0.1% accuracy specifications.

Is the DAO01 compatible with non-ABB distributed control systems?
No, the module is designed exclusively for ABB Freelance 2000 architecture and communicates via proprietary fieldbus protocol. For integration with third-party DCS platforms (Honeywell, Emerson, Siemens), consider the standalone AO845 series modules that support Modbus RTU and PROFIBUS-DP communication.

What configuration steps are required during installation?
Physical installation involves mounting the module on DIN rail and connecting field wiring to screw terminals. Software configuration through Control Builder F includes assigning I/O addresses, selecting output mode (current/voltage), defining scaling parameters, and enabling desired diagnostic features. Typical configuration time is 15-20 minutes per module.

Can output channels be individually disabled for maintenance?
Yes, Control Builder F allows selective channel disabling without affecting other outputs on the same module. This feature supports partial system maintenance and troubleshooting while maintaining process control on unaffected loops.

Ready to Enhance Your Process Control?

Contact our automation specialists today for application-specific guidance, pricing, and delivery timelines. Our team can assist with module selection, system integration planning, and configuration support to ensure seamless deployment in your Freelance 2000 environment.
