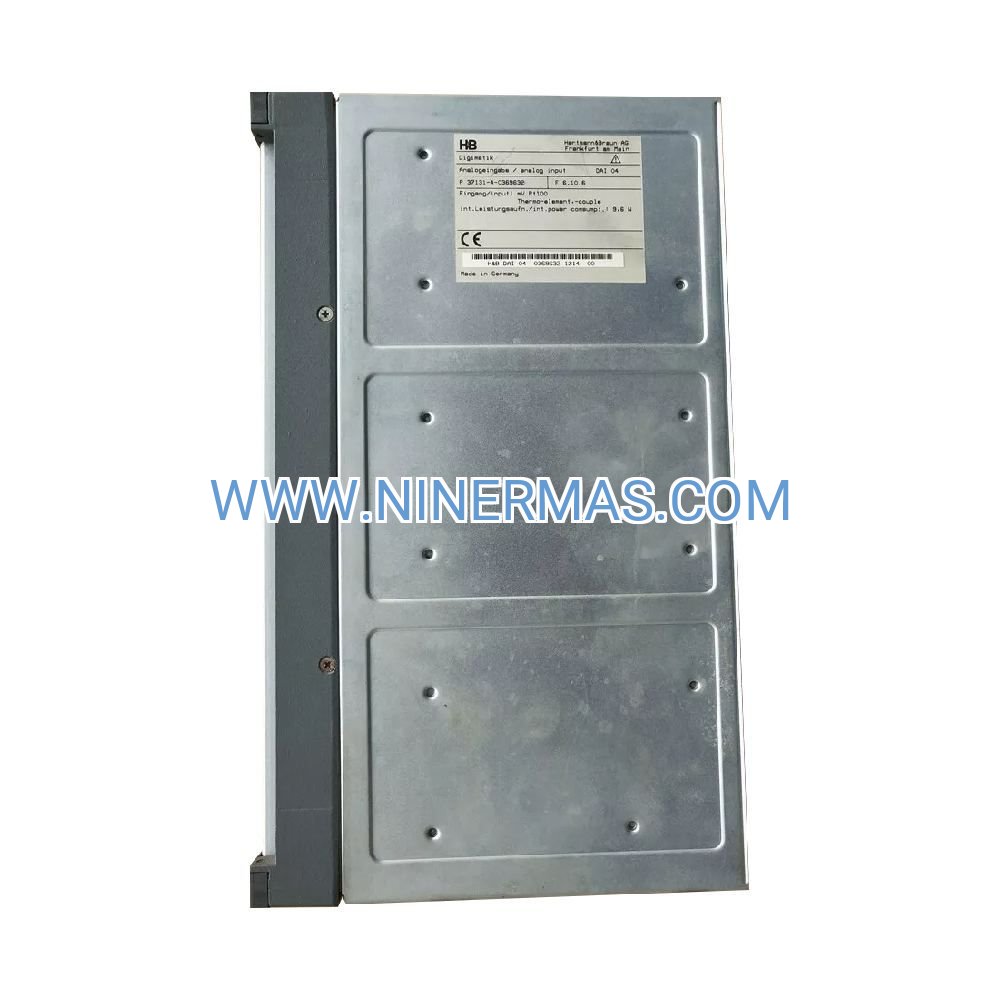

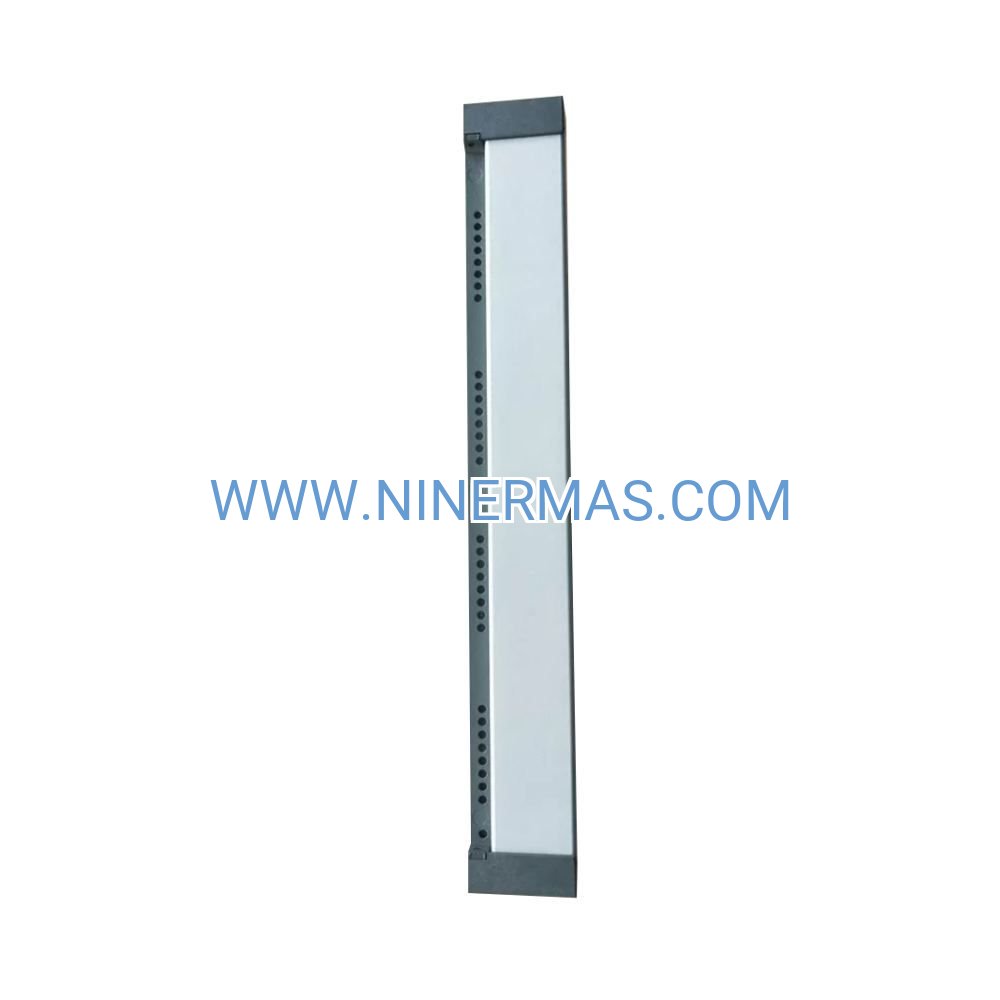

ABB DAI 04 Analog Input Module (Industrial-Grade Signal Converter)

The ABB DAI 04 Analog Input Module (P37131-4-0369632) is an industrial-grade signal acquisition component engineered for ABB Freelance 2000 distributed control systems. This module transforms field-level analog signals into digital data streams with exceptional accuracy, enabling real-time process monitoring and control across manufacturing, energy, and infrastructure applications.

Designed for mission-critical environments where measurement precision directly impacts product quality, safety compliance, and operational efficiency, the DAI 04 delivers consistent performance under temperature extremes, electrical noise, and vibration. Its modular architecture integrates seamlessly into existing Freelance 2000 I/O racks, supporting both greenfield installations and brownfield system expansions.

Whether you're upgrading legacy analog I/O or scaling a multi-site automation network, the DAI 04 provides the reliability and configurability demanded by process engineers and control system integrators worldwide.

Core Features & Benefits

✓ Multi-Range Signal Compatibility
Handles 4-20mA current loops, 0-10V voltage inputs, and thermocouple/RTD temperature sensors through software-configurable channels—eliminating the need for external signal conditioners and reducing installation complexity.

✓ 16-Bit Resolution Conversion
Captures subtle process variations with high-fidelity analog-to-digital conversion, enabling tighter control loops and early detection of equipment anomalies that could lead to unplanned downtime.

✓ Built-In Diagnostics & Self-Monitoring
Continuously validates signal integrity, power supply status, and communication health—automatically flagging sensor failures, wiring faults, or out-of-range conditions to minimize troubleshooting time.

→ Hot-Swappable Design (System-Dependent)
Supports online module replacement in configured systems, allowing maintenance without full process shutdown—critical for 24/7 operations in pharmaceuticals, petrochemicals, and utilities.

→ Galvanic Isolation Protection
Isolates field circuits from control logic to prevent ground loops and electrical surges from propagating through the DCS backbone, safeguarding expensive controllers and operator workstations.

→ Compact DIN-Rail Mounting
Occupies minimal panel space while maintaining full functionality—ideal for retrofits where cabinet real estate is constrained or distributed I/O architectures require localized signal aggregation.

Typical Application Scenarios

Chemical & Pharmaceutical Manufacturing
Scenario: Batch reactor temperature and pressure monitoring during exothermic reactions.
Pain Point Solved: Eliminates manual chart recorder interpretation and reduces batch-to-batch variability by feeding precise analog data to advanced process control (APC) algorithms.
Value Delivered: Improves yield consistency by 3-7%, accelerates regulatory compliance documentation, and enables predictive maintenance on aging heat exchangers.

Water & Wastewater Treatment
Scenario: pH, dissolved oxygen, and turbidity measurement across multiple treatment stages.
Pain Point Solved: Replaces unreliable pneumatic transmitters and eliminates signal drift caused by long cable runs in outdoor installations.
Value Delivered: Reduces chemical dosing errors by 15-20%, cuts energy consumption through optimized aeration control, and ensures discharge permit compliance.

Oil & Gas Upstream Production
Scenario: Wellhead pressure, separator level, and flow rate acquisition in remote field locations.
Pain Point Solved: Withstands extreme temperature swings (-40°C to +70°C) and electromagnetic interference from VFD-driven pumps without signal degradation.
Value Delivered: Extends mean time between failures (MTBF) to 120,000+ hours, reduces site visits for calibration, and supports real-time production optimization.

Power Generation & Distribution
Scenario: Turbine vibration, bearing temperature, and generator excitation current monitoring in combined-cycle plants.
Pain Point Solved: Provides deterministic scan rates (10-100ms) required for protective relay coordination and sequence-of-events recording during grid disturbances.
Value Delivered: Prevents catastrophic equipment failures through early fault detection, supports root cause analysis after trips, and maintains grid code compliance.

Food & Beverage Processing
Scenario: Pasteurization temperature profiling, CIP (clean-in-place) conductivity tracking, and packaging line tension control.
Pain Point Solved: Meets FDA 21 CFR Part 11 audit trail requirements through integration with Freelance 2000's historian and alarm management systems.
Value Delivered: Reduces product recalls, accelerates HACCP validation, and minimizes water/chemical waste during sanitation cycles.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DAI 04 when your application requires 4 or fewer analog inputs per I/O rack slot. For higher channel density, consider the DAI 05 (8-channel) or DAI 08 (16-channel) variants. Verify that your Freelance 2000 controller firmware supports the module revision—consult ABB's compatibility matrix or contact our technical team for pre-purchase validation.

Extended Functions

HART Protocol Pass-Through
Transparently routes HART digital signals overlaid on 4-20mA analog loops, enabling remote transmitter configuration and diagnostics without dedicated HART multiplexers—reducing commissioning time by 30-40%.

Redundant Power Supply Support
Operates from dual backplane power rails with automatic failover, ensuring continuous signal acquisition during power supply maintenance or single-point failures in critical safety systems.

Custom Linearization Tables
Apply user-defined polynomial or piecewise-linear curves to compensate for non-standard sensor characteristics—ideal for legacy instrumentation or specialized research applications.

OPC UA / Modbus TCP Integration
Expose analog input data to third-party SCADA, MES, or cloud analytics platforms via Freelance 2000's native communication gateways—supporting Industry 4.0 initiatives without proprietary middleware.

Delivery & Service Assurance

Lead Time:
• In-Stock Items: Ships within 1-3 business days via DHL/FedEx Express
• Custom Configurations: 4-6 weeks for factory programming and testing
• Expedited Service: Next-flight-out available for emergency shutdowns (contact sales team)

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranties (24/36 months) available for critical infrastructure projects.

Technical Support:
• Pre-Sales: System architecture review, I/O count estimation, and compatibility verification
• Commissioning: Remote assistance for module configuration, loop calibration, and troubleshooting
• Post-Sales: Lifetime email/phone support, firmware update notifications, and obsolescence management

Documentation Included:
• Installation quick-start guide (English/Chinese)
• Detailed technical manual with wiring diagrams
• Calibration certificate (traceable to national standards)
• Freelance 2000 configuration templates (.fre files)

Frequently Asked Questions

Q: Can the DAI 04 interface with non-ABB field instruments?
A: Yes—the module accepts industry-standard 4-20mA, 0-10V, and temperature sensor signals from any manufacturer (Rosemount, Endress+Hauser, Siemens, etc.). Ensure transmitter output specifications match the DAI 04's input ranges.

Q: What's the maximum cable length between field sensors and the DAI 04?
A: For 4-20mA current loops: up to 1000 meters with shielded twisted-pair cable. For voltage inputs: 100 meters maximum to minimize noise pickup. Use local I/O racks or signal repeaters for longer distances.

Q: Does this module support redundant controller configurations?
A: The DAI 04 operates in both simplex and redundant Freelance 2000 architectures. In redundant setups, both controllers simultaneously read input data—consult ABB's redundancy implementation guide for configuration details.

Q: How do I migrate from an older DAI 03 module to the DAI 04?
A: The DAI 04 is mechanically and electrically compatible with DAI 03 slots. Export your existing channel configuration, update the module type in the Freelance engineering tool, and download the revised configuration—typically a 15-minute procedure per module.

Q: Are replacement parts available for field repairs?
A: The DAI 04 is a sealed module without user-serviceable components. Stock spare modules for critical applications. We offer advance replacement programs with 4-hour shipping for high-availability sites.

Q: Can I use the DAI 04 in hazardous area (ATEX/IECEx) installations?
A: The module itself is rated for Zone 2/Division 2 when installed in appropriate enclosures. For Zone 1/Division 1, use intrinsically safe barriers between field devices and the DAI 04 inputs—consult a certified hazardous area design specialist.

Ready to Enhance Your Process Control Accuracy?

The ABB DAI 04 Analog Input Module represents proven technology trusted by thousands of installations worldwide. Whether you're replacing aging I/O, expanding production capacity, or building a new facility, this module delivers the performance and reliability your operations demand.

Next Steps:
→ Add to cart for immediate purchase with volume discounts available
→ Request a formal quotation with project-specific pricing and lead times
→ Schedule a technical consultation to review your system architecture
→ Download the full datasheet and compatibility matrix

Questions about compatibility, configuration, or bulk orders? Our automation specialists are available 24/7 to support your project success.
