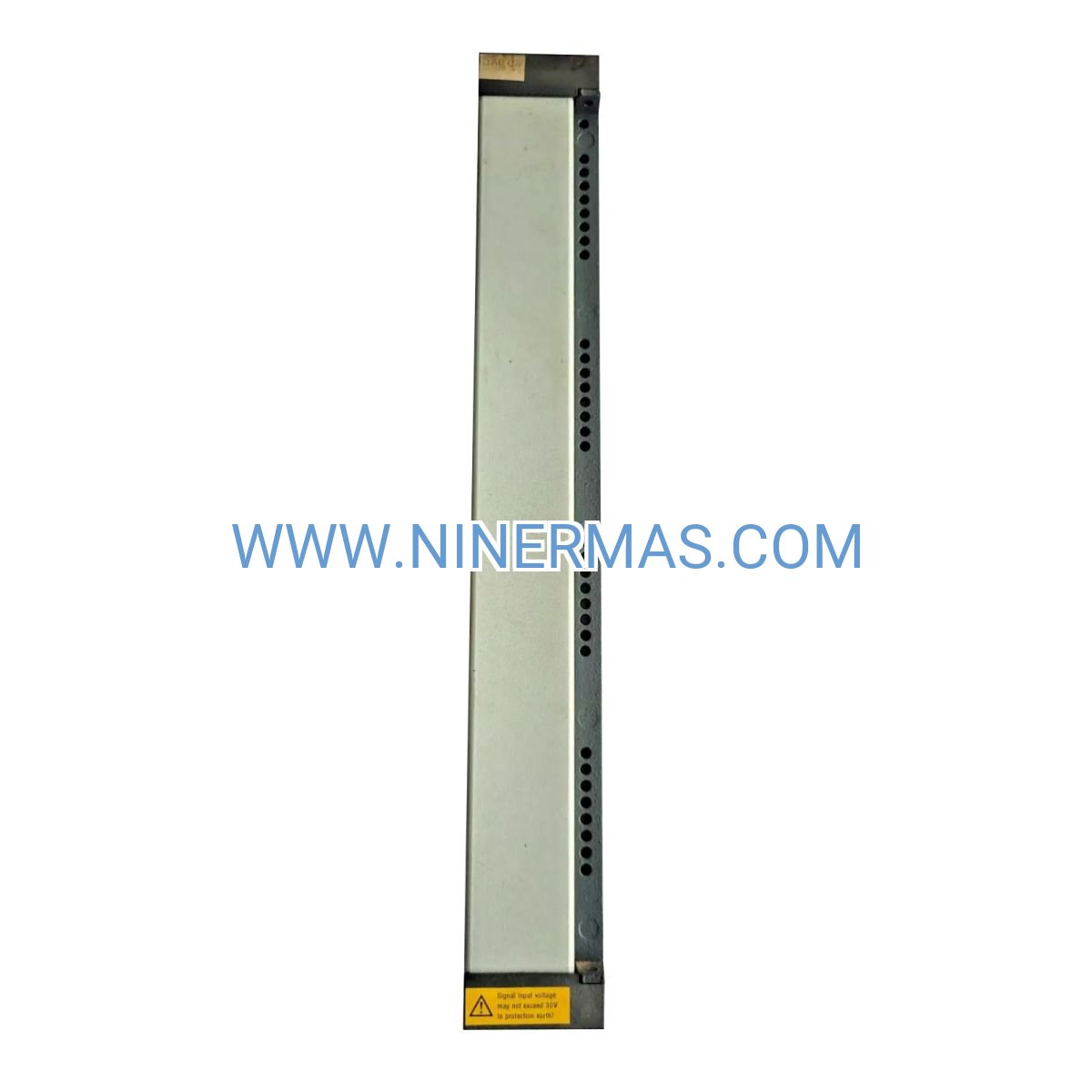

ABB DAI 04 Analog Input Module (Industrial-Grade Signal Acquisition)

The ABB DAI 04 (Part No. 0369632MR) represents a professional-tier analog input solution designed specifically for Freelance 2000 distributed control architectures. This module transforms raw sensor signals into actionable process data, serving as the critical interface between field instrumentation and control logic. Built for continuous operation in demanding industrial environments, it addresses the fundamental challenge of accurate, reliable signal acquisition where measurement precision directly impacts product quality, safety compliance, and operational efficiency.

Process engineers and automation specialists deploy this module when standard I/O solutions cannot meet stringent accuracy requirements or environmental specifications. Whether monitoring reactor temperatures in pharmaceutical manufacturing, tracking pressure variations in petrochemical facilities, or measuring flow rates in municipal water systems, the DAI 04 delivers consistent performance across diverse applications. Its galvanically isolated channels eliminate cross-talk and ground loop issues that plague conventional input systems.

Key advantages include hot-swappable architecture for zero-downtime maintenance, diagnostic LED indicators for rapid fault identification, and backward compatibility with existing Freelance installations. The module integrates seamlessly with ABB's 800xA ecosystem while maintaining standalone functionality in legacy configurations, protecting your automation investment while enabling future scalability.

Core Features & Technical Advantages

→ Multi-Channel Architecture: Simultaneous processing of multiple analog signals with independent channel isolation prevents interference and ensures measurement integrity across all inputs.

→ Universal Signal Compatibility: Native support for 4-20mA current loops, 0-10V voltage signals, and thermocouple inputs eliminates the need for external signal conditioners, reducing installation costs and complexity.

→ High-Resolution Conversion: ±0.1% full-scale accuracy with 16-bit ADC resolution captures subtle process variations critical for quality control and regulatory compliance.

→ Industrial-Hardened Design: -40°C to +70°C operating range with conformal coating and EMI shielding withstands harsh conditions including vibration, humidity, and electromagnetic interference.

→ Rack I/O Integration: Direct mounting into Freelance 2000 chassis with automatic bus communication eliminates complex wiring and reduces commissioning time by up to 40%.

→ Diagnostic Intelligence: Built-in self-test routines and channel-specific status reporting enable predictive maintenance and reduce troubleshooting time from hours to minutes.

Typical Application Scenarios

Chemical Processing & Batch Control: Monitor reactor vessel temperatures, pressure transducers, and pH sensors with the precision required for recipe consistency and batch traceability. The module's isolation prevents electrical noise from variable frequency drives and motors from corrupting measurement data.

Oil & Gas Pipeline Monitoring: Track pressure, flow, and temperature across distributed pipeline networks where measurement accuracy directly impacts custody transfer calculations and leak detection algorithms. Extended temperature rating supports outdoor installations in extreme climates.

Water & Wastewater Treatment: Acquire signals from level transmitters, flow meters, and dissolved oxygen sensors in treatment plants where reliable data acquisition ensures regulatory compliance and optimizes chemical dosing strategies.

Power Generation & Distribution: Interface with temperature RTDs, pressure transmitters, and vibration sensors in turbine control systems where measurement failures can trigger costly shutdowns or safety incidents.

Food & Beverage Manufacturing: Capture process variables in pasteurization, fermentation, and packaging lines where FDA compliance demands documented measurement accuracy and system validation.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DAI 04 when your application requires measurement accuracy better than ±0.5%, operates in temperature extremes beyond standard I/O ratings, demands channel-to-channel isolation, or needs certified operation in hazardous classified areas. For applications with fewer than 8 analog inputs, consider this module's superior accuracy versus multi-channel alternatives. When integrating with existing Freelance 2000 systems, verify controller firmware compatibility to ensure full diagnostic feature support.

Extended Functions & Integration Capabilities

IoT & Remote Monitoring: When paired with ABB Ability™ gateways, the DAI 04 enables cloud-based analytics and remote diagnostics, allowing engineers to monitor process trends and receive predictive maintenance alerts from any location.

Advanced Diagnostics: NAMUR NE107 compliance provides standardized sensor fault detection, distinguishing between out-of-range conditions, wire breaks, and sensor failures for faster troubleshooting.

Customization Options: Factory configuration services available for application-specific signal ranges, custom calibration certificates, and pre-programmed channel assignments to accelerate commissioning.

System Redundancy: Supports redundant controller configurations in critical applications where continuous operation is mandatory, with automatic failover and bumpless transfer capabilities.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units with factory-sealed packaging and full documentation including calibration certificates and compliance declarations.

Custom Configuration: 7-10 business days for factory-programmed modules with application-specific settings and extended testing protocols.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available for mission-critical installations.

Technical Support: Direct access to ABB-certified application engineers for configuration assistance, troubleshooting guidance, and integration planning. Phone and email support available during business hours with 4-hour response commitment.

Documentation Package: Complete technical manual, wiring diagrams, configuration software, and sample ladder logic included with every module. CAD drawings and 3D models available for download.

Frequently Asked Questions

Q: What communication protocols does the DAI 04 analog input module support for integration with SCADA systems?
A: The module communicates via the Freelance 2000 rack I/O bus, which connects to Freelance controllers supporting Modbus TCP, OPC UA, and PROFINET protocols for seamless SCADA integration.

Q: Can this analog input module handle both 4-20mA current signals and 0-10V voltage inputs simultaneously on different channels?
A: Yes, each channel can be independently configured for current or voltage input, allowing mixed signal types within a single module to maximize flexibility and reduce spare parts inventory.

Q: What energy efficiency improvements does the DAI 04 provide compared to older analog input technologies?
A: Modern low-power design reduces heat generation by approximately 30% versus legacy modules, lowering cooling requirements and enabling higher-density rack configurations without thermal management concerns.

Q: What are the specific installation requirements for mounting the DAI 04 in existing control panels?
A: The module requires standard DIN rail mounting or direct chassis installation in Freelance 2000 racks. Minimum clearances of 25mm on sides for ventilation and cable access. No special tools required for installation.

Q: Does the analog input module support remote monitoring and diagnostics for predictive maintenance programs?
A: Yes, built-in diagnostics provide channel status, calibration drift alerts, and performance metrics accessible through Freelance controllers or ABB Ability™ cloud platforms for condition-based maintenance strategies.

Q: What is the typical calibration interval for maintaining ±0.1% accuracy specifications in industrial environments?
A: ABB recommends annual calibration verification for critical applications, though the module's stable design typically maintains specification for 18-24 months in controlled environments. Harsh conditions may require more frequent validation.

Get Your ABB DAI 04 Module Today

Ready to upgrade your process control accuracy? Contact our automation specialists for application consultation, pricing, and delivery options. We provide technical pre-sales support to ensure the DAI 04 meets your specific requirements before purchase.

Request a Quote: Email your application details for same-day pricing and availability confirmation.
Technical Consultation: Schedule a call with our engineers to discuss integration requirements and system architecture.
Volume Pricing: Special rates available for multi-module projects and system integrators.
