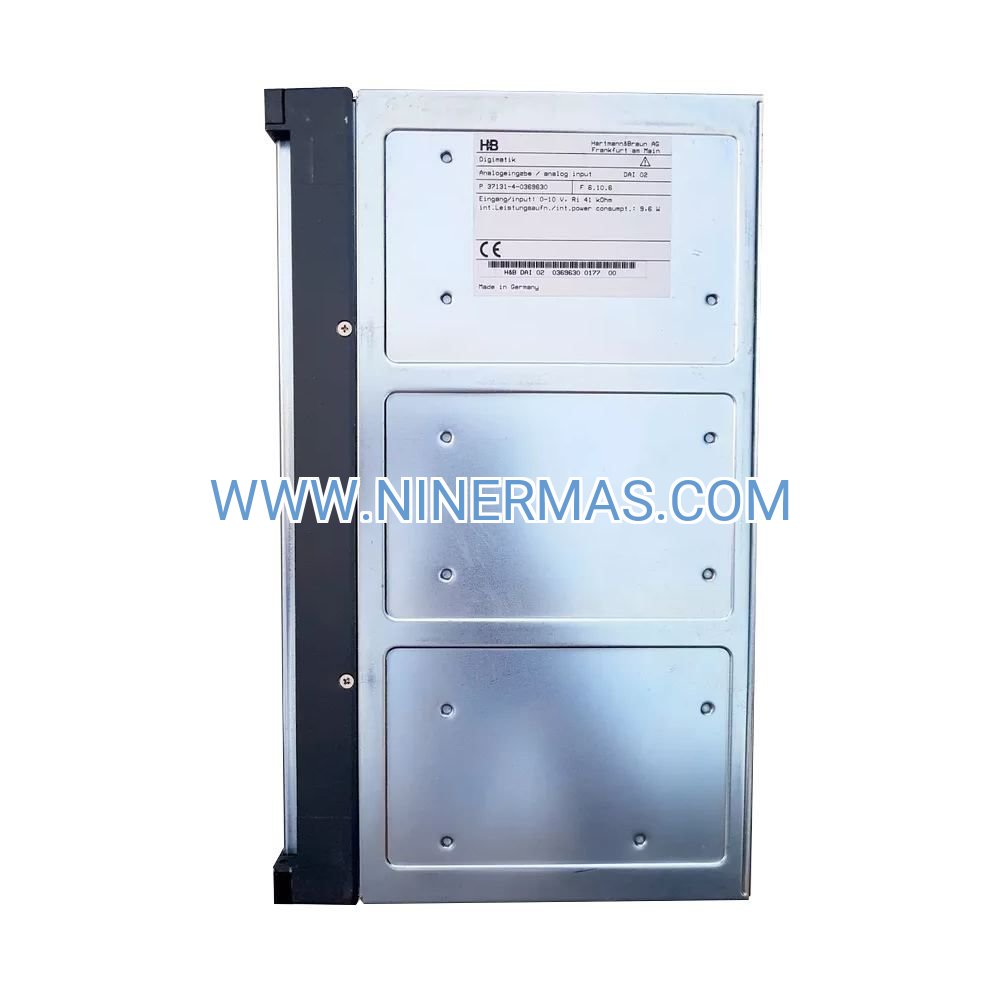

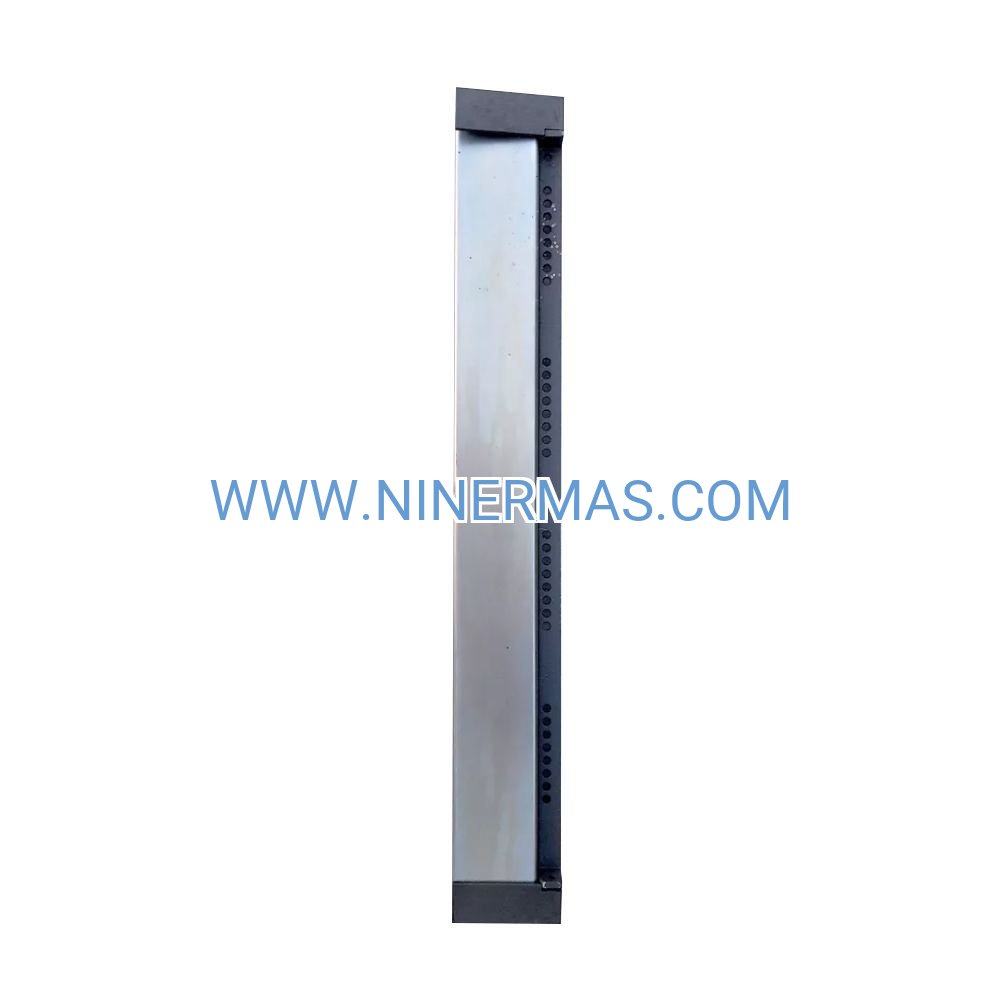

ABB DAI 02 Analog Input Module (Industrial-Grade Signal Converter)

The ABB DAI 02 (0369630M-REF) represents a factory-certified analog input solution engineered for Freelance 2000 distributed control architectures. This refurbished I/O module transforms continuous field signals into high-fidelity digital data streams, enabling real-time process monitoring across demanding industrial environments. Built for applications where measurement accuracy and system uptime are non-negotiable, the DAI 02 delivers proven performance at a competitive price point.

Process engineers and plant operators rely on this module to bridge the gap between field instrumentation and control logic. Whether you're monitoring temperature fluctuations in chemical reactors, tracking pressure variations in steam systems, or measuring flow rates in water treatment plants, the DAI 02 provides the signal integrity and channel isolation required for critical control loops. Its compatibility with legacy Freelance 2000 infrastructure makes it an ideal retrofit component for system expansions and equipment replacements.

Every unit undergoes comprehensive factory refurbishment including component-level inspection, calibration verification, and multi-point functional testing. This rigorous reconditioning process ensures each module meets original ABB specifications while delivering significant cost savings compared to new equipment. With global shipping, technical support, and a 12-month performance warranty, the DAI 02 offers a risk-free path to maintaining or upgrading your automation infrastructure.

Core Features & Benefits

✓ Multi-Channel Analog Acquisition
Simultaneous monitoring of multiple process variables through independent input channels, reducing hardware footprint and wiring complexity while maintaining signal integrity across all measurement points.

✓ Universal Signal Compatibility
Native support for industry-standard 0-10V voltage and 4-20mA current loop inputs eliminates the need for external signal conditioners, simplifying installation and reducing potential failure points in your measurement chain.

✓ Channel-to-Channel Isolation
Electrical isolation between input channels and system bus prevents ground loops and cross-talk interference, ensuring measurement accuracy even in electrically noisy industrial environments with multiple grounding points.

→ Factory-Certified Refurbishment
Complete reconditioning by ABB-trained technicians includes component replacement, calibration verification, and performance testing to original specifications, delivering new-equipment reliability at refurbished pricing.

→ Extended Temperature Range
Operational capability from -25°C to +60°C supports deployment in harsh environments including outdoor enclosures, unheated facilities, and high-ambient-temperature process areas without additional thermal management.

→ DIN Rail Mounting
Standard 35mm DIN rail compatibility enables rapid installation in existing control panels, facilitates easy module replacement during maintenance, and supports flexible system layout configurations.

Application Scenarios

Chemical & Petrochemical Processing
Monitor reactor temperatures, distillation column pressures, and feed flow rates in continuous and batch processes. The DAI 02's isolation architecture prevents measurement errors caused by electrical noise from variable frequency drives and high-power equipment, while its multi-channel design reduces cabinet space requirements in complex process units.

Power Generation & Distribution
Track turbine bearing temperatures, generator winding conditions, and boiler drum levels in thermal power plants. The module's wide temperature range supports installation in outdoor switchgear enclosures and unheated equipment rooms, while its proven reliability minimizes unplanned maintenance in critical generation assets.

Water & Wastewater Treatment
Acquire pH sensor signals, flow transmitter outputs, and level measurements in treatment processes. The DAI 02's current loop compatibility works seamlessly with 4-20mA transmitters common in water applications, while its isolation features prevent ground-related measurement drift in distributed pump stations and remote lift facilities.

Manufacturing & Assembly Operations
Capture temperature, pressure, and position feedback in automated production lines. The module's fast signal conversion supports real-time quality control systems, while its compact DIN rail form factor fits easily into machine-mounted control panels with limited space.

HVAC & Building Automation
Interface with temperature sensors, humidity transmitters, and pressure transducers in commercial building systems. The DAI 02's multi-channel architecture reduces hardware costs in large installations, while its Freelance 2000 integration enables centralized monitoring of distributed mechanical equipment.

Technical Parameters & Selection Guide

Selection Criteria: Choose the DAI 02 when your application requires analog signal acquisition for existing Freelance 2000 systems. Verify your system firmware compatibility and available slot positions before ordering. For new installations or system upgrades, consult with our technical team to confirm module compatibility with your specific controller version and I/O rack configuration. Consider channel count requirements and signal types to ensure the DAI 02 matches your instrumentation specifications.

Extended Functions

System Scalability: The DAI 02 integrates seamlessly with other Freelance 2000 I/O modules, enabling flexible system expansion as your process monitoring requirements grow. Combine with digital I/O, analog output, and specialty modules to build comprehensive control solutions.

Diagnostic Capabilities: Built-in self-diagnostics and status reporting through the Freelance 2000 system interface enable proactive maintenance and rapid troubleshooting, reducing mean time to repair during operational issues.

Configuration Flexibility: Software-configurable input ranges and filtering parameters allow field technicians to adapt the module to different sensor types and signal characteristics without hardware modifications, supporting diverse application requirements.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock units. Custom configurations or bulk orders may require 7-10 business days. Express shipping options available for urgent replacements.

Warranty Coverage: Comprehensive 12-month warranty covering all functional defects and performance issues. Warranty includes free replacement for any module failing to meet original ABB specifications during normal operation.

Technical Support: Direct access to automation specialists with Freelance 2000 expertise. Support includes pre-sale application consulting, installation guidance, configuration assistance, and post-installation troubleshooting via email and phone.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and configuration reference. Complete technical manuals and system integration documentation available for download from our support portal.

Frequently Asked Questions

How does the refurbishment process ensure reliability comparable to new modules?
Our factory-certified refurbishment includes complete disassembly, component-level inspection, replacement of wear-prone parts, calibration to original specifications, and multi-point functional testing under simulated load conditions. Each module must pass the same quality gates as new production units before receiving certification for resale.

Can the DAI 02 interface with third-party sensors and transmitters?
Yes, the module accepts standard industrial analog signals (0-10V, 4-20mA) from any manufacturer's sensors and transmitters. Signal compatibility depends on the transmitter output matching the module's input specifications, not on brand or protocol.

What are the typical applications where analog input modules provide the most value?
Analog input modules excel in continuous process monitoring applications including temperature control loops, pressure regulation systems, flow measurement circuits, and level monitoring installations where real-time variable tracking is essential for process optimization and safety.

Is special training required for installation and configuration?
Basic installation requires standard electrical and control panel skills including DIN rail mounting and terminal wiring. Configuration through the Freelance 2000 engineering software requires familiarity with the system programming environment. We provide installation guides and configuration support to qualified technicians.

How do I verify compatibility with my existing Freelance 2000 system?
Compatibility depends on your controller firmware version and I/O rack model. Contact our technical team with your system configuration details (controller model, firmware version, rack type) and we'll confirm compatibility and provide integration guidance.

What happens if the module fails during the warranty period?
Warranty coverage includes free replacement of any module experiencing functional defects or performance degradation. Simply contact our support team, describe the issue, and we'll arrange immediate replacement shipment with prepaid return shipping for the defective unit.

Ready to Upgrade Your Process Monitoring?

The ABB DAI 02 delivers proven analog input performance for Freelance 2000 systems at a fraction of new equipment cost. Whether you're replacing failed modules, expanding existing systems, or building spare parts inventory, our factory-refurbished units provide the reliability you need with the value you demand.

Contact our automation specialists today: Share your application requirements, system configuration, and delivery timeline. We'll confirm compatibility, provide technical recommendations, and arrange fast shipment to keep your operations running smoothly.
