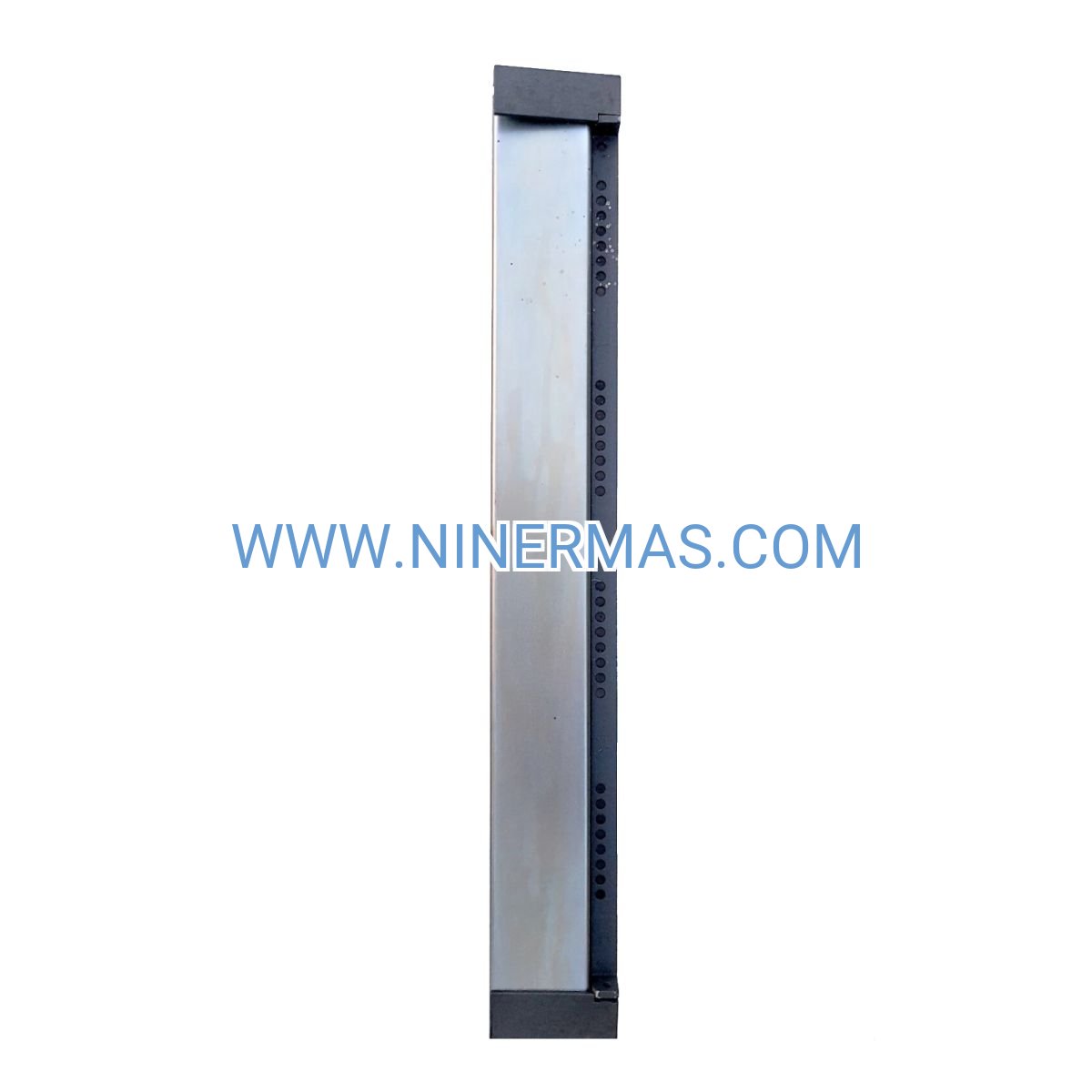

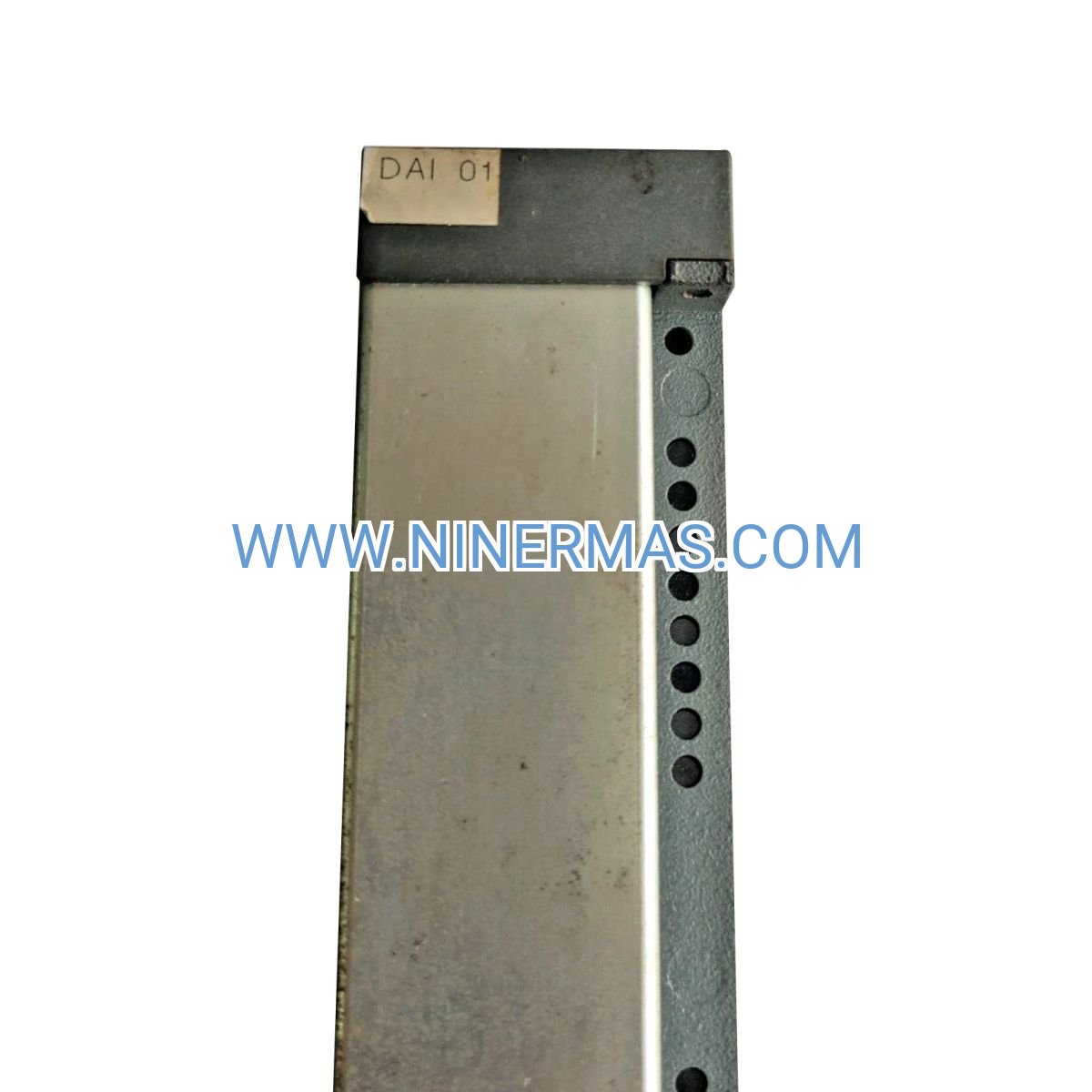

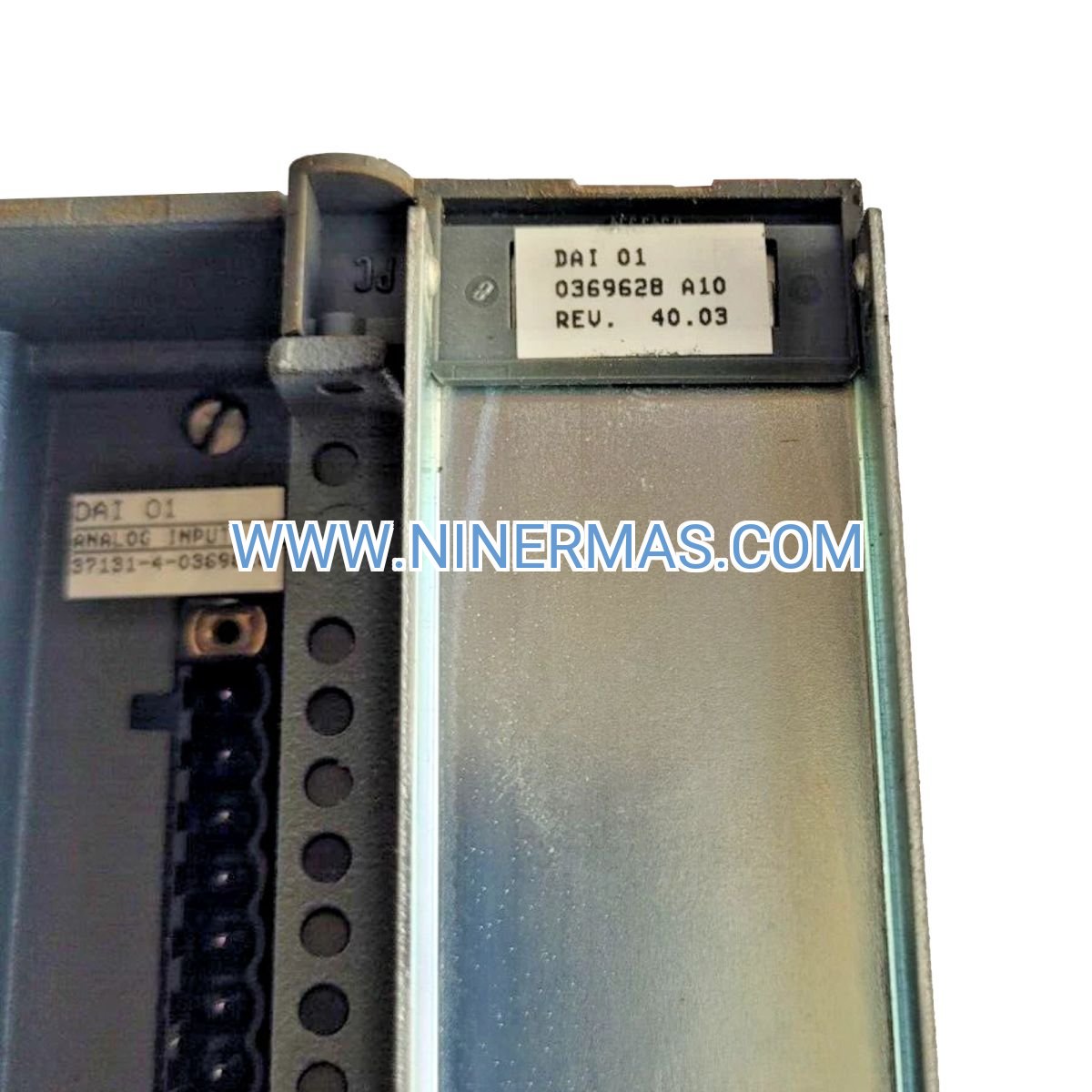

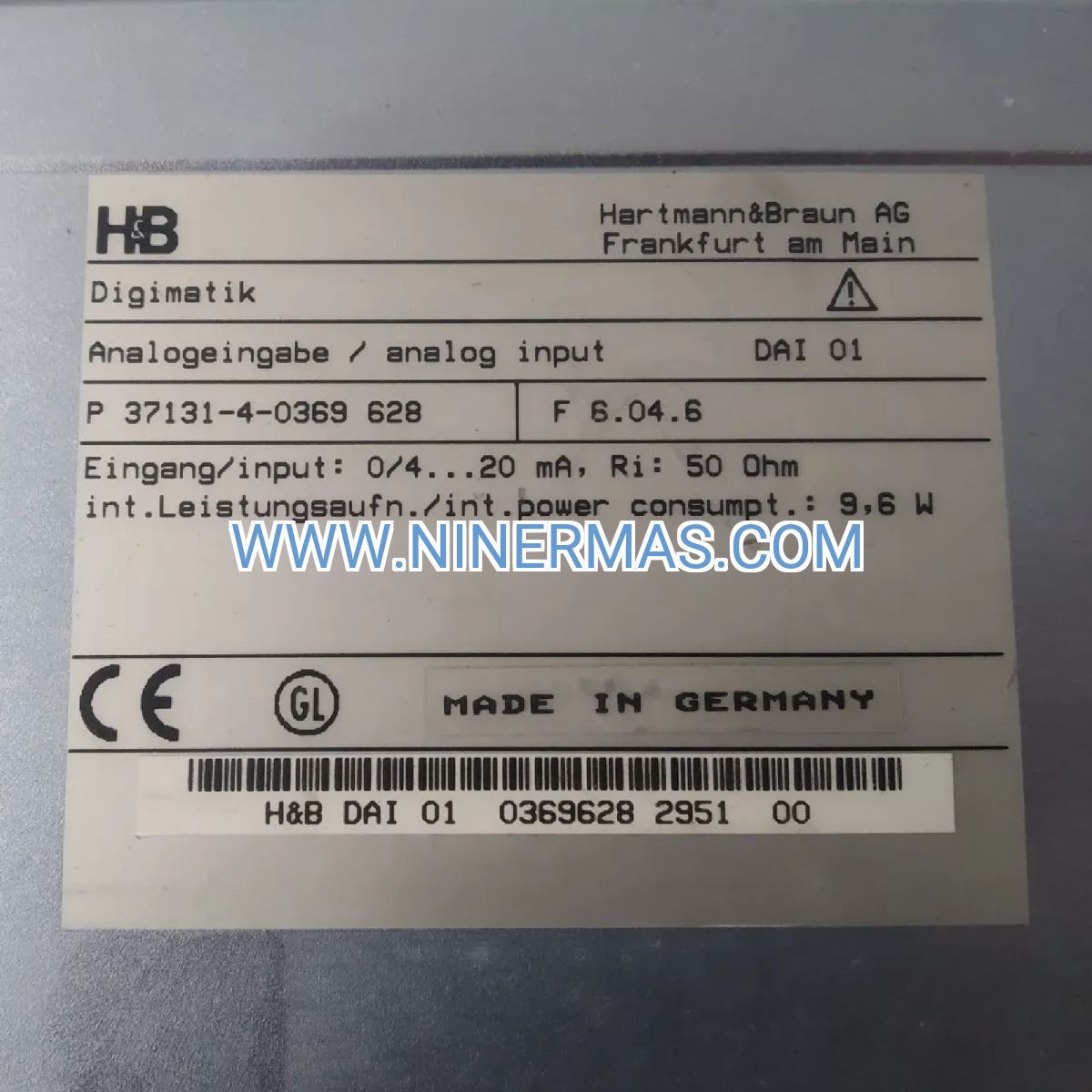

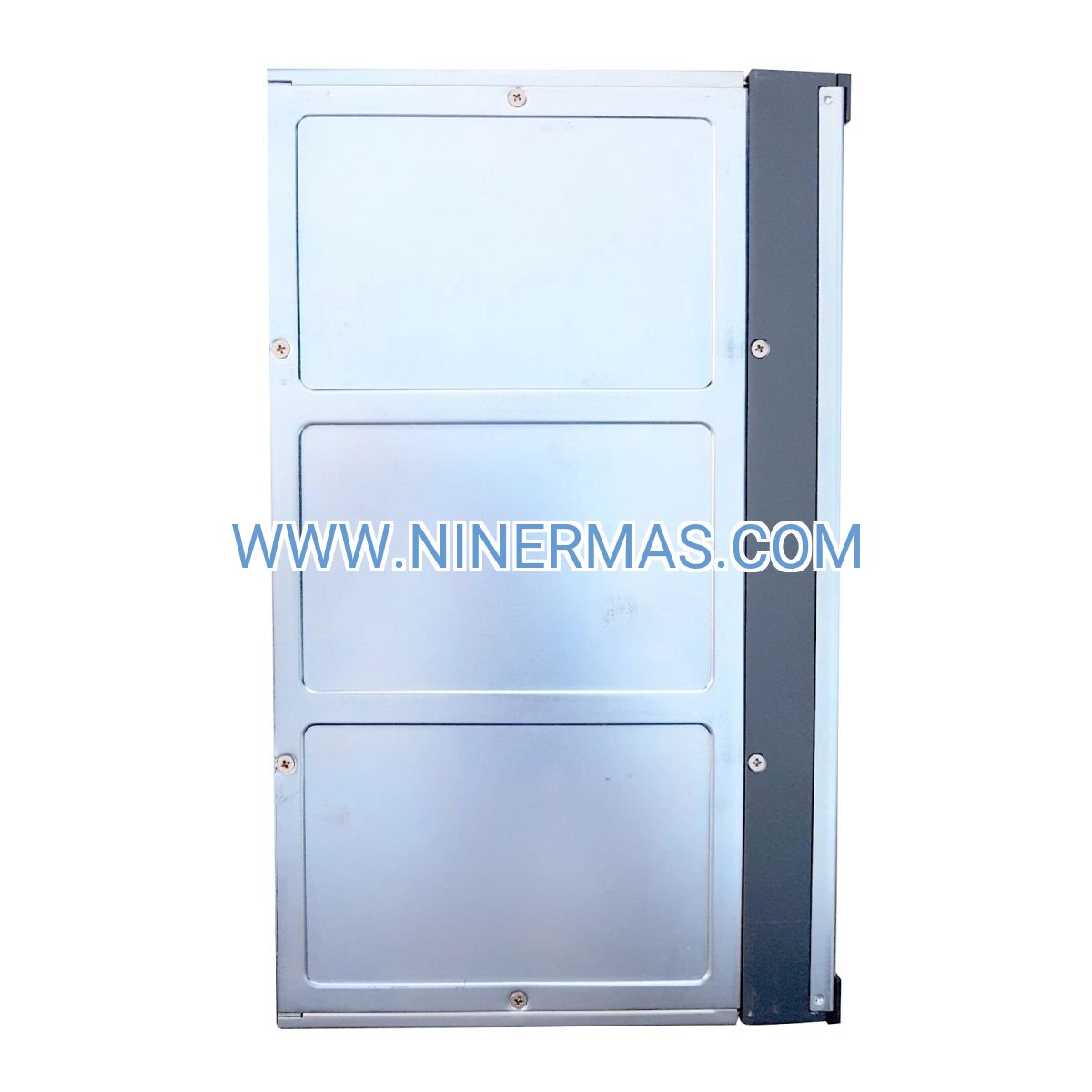

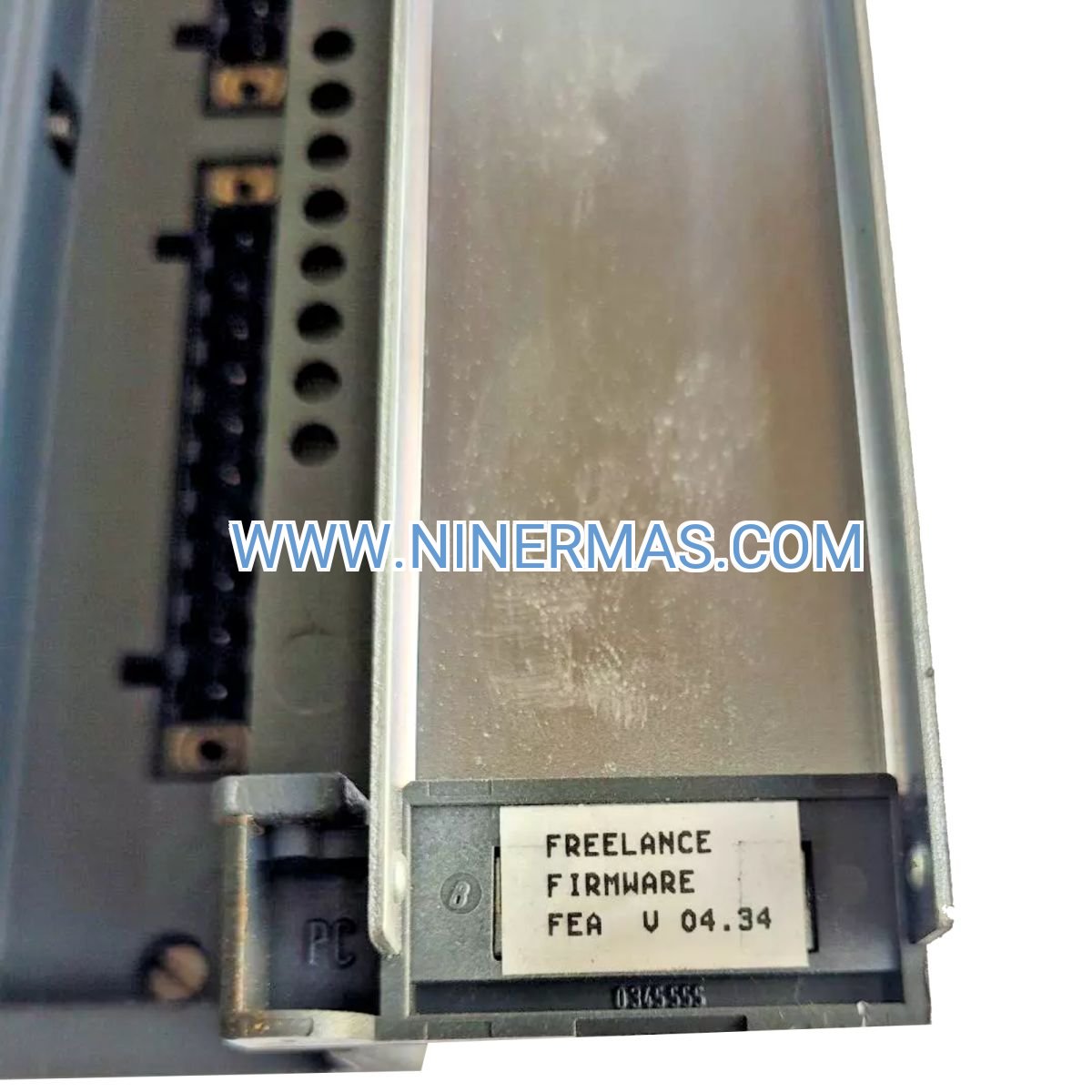

DAI 01 Analog Input Module (Industrial-Grade Signal Processor)

The DAI 01 Analog Input Module represents a critical interface component within ABB's Freelance 2000 distributed control architecture. This refurbished unit transforms continuous field signals—temperature transmitters, pressure sensors, flow meters—into high-fidelity digital data streams that drive real-time process decisions. Built for harsh industrial environments, the module maintains measurement integrity across temperature extremes and electrical noise conditions that would compromise lesser systems.

Process engineers rely on the DAI 01 when analog signal accuracy directly impacts product quality, safety margins, or regulatory compliance. Whether monitoring reactor temperatures in chemical synthesis, tracking flow rates in water treatment, or measuring pressure differentials in HVAC systems, this module delivers the precision required for closed-loop control strategies. Its galvanic isolation architecture prevents ground loops and cross-channel interference—common failure modes in multi-point measurement systems.

As a factory-tested refurbished component, this DAI 01 unit offers immediate deployment capability at a fraction of new equipment costs. Each module undergoes comprehensive functional verification including linearity testing, isolation resistance checks, and thermal cycling to validate performance against original ABB specifications. For system expansions, spare inventory, or emergency replacements, this represents a cost-effective solution without compromising operational reliability.

Core Capabilities & Technical Advantages

→ Multi-Channel Architecture: Simultaneous acquisition across independent input channels eliminates sequential scanning delays, critical for synchronized process measurements where timing relationships matter.

→ Universal Signal Compatibility: Field-configurable for standard industrial ranges (0-10V DC, 4-20mA) allows single module type to serve diverse sensor populations, reducing spare parts inventory complexity.

→ 12-Bit Resolution: 4096-count digitization provides 0.024% granularity—sufficient for most process control applications while maintaining cost-effectiveness compared to higher-resolution alternatives.

→ Channel-to-Bus Isolation: Galvanic separation protects system electronics from field-side voltage transients and ground potential differences that commonly occur in distributed installations.

→ Extended Temperature Rating: -25°C to +70°C operational range supports installations in unheated enclosures, outdoor cabinets, and process-adjacent locations without auxiliary climate control.

→ DIN Rail Mounting: Standard 35mm rail compatibility enables rapid installation and hot-swap replacement in existing Freelance 2000 racks without mechanical modifications.

Industrial Application Scenarios

Chemical Processing & Batch Manufacturing: Monitor reactor vessel temperatures, reagent flow rates, and pressure conditions during multi-stage synthesis operations. The DAI 01's isolation prevents electrical noise from variable-frequency drives and motor starters from corrupting critical measurement data that determines batch quality and yield.

Water & Wastewater Treatment: Track pH levels, dissolved oxygen concentrations, turbidity measurements, and chemical dosing pump outputs across distributed treatment stages. Multi-channel capability reduces module count and wiring complexity in systems requiring dozens of analog measurement points.

Power Generation & Cogeneration: Acquire boiler pressure, steam temperature, fuel flow, and emissions data for combustion optimization and regulatory reporting. The module's temperature rating supports installation in turbine halls and boiler rooms where ambient conditions exceed commercial equipment limits.

HVAC & Building Automation: Interface with zone temperature sensors, duct pressure transmitters, and chilled water flow meters in large commercial or institutional facilities. Cost-effective refurbished modules make economic sense for retrofit projects upgrading pneumatic controls to digital systems.

Food & Beverage Production: Monitor pasteurization temperatures, fermentation vessel conditions, and CIP (clean-in-place) system parameters where process deviations impact food safety and product consistency. Proven reliability in refurbished units reduces total cost of ownership for multi-line production facilities.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the DAI 01 when your application requires standard industrial analog inputs (voltage or current) within the specified temperature range. For applications demanding higher resolution (16-bit), faster sampling rates, or specialized signal types (RTD, thermocouple), consult alternative modules in the Freelance 2000 I/O portfolio. Verify that your existing controller firmware supports this module revision before ordering.

Extended Integration & Customization Options

✓ SCADA Connectivity: Seamless data mapping to ABB 800xA, Wonderware, or third-party HMI platforms via Freelance 2000 communication protocols (Modbus TCP, OPC UA).

✓ Redundancy Configurations: Supports hot-standby controller architectures where dual DAI 01 modules provide measurement continuity during controller failover events.

✓ Calibration Services: Optional factory-traceable calibration certificates available for regulated industries (pharmaceutical, aerospace) requiring documented measurement accuracy.

✓ Custom Cable Assemblies: Pre-terminated field wiring harnesses reduce installation time and connection errors in multi-channel deployments.

Delivery Timeline & Service Commitments

Standard Delivery: 5-7 business days for in-stock refurbished units via express courier with tracking. Expedited 2-3 day shipping available for critical path projects.

Custom Orders: Modules requiring specific firmware versions or calibration certificates ship within 10-14 business days after order confirmation.

Warranty Coverage: 12-month limited warranty covering material defects and workmanship. Warranty excludes damage from improper installation, overvoltage events, or environmental conditions exceeding specifications.

Technical Support: Email and phone support for configuration questions, troubleshooting assistance, and integration guidance. Response within 24 hours for technical inquiries.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and configuration parameter reference. Full technical manuals available via download link.

Frequently Asked Questions

Q: How does the DAI 01 analog input module interface with existing Freelance 2000 controllers?
A: The module connects via the Freelance 2000 backplane bus using standard rack slot positions. Configuration occurs through the ABB Control Builder software—simply add the module to your hardware tree, assign I/O addresses, and map signals to control logic. No special drivers or firmware updates required for standard installations.

Q: What input channel capacity and signal range options does this module support?
A: The DAI 01 provides multiple independent analog input channels (exact count varies by model variant). Each channel accepts either 0-10V DC voltage signals or 4-20mA current loops, configurable via software jumpers. This flexibility allows mixing sensor types on a single module—for example, three voltage transmitters and one current loop on a four-channel unit.

Q: Can refurbished DAI 01 modules deliver energy efficiency improvements over older I/O hardware?
A: While the DAI 01 itself consumes minimal power (typical <5W per module), the primary efficiency gain comes from improved measurement accuracy enabling tighter process control. Better analog signal fidelity allows reducing safety margins in heating/cooling systems, chemical dosing, and other energy-intensive processes—often yielding 2-5% energy savings in optimized applications.

Q: What are the physical installation requirements and mounting considerations?

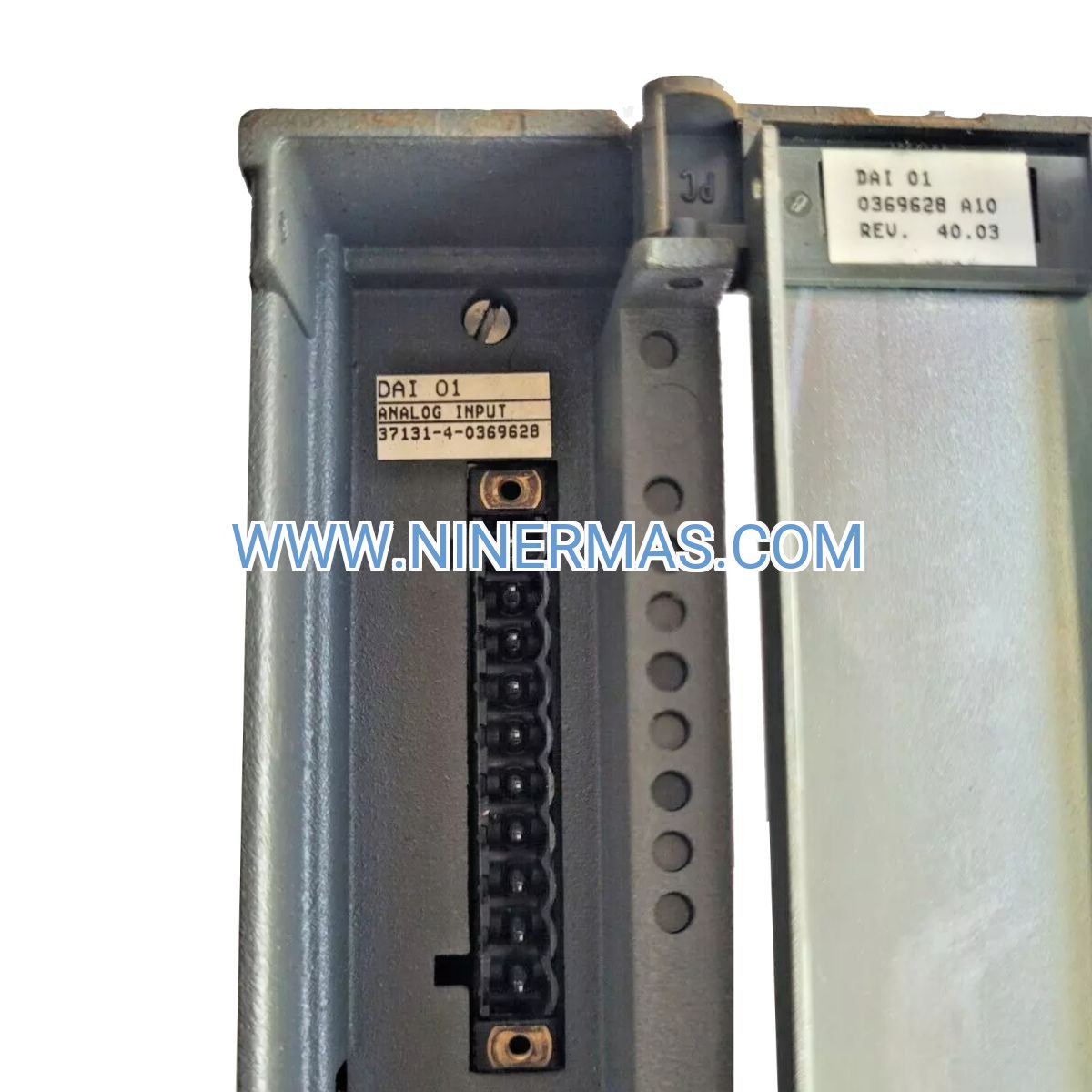

A: The module mounts on standard 35mm DIN rail within ABB Freelance 2000 I/O racks. Ensure adequate ventilation (minimum 50mm clearance above/below) and avoid direct exposure to corrosive atmospheres or condensing humidity. Field wiring terminates via removable screw-terminal blocks—use 18-22 AWG wire with ferrules for reliable connections. Maximum recommended cable run: 300 meters for current signals, 100 meters for voltage signals.

Q: Does the DAI 01 support remote diagnostics and predictive maintenance monitoring?
A: Yes—the module reports diagnostic status to the Freelance 2000 controller including channel health, out-of-range conditions, and wire-break detection (for 4-20mA loops). These diagnostics integrate with ABB's Asset Health Center for predictive maintenance workflows. Set up alarm notifications for signal degradation before complete failures occur, reducing unplanned downtime.

Q: How do I verify compatibility between this refurbished module and my current system configuration?
A: Check three key parameters: (1) Freelance 2000 controller firmware version—DAI 01 requires minimum v8.0 or later; (2) Available rack slot positions—module occupies one standard slot; (3) Power budget—verify your rack power supply has capacity for additional module load. Contact our technical team with your system details for pre-purchase compatibility confirmation.

Ready to Enhance Your Process Control Accuracy?

The DAI 01 Analog Input Module delivers the measurement precision your critical processes demand. Whether you're expanding an existing Freelance 2000 system, building spare parts inventory, or replacing failed components, this refurbished module offers proven reliability at exceptional value.

Contact our industrial automation specialists today: Share your application requirements, system configuration, and delivery timeline. We'll confirm compatibility, provide technical recommendations, and expedite your order to minimize project delays.
