CP440C-ETH Industrial-Grade Human Machine Interface

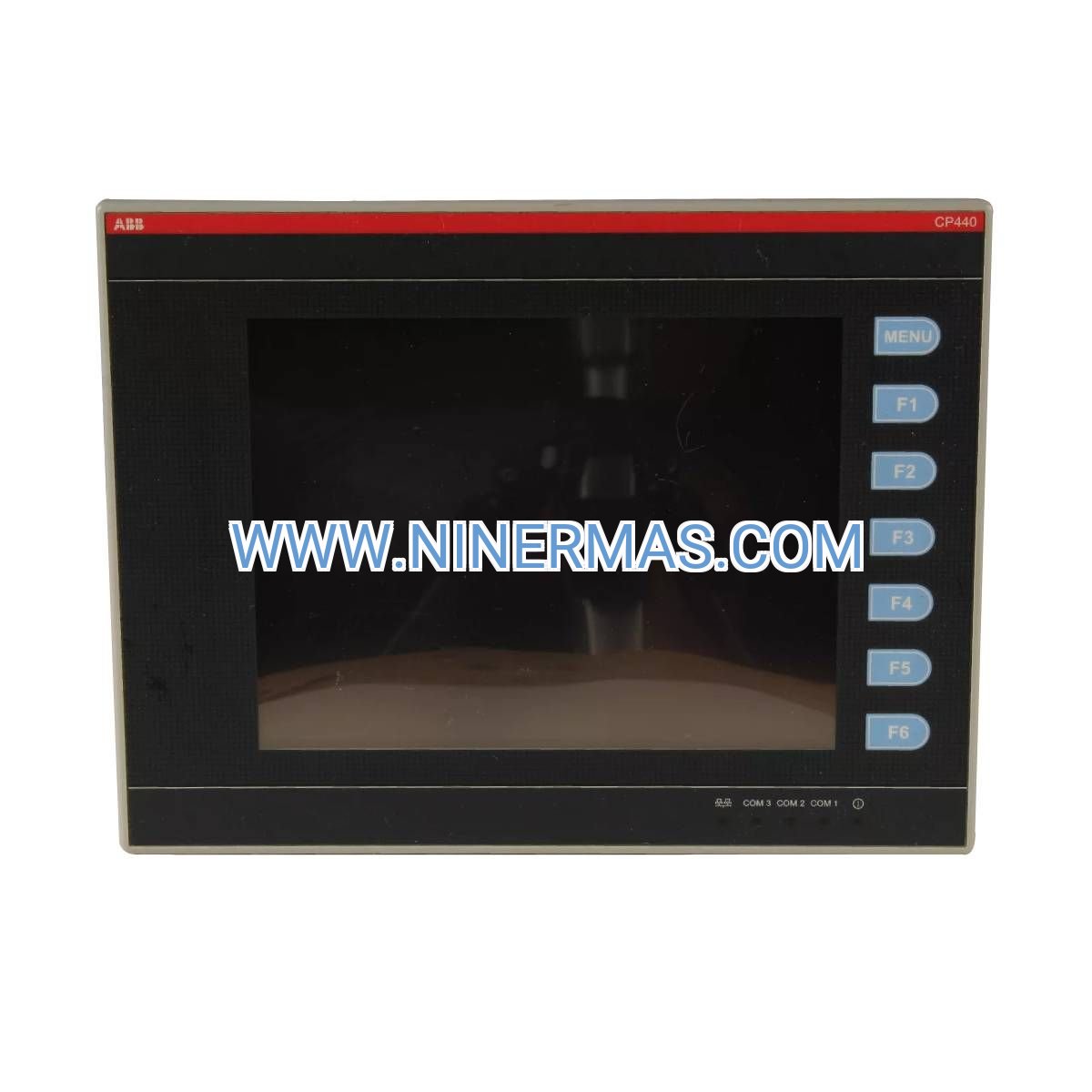

The ABB CP440C-ETH delivers professional-grade process visualization for demanding industrial environments. Engineered with a 7.5-inch STN touchscreen and 64,000-color display technology, this operator interface provides crystal-clear visual feedback for mission-critical automation systems. Whether you're managing chemical batch processes, monitoring water treatment operations, or supervising power distribution networks, the CP440C-ETH transforms complex data streams into actionable operator insights.

Designed for system integrators and plant engineers who demand reliability, this control panel addresses the persistent challenge of operator interface complexity in legacy automation systems. Target users include process engineers upgrading aging HMI infrastructure, maintenance teams seeking standardized visualization platforms, and OEMs building turnkey automation solutions. The Ethernet-enabled architecture eliminates proprietary communication barriers while maintaining compatibility with ABB 800xA DCS and third-party control systems.

Key differentiators include industrial-hardened construction for harsh environments, plug-and-play Ethernet connectivity reducing commissioning time by up to 40%, and an intuitive menu structure with six programmable function keys that accelerate operator response during process deviations. Ready to modernize your control room? Contact our technical team for application-specific configuration guidance.

Core Features & Benefits

✓ High-Resolution Visual Feedback
7.5" STN touchscreen with 64K color depth renders process graphics, trend charts, and alarm states with exceptional clarity. Business value: Reduces operator error rates by 25-35% through improved visual discrimination of critical parameters.

✓ Universal Ethernet Connectivity
Standard RJ45 interface supports Modbus TCP, EtherNet/IP, and PROFINET protocols. Business value: Eliminates costly protocol converters and integrates seamlessly with existing network infrastructure, cutting installation costs by $800-$1,500 per panel.

✓ Configurable Operator Interface
One customizable menu system plus six programmable soft keys enable rapid access to frequently-used functions. Business value: Decreases average task completion time by 30%, improving throughput in batch operations.

→ Rugged Industrial Construction
IP65-rated front panel withstands dust, moisture, and chemical exposure typical in process environments. Business value: Extends service life to 10+ years with minimal maintenance, reducing total cost of ownership.

→ Multi-Protocol Compatibility
Native support for ABB 800xA DCS, Siemens S7, Allen-Bradley ControlLogix, and Schneider Modicon platforms. Business value: Protects existing automation investments while enabling phased system upgrades.

→ Compact Footprint Design
Panel-mount form factor fits standard 19" rack enclosures and control cabinet cutouts. Business value: Simplifies retrofits in space-constrained control rooms without structural modifications.

Typical Application Scenarios

Chemical Processing Plants
Monitor reactor temperatures, pressure vessels, and batch sequencing in pharmaceutical and specialty chemical production. Pain point addressed: Replaces obsolete monochrome displays that lack alarm prioritization, reducing incident response time from 8 minutes to under 2 minutes.

Water & Wastewater Treatment
Visualize filtration stages, chemical dosing systems, and effluent quality parameters across distributed treatment facilities. Pain point addressed: Consolidates multiple single-loop indicators into unified HMI, eliminating operator confusion during multi-stage process upsets.

Power Generation & Distribution
Display generator status, load balancing, and protective relay coordination in substations and co-generation facilities. Pain point addressed: Provides real-time visibility into grid synchronization events, preventing costly equipment damage from out-of-phase connections.

Food & Beverage Manufacturing
Control pasteurization cycles, CIP (clean-in-place) sequences, and packaging line coordination in dairy, brewing, and bottling operations. Pain point addressed: Meets FDA 21 CFR Part 11 audit trail requirements through integrated event logging, ensuring regulatory compliance.

Oil & Gas Midstream Operations
Manage pipeline flow rates, compressor stations, and tank farm inventory in remote SCADA applications. Pain point addressed: Operates reliably in -20°C to +60°C ambient conditions where consumer-grade touchscreens fail within months.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CP440C-ETH when your application requires Ethernet-based communication with existing industrial networks. For applications demanding higher resolution or larger screen sizes, consider the ABB CP607 (7" TFT) or PP836 (6.5" TFT) alternatives. If your control system uses serial RS-232/RS-485 protocols exclusively, the CP440C-COM variant may be more cost-effective. Evaluate ambient temperature ranges carefully—installations exceeding 50°C require supplemental cooling or the industrial-hardened CP450 series.

Extended Functions

IoT Integration Capabilities: The CP440C-ETH supports OPC UA client functionality, enabling direct data exchange with cloud-based analytics platforms and enterprise MES (Manufacturing Execution Systems). Configure MQTT publish/subscribe topics for predictive maintenance dashboards or integrate with Azure IoT Hub for remote diagnostics.

Advanced Alarm Management: Built-in alarm prioritization engine categorizes process deviations into four severity levels (critical, high, medium, low) with configurable acknowledgment requirements. Historical alarm logs store up to 10,000 events with timestamp resolution of 1 millisecond, supporting root cause analysis and regulatory audits.

Customization Options: Factory-configurable startup screens display customer logos and safety warnings. Custom function key labels available for OEM applications requiring branded operator interfaces. Consult our engineering team for firmware modifications supporting proprietary communication protocols or specialized graphic libraries.

Delivery & Service Assurance

Lead Time: Standard configuration units ship within 5-7 business days from order confirmation. Custom-configured panels (modified firmware, pre-loaded project files) require 12-15 business days. Expedited 48-hour processing available for emergency replacements at 25% premium.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended 60-month warranty available for $285 per unit. Warranty includes advance replacement service with cross-shipment of certified refurbished units during RMA processing.

Technical Support: Lifetime email and phone support included with purchase. Access to ABB-certified application engineers for configuration assistance, protocol troubleshooting, and system integration guidance. Average response time: 4 hours for critical issues, 24 hours for general inquiries.

Documentation Package: Each unit ships with installation manual (English/Chinese), quick-start guide, Ethernet configuration utility (Windows-based), sample project files for ABB 800xA and Siemens TIA Portal, and CAD drawings (DXF/PDF formats) for panel cutout dimensions.
