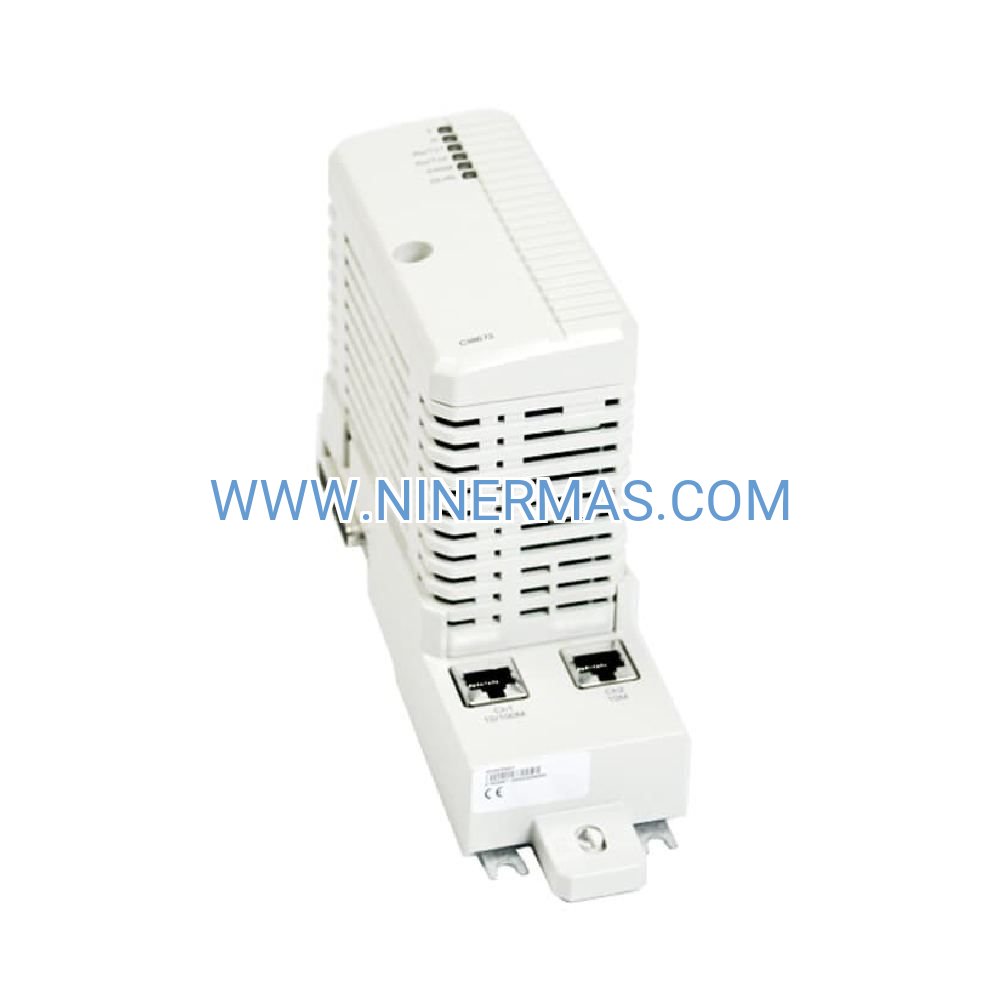

ABB CI867 Dual-Port Modbus TCP Module (Industrial-Grade Communication Interface)

The ABB CI867 (3BSE043660R1) is an industrial-grade dual-port Modbus TCP/IP communication module engineered for seamless integration with ABB AC 800M controller systems. This Ethernet interface enables reliable protocol conversion between Modbus TCP networks and legacy automation devices, delivering deterministic data exchange in demanding industrial environments where uptime and precision are non-negotiable.

Designed for process industries requiring robust network connectivity, the CI867 solves critical challenges in multi-vendor system integration—eliminating communication bottlenecks between modern Ethernet-based SCADA systems and field devices operating on Modbus protocols. Plant engineers and system integrators rely on this module to bridge technology generations while maintaining real-time control performance.

With dual RJ45 ports supporting redundant network topologies, hot-swap capability for zero-downtime maintenance, and capacity for 16 simultaneous TCP connections, the CI867 delivers enterprise-grade reliability for refineries, pharmaceutical facilities, water treatment plants, and manufacturing operations where communication failures translate directly to production losses.

Core Features & Industrial Advantages

✓ Dual-Port Ethernet Architecture
Two independent 10/100 Mbps auto-negotiating RJ45 ports enable ring, star, or linear network topologies with automatic failover protection—ensuring continuous operation even during cable damage or switch maintenance events.

✓ High-Capacity Connection Management
Supports up to 16 concurrent Modbus TCP sessions with intelligent connection pooling, allowing simultaneous communication with multiple HMI systems, historians, and third-party controllers without performance degradation.

✓ Bidirectional Protocol Operation
Functions simultaneously as Modbus TCP Master (initiating read/write requests) and Slave (responding to external queries), enabling flexible data exchange patterns required in complex distributed control architectures.

✓ Hot-Swap Serviceability
Field-replaceable without system shutdown or controller reboot—critical for 24/7 operations where scheduled maintenance windows are measured in minutes, not hours.

✓ Industrial Environmental Hardening
Operates reliably across -25°C to +60°C ambient temperatures with conformal coating protection against humidity, dust, and chemical exposure typical in process environments.

✓ Built-In Diagnostic Intelligence
Real-time traffic monitoring, connection health tracking, and error logging accessible through Control Builder Professional—accelerating troubleshooting and reducing mean time to repair (MTTR).

Typical Application Scenarios

→ Oil & Gas SCADA Integration
In offshore platforms and pipeline control rooms, the CI867 aggregates data from remote terminal units (RTUs) and intelligent transmitters across plant-wide Ethernet backbones, feeding real-time process variables to centralized SCADA systems while maintaining deterministic 100ms update rates.

→ Pharmaceutical Batch Control
Pharmaceutical manufacturers use the CI867 to connect recipe management systems with AC 800M batch controllers, enabling validated data exchange for 21 CFR Part 11 compliance while maintaining audit trails for regulatory inspections.

→ Utility Substation Automation
Electric utilities deploy CI867 modules to interface protective relays and intelligent electronic devices (IEDs) with substation automation systems, providing IEC 61850-compliant data mapping through Modbus TCP gateways.

→ Water Treatment Plant Monitoring
Municipal water facilities leverage the dual-port architecture for redundant connections between distributed pump stations and central control systems, ensuring uninterrupted telemetry even during network infrastructure upgrades.

→ Manufacturing Line Coordination
Automotive and electronics manufacturers integrate variable frequency drives (VFDs), barcode scanners, and vision systems into AC 800M control logic via CI867 Modbus TCP bridges, synchronizing production equipment across multiple work cells.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CI867 when your AC 800M system requires Ethernet-based Modbus TCP connectivity. For serial Modbus RTU applications over RS-232/485, consider the ABB CI854 module instead. If your network demands exceed 16 connections, implement multiple CI867 modules across separate controller chassis or upgrade to higher-capacity communication processors.

Extended Functions

IoT Gateway Integration: The CI867 serves as a data aggregation point for Industrial IoT platforms—configure Modbus register mappings to expose process variables via OPC UA servers or MQTT brokers for cloud analytics and predictive maintenance applications.

Cybersecurity Hardening: Deploy the module behind managed industrial Ethernet switches with VLAN segmentation and firewall rules to isolate control networks from enterprise IT infrastructure, reducing attack surface while maintaining operational visibility.

Custom Protocol Translation: Advanced users can leverage Control Builder's function block programming to implement custom data transformations, unit conversions, or alarm filtering between Modbus devices and AC 800M control logic—eliminating the need for external protocol gateways.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking
Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific register maps
Warranty Period: 12 months comprehensive coverage against manufacturing defects
Technical Support: Lifetime email/phone assistance for configuration troubleshooting and firmware updates
Documentation Included: Installation manual, register mapping templates, Control Builder configuration examples

Frequently Asked Questions

Q: Does the ABB CI867 support Modbus RTU serial communication?
A: No, the CI867 exclusively handles Modbus TCP over Ethernet networks. For Modbus RTU over RS-232/RS-485 serial links, you'll need the ABB CI854 serial communication interface module designed specifically for legacy serial protocols.

Q: What is the maximum Ethernet cable distance between the CI867 and network switches?
A: Standard Cat5e or Cat6 Ethernet cabling supports up to 100 meters per segment. For longer distances, use industrial-grade fiber optic media converters or managed Ethernet switches with fiber uplink ports to extend reach while maintaining signal integrity.

Q: Can the CI867 operate as both Modbus Master and Slave simultaneously?
A: Yes, the module supports bidirectional operation—it can initiate Modbus read/write requests to field devices (Master mode) while simultaneously responding to queries from SCADA systems or historians (Slave mode), enabling flexible data exchange architectures.

Q: How do I verify communication status during system commissioning?

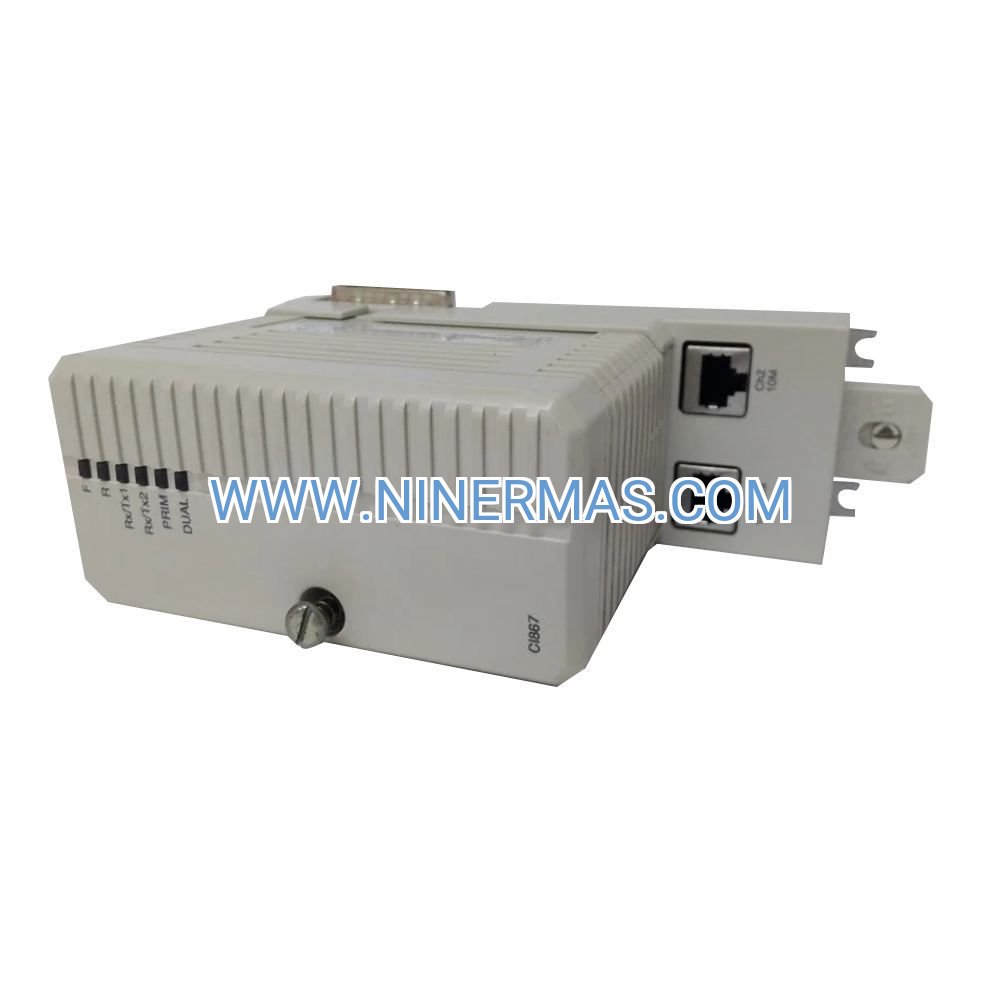

A: Use Control Builder Professional's online diagnostics panel to monitor active TCP connections, transaction counters, timeout events, and error statistics in real time. The module also provides front-panel LED indicators for link status and communication activity.

Q: Is redundant configuration supported for high-availability applications?
A: Yes, install two CI867 modules in separate CEX-Bus slots and configure them with identical parameters. The AC 800M controller firmware automatically manages failover switching if the primary module fails, ensuring uninterrupted communication.

Q: What network security measures should I implement with the CI867?
A: Deploy the module behind managed industrial Ethernet switches with VLAN segmentation, MAC address filtering, and port security features. Implement firewall rules to restrict Modbus TCP traffic to authorized IP addresses and disable unused TCP ports to minimize attack surface.

Ready to Integrate Modbus TCP into Your AC 800M System?

Contact our automation specialists for application-specific configuration guidance, register mapping templates, and volume pricing for multi-site deployments. We provide pre-commissioning support to ensure seamless integration with your existing control architecture.
