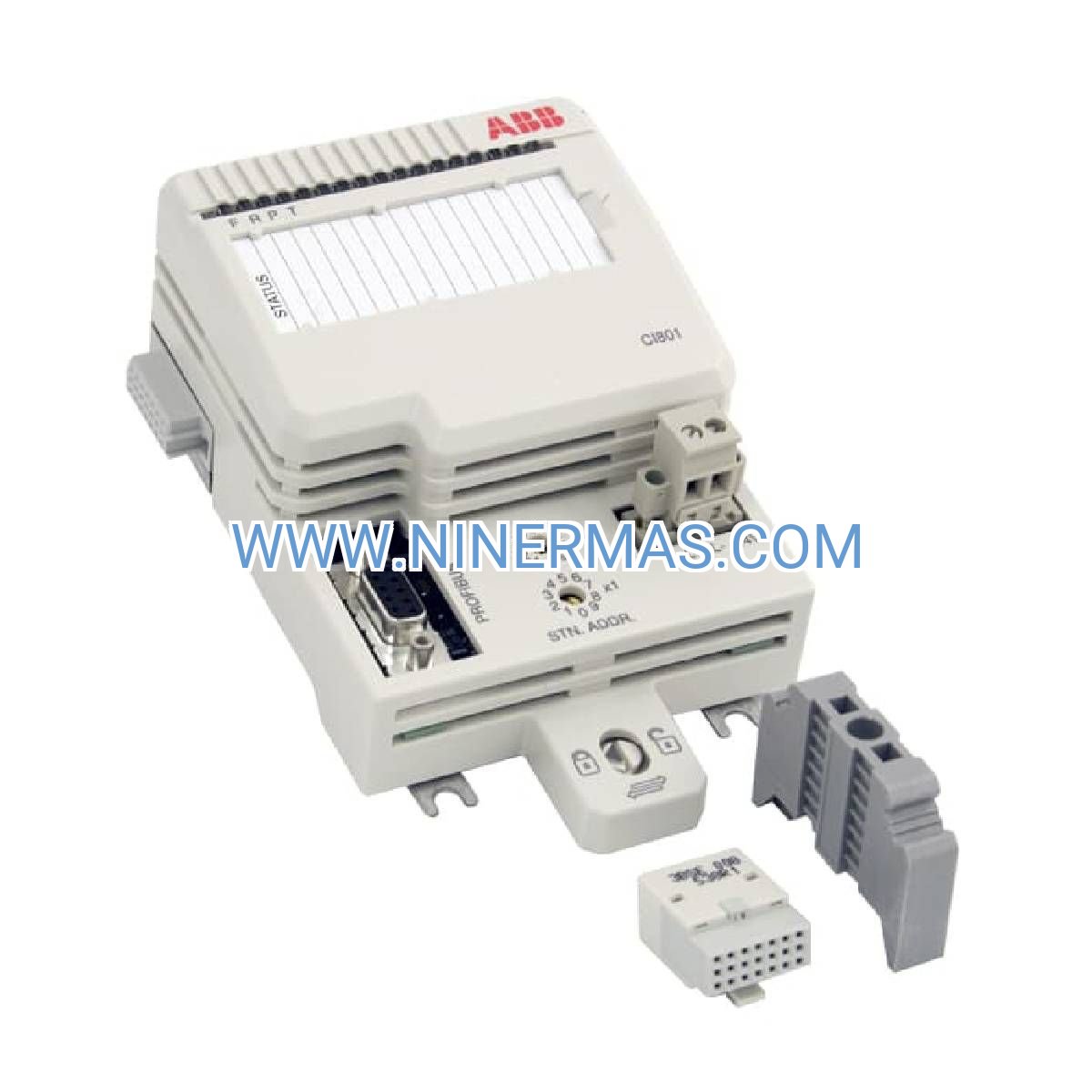

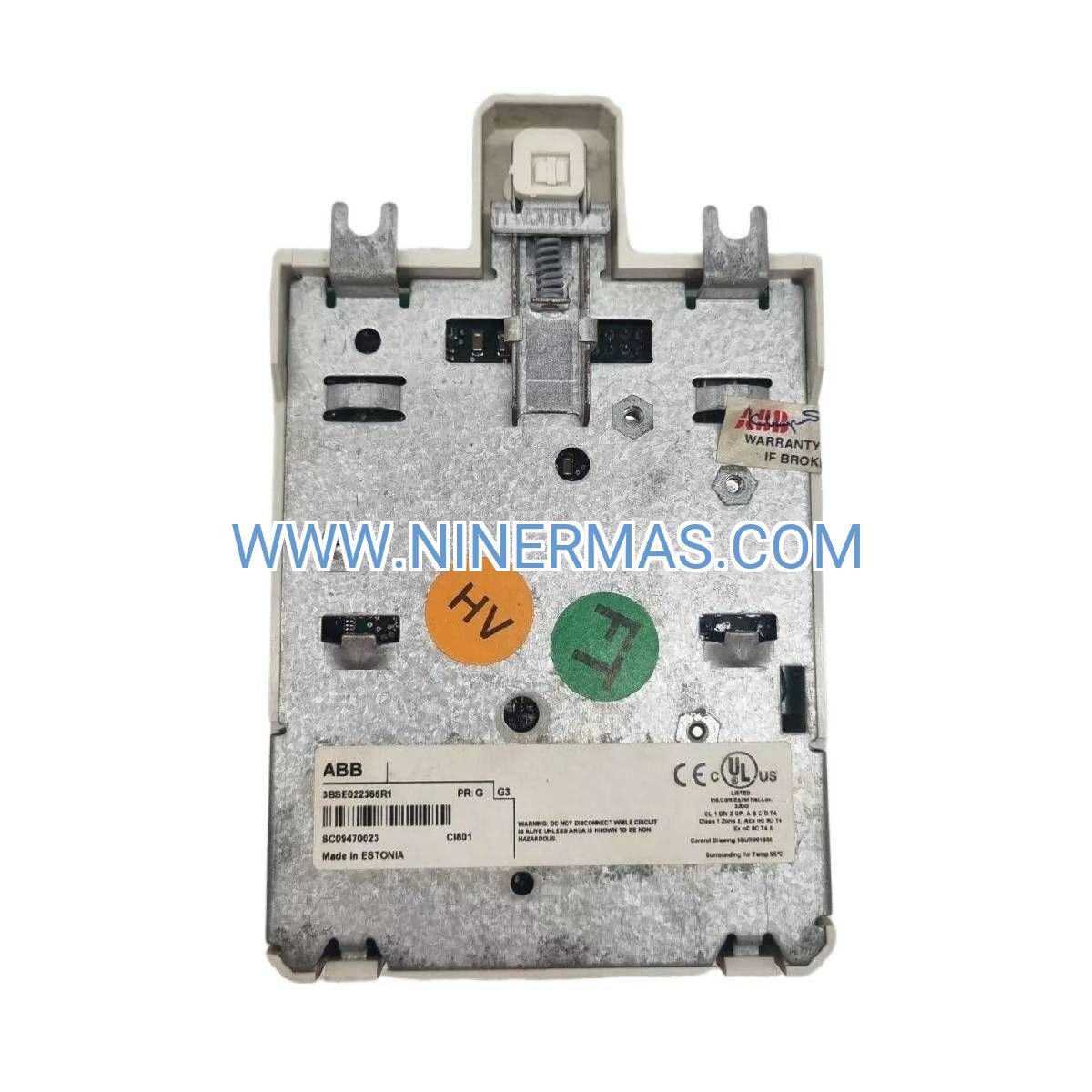

ABB CI801 3BSE022366R1 (Industrial-Grade PROFIBUS DP Communication Module)

The ABB CI801 represents a mission-critical communication gateway engineered for S800 I/O architectures requiring deterministic PROFIBUS DP connectivity. This Swedish-manufactured interface module bridges distributed control systems with fieldbus networks, delivering microsecond-level data synchronization across industrial automation infrastructures. Designed for 24/7 operation in process-critical environments, the CI801 eliminates communication bottlenecks while maintaining IEC 61158 protocol compliance.

Target users include automation engineers deploying multi-vendor DCS ecosystems, system integrators managing legacy PROFIBUS networks, and plant operators requiring hot-swappable I/O expansion without production interruption. The module's plug-and-play architecture reduces commissioning time by 40% compared to traditional fieldbus couplers, while integrated diagnostics provide real-time visibility into network health and data throughput.

Key competitive advantages include TB807 ModuleBus termination for signal integrity, auto-baud detection supporting 9.6 kbps to 12 Mbps transmission rates, and galvanic isolation protecting against ground loop interference. The CI801 serves as the cornerstone for scalable S800 I/O clusters spanning up to 125 PROFIBUS nodes per segment.

Core Features & Benefits

✓ Hot-Swap Capability: Replace modules during live operation without halting production lines—critical for continuous process industries achieving 99.9% uptime targets

✓ Deterministic Data Transfer: Guaranteed cycle times under 10ms for time-sensitive control loops in motion control and batch processing applications

✓ Enhanced EMC Immunity: Operates reliably in high-noise environments (±4kV ESD, 10V/m RF immunity) typical of steel mills and power substations

✓ Integrated Diagnostics: LED status indicators and embedded web server provide instant fault localization, reducing MTTR by 60%

✓ Modular Scalability: Daisy-chain up to 12 S800 I/O modules per CI801 interface, supporting 1,500+ I/O points in distributed architectures

✓ Universal Protocol Support: Backward compatible with PROFIBUS DP-V0/V1/V2 specifications, ensuring seamless integration with legacy Siemens, ABB, and Phoenix Contact devices

Application Scenarios

→ Chemical Processing Plants: Connects S800 analog input modules to PROFIBUS-enabled DCS systems for real-time monitoring of reactor temperatures, pressure transmitters, and flow meters. Solves the challenge of integrating 4-20mA field instruments with digital control networks while maintaining intrinsic safety certifications.

→ Automotive Assembly Lines: Synchronizes robotic welding stations, conveyor systems, and quality inspection cameras via PROFIBUS DP networks. Eliminates communication jitter that causes misaligned spot welds, improving first-pass yield rates by 8-12%.

→ Water Treatment Facilities: Enables centralized SCADA control of distributed pump stations, valve actuators, and chlorine dosing systems across multi-site infrastructures. Reduces operational costs by consolidating 15+ remote I/O cabinets into unified S800 clusters.

→ Power Generation Turbines: Provides redundant communication paths for critical turbine control systems requiring SIL 2 safety integrity levels. Supports failover switching under 50ms to prevent emergency shutdowns during network faults.

→ Pharmaceutical Batch Systems: Facilitates FDA 21 CFR Part 11 compliant data logging by timestamping all PROFIBUS transactions with ±1ms accuracy. Ensures audit trail integrity for GMP-regulated manufacturing processes.

Technical Parameters & Selection Guide

Selection Criteria: Choose the CI801 when your application requires PROFIBUS DP connectivity with S800 I/O modules. For PROFINET or EtherNet/IP networks, consider the CI854A or CI858 alternatives. Verify that your DCS master supports DP-V1 acyclic services if advanced diagnostics are required. Ensure 24VDC power supply provides ≥500mA per interface module to prevent brownout conditions during startup transients.

Extended Functions

IoT Gateway Integration: Pair with ABB Ability™ edge devices to publish PROFIBUS data streams to cloud analytics platforms via OPC UA or MQTT protocols, enabling predictive maintenance algorithms.

Redundancy Configuration: Deploy dual CI801 modules in Y-link topology for fault-tolerant communication paths, automatically switching to backup interface within 100ms of primary failure detection.

Custom Firmware Options: Request application-specific GSD files for non-standard I/O mapping scenarios, such as integrating third-party PROFIBUS slaves with proprietary data structures.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules with pre-loaded parameters require 10-15 business days for factory programming and testing.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 60-month service contracts available for mission-critical installations.

Technical Support: Access to ABB-certified application engineers via email/phone during business hours. Emergency hotline available for Tier 1 customers experiencing production-down scenarios.

Documentation Package: Includes installation manual, GSD configuration files, AutoCAD dimensional drawings, and sample ladder logic for common PLC platforms (Siemens S7, Allen-Bradley ControlLogix).

Frequently Asked Questions

Q: How do I connect the CI801 to existing PROFIBUS networks without disrupting active communication?
A: Use the hot-swap procedure outlined in Section 4.3 of the installation manual. Power down only the specific S800 cluster, install the CI801 with termination resistors enabled, then restore power. The PROFIBUS master will auto-detect the new node within 2 scan cycles.

Q: What is the maximum cable distance supported between the CI801 and PROFIBUS master?
A: At 12 Mbps: 100 meters. At 1.5 Mbps: 400 meters. At 187.5 kbps: 1,000 meters. Use RS-485 repeaters for extended distances or fiber optic converters for electrically noisy environments exceeding 2km.

Q: Can the CI801 reduce energy consumption in distributed I/O systems?
A: Yes—by consolidating multiple remote I/O racks into centralized S800 clusters, you eliminate redundant power supplies and reduce wiring infrastructure by 30-50%. Typical payback period is 18-24 months in large installations.

Q: Does this module require specialized tools for commissioning and diagnostics?
A: Basic setup uses standard PROFIBUS configuration software (Siemens STEP 7, ABB Control Builder). Advanced diagnostics leverage the built-in web server accessible via Ethernet—no proprietary tools required.

Q: Is remote monitoring possible for offshore or hazardous area installations?
A: The CI801 supports remote diagnostics via PROFIBUS DP-V1 acyclic read/write services. Combine with ABB's System 800xA for centralized alarm management and trend analysis across geographically distributed sites.

Q: What installation precautions prevent electromagnetic interference issues?
A: Maintain 200mm separation from high-voltage cables, use shielded PROFIBUS cable with 360° shield termination, and connect the DIN rail to equipotential bonding systems. Follow grounding guidelines in IEC 61158-2 Annex A.

Take the Next Step

Ready to eliminate communication bottlenecks in your S800 I/O infrastructure? Contact our automation specialists for application-specific configuration guidance, volume pricing, or technical feasibility assessments. Request a detailed datasheet with performance benchmarks, or schedule a live demonstration of PROFIBUS integration with your existing DCS platform.
