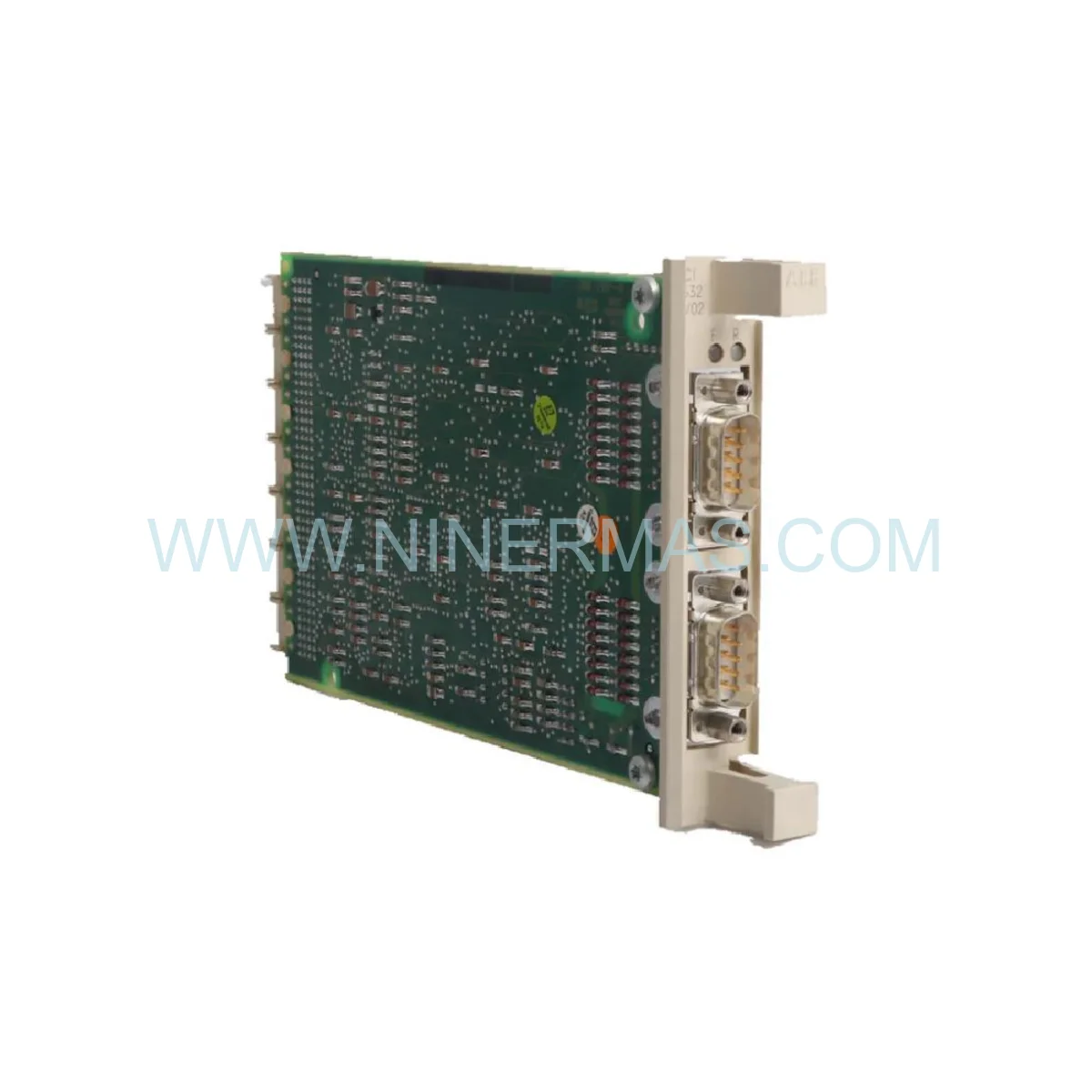

ABB CI532V02 (3BSE003827R1) – Industrial-Grade Dual-Port MODBUS RTU Gateway

The ABB CI532V02 serial communication module delivers proven RS-485 connectivity for integrating MODBUS RTU field instruments into ABB Advant distributed control systems. Engineered in Sweden with dual independent channels, this interface enables simultaneous master/slave operations across separate industrial networks, making it the preferred solution for brownfield automation retrofits and multi-vendor protocol bridging in mission-critical facilities.

Designed for process industries requiring deterministic serial communication, the CI532V02 supports up to 32 MODBUS devices per channel with configurable baud rates from 300 to 38,400 bps. Its galvanically isolated RS-485 ports protect against ground loops and electrical noise, while built-in diagnostics provide real-time visibility into communication health, timeout events, and CRC error rates for proactive maintenance.

Whether you're modernizing legacy SCADA infrastructure or expanding Advant OCS capabilities with third-party instrumentation, this module provides the reliability and flexibility demanded by power generation, water treatment, and continuous process applications. Backed by ABB's industrial heritage and comprehensive technical documentation, the CI532V02 ensures seamless data exchange between your control layer and field devices.

Key Features & Industrial Benefits

→ Dual Independent RS-485 Channels
Operate two separate MODBUS networks simultaneously—poll VFDs on Channel 1 while serving as a slave gateway on Channel 2. Eliminates the need for external protocol converters and reduces cabinet space requirements by 40% compared to single-channel solutions.

→ Master & Slave Mode Flexibility
Configure each port independently as MODBUS master (polling up to 247 slave addresses) or slave (responding to external SCADA queries). Ideal for hierarchical control architectures where Advant controllers must both collect field data and report to supervisory systems.

→ Extended Distance Capability
Achieve reliable communication across 1200-meter cable runs using shielded twisted pair with proper termination. Supports multi-drop topologies with up to 32 nodes per segment, reducing wiring costs in large facilities by consolidating devices onto shared RS-485 buses.

✓ Electrical Isolation Protection
1500 VDC channel-to-backplane isolation safeguards Advant controllers from ground potential differences and transient surges common in industrial power distribution environments. Meets IEC 61000-4 immunity standards for heavy electrical noise.

✓ Comprehensive Diagnostic Monitoring
Front-panel LEDs indicate power status, TX/RX activity per channel, and fault conditions. System-level diagnostics track communication errors, timeout occurrences, and slave response times, enabling predictive maintenance before failures impact production.

✓ Plug-and-Play Advant Integration
Hot-swappable installation into S800 I/O racks with automatic module recognition by Advant Control Builder. Pre-configured function blocks simplify register mapping and polling schedule setup without custom ladder logic programming.

Proven Application Scenarios

Power Plant Auxiliary Systems
Integrate MODBUS-enabled protective relays, power quality meters, and excitation controllers into Advant OCS for centralized alarm management and historical trending. The CI532V02's dual channels allow simultaneous polling of generator protection devices and boiler feed pump VFDs, reducing scan cycle times by 50% versus sequential single-channel architectures.

Municipal Water Treatment
Connect MODBUS flow transmitters, chlorine analyzers, and filter backwash controllers to Advant Master systems for real-time process optimization. Slave mode operation enables SCADA systems to read treatment plant KPIs directly from Advant I/O points, eliminating redundant data concentrators.

Petrochemical Batch Processing
Link third-party MODBUS temperature controllers, mass flow meters, and recipe management PLCs into Advant-based batch control systems. The module's 38,400 bps maximum baud rate supports sub-100ms update rates for closed-loop temperature control in reactor vessels.

Mining Conveyor Networks
Interface MODBUS belt scales, metal detectors, and pull-cord switches across extended conveyor runs up to 1200 meters. Isolated RS-485 ports prevent ground loop issues in electrically noisy environments with multiple motor drives and high-voltage switchgear.

Building Automation Gateways
Bridge MODBUS HVAC controllers, lighting panels, and energy meters to Advant platforms for facility-wide energy management. Master/slave flexibility allows the module to aggregate data from distributed RTUs while responding to BACnet-to-MODBUS gateway queries.

Technical Specifications & Selection Guide

Selection Criteria: Choose the CI532V02 when you need dual RS-485 channels for simultaneous master/slave operations or redundant MODBUS networks. For single-channel applications, consider the CI532V01. If Ethernet connectivity is required, upgrade to the CI867 MODBUS TCP interface. Verify that your Advant controller firmware supports the CI532V02 module revision—consult ABB Technical Bulletin 3BSE003827 for compatibility matrices.

Advanced Integration Capabilities

Multi-Master Coordination: Deploy multiple CI532V02 modules in a single Advant rack to create redundant MODBUS master paths for critical field devices. The Advant Control Builder software supports automatic failover logic, switching to backup communication channels when primary paths experience timeout errors or CRC failures exceeding configurable thresholds.

Register Mapping Flexibility: Map MODBUS holding registers directly to Advant I/O points, analog values, or structured data types using the module's configuration database. Supports bit-level extraction from 16-bit registers for discrete status monitoring and packed data formats common in legacy instrumentation.

Polling Optimization: Configure priority-based polling schedules where critical devices (e.g., safety interlocks) receive faster scan rates than non-essential instruments. The module's internal buffer accommodates up to 125 holding registers per transaction, minimizing protocol overhead for bulk data acquisition from intelligent transmitters.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (global express shipping available)
Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific register maps
Warranty Coverage: 12 months against manufacturing defects (extended service plans available)
Technical Support: Lifetime access to ABB-certified engineers for configuration assistance, RS-485 troubleshooting, and firmware updates
Documentation Package: Installation manual, wiring diagrams, MODBUS register tables, Control Builder configuration examples, and IEC compliance certificates included with every shipment

Frequently Asked Questions

Can the CI532V02 interface with MODBUS TCP/IP devices over Ethernet?
No, this module exclusively supports MODBUS RTU over RS-485 serial connections. For MODBUS TCP connectivity, use the ABB CI867 or CI867AK01 Ethernet-based interface modules, which can coexist with the CI532V02 in the same Advant rack for hybrid serial/Ethernet architectures.

What is the maximum MODBUS register count per read transaction?
The module supports reading up to 125 consecutive holding registers (function code 03/04) or 2000 coils (function code 01/02) in a single request, limited by the 256-byte MODBUS RTU frame size. For larger datasets, implement multiple transactions with sequential register addresses.

Does the CI532V02 support MODBUS ASCII protocol encoding?
No, only MODBUS RTU binary encoding is supported. MODBUS ASCII is not implemented in this hardware revision. If ASCII protocol is required, consider using an external protocol converter or upgrading to ABB's CI867 module with custom function block programming.

Can both RS-485 channels operate as MODBUS masters simultaneously?
Yes, each channel functions independently with separate configuration parameters. Common dual-master applications include polling geographically separated MODBUS networks or implementing redundant communication paths to critical field devices with automatic failover logic in the Advant controller.

What cable specifications are recommended for reliable RS-485 communication?
Use shielded twisted pair (STP) cable with 120-ohm characteristic impedance, such as Belden 3105A, Alpha Wire 6162, or equivalent. Install 120-ohm termination resistors at both ends of the RS-485 bus. Ground the cable shield at one point only (typically at the master device) to prevent ground loops. For distances exceeding 500 meters, consider bias resistors (560-680 ohms) to maintain idle-state voltage levels.

How do I troubleshoot intermittent communication errors on the RS-485 network?
Check the module's diagnostic LEDs and Advant Control Builder error logs for CRC failures, timeout events, or framing errors. Common causes include incorrect baud rate settings, missing termination resistors, excessive cable length, or electrical noise from nearby VFDs. Use an oscilloscope to verify differential voltage levels (±200mV minimum) and measure signal rise times—values exceeding 10% of bit time indicate impedance mismatches or capacitive loading from excessive stub lengths.
