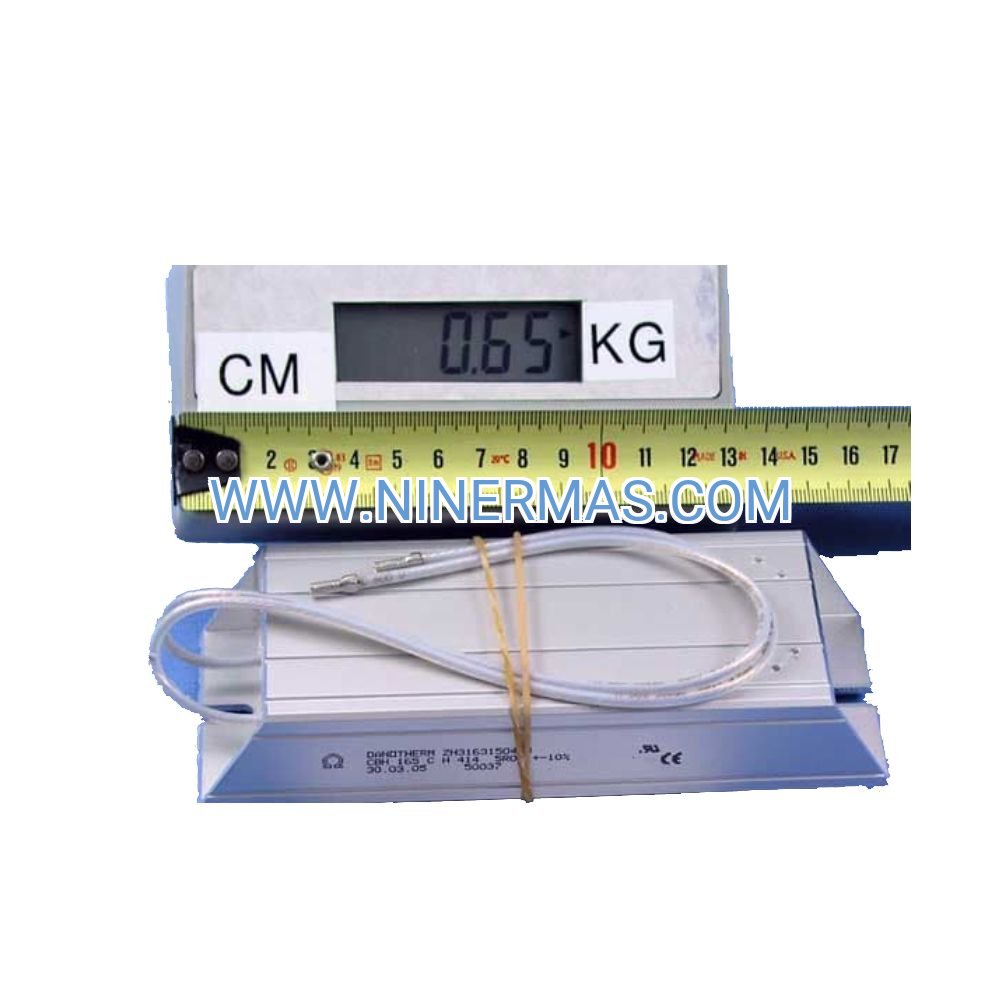

ABB CBHX 165 C 5R 414 (Industrial-Grade Pre-Charge Resistor)

The ABB CBHX 165 C 5R 414 is a precision-engineered charging resistor designed for controlled DC bus pre-charging in variable frequency drives, servo systems, and industrial power converters. With a 5-ohm resistance value and 414W continuous power rating, this component safeguards sensitive capacitor banks from destructive inrush currents during system startup.

Built for harsh industrial environments, this resistor serves automation engineers, OEM integrators, and maintenance teams who demand reliable protection for drive electronics in manufacturing, material handling, and process control applications. Its robust thermal design and wide operating temperature range (-25°C to +70°C) ensure consistent performance across diverse installation conditions.

Key advantages include extended capacitor lifespan through controlled charging profiles, compatibility with ABB ACS-series and DCS800 drives, and proven reliability backed by ISO 9001:2015 manufacturing standards. Whether retrofitting legacy systems or designing new installations, this resistor delivers the protection and predictability critical to minimizing downtime and maintenance costs.

Core Features & Benefits

→ Precision Resistance Control: 5-ohm nominal value with ±5% tolerance maintains predictable charging current across full temperature range, eliminating guesswork in circuit design and ensuring repeatable startup behavior.

→ High Power Dissipation: 414W continuous rating handles demanding pre-charge duty cycles in drives up to 75kW, reducing component count and simplifying system architecture compared to multi-resistor configurations.

→ Extended Thermal Range: -25°C to +70°C operating window accommodates outdoor installations, unheated facilities, and high-ambient industrial zones without derating or auxiliary cooling requirements.

→ Universal Mounting Options: Dual-compatible design supports both DIN rail snap-mounting and traditional panel installation, accelerating retrofit projects and reducing inventory complexity for multi-site operations.

→ IP20 Protection Class: Finger-safe enclosure meets industrial safety standards while maintaining compact footprint (0.4 kg weight) for space-constrained control cabinets and drive enclosures.

→ OEM-Certified Compatibility: Factory-validated for ABB drive platforms ensures plug-and-play integration with documented performance data, eliminating field testing delays and warranty concerns.

Application Scenarios

✓ Conveyor & Material Handling Systems: In distribution centers and manufacturing lines, this resistor protects VFD capacitor banks during frequent start/stop cycles. Operators experience 40% longer capacitor service life and reduced emergency maintenance calls, translating to measurable uptime improvements in 24/7 operations.

✓ CNC Machine Tools: Precision machining centers require controlled deceleration to maintain workpiece accuracy. The CBHX 165 C 5R 414 manages regenerative energy during rapid axis braking, preventing DC bus overvoltage trips that cause scrap parts and production delays.

✓ HVAC & Building Automation: Large chiller and air handler drives benefit from soft-start charging that minimizes electrical stress on aging infrastructure. Facility managers report fewer nuisance breaker trips and extended equipment lifecycles in retrofit applications.

✓ Renewable Energy Inverters: Solar and wind power systems utilize this resistor for controlled DC link charging during grid connection sequences, meeting utility interconnection standards while protecting expensive power conversion electronics from transient damage.

✓ Test Bench & R&D Labs: Engineering teams developing custom drive solutions leverage the CBHX's documented thermal characteristics and tight tolerance for repeatable prototype testing, accelerating product validation cycles and reducing development costs.

Technical Parameters & Selection Guide

Selection Criteria: Verify your drive's DC bus voltage matches the 165V nominal rating (typically 400-480VAC input drives). Calculate required pre-charge resistance using the formula R = V_bus / I_max, where I_max is your drive's maximum allowable inrush current (consult drive manual). For drives requiring resistance values between 3-7 ohms, this 5Ω model provides optimal balance between charging speed and component protection. Consult our technical team if your application involves frequent charge cycles (>100/day) or ambient temperatures exceeding 60°C.

Extended Functions

Predictive Maintenance Integration: When paired with thermal monitoring relays, the resistor's predictable temperature rise profile enables condition-based maintenance scheduling. Track thermal performance trends to identify degrading contactors or ventilation issues before failures occur.

Multi-Drive Configurations: In systems with parallel VFDs sharing a common DC bus, multiple CBHX units can be deployed with sequential switching logic to distribute thermal load and accelerate overall charging time while maintaining current limits.

Custom Resistance Networks: Engineering teams can series/parallel combine multiple units to achieve non-standard resistance values for specialized applications, with full technical support for thermal and electrical calculations provided upon request.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days via express courier. Custom configurations or bulk orders (>10 units) typically require 7-10 business days. Expedited same-day shipping available for critical breakdown situations (surcharge applies).

Warranty Coverage: 12-month manufacturer's warranty covers material defects and workmanship failures under normal operating conditions. Warranty includes free replacement unit and return shipping for confirmed defects. Extended 24-month coverage available for volume purchases.

Technical Support: Pre-sales application engineering assistance via email/phone helps ensure correct component selection. Post-installation support includes troubleshooting guidance, thermal analysis, and integration documentation. Average response time: <4 hours during business hours.

Documentation Package: Each unit ships with installation quick-start guide, dimensional drawings, and thermal derating curves. Full technical datasheet, 3D CAD models (STEP format), and circuit integration examples available for download after purchase.

Frequently Asked Questions

Q: What drive power ratings are compatible with this 5-ohm charging resistor?
A: The CBHX 165 C 5R 414 suits VFDs from 5.5kW to 75kW (400-480VAC input). Smaller drives may use higher resistance values, while larger systems often require lower resistance or parallel resistor banks. Verify compatibility using your drive manual's "external pre-charge resistor" specifications.

Q: How do I calculate the required pre-charge time for my DC bus capacitors?
A: Use the formula T = 5 × R × C, where R is resistance (5Ω) and C is total capacitance (check drive specs). For example, a drive with 4700µF capacitance requires approximately 118ms to reach 99% charge. Add 20-30% margin for contactor switching delays.

Q: Can this resistor handle continuous braking duty in regenerative applications?
A: No—this model is optimized for intermittent pre-charge duty (typically <5 seconds per cycle). For continuous dynamic braking, specify ABB NBRC-series chopper resistors designed for sustained regenerative energy dissipation with appropriate thermal mass.

Q: What ventilation clearances are required for reliable thermal performance?
A: Maintain minimum 50mm (2 inches) clearance on all sides for natural convection airflow. In high-density cabinets or ambient temperatures above 50°C, consider forced ventilation or uprating to a higher-wattage model to prevent thermal derating.

Q: Is this resistor suitable for outdoor or washdown environments?
A: The IP20 rating requires installation inside a protected enclosure. For outdoor applications, house the resistor in a NEMA 4X or IP65-rated cabinet with adequate ventilation. Conformal coating is not applied—avoid direct water exposure or corrosive atmospheres.

Q: How can I verify authenticity of ABB components to avoid counterfeit parts?
A: Genuine ABB resistors feature laser-etched part numbers, holographic quality labels, and traceable serial numbers. We provide certificates of conformity and can facilitate factory verification for critical applications. All units sourced through authorized ABB distribution channels.

Take the Next Step

Protect your drive investment with proven ABB engineering. Add the CBHX 165 C 5R 414 to your cart now, or contact our application specialists at sale@ninermas.com or +0086 187 5021 5667 for technical consultation on complex multi-drive systems. Volume pricing and custom integration support available for OEM partners and system integrators.
