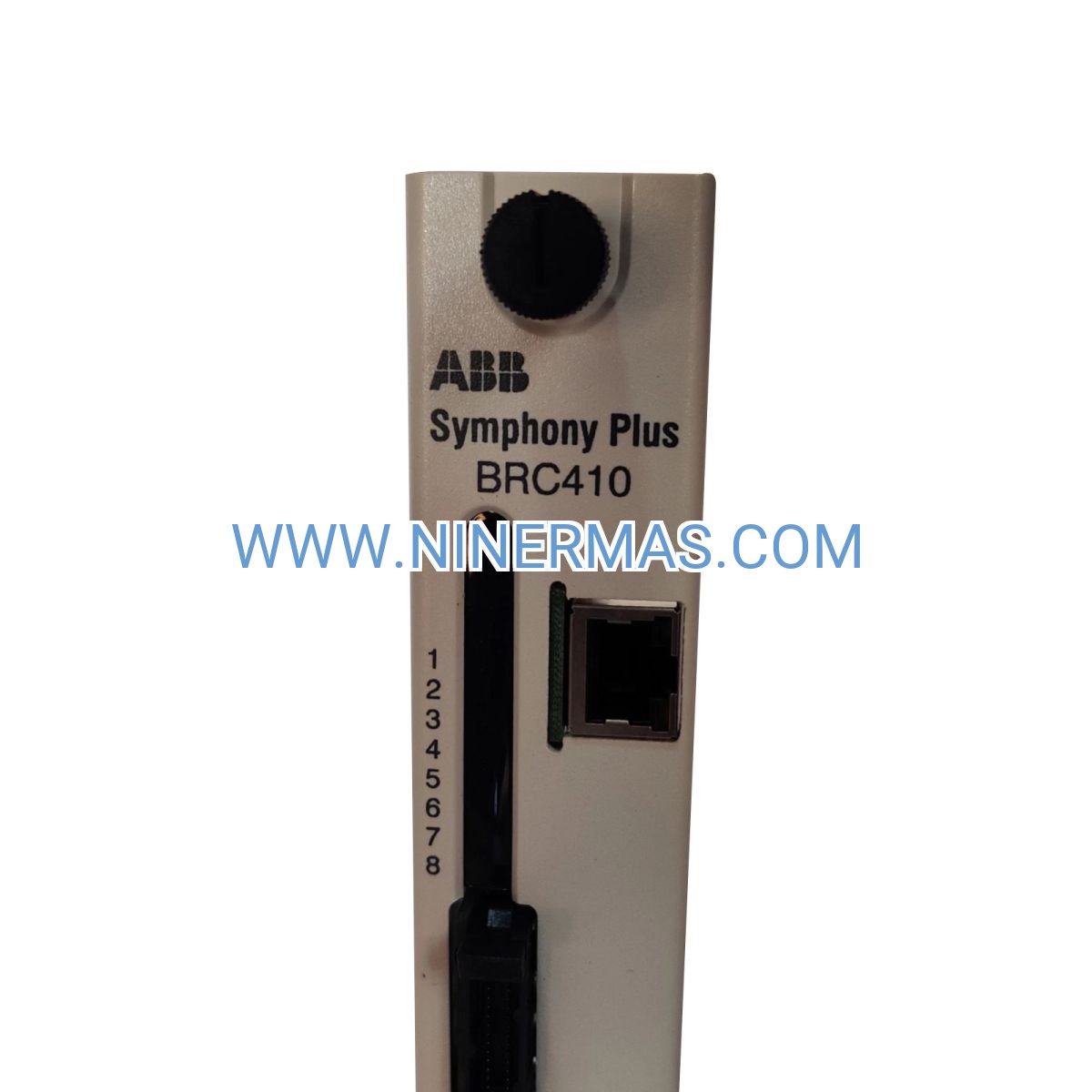

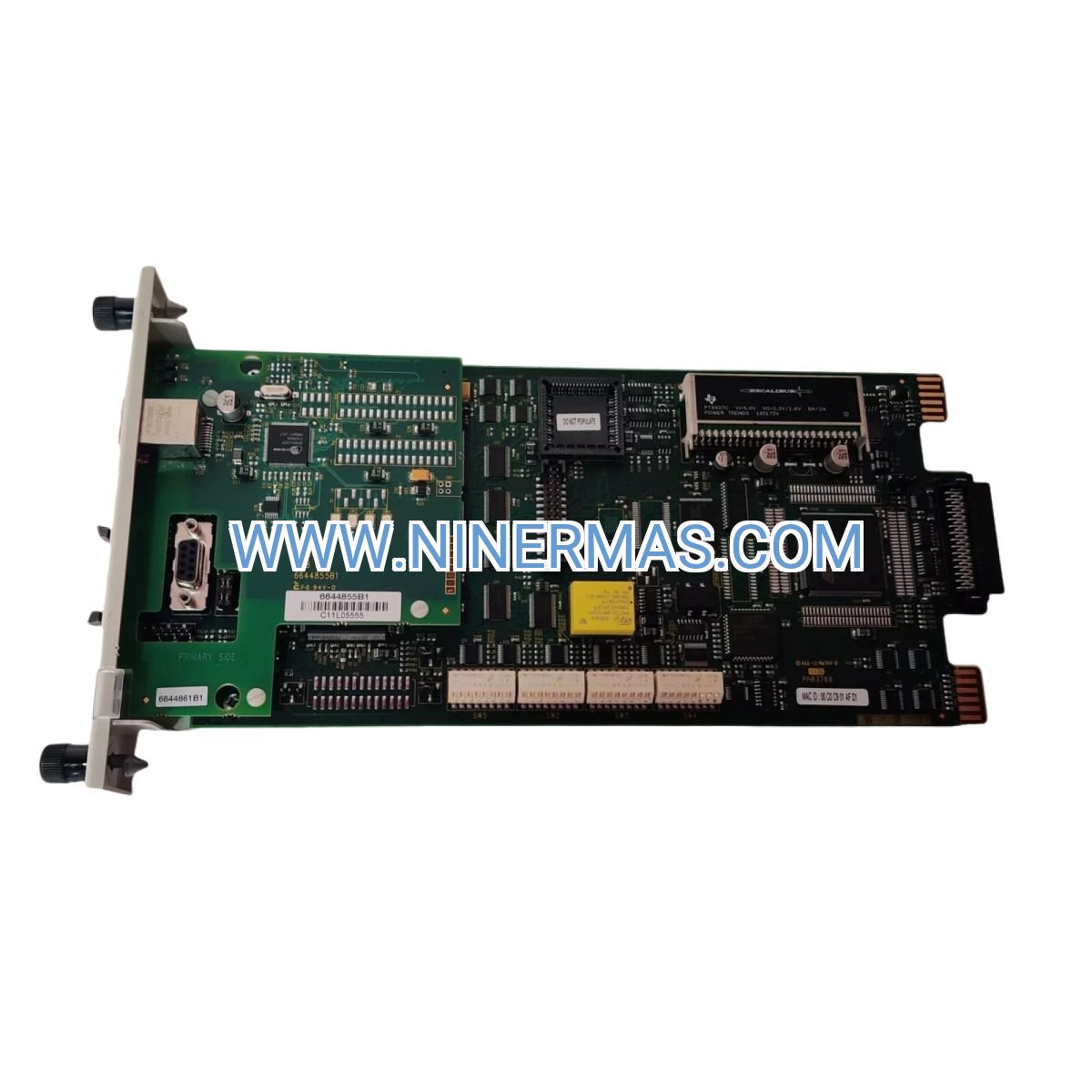

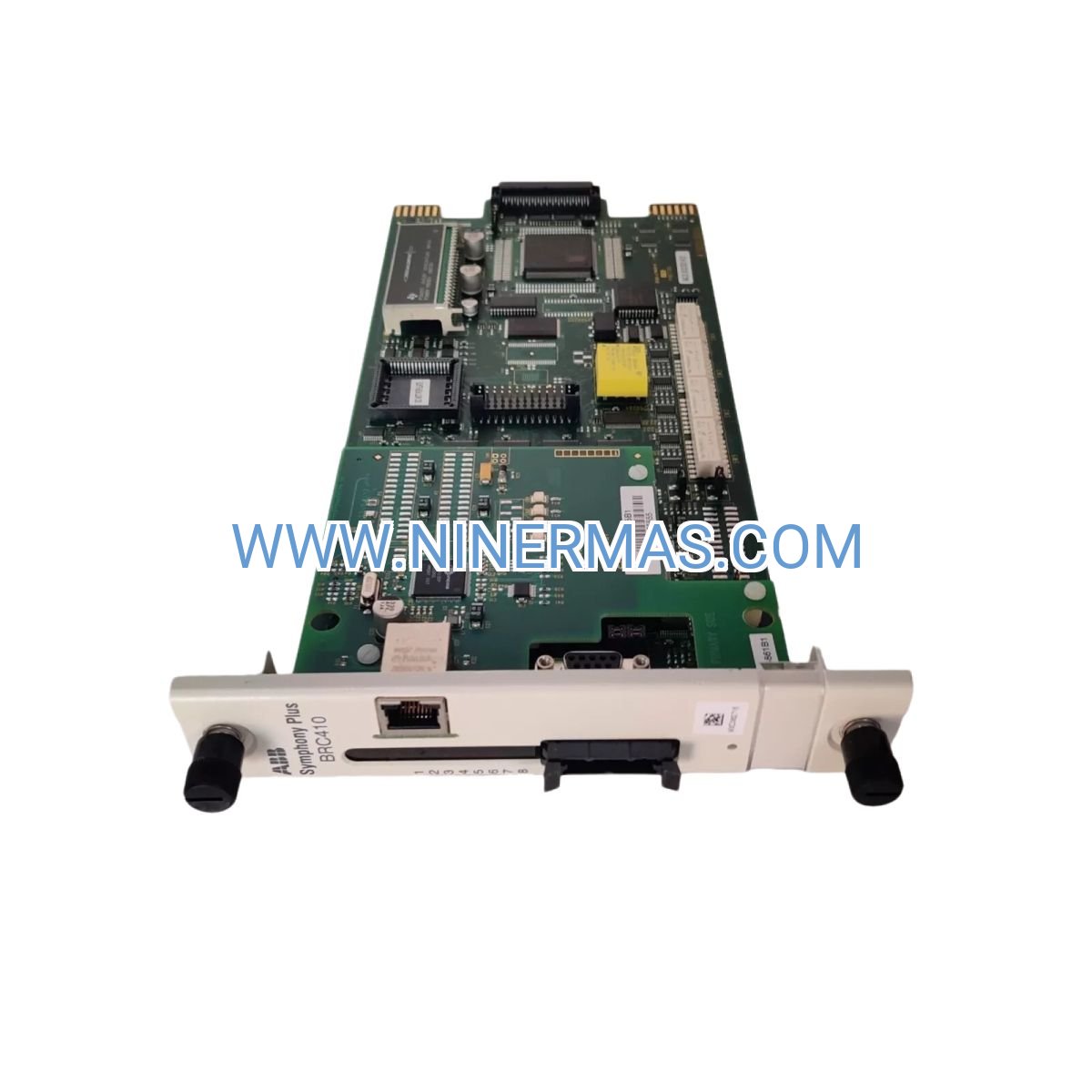

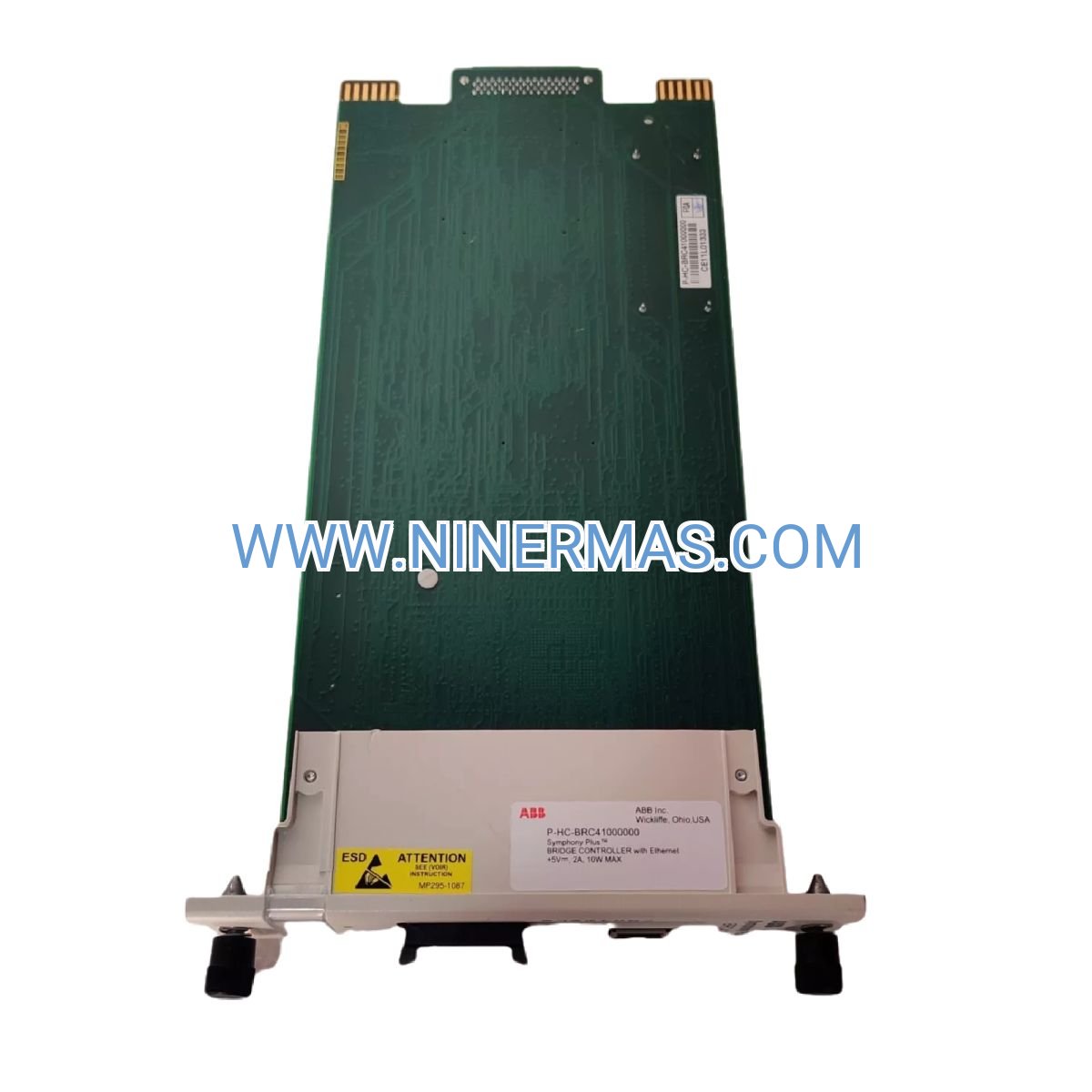

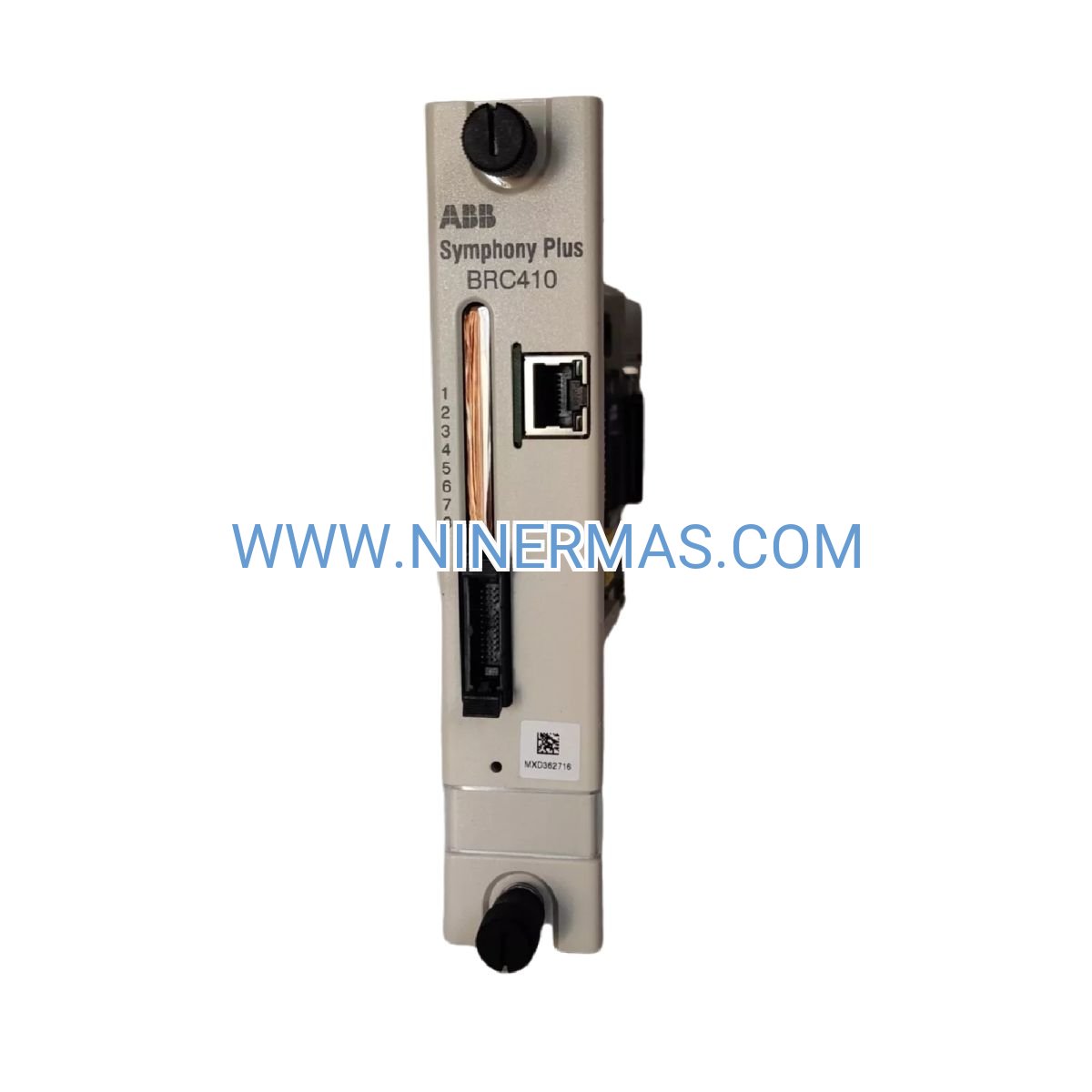

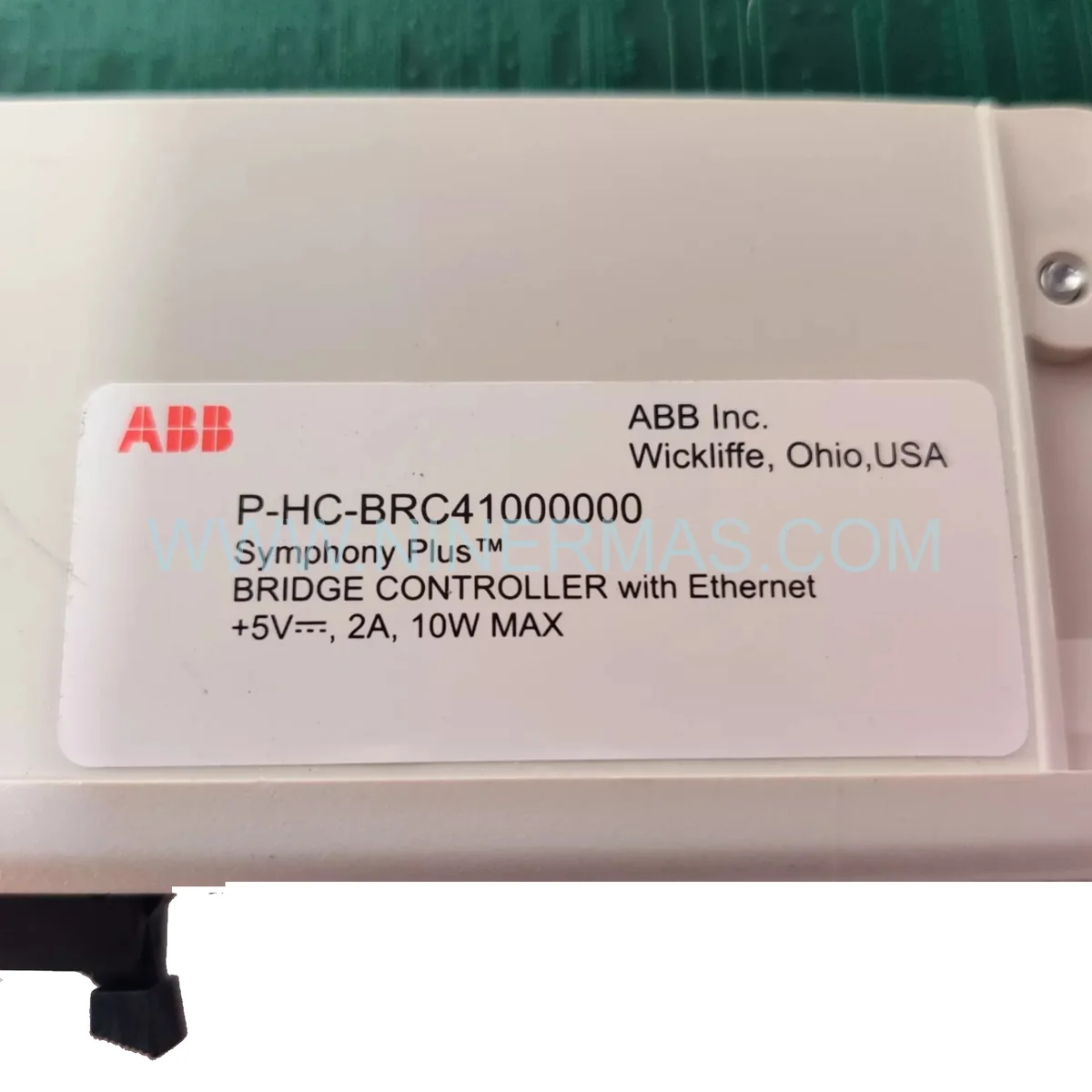

ABB BRC410 Controller License (Industrial-Grade Gateway Enabler)

The ABB BRC410 (8VZZ000825L0121) represents a mission-critical software license that activates controller-level communication capabilities within the Symphony Plus Harmony Gateway Software 7.2 framework. This node-locked license transforms ABB AC 800M and AC 800PEC controllers into intelligent data hubs, facilitating bidirectional protocol translation between field devices and enterprise systems while maintaining industrial-grade security and deterministic performance.

Engineered for process industries demanding 99.9%+ uptime, the BRC410 license eliminates the need for standalone hardware gateways by embedding protocol conversion logic directly into the controller firmware. This architecture reduces single points of failure while enabling real-time data aggregation from distributed control nodes to centralized SCADA platforms, MES systems, and cloud-based analytics engines.

Ideal for plant engineers, system integrators, and automation architects managing multi-vendor environments, this license delivers vendor-neutral connectivity through industry-standard protocols—ensuring seamless interoperability between legacy infrastructure and next-generation IIoT ecosystems without compromising operational technology (OT) security boundaries.

Core Capabilities & Technical Advantages

→ Multi-Protocol Gateway Functionality
Native support for OPC DA/UA, Modbus TCP, IEC 61850, and DNP3 protocols enables unified data exchange across heterogeneous automation landscapes. Eliminates protocol conversion bottlenecks that typically add 200-500ms latency in hardware-based gateway solutions.

→ Controller-Specific Binding Architecture
Each license activates one AC 800M or AC 800PEC controller node, ensuring granular licensing control and preventing unauthorized replication. Hardware ID-based activation via ABB License Manager 2.x guarantees compliance with software asset management policies.

→ Cybersecurity-Hardened Communication
IEC 62443-compliant encrypted tunneling for OPC UA sessions, combined with role-based access control (RBAC) and certificate-based authentication. Maintains strict network segmentation between Level 1 field devices and Level 3 enterprise systems per Purdue Model guidelines.

✓ Deterministic Real-Time Performance
Guaranteed sub-100ms data refresh rates for critical process variables, with configurable quality-of-service (QoS) prioritization. Supports up to 10,000 tags per controller instance without degrading scan cycle performance.

✓ Hot-Swappable License Portability
While node-locked to specific hardware, licenses can be deactivated and transferred to replacement controllers during hardware upgrades—minimizing downtime during planned maintenance windows or emergency failover scenarios.

✓ Integrated Diagnostics & Audit Logging
Built-in communication health monitoring with automatic alarm generation for protocol timeouts, certificate expiration, or bandwidth saturation. Comprehensive audit trails meet FDA 21 CFR Part 11 and GAMP 5 validation requirements for regulated industries.

Industry-Specific Deployment Scenarios

Power Generation & Utilities
Synchronize turbine governor controls, excitation systems, and auxiliary equipment data into unified plant information management systems (PIMS). Enables predictive maintenance algorithms by streaming vibration, temperature, and efficiency metrics to cloud-based analytics platforms—reducing unplanned outages by 35-50%.

Upstream Oil & Gas Production
Bridge offshore platform controllers with onshore control centers via satellite/cellular links, using bandwidth-optimized OPC UA compression. Supports remote well monitoring, automated shutdown systems (ESD), and production optimization workflows across geographically dispersed assets.

Municipal Water & Wastewater Treatment
Aggregate data from distributed lift stations, clarifiers, and chemical dosing systems into centralized SCADA networks. Facilitates regulatory compliance reporting (NPDES permits) through automated data historization and trend analysis—reducing manual data collection labor by 60%.

Pharmaceutical & Biotech Manufacturing
Integrate batch reactor controllers with electronic batch record (EBR) systems for real-time process parameter verification. Ensures data integrity and traceability for FDA validation audits while enabling statistical process control (SPC) across multiple production lines.

Metals & Mining Processing
Connect smelter furnace controllers, conveyor systems, and material handling equipment to enterprise resource planning (ERP) platforms. Enables just-in-time inventory management and energy consumption optimization through real-time production-to-planning feedback loops.

Technical Specifications & Selection Criteria

Selection Guidelines: Specify one BRC410 license per AC 800M/PEC controller requiring gateway functionality. For redundant controller pairs (hot standby configurations), two licenses are required—one per physical CPU module. Verify HGS 7.2 software version compatibility before ordering; earlier HGS versions (6.x) require different license SKUs.

Advanced Integration & Customization Options

IIoT Edge Computing Extensions
Combine with ABB Ability™ Edge Gateway modules to enable local data preprocessing, edge analytics, and MQTT/Sparkplug B protocol bridging for hybrid cloud architectures. Supports containerized application deployment for custom business logic execution at the controller level.

Third-Party SCADA Interoperability
Certified compatibility with Wonderware System Platform, Siemens WinCC, Rockwell FactoryTalk, and Ignition SCADA systems via standardized OPC UA information models. Reduces integration engineering effort by 40-60% compared to proprietary protocol implementations.

Historian & Analytics Integration
Direct connectivity to OSIsoft PI System, GE Proficy, and Honeywell PHD historians through optimized data buffering and store-and-forward mechanisms. Ensures zero data loss during network interruptions with automatic backfill upon reconnection.

Custom Protocol Development
ABB Professional Services can develop bespoke protocol drivers for legacy equipment or proprietary communication standards. Typical development timelines range from 6-12 weeks depending on protocol complexity and documentation availability.

Delivery Timelines & Service Commitments

Standard Delivery: Electronic license file delivered within 3-5 business days post-order confirmation. Physical USB dongle shipment available upon request (additional 7-10 days for international logistics).

Expedited Processing: Same-day license generation available for emergency replacement scenarios—contact technical support with controller serial number and proof of original purchase.

Warranty Coverage: Perpetual license with 12-month software maintenance subscription included. Covers version upgrades, security patches, and technical support via ABB Global Service Network (24/7 hotline for Severity 1 issues).

Technical Support Scope: Remote activation assistance, protocol configuration guidance, and troubleshooting for communication errors. On-site commissioning services available through ABB Authorized System Integrators (quoted separately based on project scope).

Documentation Package: Includes installation guide, protocol configuration templates, cybersecurity hardening checklist, and sample OPC UA address space mappings. Access to ABB Knowledge Base and online training modules provided with active maintenance subscription.

Frequently Asked Questions

Q: Can one BRC410 license support multiple AC 800M controllers simultaneously?
A: No. Each license activates a single controller instance. For systems with multiple controllers (e.g., redundant pairs or distributed architectures), you must purchase one license per physical CPU module. Volume licensing discounts available for orders exceeding 10 units.

Q: What is the maximum data throughput capacity per licensed controller?
A: The BRC410 license supports up to 10,000 tags with 50-100ms refresh rates, translating to approximately 100,000-200,000 tag updates per second depending on protocol overhead and network latency. For higher throughput requirements, consider deploying multiple controllers with load-balanced tag distribution.

Q: Does this license enable remote programming and diagnostics of the AC 800M controller?
A: The BRC410 license specifically enables gateway/protocol conversion functions within HGS 7.2. Remote controller programming requires separate Control Builder Professional software licenses. However, diagnostic data (CPU load, I/O health, communication status) is accessible via OPC UA for remote monitoring.

Q: How does license activation work in air-gapped (isolated) networks?
A: Offline activation is supported via manual license file transfer. Generate an activation request file on the isolated HGS server, transfer to an internet-connected workstation, submit to ABB License Portal, then import the returned license file. Detailed procedures provided in the installation guide.

Q: What happens if the controller hardware fails and needs replacement?
A: Contact ABB Technical Support to deactivate the license from the failed controller (requires original purchase documentation and hardware serial number). A new license file will be issued for the replacement controller at no additional cost, provided the failure occurred within the warranty period.

Q: Are there energy efficiency benefits to using software-based gateways versus hardware appliances?
A: Yes. Eliminating standalone gateway hardware reduces rack space, power consumption (typically 50-150W per appliance), and cooling requirements. For large installations with 20+ gateways, this translates to 1-3kW power savings and corresponding reductions in HVAC load—yielding 15-25% lower total cost of ownership over 10-year lifecycles.

Ready to Enhance Your Control System Integration?

Streamline your Symphony Plus deployment with the ABB BRC410 controller license. Our technical team is available to assist with license sizing, protocol compatibility verification, and integration planning. Contact us today for project-specific consultation and volume pricing options.

Request a Quote: Email your controller serial numbers and project requirements to our sales team for same-day response.
Technical Pre-Sales Support: Schedule a consultation to review your system architecture and confirm compatibility.
Existing Customer Upgrades: Trade-in credits available for legacy gateway hardware when migrating to software-based solutions.
