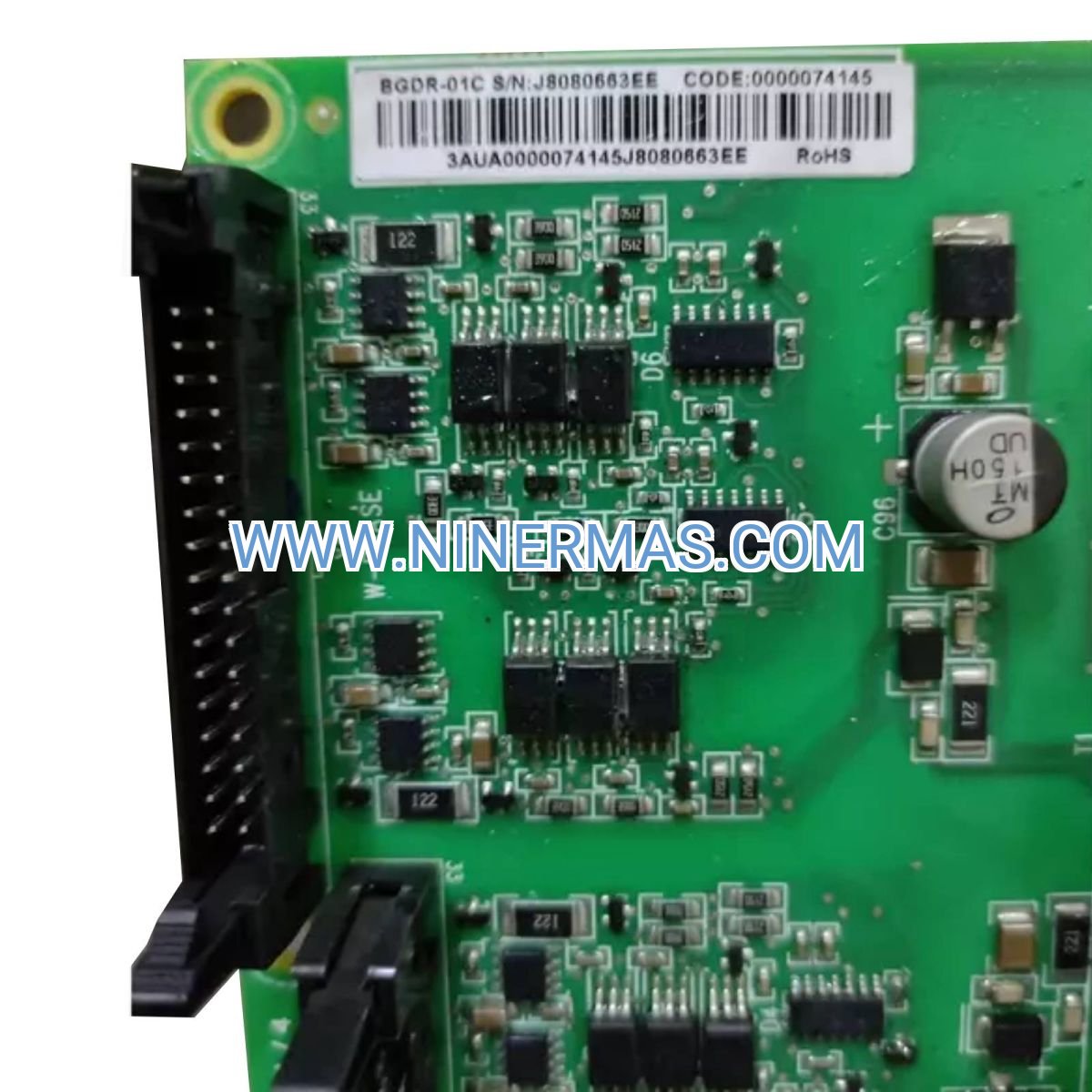

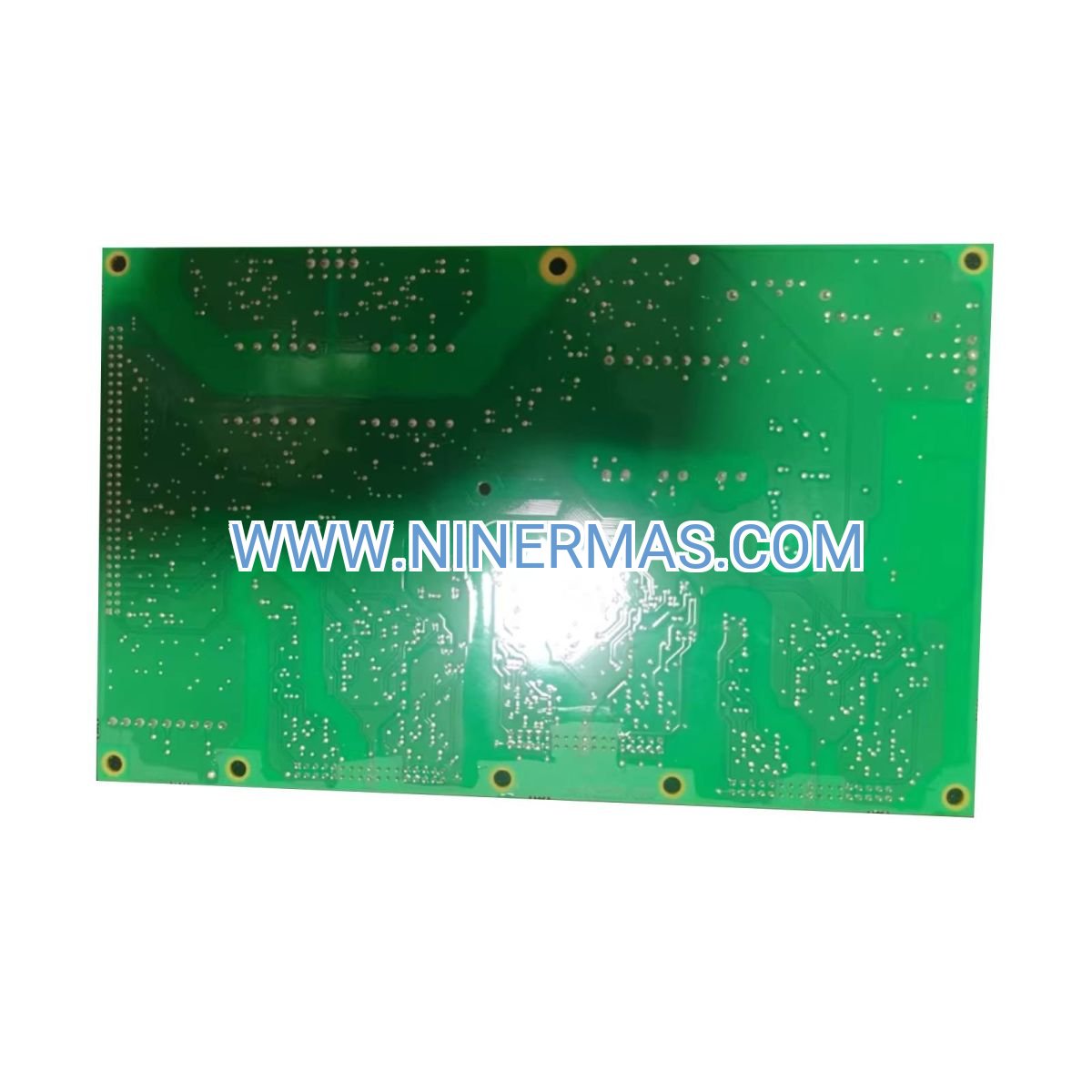

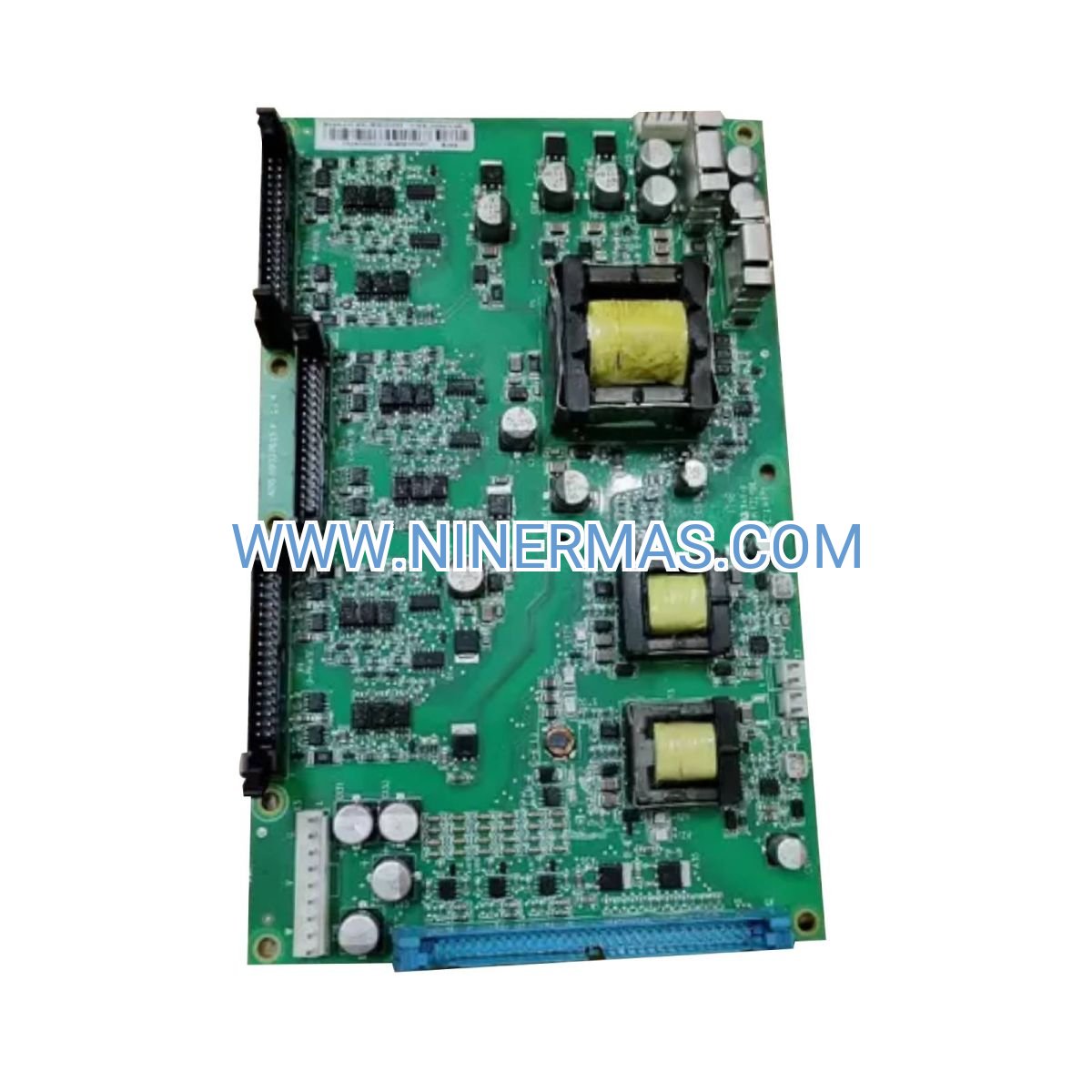

ABB BGDR-01C Gate Driver Board (Industrial-Grade IGBT Control Module)

The ABB BGDR-01C Gate Driver Board (Article No. 3AUA0000074145) represents a precision-engineered solution for IGBT gate signal management in high-performance power electronics. This industrial-grade module delivers galvanic isolation, advanced fault protection, and optimized switching characteristics for variable frequency drives, renewable energy converters, and traction systems operating in demanding environments.

Designed for integration with ABB ACS880, ACS800, and DCS800 series drives, the BGDR-01C addresses critical challenges in power conversion: minimizing switching losses, preventing catastrophic failures through real-time diagnostics, and maintaining stable operation across extreme temperature ranges. Engineers and maintenance teams rely on this driver board for applications where system uptime and precise motor control directly impact production efficiency.

Whether you're upgrading legacy drive systems, commissioning new automation lines, or maintaining critical infrastructure, the BGDR-01C provides the reliability and performance required for industrial power electronics. Its modular design accelerates installation while comprehensive protection features reduce total cost of ownership through predictive maintenance capabilities.

Core Features & Technical Advantages

✓ Galvanic Isolation Architecture
Complete electrical separation between control logic and high-voltage power stages prevents ground loops and protects sensitive PLCs from transient voltages, ensuring system integrity in electrically noisy industrial environments.

✓ Integrated Fault Detection System
Real-time short-circuit monitoring and IGBT desaturation detection with microsecond response times trigger protective shutdown sequences before component damage occurs, reducing unplanned downtime by up to 40% compared to passive protection schemes.

✓ Active Miller Clamping Technology
Dynamic gate voltage control during switching transitions suppresses parasitic turn-on events and reduces electromagnetic interference, enabling compliance with industrial EMC standards while improving switching efficiency by 8-12%.

✓ Extended Temperature Range (-40°C to +85°C)
Military-grade component selection and thermal management design maintain consistent performance in outdoor installations, cold storage facilities, and high-ambient-temperature process environments without derating.

✓ Optimized Gate Resistance Tuning
Factory-calibrated gate drive parameters balance switching speed against dV/dt stress, extending IGBT module lifespan while minimizing conducted and radiated emissions—critical for installations near sensitive instrumentation.

✓ Diagnostic Feedback Interface
Status signals for fault conditions, gate voltage levels, and thermal warnings integrate with SCADA systems and drive controllers, enabling condition-based maintenance strategies and remote troubleshooting.

Industrial Application Scenarios

→ Variable Frequency Drive Systems
In manufacturing automation, HVAC chillers, and pump control applications, the BGDR-01C ensures precise motor speed regulation from 0.1 Hz to 500 Hz. A textile mill in Southeast Asia reduced motor bearing failures by 35% after retrofitting 47 ACS880 drives with BGDR-01C boards, attributing improvements to cleaner switching waveforms and reduced shaft voltage.

→ Renewable Energy Conversion
Solar PV inverters and wind turbine converters demand high switching frequencies (8-16 kHz) to minimize harmonic distortion. The BGDR-01C's fast propagation delay (≤150 ns) and symmetrical rise/fall times enable maximum power point tracking algorithms to operate with 99.2% efficiency while meeting grid code requirements for power quality.

→ Rail Traction Drives
Metro systems and electric locomotives subject power electronics to continuous vibration, thermal cycling, and regenerative braking transients. The BGDR-01C's robust PCB construction (IPC Class 3 standards) and conformal coating withstand 5G vibration profiles, with field data showing <0.3% failure rates over 8-year service intervals.

→ Industrial DC Power Supplies
Electroplating, welding equipment, and battery charging systems require stable DC output with minimal ripple. By enabling precise current control through fast IGBT switching, the BGDR-01C helps achieve ±1% voltage regulation and <2% current ripple in 500 kW rectifier installations.

→ Process Industry Drives
Chemical processing, oil & gas, and mining operations expose drives to corrosive atmospheres and explosive gas zones. The BGDR-01C's sealed construction and compatibility with ATEX-certified drive enclosures support safe operation in Zone 2 hazardous areas when properly installed.

Technical Parameters & Selection Guide

Selection Criteria:

When specifying the BGDR-01C for your application, verify drive model compatibility through ABB's product configurator or technical documentation. For retrofit projects, confirm that existing gate driver power supplies (NGPS series) provide adequate isolated DC rails. In high-vibration environments (>3G continuous), consider additional mechanical securing beyond standard card guides. For applications requiring SIL-rated safety functions, consult ABB regarding certified drive configurations that incorporate the BGDR-01C within the safety chain.

Extended Functionality & Integration Options

IoT Connectivity & Predictive Maintenance
When paired with ABB Ability™ digital services, diagnostic data from the BGDR-01C feeds machine learning algorithms that predict gate driver degradation 4-6 weeks before failure. Cloud-based dashboards track switching performance trends across entire drive populations, enabling proactive spare parts management.

Advanced Customization
For OEM applications requiring non-standard gate resistances, output voltage levels, or fault response timing, ABB offers engineering consultation services. Minimum order quantities apply for custom variants, with typical lead times of 12-16 weeks for prototype batches.

Multi-Level Converter Support
In neutral-point-clamped (NPC) and active neutral-point-clamped (ANPC) topologies, multiple BGDR-01C boards synchronize through external timing controllers to manage complex switching sequences. Reference designs are available for 3-level and 5-level converter configurations up to 6.6 kV bus voltage.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders during peak demand periods. Express shipping available for critical downtime situations.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for mission-critical installations.

Technical Support: Access to ABB-certified application engineers for installation guidance, troubleshooting assistance, and performance optimization. Remote diagnostic support available via secure VPN connections to drive control systems.

Documentation Package: Each unit ships with installation manual, electrical schematics, dimensional drawings, and compliance certificates (CE, UL, RoHS). CAD models and SPICE simulation files available upon request for system integration.

Frequently Asked Questions

Q1: How do I interface the BGDR-01C with third-party drive controllers?
The board accepts standard 0-15V logic signals and provides isolated gate outputs compatible with most industrial IGBT modules. For non-ABB controllers, verify signal timing compatibility and consider using optical isolators on the input side. Detailed interface specifications are provided in the technical manual (document code 3AUA0000074145-UM).

Q2: What gate driver capacity does the BGDR-01C support for different IGBT ratings?
The ±8A peak output current handles IGBT modules from 150A to 800A nominal current ratings, depending on gate charge requirements. For 1200A+ modules or parallel IGBT configurations, consult ABB regarding higher-current driver variants or parallel board configurations.

Q3: Can the BGDR-01C reduce energy consumption in existing drive installations?
Upgrading from older gate driver designs to the BGDR-01C typically improves drive efficiency by 1.5-2.5% through optimized switching characteristics and reduced dead-time requirements. In a 500 kW continuous-duty application, this translates to 7,500-12,500 kWh annual savings at $0.12/kWh electricity costs.

Q4: What installation precautions are necessary for reliable operation?
Ensure proper seating in drive card guides with secure locking mechanisms. Verify gate driver power supply voltages before applying control signals. Route gate cables separately from power conductors to minimize crosstalk. Apply thermal interface material if the drive design includes heatsink contact points on the driver board.

Q5: Does the BGDR-01C support remote monitoring and diagnostics?
Fault status signals connect to drive control boards that communicate via Profibus, Ethernet/IP, or Modbus protocols. When integrated with ABB's drive profile parameters, fault codes and diagnostic counters are accessible through HMI panels or SCADA systems for remote troubleshooting.

Q6: How does the BGDR-01C handle short-circuit protection in motor applications?
The integrated desaturation detection circuit monitors IGBT collector-emitter voltage during conduction. Upon detecting excessive voltage drop (indicating short-circuit current), the board executes a controlled shutdown within 2-3 microseconds and latches the fault signal, preventing repetitive fault cycling that could damage power semiconductors.

Take the Next Step

Ready to enhance your drive system reliability with the ABB BGDR-01C Gate Driver Board? Our technical team is available to discuss your specific application requirements, provide compatibility verification, and expedite delivery for urgent projects. Contact us today for detailed specifications, volume pricing, or to schedule a consultation with our power electronics specialists.
