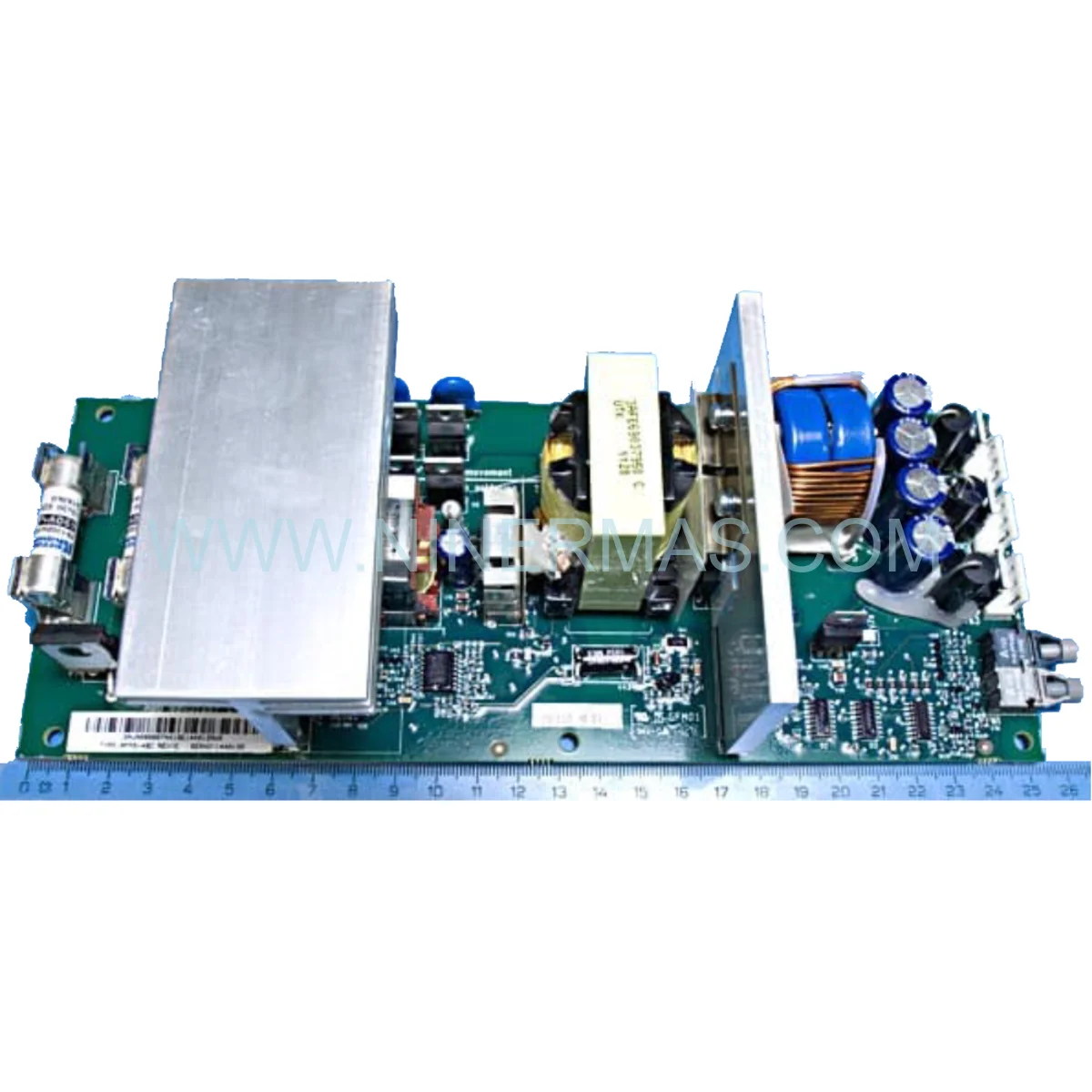

BFPS-48C Industrial Fan Power Supply (Precision Thermal Management Solution)

The ABB BFPS-48C (P/N: 3AUA0000074419) is a specialized power distribution module engineered to deliver reliable, regulated power to cooling fan assemblies in variable frequency drive systems. This board ensures continuous thermal regulation across demanding industrial environments where drive uptime directly impacts production efficiency.

Designed for integration with ABB's ACS and DCS drive platforms, the BFPS-48C addresses critical thermal challenges in high-power motor control applications. By maintaining optimal heatsink temperatures through intelligent fan speed modulation, this module prevents thermal-induced faults that lead to costly downtime in manufacturing, mining, and marine propulsion systems.

Key advantages include dual independent output channels for redundancy, integrated diagnostic capabilities with real-time fault signaling, and robust over-temperature protection that safeguards both the power board and connected cooling equipment. The compact PCB design enables straightforward retrofit installation in existing drive cabinets without extensive modifications.

Technical Specifications & Performance Features

✓ Dual-Channel Architecture: Two independent 2.5A output circuits enable redundant fan operation or simultaneous control of primary and auxiliary cooling systems, ensuring thermal stability even during single-fan failure scenarios.

✓ Wide Input Voltage Compatibility: Accepts 24-48V DC input range, accommodating various drive auxiliary power configurations without requiring additional voltage regulation hardware.

✓ Intelligent Thermal Protection: Embedded over-temperature shutdown circuitry automatically disconnects power when critical thresholds are exceeded, preventing component damage and extending service life.

✓ Real-Time Diagnostics: Multi-color LED indicators provide instant visual status confirmation, while fault signal outputs integrate with drive control systems for automated alarm generation and remote monitoring.

✓ PWM Speed Control Support: Enables proportional fan speed adjustment based on heatsink temperature sensors, optimizing energy consumption while maintaining adequate cooling capacity during variable load conditions.

✓ Industrial-Grade Construction: Conformal-coated PCB withstands harsh environments including high humidity, vibration, and temperature extremes from -10°C to +60°C operational range.

Industry Applications & Use Cases

→ Metal Processing & Rolling Mills: High-power drives controlling rolling stands and coilers generate substantial heat during continuous operation. The BFPS-48C maintains consistent cooling across 24/7 production cycles, preventing thermal derating that reduces throughput capacity.

→ Mining Hoist Systems: Underground conveyor and hoist drives operate in dusty, high-temperature environments where cooling system reliability is critical. Dual-channel redundancy ensures uninterrupted operation even when one fan circuit experiences contamination-related failures.

→ Marine Propulsion Drives: Ship thruster and azimuth drive systems require compact, vibration-resistant cooling solutions. The BFPS-48C's robust mounting and shock-resistant design meet maritime classification requirements while fitting within space-constrained electrical rooms.

→ Paper Machine Drives: Section drives in paper mills demand precise speed control with minimal thermal variation. Temperature-proportional fan control maintains stable operating conditions, reducing quality defects caused by drive temperature fluctuations.

→ Legacy Drive Retrofits: Aging ABB ACS600/DCS600 installations benefit from BFPS-48C upgrades that replace obsolete cooling control boards, extending drive service life without complete system replacement costs.

Technical Parameters & Selection Guide

Selection Criteria: Verify drive model compatibility before ordering. The BFPS-48C is optimized for ACS800, ACS600, DCS800, and DCS600 series drives. For drives requiring more than 5A total fan current, consider parallel board installation or upgrade to higher-capacity cooling modules. Confirm auxiliary power supply voltage matches the 24-48V DC input requirement.

Advanced Integration Capabilities

The BFPS-48C interfaces seamlessly with ABB DriveWindow diagnostic software, enabling remote monitoring of fan status, current draw, and fault history logging. This connectivity supports predictive maintenance strategies by tracking fan bearing wear through gradual current increase trends. Integration with building management systems (BMS) via Modbus or Profibus protocols allows centralized HVAC coordination in large installations.

For applications requiring enhanced redundancy, dual BFPS-48C boards can be configured in active-standby mode with automatic failover logic. Custom firmware options support specialized cooling profiles for extreme ambient conditions or altitude-compensated airflow requirements in high-elevation installations.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Typical delivery to major industrial centers: 3-5 business days (Asia-Pacific), 5-7 days (Europe/Americas).

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty options available for critical infrastructure applications.

Technical Support: Pre-sales engineering assistance for compatibility verification, installation guidance, and system integration planning. Post-sales troubleshooting support via email, phone, and remote diagnostics.

Documentation Package: Each unit includes installation manual, wiring diagrams, dimensional drawings, and compatibility matrix. Digital resources available: firmware update procedures, DriveWindow configuration guides, and maintenance checklists.

Frequently Asked Questions

How does the BFPS-48C improve drive reliability compared to standard fan power supplies?
The dual independent channels provide fault isolation—if one fan circuit fails, the second continues operating while triggering maintenance alerts. Standard single-channel supplies create single points of failure that can lead to immediate thermal shutdowns.

What fan types are compatible with this power supply board?
Optimized for ABB-specified 24-48V DC axial fans rated up to 2.5A. Third-party fans meeting voltage and current specifications can be used, though ABB-certified units ensure full diagnostic feature compatibility and warranty coverage.

Can I retrofit the BFPS-48C into older ACS600 drives without firmware updates?
Yes, the board is backward-compatible with legacy drive control firmware. However, updating to the latest firmware version unlocks advanced diagnostic features and improved temperature control algorithms.

What installation tools are required for board replacement?
Only basic hand tools needed: Phillips screwdriver for mounting brackets, wire strippers for harness preparation. No specialized calibration equipment required—board auto-configures upon power-up.

Does the board support remote monitoring without DriveWindow software?
Fault relay contacts can connect to standard PLC digital inputs for basic alarm monitoring. Full diagnostic data (current levels, temperature trends, runtime hours) requires DriveWindow or compatible SCADA integration.

How do I determine if my drive requires BFPS-48C replacement?
Common indicators: frequent thermal faults despite clean heatsinks, erratic fan operation, visible LED fault codes on existing board, or fans running at full speed regardless of load. Consult drive event logs for cooling system error codes.

Order Your BFPS-48C Fan Power Supply Today

Ensure uninterrupted drive operation with genuine ABB thermal management components. Contact our technical sales team for compatibility verification, volume pricing, or expedited shipping options. Stock availability confirmed in real-time—secure your critical spares inventory now.
