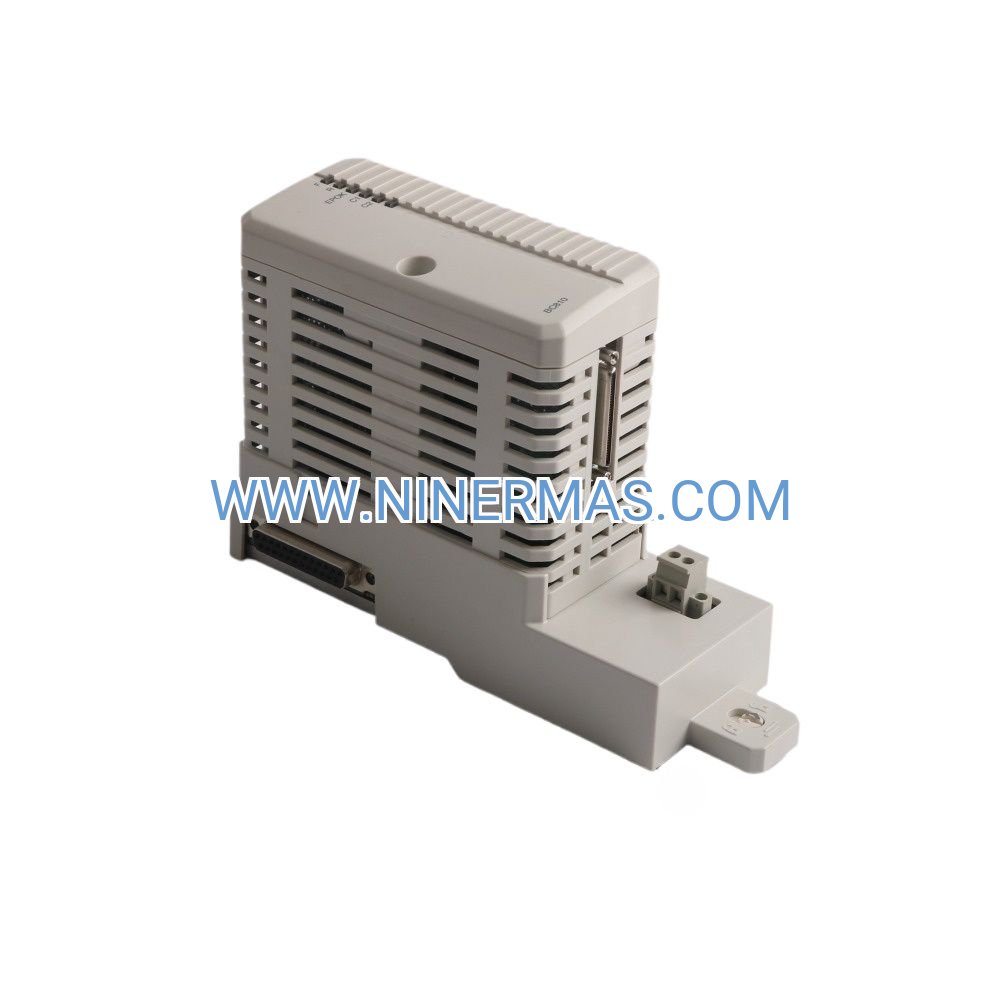

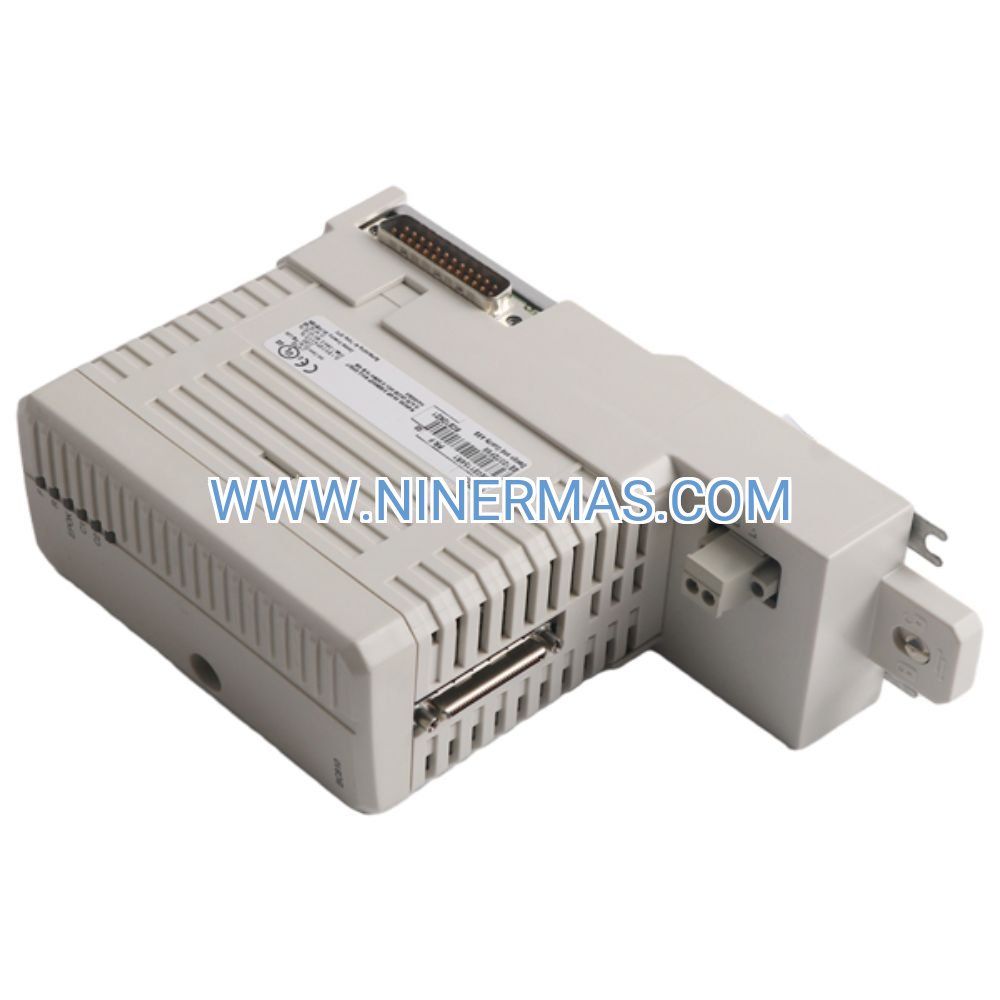

BC810K01 Industrial-Grade CEX-Bus Interconnection Module

The BC810K01 (part number 3BSE031154R1) represents ABB's proven solution for establishing reliable inter-controller communication within distributed control environments. Designed specifically for Advant OCS and System 800xA platforms, this S-series interconnection unit creates the critical data highway that synchronizes multiple processing nodes across your automation infrastructure.

Industrial facilities worldwide depend on this module to maintain continuous communication between controllers managing complex process sequences. Whether coordinating batch operations, orchestrating safety interlocks, or synchronizing distributed I/O networks, the BC810K01 delivers the deterministic performance your critical applications demand.

With field-proven reliability exceeding 500,000 hours MTBF and hot-swappable architecture, this interconnection unit minimizes operational risk while maximizing system availability in 24/7 production environments.

Core Capabilities & Technical Advantages

✓ Deterministic CEX-Bus Protocol
Achieves 1.5 Mbps throughput with microsecond-level timing precision, ensuring synchronized data exchange across up to 12 controller nodes per segment. Critical for applications requiring coordinated multi-controller sequences.

✓ Dual-Redundant Communication Architecture
Supports parallel communication paths for fault-tolerant operation in SIL 2-rated safety systems. Automatic failover maintains process continuity during single-point failures without operator intervention.

✓ Hot-Swap Maintenance Capability
Replace modules during live operation without system shutdown or process interruption. Reduces maintenance windows from hours to minutes, protecting production schedules and revenue streams.

✓ Integrated Diagnostic Intelligence
Real-time bus health monitoring through 800xA engineering interface plus front-panel LED indicators. Predictive alerts enable proactive maintenance before failures impact operations.

✓ Compact S-Series Form Factor
Space-efficient design optimizes cabinet utilization in retrofit projects. TP857 baseplate compatibility simplifies installation in existing ABB control systems.

✓ Global Certification Compliance
CE, UL, and CSA approvals enable deployment across international facilities without regional adaptation requirements.

Industrial Application Scenarios

→ Pharmaceutical Manufacturing
Coordinates recipe execution across multiple batch controllers in aseptic processing lines. Ensures ingredient sequencing accuracy and regulatory compliance through synchronized controller communication. Eliminates batch quality issues caused by timing discrepancies between process stages.

→ Power Generation Facilities
Links turbine control systems with balance-of-plant controllers for coordinated startup/shutdown sequences. Maintains critical timing relationships between safety systems and operational controllers during load transitions. Supports redundant architectures required for grid stability applications.

→ Chemical Process Plants
Enables cascade control loops spanning distributed I/O racks in reactor temperature management systems. Synchronizes feed controllers with product separation units for optimal yield control. Provides the communication backbone for plant-wide advanced process control strategies.

→ Oil & Gas Production
Integrates wellhead controllers with central processing facilities across extended field networks. Coordinates compressor sequencing and pipeline pressure management through deterministic messaging. Supports remote monitoring requirements in unmanned production sites.

→ Water Treatment Infrastructure
Links multiple treatment stage controllers for coordinated chemical dosing and flow management. Enables centralized SCADA oversight while maintaining distributed control autonomy. Reduces operator workload through automated inter-stage coordination.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose BC810K01 when your application requires inter-controller communication within ABB 800xA or Advant OCS architectures. For systems demanding fault-tolerant operation, deploy paired units in redundant configuration. Verify compatibility with your specific controller firmware revision through ABB's system configuration tools. Consider BC810K02 variant for applications with different voltage requirements.

Extended Integration & Customization Options

System 800xA Integration: The BC810K01 auto-configures within the 800xA Control Builder environment, automatically discovering adjacent controllers and establishing communication parameters. Engineering database synchronization occurs transparently during system compilation, eliminating manual configuration steps.

Legacy System Compatibility: Maintains backward compatibility with Advant OCS installations, enabling phased migration strategies. Supports mixed-generation controller networks during transition periods, protecting existing automation investments.

Advanced Diagnostics: Integrates with ABB's Asset Health Center for predictive maintenance analytics. Communication quality metrics feed into plant-wide reliability dashboards, enabling data-driven maintenance scheduling.

Cybersecurity Features: Implements protocol-level security measures aligned with IEC 62443 industrial cybersecurity standards. Supports network segmentation strategies for defense-in-depth architectures.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier to major industrial centers. Expedited same-day shipping available for critical downtime situations.

Custom Configuration: 7-10 business days for pre-configured units with customer-specific firmware or redundancy settings.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures. Extended warranty programs available for critical infrastructure applications.

Technical Support: Direct access to ABB-certified application engineers for integration assistance, troubleshooting, and optimization guidance. Remote diagnostic support available during commissioning phases.

Documentation Package: Complete technical manual set including installation guides, wiring diagrams, configuration examples, and maintenance procedures. CAD drawings and 3D models provided for cabinet design integration.

Frequently Asked Questions

Q: How does the BC810K01 connect to existing ABB AC 800M controllers?
A: The module mounts on a TP857 baseplate and connects directly to the controller's CEX-Bus port using standard ABB interconnection cables (TK850 series). Auto-discovery protocols establish communication during controller startup without manual addressing.

Q: What network capacity does a single BC810K01 support in distributed systems?
A: Each module supports up to 12 controller nodes per CEX-Bus segment with 1.5 Mbps aggregate throughput. For larger systems, implement multiple segments with bridge controllers to extend network capacity beyond 12 nodes.

Q: Can I achieve energy efficiency improvements through optimized controller communication?
A: Yes—deterministic communication enables tighter process control loops, reducing energy waste from process variability. Customers report 3-8% energy savings in coordinated multi-unit operations after implementing optimized CEX-Bus architectures.

Q: What installation requirements apply for cabinet mounting and environmental protection?
A: Standard DIN rail mounting within IP54-rated or better enclosures. Maintain 0-55°C ambient temperature and ensure adequate ventilation for convection cooling. Avoid installation near high-frequency noise sources or power switching equipment.

Q: Does the module support remote monitoring and diagnostics for distributed facilities?
A: Full integration with 800xA's remote connectivity features enables secure VPN-based access to diagnostic data. Communication health metrics, error logs, and performance statistics accessible through standard 800xA engineering interfaces from any authorized network location.

Q: How do I implement redundant communication for high-availability applications?
A: Deploy paired BC810K01 units with dual CEX-Bus cabling to each controller. Configure redundancy parameters in Control Builder—automatic failover occurs within 100ms of primary path failure without process interruption or data loss.

Get Expert Integration Support

Our ABB-certified engineers provide comprehensive support from initial system design through commissioning and optimization. Contact our technical team to discuss your specific controller communication requirements, receive application-specific configuration guidance, or request detailed integration documentation.

Ready to enhance your distributed control system reliability? Request a quotation or speak with our automation specialists about implementing BC810K01 interconnection solutions in your facility.
