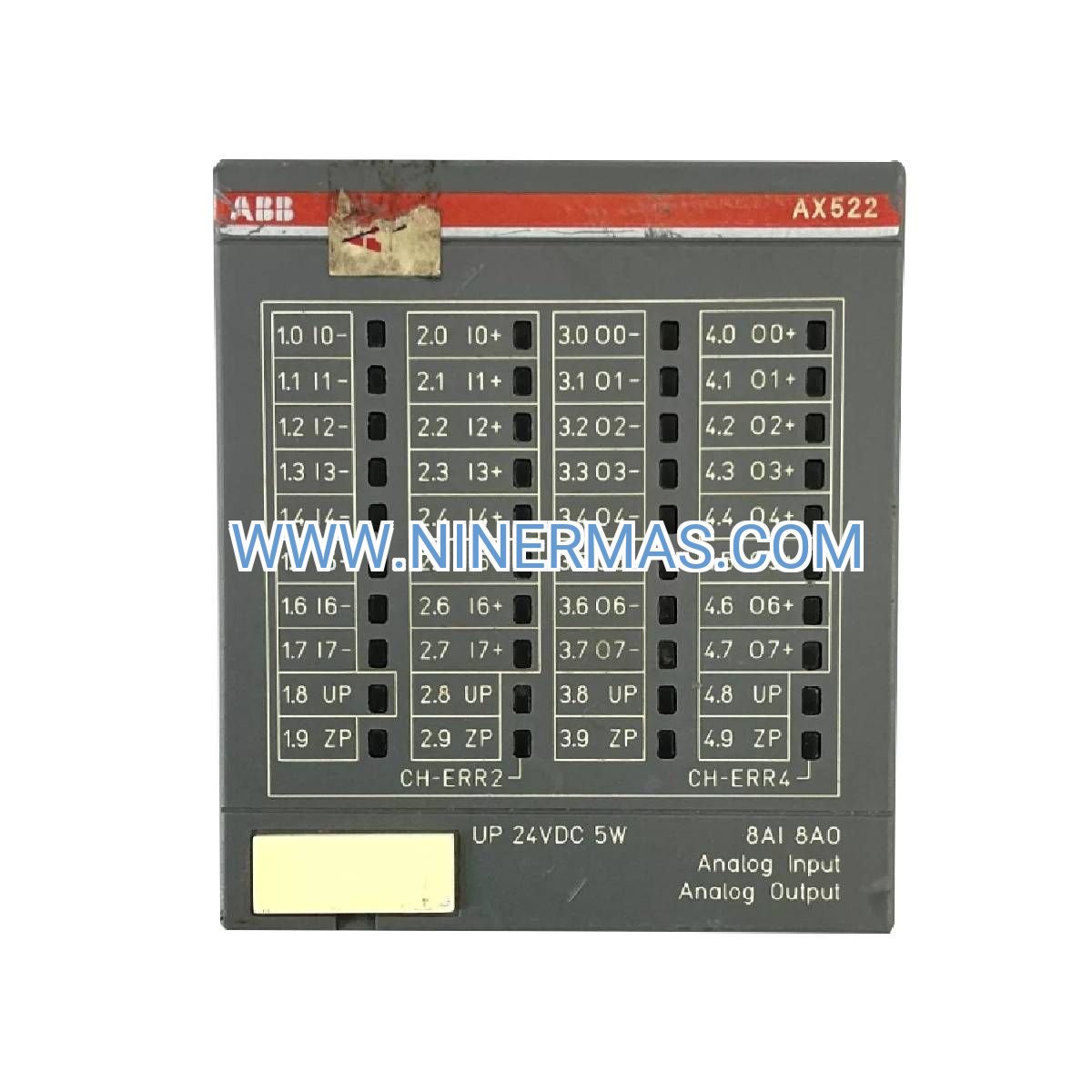

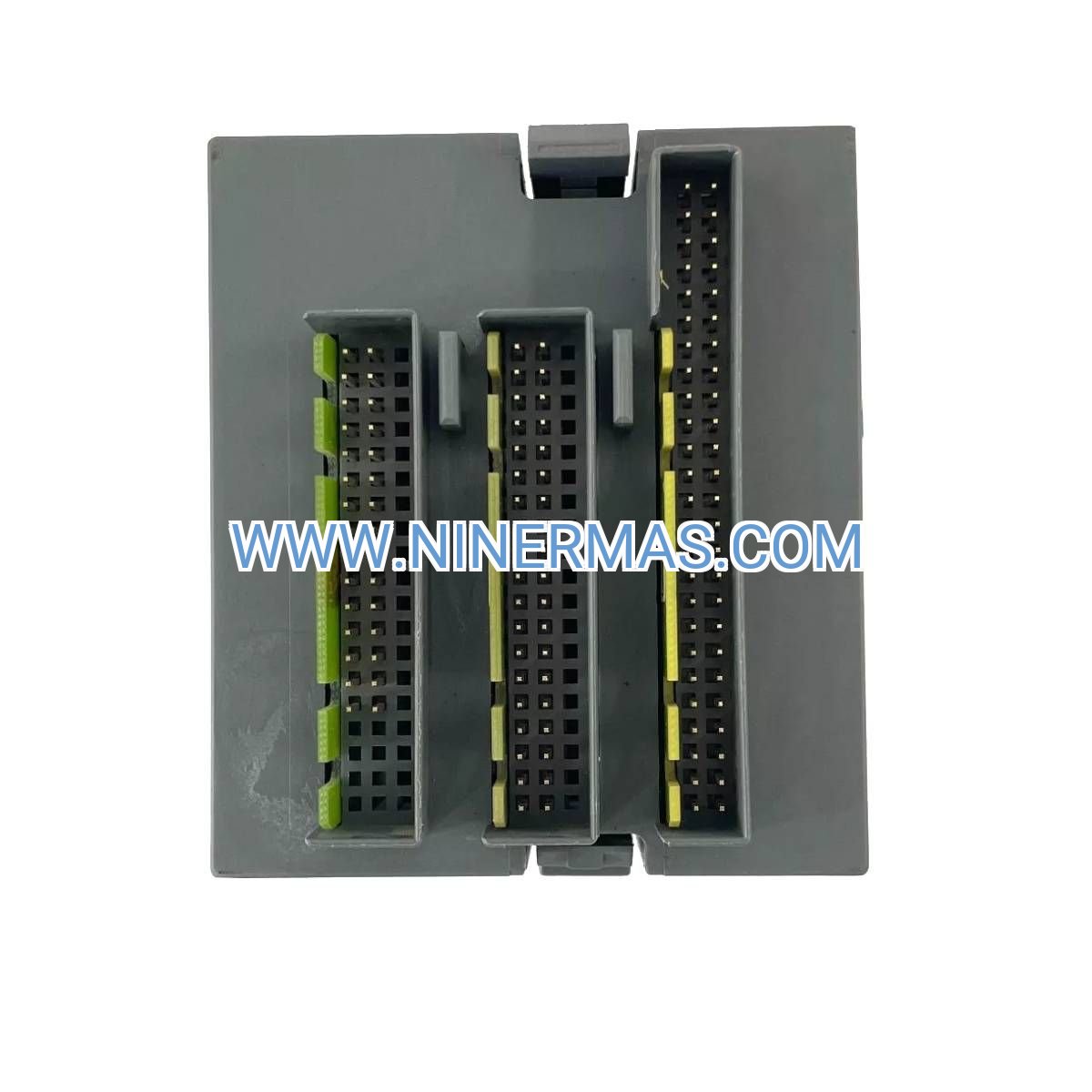

AX522 Analog I/O Module (Industrial-Grade Signal Processing)

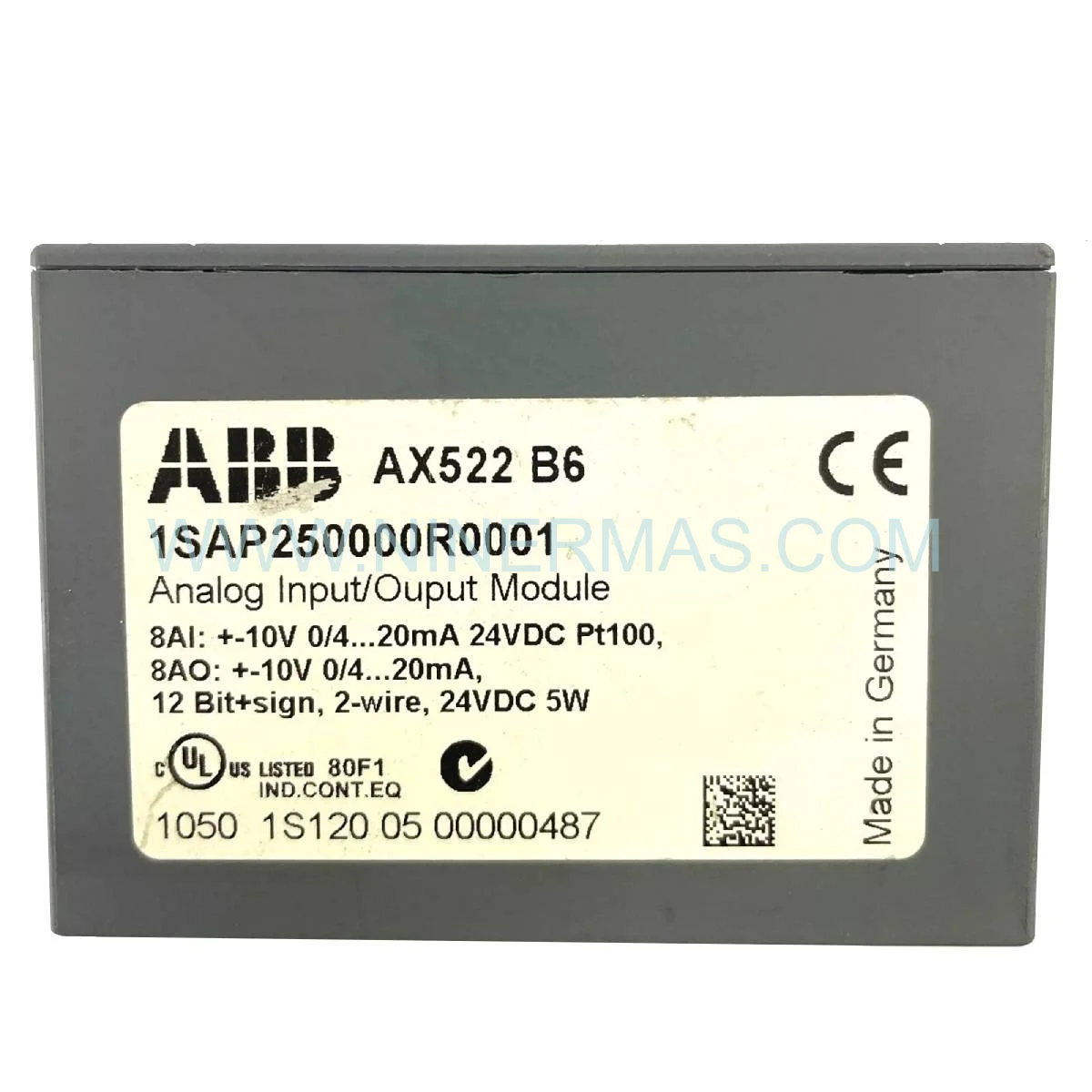

The ABB AX522 (1SAP250000R0001) is a high-performance analog interface module designed for critical process automation applications. Featuring 8 differential analog inputs and 4 isolated analog outputs, this S800 series component delivers 16-bit resolution signal processing for temperature, pressure, flow, and level measurement systems. Built for continuous operation in harsh industrial environments ranging from -40°C to +70°C, the AX522 ensures reliable data acquisition and control output in manufacturing, utilities, and building automation installations.

Engineered for system integrators and automation engineers managing complex process control networks, this module addresses the challenge of consolidating multiple analog signals into a single, space-efficient package. Whether you're upgrading legacy DCS systems or designing new automation architectures, the AX522 provides the precision and flexibility required for mission-critical applications.

Key advantages include hot-swappable installation for zero-downtime maintenance, comprehensive galvanic isolation to prevent ground loops, and seamless integration with ABB AC 800M and AC 700F controllers through standard fieldbus protocols. The module's self-diagnostic capabilities continuously monitor signal integrity, reducing troubleshooting time and improving system uptime.

Core Features & Benefits

✓ Multi-Channel Signal Consolidation
8 differential analog inputs + 4 configurable outputs eliminate the need for multiple modules, reducing cabinet space requirements by up to 40% while lowering installation costs and simplifying wiring infrastructure.

✓ Superior Measurement Accuracy
16-bit A/D conversion with ±0.1% full-scale accuracy at 25°C ensures precise process variable monitoring, enabling tighter control loops and improved product quality in batch processing and continuous manufacturing operations.

✓ Flexible Signal Range Configuration
Field-selectable 0-10V, 0-20mA, and 4-20mA ranges accommodate diverse sensor types without hardware modifications, accelerating commissioning and supporting future system expansions with minimal engineering effort.

✓ Robust Electrical Isolation
500V channel-to-bus and 50V channel-to-channel isolation protects sensitive control systems from electrical noise and ground potential differences, critical for reliable operation in electrically noisy industrial environments.

✓ Hot-Swap Capability
ModuleBus architecture supports online module replacement during system operation, eliminating costly production shutdowns for maintenance and enabling proactive component replacement strategies.

✓ Extended Temperature Performance
-40°C to +70°C operating range with conformal coating protection ensures dependable operation in outdoor installations, boiler rooms, and other extreme-temperature applications where standard electronics fail.

Application Scenarios

→ Chemical Process Manufacturing
Monitor reactor temperatures, ingredient flow rates, and pressure levels across multi-stage batch processes. The AX522's high channel density reduces panel space while its isolation prevents cross-contamination of measurement signals in complex formulation systems.

→ Water & Wastewater Treatment
Simultaneously track pH, turbidity, chlorine concentration, and flow rates across treatment stages. The module's 4-20mA compatibility interfaces directly with industry-standard transmitters, while its accuracy ensures regulatory compliance for discharge parameters.

→ HVAC Building Automation
Integrate temperature sensors, humidity transmitters, CO₂ detectors, and damper actuators into unified climate control systems. Fast conversion times (<100ms) enable responsive environmental adjustments for occupant comfort and energy efficiency.

→ Food & Beverage Production
Control pasteurization temperatures, fermentation conditions, and CIP (clean-in-place) chemical concentrations with precision required for food safety standards. The module's conformal coating withstands washdown environments common in sanitary processing facilities.

→ Energy Management Systems
Measure steam pressure, boiler efficiency parameters, and chiller performance metrics for real-time energy optimization. The AX522's low power consumption (4.5W max) contributes to overall facility energy reduction initiatives.

Technical Parameters & Selection Guide

Selection Criteria: Choose the AX522 when your application requires simultaneous monitoring of 6-8 analog process variables with control output capability. For input-only applications with higher channel counts, consider the IMASI23 module. If your system primarily handles discrete signals, the DC523 digital I/O module offers better cost-efficiency. Ensure your controller supports ModuleBus communication and verify that your sensor signal ranges match the module's configurable options.

Extended Functions

Advanced Diagnostics: Built-in self-test routines detect open circuits, short circuits, and out-of-range conditions on all channels. LED indicators provide instant visual status feedback, while detailed diagnostic data transmits to the controller for predictive maintenance strategies.

Scaling & Linearization: Software-configurable scaling functions convert raw sensor signals to engineering units (°C, PSI, GPM) within the module, reducing controller processing overhead. Linearization tables accommodate non-linear sensor characteristics for thermocouples and RTDs.

IoT Integration: When paired with ABB Ability™ gateways, the AX522 enables cloud-based monitoring and analytics. Historical trend data supports machine learning algorithms for process optimization and anomaly detection in Industry 4.0 implementations.

Redundancy Support: Compatible with ABB's redundant controller architectures for high-availability applications. Automatic failover ensures continuous operation in critical infrastructure installations such as power generation and pharmaceutical manufacturing.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 2-3 business days. Custom-configured modules with specific firmware or testing requirements: 7-10 business days. Expedited shipping available for urgent project requirements.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring long-term support commitments.

Technical Support: Access to ABB-certified application engineers for system design consultation, configuration assistance, and troubleshooting support. Remote diagnostic services available via secure VPN connections.

Documentation Package: Includes installation manual, wiring diagrams, Control Builder configuration files, and CAD drawings (DWG/DXF formats). Compliance certificates (CE, UL, ATEX) provided upon request for regulatory submissions.

Frequently Asked Questions

Q: How does the AX522 interface with non-ABB control systems?
A: The module communicates via ModuleBus, which connects to ABB's communication modules supporting PROFIBUS DP, Modbus RTU, and Foundation Fieldbus protocols. This enables integration with Siemens, Rockwell, Schneider, and other third-party controllers using standard industrial networks.

Q: What is the maximum cable distance between sensors and the AX522 module?
A: For 4-20mA current loop signals, cable runs up to 1000 meters are supported with minimal signal degradation. Voltage signals (0-10V) should be limited to 100 meters to maintain accuracy. Shielded twisted-pair cable is recommended for all analog connections in electrically noisy environments.

Q: Can the AX522 reduce energy consumption compared to traditional analog I/O systems?
A: Yes. The module's 4.5W maximum power consumption is 30-40% lower than equivalent multi-module configurations. Additionally, its high accuracy enables tighter process control, reducing energy waste in heating, cooling, and pumping applications by 5-15% in typical installations.

Q: What installation requirements are necessary for outdoor or harsh environment deployment?
A: The AX522 features conformal coating for moisture and dust protection, but should be installed in a NEMA 4X or IP65-rated enclosure for outdoor applications. Maintain ambient temperature within -40°C to +70°C and ensure adequate ventilation to prevent heat buildup in direct sunlight installations.

Q: Does the module support remote monitoring and diagnostics for predictive maintenance?
A: Yes. When integrated with ABB Ability™ cloud platforms or third-party SCADA systems, the AX522 transmits real-time diagnostic data including channel health, signal quality metrics, and environmental conditions. This enables condition-based maintenance strategies that reduce unplanned downtime by up to 25%.

Q: How quickly can I replace a failed AX522 module without disrupting production?
A: The hot-swap capability allows module replacement in under 2 minutes without powering down the system. Configuration data is stored in the controller, automatically downloading to the replacement module upon insertion. This minimizes production interruptions to near-zero for routine maintenance.

Get Started with Your Process Control Upgrade

Ready to enhance your automation system's analog signal processing capabilities? Contact our technical sales team for application-specific recommendations, pricing for volume orders, or to request a demo unit for evaluation in your facility. Our engineers are available to review your system architecture and ensure seamless integration with your existing infrastructure.
