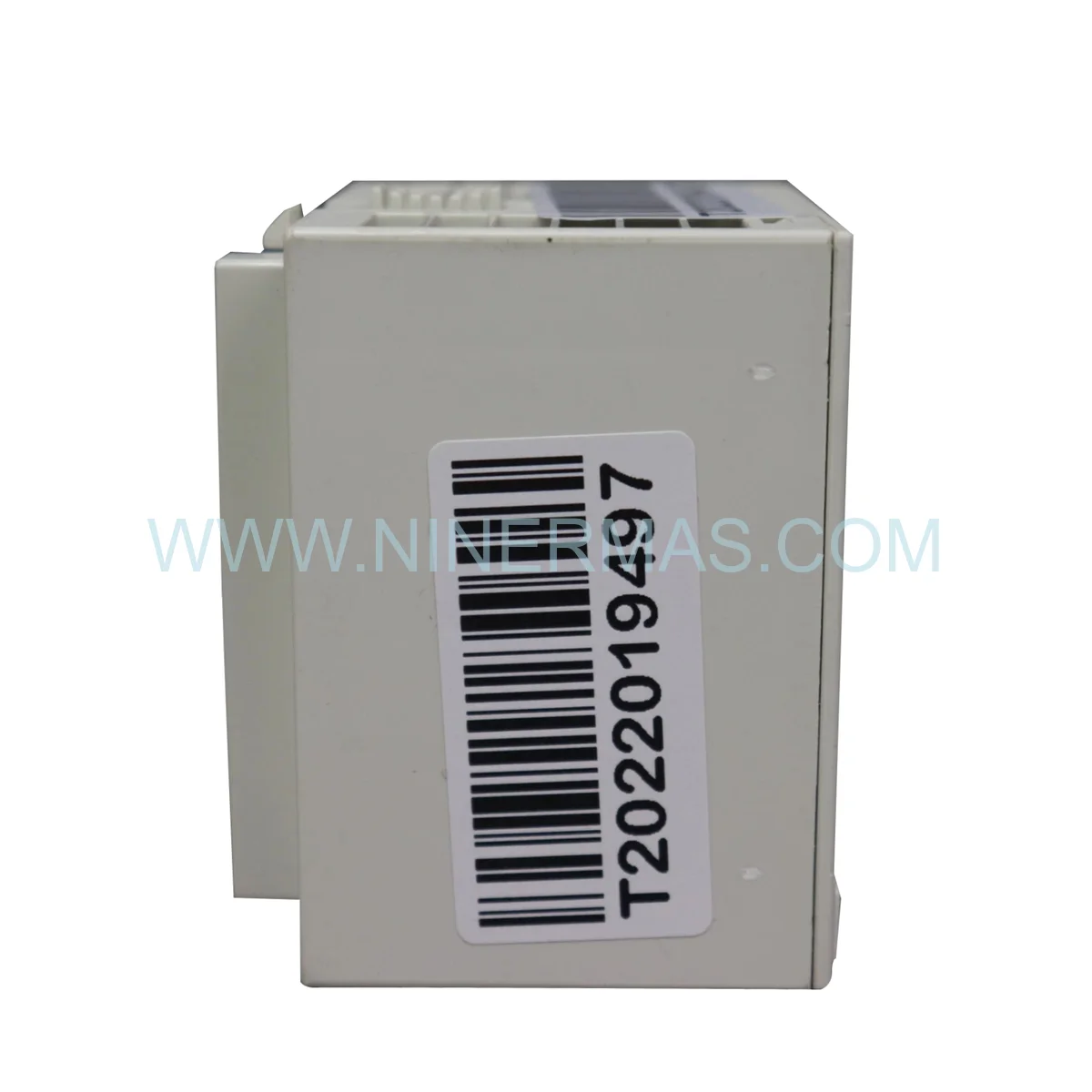

ABB AX 722F 3BDH000377R0001 – Industrial-Grade 16-Channel Analog I/O Module

The ABB AX 722F (Part No. 3BDH000377R0001) delivers enterprise-class analog signal processing for mission-critical process control environments. Engineered with 8 universal analog inputs and 8 precision outputs, this PROFIBUS DP-enabled module integrates seamlessly into ABB AC700F and AC900F distributed control architectures, providing flexible signal conditioning for voltage, current, and RTD sensors in a single compact footprint.

Designed for industries where measurement accuracy and system uptime directly impact operational efficiency, the AX 722F addresses the challenge of consolidating diverse analog signals while maintaining channel-to-channel isolation and deterministic communication. Process engineers and automation specialists rely on this module to reduce cabinet space, simplify wiring infrastructure, and accelerate commissioning timelines in brownfield and greenfield installations.

With software-configurable input types and galvanic isolation, the AX 722F eliminates the need for multiple specialized I/O cards, reducing spare parts inventory costs while delivering 12-bit resolution across all channels. Whether you're retrofitting legacy systems or designing next-generation control solutions, this module provides the reliability and versatility demanded by pharmaceutical manufacturing, water treatment, energy production, and chemical processing applications.

Core Capabilities & Technical Advantages

→ Universal Input Architecture: Each of the 8 input channels supports voltage (0-10V), current (0/4-20mA), or RTD (Pt100/Pt1000) signals through software configuration—no jumper changes or hardware modifications required. This flexibility reduces engineering time and enables rapid sensor replacement without module reconfiguration.

→ High-Density Output Stage: 8 independent analog output channels deliver precise control signals to actuators, valves, and variable frequency drives. The output stage maintains ±0.1% accuracy across the operating temperature range, ensuring consistent process control even in harsh industrial environments.

→ PROFIBUS DP Integration: Native PROFIBUS DP communication provides deterministic data exchange with cycle times down to 10ms, enabling real-time control loops and synchronized multi-axis operations. The module auto-detects bus parameters and supports hot-swapping for minimal downtime during maintenance.

✓ Galvanic Isolation: Channel-to-channel and channel-to-bus isolation up to 1500V AC protects against ground loops and electrical noise, critical for installations with long cable runs or high electromagnetic interference.

✓ Diagnostic Intelligence: Built-in self-diagnostics continuously monitor sensor health, wire breakage, and out-of-range conditions. Status LEDs and PROFIBUS diagnostic messages enable predictive maintenance and reduce troubleshooting time by 40% compared to non-intelligent I/O.

✓ Compact DIN-Rail Design: 130mm width conserves valuable panel space while maintaining full 16-channel functionality. The module's modular architecture allows horizontal expansion without controller reconfiguration.

Industry Applications & Use Cases

Chemical Batch Processing: Monitor reactor temperatures via RTD inputs while controlling dosing pump speeds through analog outputs. The AX 722F's multi-signal capability eliminates the need for separate temperature and flow I/O modules, reducing system complexity and potential failure points in hazardous area installations.

Water & Wastewater Treatment: Simultaneously measure pH, turbidity, dissolved oxygen, and flow rates using the configurable inputs, while regulating chemical feed pumps and aeration blowers via the output channels. The module's isolation prevents ground-loop interference common in distributed treatment facilities with multiple electrical zones.

HVAC Energy Management: Integrate building automation systems by reading temperature sensors, pressure transducers, and humidity transmitters through a single I/O point. Output channels modulate damper actuators and valve positioners to optimize energy consumption while maintaining comfort parameters.

Food & Beverage Production: Track pasteurization temperatures, pressure vessel levels, and ingredient flow rates with the precision required for FDA compliance. The module's stainless-steel-compatible design and IP20 rating suit washdown environments when installed in appropriate enclosures.

Pharmaceutical Manufacturing: Meet 21 CFR Part 11 requirements with traceable calibration data and audit-trail-ready diagnostic logs. The AX 722F's deterministic communication ensures critical process parameters remain within validated ranges during sterile production cycles.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the AX 722F when your application requires mixed-signal I/O consolidation within ABB AC700F/AC900F ecosystems. For applications exceeding 16 channels, deploy multiple modules on the same PROFIBUS segment (up to 32 modules per controller). If your system uses Foundation Fieldbus or HART protocol, consider the AX 8xx series alternatives. For safety-critical SIL2/SIL3 applications, pair with ABB's safety-rated controller platforms.

Advanced Integration Features

Seamless 800xA Compatibility: The AX 722F appears as a native object within ABB's 800xA control builder environment, enabling drag-and-drop configuration and automatic tag generation. Engineers can clone channel configurations across multiple modules, reducing engineering hours by 60% in large-scale projects.

OPC UA Connectivity: When paired with AC900F controllers running firmware 6.0 or later, the module's data becomes accessible via OPC UA for Industry 4.0 initiatives, cloud analytics, and third-party SCADA integration without additional gateways.

Redundancy Support: Deploy in redundant controller configurations for high-availability applications. The module supports bumpless transfer during controller switchover, maintaining process continuity in critical infrastructure installations.

Delivery, Warranty & Technical Support

Lead Time: Standard delivery within 3-5 business days for in-stock units. Custom-configured modules with factory calibration certificates ship within 10-12 business days. Expedited shipping available for emergency replacements.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for mission-critical installations requiring 5-year coverage.

Technical Assistance: Access to ABB-certified application engineers for pre-sales sizing, post-installation commissioning support, and troubleshooting. Remote diagnostic services available via secure VPN connection.

Documentation Package: Each module ships with installation manual, PROFIBUS GSD file, AutoCAD DWG drawings, and sample Control Builder configuration files. Multilingual documentation available in English, German, Chinese, and Spanish.

Frequently Asked Questions

Q: Can the AX 722F interface directly with third-party PLCs via PROFIBUS DP?
A: Yes, the module supports standard PROFIBUS DP protocol and can integrate with Siemens, Schneider Electric, or other PROFIBUS-compatible controllers using the provided GSD file. However, advanced diagnostic features require ABB Control Builder software.

Q: What is the maximum cable distance between the module and field sensors?
A: For 4-20mA current loops, up to 500 meters with standard shielded cable. Voltage inputs support 100 meters maximum. RTD inputs should not exceed 50 meters to maintain accuracy within ±0.2°C. Use ABB-recommended cable specifications for optimal performance.

Q: Does the module support HART communication over the 4-20mA signals?
A: No, the AX 722F does not include HART multiplexing. For HART-enabled analog I/O, consider the ABB AX 8xx series modules with integrated HART pass-through capability.

Q: How do I configure input types—voltage, current, or RTD—for each channel?
A: Configuration is performed entirely through ABB Control Builder software during module commissioning. Select the signal type from a dropdown menu for each channel; no physical jumpers or DIP switches are required. Configuration changes take effect immediately without power cycling.

Q: Is the module suitable for hazardous area installations (ATEX/IECEx)?
A: The AX 722F is designed for Zone 2/Division 2 installations when mounted in appropriate enclosures. For Zone 1/Division 1 applications, use intrinsically safe barriers on field wiring or specify ABB's IS-rated I/O modules.

Q: Can I hot-swap the module during system operation without disrupting the control network?
A: Yes, PROFIBUS DP supports hot-swapping when the controller is configured for redundant I/O operation. The module auto-configures upon insertion, and the controller resumes communication within 2-3 seconds. Always follow lockout/tagout procedures before physical removal.

Request Technical Consultation

Our industrial automation specialists are ready to assist with system design, module selection, and integration planning. Contact us for application-specific recommendations, volume pricing, or to schedule a remote configuration review.
