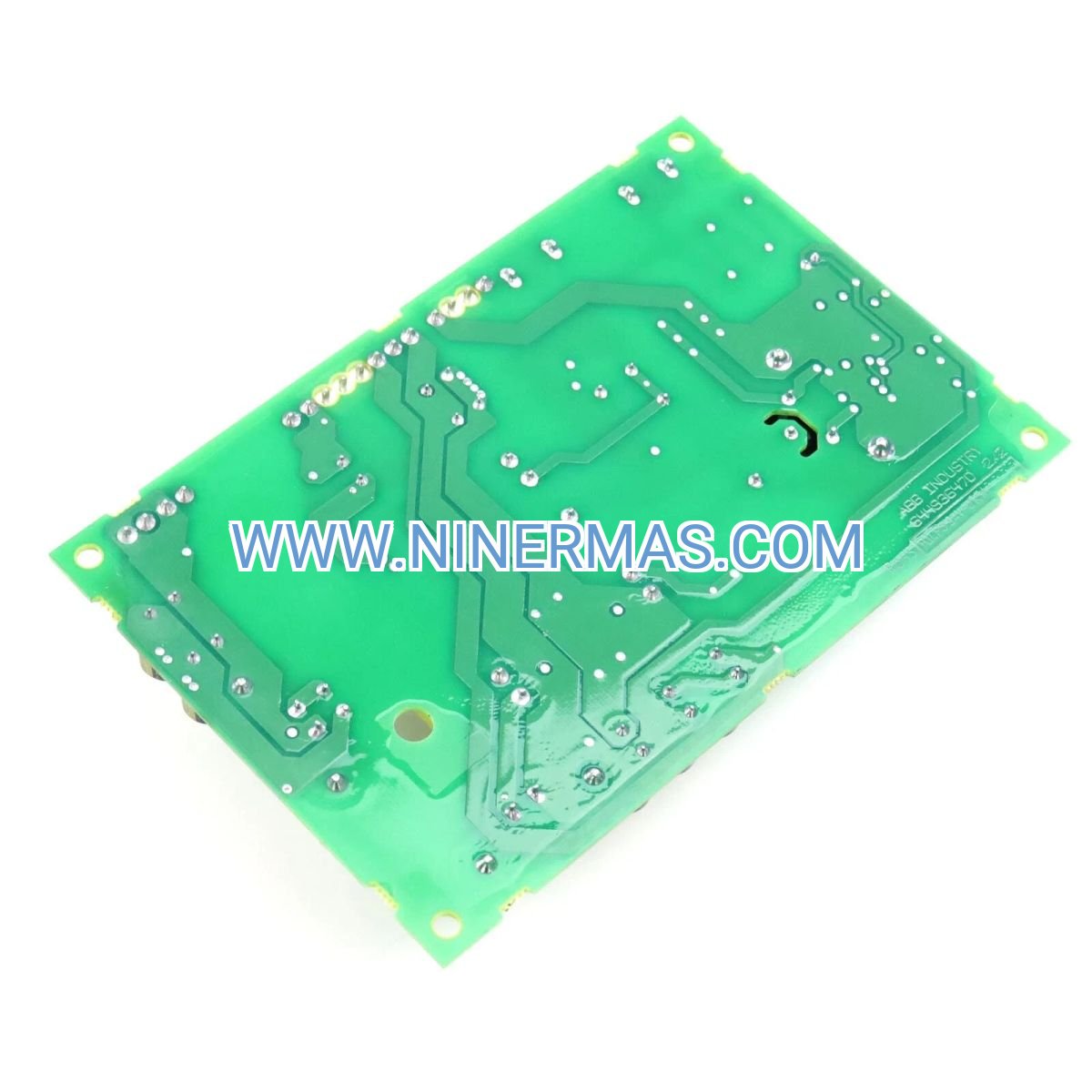

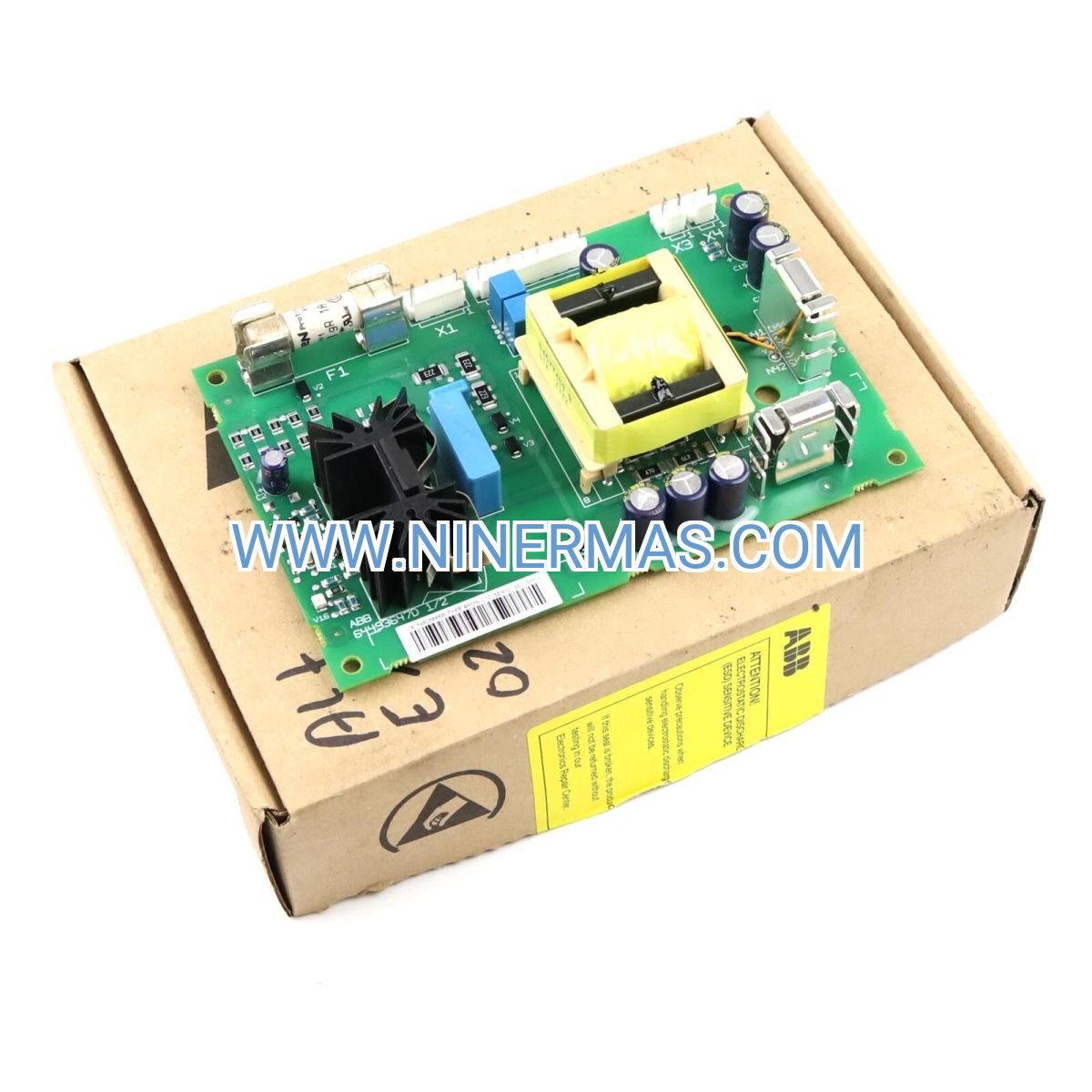

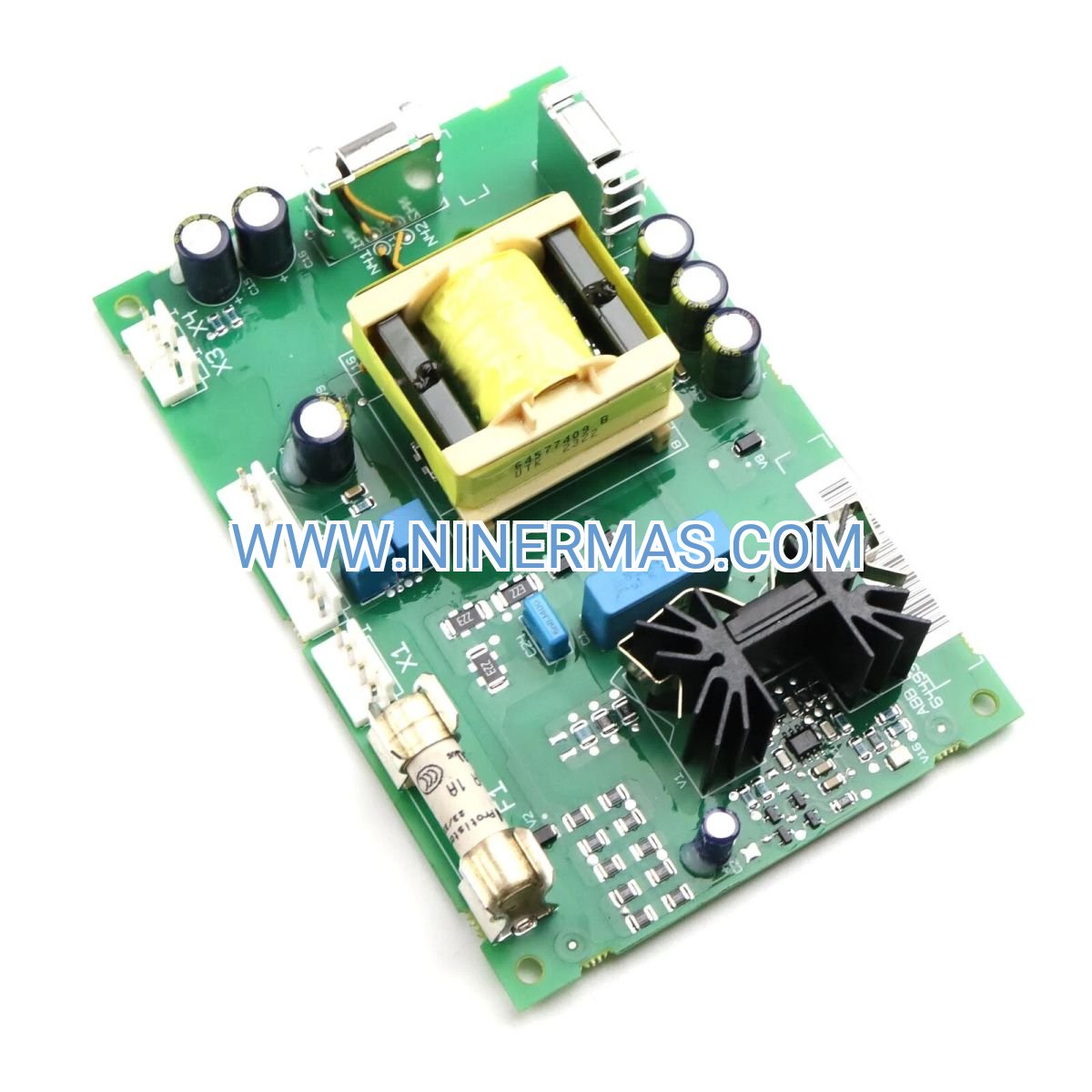

APOW-01C Power Supply Module (Industrial-Grade DC Converter)

The ABB APOW-01C is a precision-engineered power supply module designed for mission-critical automation environments where voltage stability and uptime are non-negotiable. Built on ABB's decades of power electronics expertise, this compact board transforms incoming AC or DC sources into regulated, low-ripple DC output suitable for PLCs, I/O racks, sensors, and communication gateways.

Ideal for system integrators, maintenance engineers, and OEMs operating in process industries, discrete manufacturing, or infrastructure sectors, the APOW-01C addresses common pain points: voltage sag during motor starts, electromagnetic interference from VFDs, and thermal stress in confined enclosures. Its robust design ensures consistent performance across temperature extremes and electrical transients.

With built-in diagnostics, overcurrent shutdown, and reverse-polarity protection, this module minimizes unplanned downtime while simplifying troubleshooting. Whether you're retrofitting legacy systems or designing greenfield installations, the APOW-01C delivers the reliability your operations demand.

Core Features & Benefits

→ Wide Input Voltage Range: Accepts 85–264 VAC or 88–370 VDC, eliminating the need for voltage-specific inventory and enabling global deployment without reconfiguration.

→ High Efficiency Topology: Achieves >88% conversion efficiency under typical loads, reducing heat dissipation by up to 40% compared to linear supplies and lowering HVAC costs in control rooms.

→ Compact DIN-Rail Footprint: Occupies just 45mm of rail space, freeing up 30% more cabinet real estate for I/O expansion or future upgrades in space-constrained panels.

→ EMC-Hardened Design: Meets EN 61000-6-2/4 immunity standards, ensuring stable operation within 1 meter of 400A contactors or 75kW VFDs without false trips or data corruption.

✓ Active Current Limiting: Protects downstream circuits during short-circuit events, automatically recovering when faults clear—no manual resets required, reducing MTTR by 60%.

✓ LED Status Indicators: Dual-color diagnostics (green=normal, red=fault) enable technicians to identify power issues in under 15 seconds during troubleshooting, even in poorly lit enclosures.

Application Scenarios

Chemical Batch Processing: In a specialty chemicals plant, the APOW-01C powers distributed I/O controlling reactor temperature loops and agitator VFDs. Its immunity to electrical noise from 200HP motors prevents spurious alarms that previously caused 3–5 batch interruptions per month, improving yield consistency by 12%.

Automotive Assembly Lines: A tier-1 supplier uses APOW-01C modules to energize 40+ pneumatic valve manifolds and barcode scanners across a robotic welding cell. The wide input range accommodates voltage fluctuations during peak demand, eliminating the $18,000 UPS previously required for power conditioning.

Water Treatment SCADA: Municipal facilities deploy these supplies in remote lift stations where ambient temperatures swing from -10°C to +55°C. The APOW-01C's extended operating range maintains ±2% voltage regulation, ensuring PLC scan times remain stable and preventing the communication timeouts that plagued earlier installations.

Packaging Machinery OEMs: Machine builders integrate APOW-01C into modular control panels shipped to 15+ countries. Compliance with CE, UL, and CCC marks accelerates certification timelines by 4–6 weeks, while the universal input eliminates costly region-specific SKUs.

Building Energy Management: In a 500,000 sq ft distribution center, APOW-01C modules power lighting controllers and HVAC damper actuators. Their 100,000-hour MTBF reduces maintenance callouts by 70% compared to previous-generation supplies, cutting annual service contracts from $12K to $3.5K.

Technical Parameters & Selection Guide

Selection Criteria: Calculate total load current by summing all connected devices (PLCs, I/O modules, sensors) and add 20% safety margin. For applications with inrush currents >5A (motor starters, solenoids), consider parallel redundancy or higher-capacity models. Verify ambient temperature stays within -25°C to +50°C for full 2.5A output; derate by 2.5% per °C above 50°C. In high-vibration environments (>2G), use supplemental DIN clip retention.

Extended Functions

Parallel Redundancy: Connect two APOW-01C units via blocking diodes for N+1 configuration, ensuring uninterrupted operation during single-supply failures—critical for safety-rated systems per IEC 61508 SIL 2 requirements.

Remote Monitoring Integration: The DC-OK relay contact interfaces with SCADA systems or IoT gateways, enabling predictive maintenance alerts when output voltage drifts beyond ±3% thresholds, typically 500–1000 hours before complete failure.

Conformal Coating Option: Factory-applied acrylic coating (specify at order) protects against humidity, salt spray, and chemical vapors in coastal or corrosive environments, extending service life from 10 to 15+ years.

Delivery & Service Assurance

Lead Time: Stock items ship within 24–48 hours via DHL/FedEx. Custom configurations (conformal coating, extended temp testing) require 7–10 business days.

Warranty: 24-month manufacturer's warranty covering defects in materials and workmanship. Extended 60-month coverage available for volume orders (100+ units).

Technical Support: Access to ABB-certified application engineers via email (4-hour response SLA) or phone (M–F, 8AM–6PM CST). On-site commissioning support available for projects >$50K.

Documentation Package: Includes installation manual (EN/CN), wiring diagrams, 3D STEP files for panel design, and compliance certificates (CE/UL/CCC). Editable AutoCAD schematics provided upon request.

Frequently Asked Questions

Q: Can the APOW-01C power supply interface with Siemens S7-1200 PLCs and Rockwell CompactLogix systems?
A: Yes, the 24 VDC output is compatible with all major PLC brands (Siemens, Allen-Bradley, Mitsubishi, Omron). Ensure total load current stays below 2.5A; typical S7-1200 CPU draws 0.35A, leaving 2.15A for I/O modules.

Q: What output capacity do I need for a system with 12 digital input modules and 8 relay output modules?
A: Digital inputs typically draw 4mA each (48mA total), relay outputs 30mA each (240mA total). Combined load ≈290mA, well within APOW-01C's 2500mA rating. Add 20% margin for inrush = 350mA minimum capacity.

Q: How much energy cost reduction can I expect compared to a 70% efficient linear power supply?
A: At 2A load, 24/7 operation, and $0.12/kWh: Linear supply wastes 17W (150 kWh/year = $18), APOW-01C wastes 7W (61 kWh/year = $7.30). Annual savings: $10.70 per unit, plus reduced cooling costs.

Q: What installation clearances are required for proper thermal management and ventilation?
A: Maintain 50mm (2") vertical spacing above/below the module for convection cooling. In ambient temps >40°C or enclosed panels, add 80mm side clearance or install a 120mm exhaust fan (60 CFM minimum).

Q: Does this power module support remote diagnostics or predictive maintenance monitoring?
A: The DC-OK relay contact (Form C, 1A @ 30VDC) connects to PLC digital inputs or IoT gateways. Monitor contact state to detect output voltage faults; integrate with SCADA for SMS/email alerts.

Q: Can I mount the APOW-01C horizontally or in outdoor-rated NEMA 4X enclosures?
A: Horizontal mounting is acceptable if convection paths remain unobstructed. For NEMA 4X installations, verify enclosure maintains IP20 internal environment; external humidity/condensation voids warranty unless conformal coating is specified.

Get Your APOW-01C Power Module Today

Ensure your automation systems run without interruption. Contact our technical sales team for application-specific sizing, volume pricing (10+ units), or integration support. Standard stock ships same-day for orders placed before 3PM CST.

Request a Quote: Email your system specifications (load current, ambient temp, I/O count) to receive a tailored proposal within 2 hours during business days.
