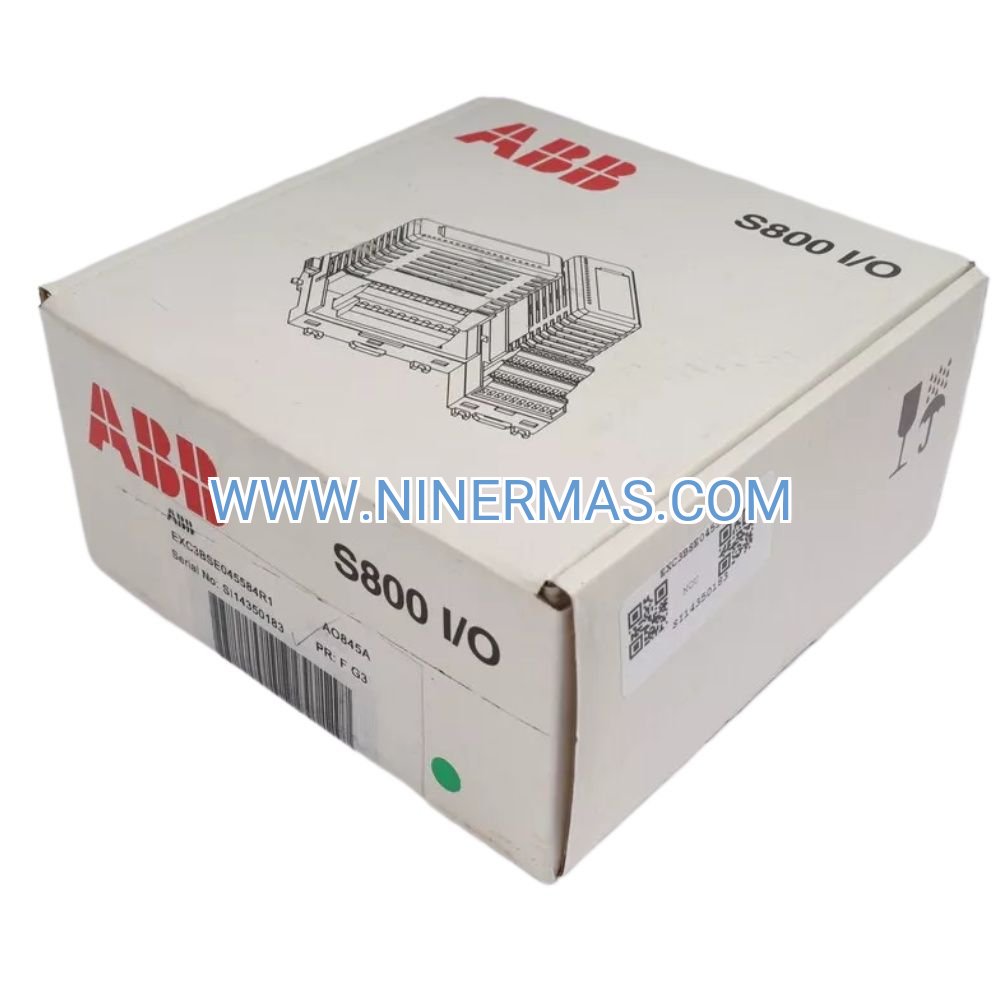

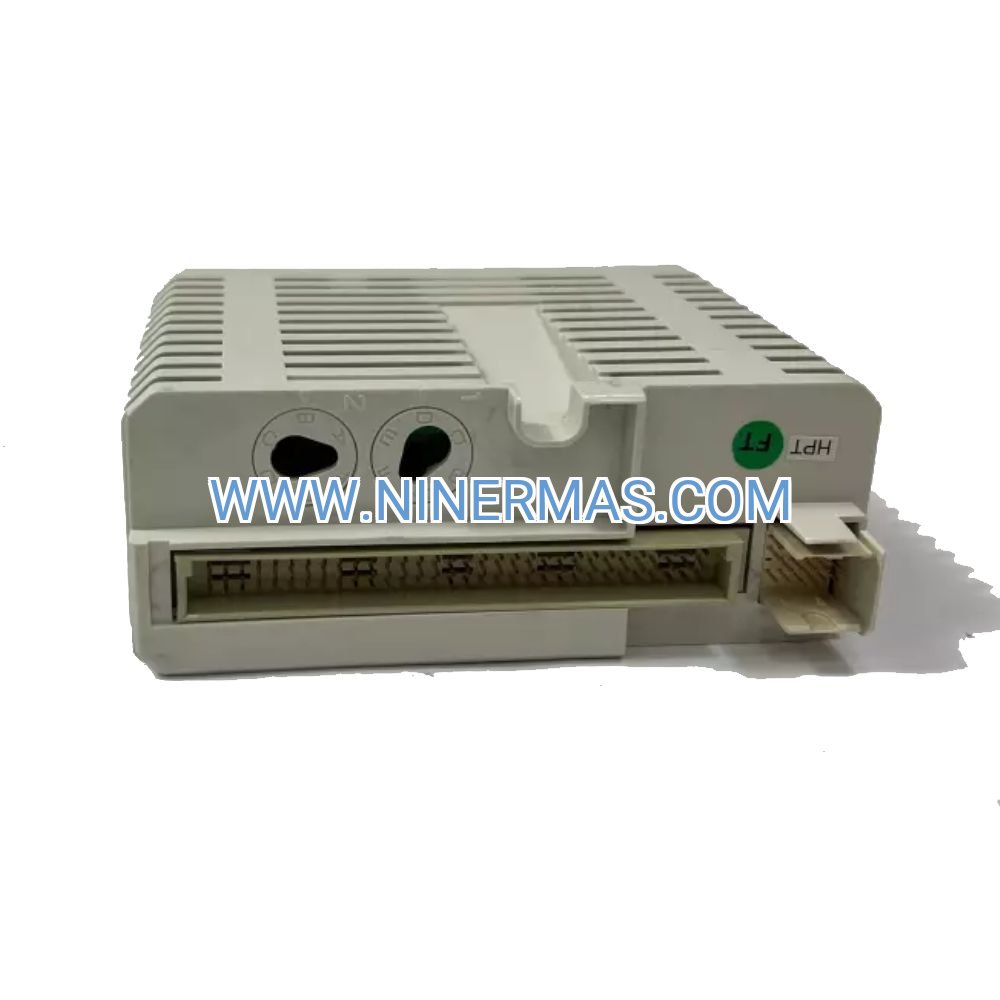

ABB AO845A 8-Channel Analog Output Module (Industrial-Grade HART Communication)

The ABB AO845A (3BSE045584R1) represents a professional-grade analog output solution within the S800 I/O family, specifically designed for industrial facilities requiring precise current-loop control with embedded HART digital communication. This 8-channel module transforms digital control signals into accurate 4-20 mA outputs while simultaneously supporting bidirectional HART data exchange, making it indispensable for modern process automation architectures where real-time diagnostics and remote configuration capabilities are mission-critical.

Engineered for deployment in chemical plants, refineries, pharmaceutical production lines, and utility infrastructure, the AO845A addresses the fundamental challenge of maintaining signal integrity across extended cable runs while providing comprehensive fault detection. Its galvanically isolated architecture prevents ground loops and electrical interference, ensuring stable operation in electrically noisy industrial environments where conventional output modules often fail.

With hot-swap capability, redundancy support, and compliance with international safety standards, this module delivers the reliability demanded by continuous process industries. The combination of 12-bit resolution, advanced loop supervision, and HART protocol integration positions the AO845A as a cornerstone component for facilities pursuing Industry 4.0 objectives through enhanced asset visibility and predictive maintenance strategies.

Core Capabilities & Technical Advantages

→ Dual-Layer Communication Architecture: Simultaneously transmits 4-20 mA analog control signals and HART digital data on the same two-wire loop, eliminating the need for separate communication infrastructure while enabling access to 256+ process variables, configuration parameters, and diagnostic information from each connected field device.

→ Precision Signal Generation: 12-bit digital-to-analog conversion delivers 0.1% accuracy across the full 4-20 mA range, ensuring precise control of valve positioners, variable speed drives, and pneumatic actuators. Temperature-compensated circuitry maintains performance stability from -40°C to +70°C without calibration drift.

→ Comprehensive Loop Diagnostics: Real-time monitoring detects open circuits, short circuits, and out-of-range conditions on each channel independently. Diagnostic data is immediately available to the control system, enabling rapid fault isolation and reducing mean time to repair (MTTR) by up to 60% compared to non-diagnostic output modules.

✓ Multi-Level Isolation Protection: Channel-to-channel isolation (500V) and channel-to-backplane isolation (1500V) prevent fault propagation between circuits and protect sensitive control electronics from field-side electrical disturbances, surge events, and ground potential differences.

✓ Hot-Swap Serviceability: Field-replaceable design allows module removal and installation during system operation without disrupting adjacent I/O channels or requiring process shutdown, minimizing production losses during maintenance activities.

✓ Redundancy-Ready Architecture: Supports ABB's redundant controller configurations with automatic failover mechanisms, ensuring continuous output control even during primary controller failures—critical for safety instrumented systems (SIS) and emergency shutdown applications.

Industrial Application Scenarios

Chemical Processing & Batch Manufacturing: Controls reactor temperature through steam valve modulation, regulates feed rates via variable frequency drives, and manages pH adjustment pumps. HART communication enables remote verification of valve travel feedback and actuator health monitoring without process interruption, supporting FDA 21 CFR Part 11 compliance requirements.

Oil & Gas Production Facilities: Manages separator level control, compressor anti-surge valves, and pipeline pressure regulation across distributed wellhead installations. Extended temperature rating (-40°C to +70°C) ensures reliable operation in outdoor enclosures and unheated equipment shelters common in upstream production environments.

Water & Wastewater Treatment: Drives chemical dosing pumps for coagulation and disinfection processes, controls aeration blower speeds for biological treatment optimization, and regulates filter backwash sequences. Loop supervision immediately alerts operators to pump failures or chemical feed interruptions that could compromise effluent quality.

Power Generation & Cogeneration: Provides analog control signals to boiler feedwater pumps, turbine governor systems, and emissions control equipment. HART diagnostics enable condition-based maintenance of critical actuators, reducing unplanned outages and extending asset service life.

Pharmaceutical & Biotechnology: Ensures precise control of fermentation vessel parameters, clean-in-place (CIP) chemical concentrations, and sterile filtration pressures. Comprehensive audit trail capabilities through HART communication support GMP validation requirements and regulatory inspections.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the AO845A when your application requires HART communication for advanced diagnostics and asset management. For standard 4-20 mA output without HART, consider the AO820 module. If intrinsic safety certification is required for hazardous area installation, specify the AO895 IS-rated variant. Verify that total loop resistance (cable + field device) remains below 750Ω to maintain HART signal integrity—for installations exceeding this limit, use 24V loop-powered isolators or select higher-voltage output modules.

Advanced Integration Features

The AO845A seamlessly integrates within ABB's S800 I/O ecosystem, mounting on standard S800 baseplates alongside analog input, digital I/O, and specialty modules to create compact, high-density control cabinets. The module communicates with ABB AC 800M controllers, System 800xA DCS platforms, and third-party control systems via PROFIBUS DP, Modbus, or FOUNDATION Fieldbus network interfaces.

HART communication capabilities extend beyond basic output control, enabling remote configuration of connected smart transmitters and actuators without dedicated HART handheld communicators. Maintenance personnel can access device diagnostics, perform loop tests, and update calibration parameters directly from the DCS operator interface, reducing the need for field visits and improving overall system availability.

For facilities implementing predictive maintenance programs, the AO845A's continuous loop monitoring generates trend data on actuator response times, valve friction characteristics, and positioner performance degradation—early indicators of impending failures that allow scheduled maintenance before unplanned shutdowns occur.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock modules with factory-sealed packaging and full manufacturer warranty documentation.

Custom Configuration: 10-15 business days for modules requiring specific firmware versions, pre-configured HART parameters, or integration with legacy S800 systems.

Warranty Coverage: 24-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for critical applications.

Technical Support: Direct access to application engineers with expertise in S800 I/O configuration, HART network troubleshooting, and control system integration. Support includes pre-sales system design consultation, commissioning assistance, and post-installation optimization services.

Documentation Package: Complete technical manual set including installation instructions, wiring diagrams, HART device description files (DD), configuration software, and compliance certificates for regulatory submissions.

Frequently Asked Questions

How does the AO845A integrate with existing DCS platforms that don't natively support HART communication?
The module operates as a standard 4-20 mA analog output when connected to non-HART control systems, with HART communication accessible through separate HART multiplexers or USB HART modems for configuration and diagnostics. This allows gradual migration to HART-enabled infrastructure without requiring immediate DCS upgrades.

What is the maximum cable distance between the AO845A module and field devices while maintaining HART signal integrity?
HART communication remains reliable up to 3000 meters (10,000 feet) using standard twisted-pair instrumentation cable, provided total loop resistance stays below 750Ω. For longer distances, use larger gauge wire (14 AWG or greater) or install HART repeaters at intermediate junction boxes.

Can the AO845A control non-HART field devices, and will loop supervision still function correctly?
Yes, the module provides standard 4-20 mA output to any current-loop device regardless of HART capability. Loop supervision (open/short circuit detection) operates independently of HART communication and functions with all connected devices, including legacy pneumatic positioners with I/P converters.

What power supply requirements must be met for reliable AO845A operation in redundant controller configurations?
The module draws power exclusively from the S800 backplane (3.5W typical), which must be supplied by redundant 24VDC power modules (PM8xx series) rated for the total I/O load. External loop power (typically 24VDC) must be provided separately for the 4-20 mA current loops and should also be redundant for critical applications.

How does the hot-swap capability work, and what precautions are necessary during module replacement?
The S800 backplane design allows module removal and insertion while the system is energized. Upon insertion, the module automatically synchronizes with the controller and resumes output control within 2 seconds. Best practice requires verifying that connected field devices can tolerate brief output interruptions (typically <3 seconds) and that process conditions allow temporary loss of control on affected loops.

What diagnostic information is available through HART communication beyond standard loop supervision?
HART-enabled field devices report extensive diagnostics including valve travel limits, actuator air pressure, positioner calibration status, temperature compensation data, and device-specific alerts. This information is accessible through the DCS or dedicated asset management software, enabling condition-based maintenance strategies that reduce unplanned downtime by 40-60% compared to time-based maintenance schedules.

Take the Next Step

Ready to enhance your process control infrastructure with precision analog output and advanced HART diagnostics? Contact our application engineering team for system design consultation, compatibility verification with your existing control platform, and customized quotations for multi-module installations. We provide complete technical support from initial specification through commissioning and ongoing optimization.
