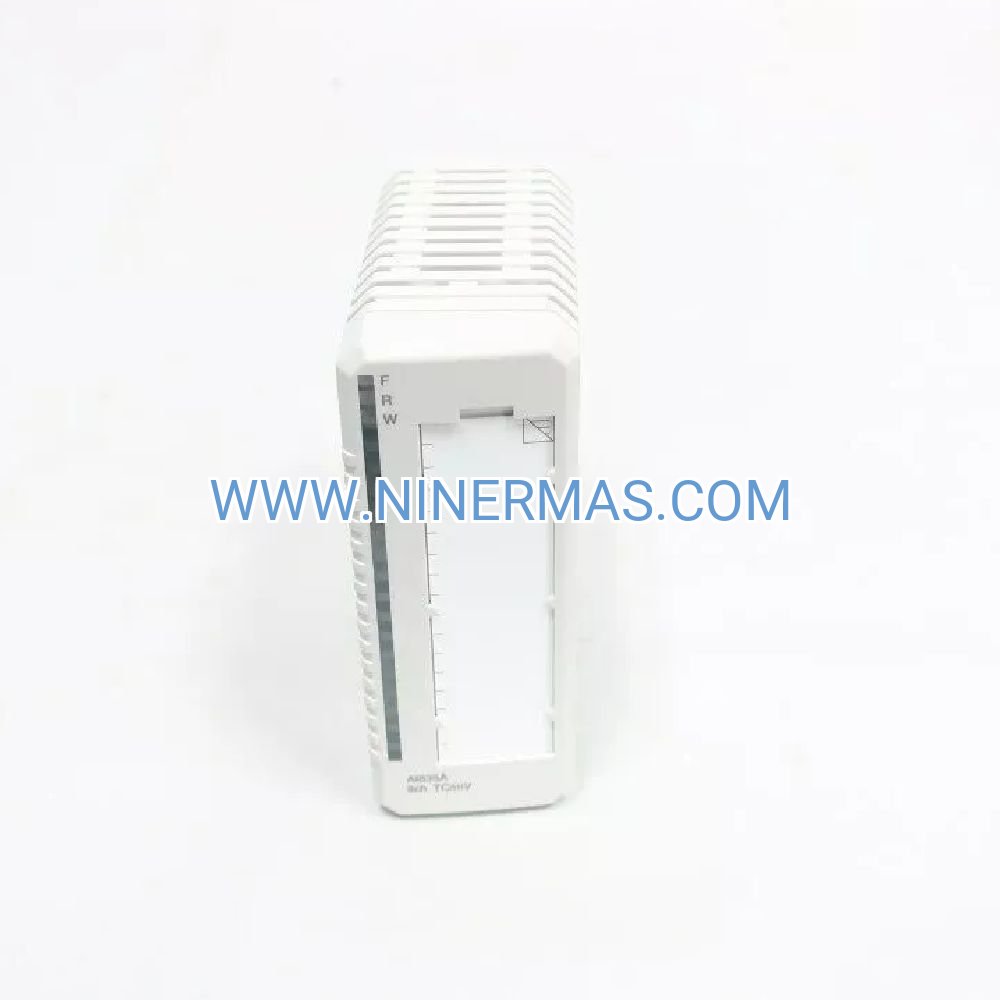

ABB AI835A Analog Input Module (Industrial-Grade Thermocouple Interface)

The ABB AI835A represents a professional-grade solution for acquiring thermocouple and low-level millivolt signals in mission-critical industrial control systems. Designed for the S800 I/O platform, this 8-channel differential input module delivers 15-bit measurement precision with integrated cold junction compensation, making it the preferred choice for process industries requiring validated temperature data accuracy. Whether you're monitoring furnace profiles in metal processing or tracking reactor temperatures in chemical production, the AI835A provides the reliability and diagnostic intelligence demanded by modern automation architectures.

Engineered for seamless integration with ABB's AC 800M controller family, this Swiss-manufactured module supports all standard thermocouple types (J, K, T, E, R, S, B, N) plus direct millivolt measurement up to ±80mV. Its hot-swappable design and comprehensive self-diagnostics minimize unplanned downtime, while channel-to-channel isolation protects against ground loop interference in electrically harsh environments.

Ideal for system integrators and plant engineers seeking a proven, standards-compliant analog input solution, the AI835A combines ABB's decades of process automation expertise with modern digital communication capabilities. From pharmaceutical clean rooms to power generation facilities, this module delivers the measurement integrity your critical applications demand.

Key Features & Technical Benefits

→ Universal Thermocouple Compatibility
Accepts all industry-standard thermocouple types without hardware changes. Configure each channel independently for J, K, T, E, R, S, B, or N thermocouples through software, eliminating the need for multiple module variants and reducing spare parts complexity. Direct millivolt mode supports custom sensor integration.

→ High-Resolution Signal Conversion
15-bit plus sign ADC architecture provides 0.003°C resolution for K-type thermocouples, enabling precise control of thermal processes where temperature stability directly impacts product quality. Superior to 12-bit competitors in detecting gradual sensor degradation.

→ Integrated Cold Junction Compensation
On-board CJC circuitry automatically corrects for terminal block temperature variations, maintaining ±0.1% full-scale accuracy across -40°C to +70°C ambient conditions. Eliminates external reference junction requirements and associated wiring errors.

→ Advanced Input Filtering
Multi-stage analog and digital filtering rejects 50/60Hz power line noise and high-frequency EMI from VFDs and welding equipment. Maintains signal integrity in electrically noisy cabinet environments without sacrificing 10 samples/second update rate.

✓ Continuous Diagnostic Monitoring
Real-time detection of open circuits, short circuits, and out-of-range conditions with per-channel status reporting to the control system. Predictive maintenance alerts identify failing thermocouples before process upsets occur, reducing emergency callouts.

✓ Hot-Swap Capability
Replace modules during live operation without controller shutdown or process interruption. Critical for continuous manufacturing where even brief stoppages result in product loss or equipment damage. Automatic configuration download upon insertion.

Application Scenarios & Industry Solutions

Chemical & Petrochemical Processing
Challenge: Refineries require simultaneous monitoring of 200+ temperature points across distillation columns, reactors, and heat exchangers with validated accuracy for safety instrumented systems.
Solution: Deploy AI835A modules in redundant AC 800M configurations to achieve SIL2-capable temperature measurement with full audit trail and alarm management. K-type and J-type thermocouple support covers -40°C to +1200°C process range.
Value: Meets API and IEC 61511 requirements while reducing installation costs versus transmitter-based architectures.

Power Generation & Utilities
Challenge: Combined-cycle plants need reliable turbine exhaust temperature monitoring using high-temperature R-type and S-type thermocouples in vibration-prone environments.
Solution: AI835A's 50V channel isolation and robust terminal design withstand electrical transients during generator synchronization. Integrated diagnostics detect thermocouple burnout before turbine damage occurs.
Value: Prevents costly forced outages and extends turbine service intervals through early fault detection.

Metals & Mining Operations
Challenge: Steel mills require precise furnace temperature profiling across 12+ zones to maintain metallurgical properties while minimizing energy consumption.
Solution: Multiple AI835A modules provide distributed temperature acquisition with synchronized sampling for closed-loop furnace control. Supports both Type K thermocouples for general zones and Type B for ultra-high temperature areas.
Value: Improves yield by 2-3% through tighter temperature control and reduces refractory wear.

Food & Beverage Manufacturing
Challenge: Pasteurization and sterilization processes demand FDA-compliant temperature validation with full traceability.
Solution: AI835A integrates with ABB's 800xA system to provide 21 CFR Part 11 compliant data logging and electronic signatures. Calibration certificates traceable to NIST standards.
Value: Streamlines regulatory audits and eliminates manual chart recorder maintenance.

Pharmaceutical & Biotechnology
Challenge: Lyophilization equipment requires ±0.5°C shelf temperature uniformity across 20+ measurement points for consistent product quality.
Solution: AI835A's 15-bit resolution and low drift characteristics maintain calibration stability between annual validation cycles. T-type thermocouple support optimizes accuracy in cryogenic ranges.
Value: Reduces batch rejection rates and extends validation intervals, lowering cost of goods.

Technical Specifications & Selection Guide

Selection Criteria: Choose AI835A when your application requires direct thermocouple connection with high accuracy and diagnostic capability. For 4-20mA transmitter inputs, consider AI810 instead. For RTD sensors, specify AI815 resistance input module. Consult ABB Product Guide 3BSE044845 for complete S800 I/O portfolio comparison.

Advanced Integration Capabilities

Redundant Controller Support: AI835A operates seamlessly in AC 800M redundant configurations with automatic failover and bumpless transfer. Both controllers maintain synchronized input data for high-availability applications in utilities and continuous process industries.

Asset Management Integration: Module electronic nameplate data integrates with ABB Ability™ System 800xA for automated asset tracking, calibration scheduling, and lifecycle management. Reduces engineering time during plant expansions and modifications.

Third-Party System Connectivity: When paired with CI854 PROFINET or CI858 Foundation Fieldbus cluster interfaces, AI835A data becomes accessible to non-ABB DCS and SCADA platforms while maintaining ABB's diagnostic and configuration advantages.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for stock items; 4-6 weeks for factory-fresh units with full traceability documentation. Expedited shipping available for critical outage situations.

Warranty Coverage: Comprehensive 12-month manufacturer warranty from shipment date covering material defects and workmanship failures. Extended warranty programs and advance replacement services available for mission-critical installations.

Technical Assistance: Our application engineers provide pre-sale system design consultation, configuration file development, and commissioning support. Post-sale troubleshooting assistance and firmware update guidance included with every purchase.

Documentation Package: Each module ships with installation manual, wiring diagrams, Control Builder M configuration examples, and calibration certificate. Complete technical library available via ABB Library portal.

Frequently Asked Questions

Can this module interface with non-ABB controllers?
The AI835A requires an ABB S800 I/O cluster interface (CI8xx series) which communicates via PROFIBUS, PROFINET, Modbus TCP, or Foundation Fieldbus. This allows integration with Siemens, Rockwell, Schneider, and other third-party control platforms while leveraging ABB's superior analog input technology.

What is the maximum recommended thermocouple wire length?
Up to 100 meters using appropriate thermocouple extension wire with proper shielding and grounding practices. For longer distances or electrically noisy routing, use head-mounted 4-20mA transmitters with AI810 current input modules to maintain signal integrity.

Does the AI835A support HART communication?
No, the AI835A is designed for direct thermocouple connection. For HART-enabled analog inputs, specify the AI825 or AO845A modules which support HART multiplexing on 4-20mA loops.

How do I calibrate the module after installation?
The AI835A ships factory-calibrated with certificates traceable to national standards. Field calibration is typically not required. If verification is needed, use a precision millivolt source and compare readings in Control Builder M. Consult service manual 3BSE051306M0201 for detailed procedures.

Is this module suitable for hazardous area installations?
Yes, when installed in Zone 2/Division 2 classified areas per ATEX certificate IBExU 12 ATEX 1083 X and IECEx certificate IECEx BVS 12.0104X. For Zone 1/Division 1 applications, use intrinsically safe barriers or the AI835A-eA intrinsically safe variant.

What is the difference between AI835 and AI835A?
The AI835A (current model) features enhanced EMC performance, extended temperature range (-40°C vs -25°C), and improved diagnostic granularity compared to the legacy AI835. Both are functionally compatible, but AI835A is recommended for new projects.

Ready to Enhance Your Temperature Measurement System?

Contact our industrial automation specialists for application-specific recommendations, volume pricing, and integration support. We provide complete S800 I/O system design services including controller selection, network architecture, and panel layout optimization.

Request a Quote: Email your system requirements and we'll respond within 4 business hours with pricing, lead time, and technical recommendations tailored to your application.
