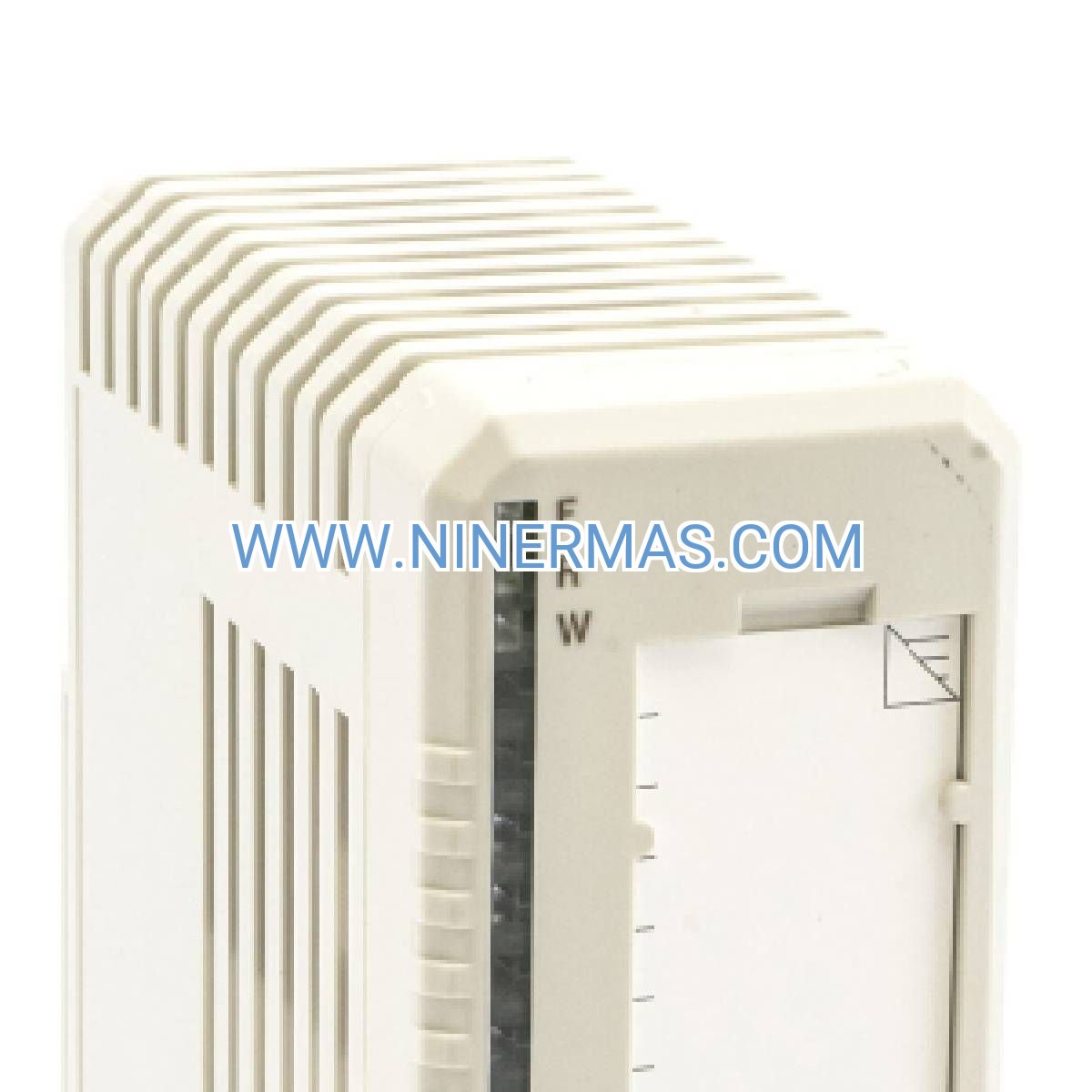

GJR2391500R1210 Universal Input Module – Industrial-Grade Multi-Signal Acquisition

The ABB 81EU01 Universal Input Module (GJR2391500R1210) represents a breakthrough in flexible signal acquisition technology for distributed control systems. Designed for seamless integration with ABB Advant OCS and System 800xA platforms, this intelligent I/O module consolidates multiple sensor types into a single, space-efficient solution. Whether you're monitoring temperature fluctuations in chemical reactors, tracking pressure variations in oil refineries, or capturing flow data in water treatment facilities, the 81EU01 delivers laboratory-grade precision in the harshest industrial environments.

Built for engineers who demand reliability without compromise, this module eliminates the complexity of managing separate input cards for different signal types. Its 16 independently configurable channels adapt to your exact requirements, reducing spare parts inventory while accelerating commissioning timelines. With SIL2 safety certification and proven performance across thousands of global installations, the GJR2391500R1210 transforms raw sensor data into actionable intelligence for critical process control.

From power generation turbines operating at extreme temperatures to pharmaceutical clean rooms requiring validated measurement chains, the 81EU01 serves as the trusted interface between your physical processes and digital control strategies. Experience the confidence that comes from ABB's decades of automation expertise, now available with expedited delivery and comprehensive technical support.

Core Features & Benefits

✓ Universal Signal Flexibility
Configure each of 16 channels independently for voltage (0-10V DC), current loops (4-20mA), resistance temperature detectors (Pt100/Pt1000), thermocouples (J/K/T/E types), or digital on/off signals. Eliminate the need for multiple specialized modules and simplify your I/O architecture with one versatile solution.

✓ Precision Measurement Performance
16-bit analog-to-digital conversion delivers ±0.1% accuracy across the full measurement range. Advanced filtering algorithms reject electrical noise while maintaining fast response times, ensuring your control loops receive clean, reliable data for optimal process stability.

✓ Hot-Swap Serviceability
Replace failed modules during live operation without halting production or disrupting adjacent I/O channels. Automatic configuration download from the controller enables technicians to restore functionality in under 60 seconds, dramatically reducing mean time to repair.

✓ Comprehensive Galvanic Isolation
Channel-to-channel isolation (500V AC) and channel-to-backplane isolation (1500V AC) protect sensitive electronics from ground loops, voltage spikes, and electromagnetic interference. Deploy confidently in electrically noisy environments like motor control centers and high-voltage switchyards.

✓ Intelligent Diagnostics
Built-in self-test routines continuously monitor sensor health, wiring integrity, and module performance. Color-coded LED indicators and detailed fault messages via the control system enable predictive maintenance and rapid troubleshooting without specialized test equipment.

✓ Compact High-Density Design
At just 20mm width, the 81EU01 maximizes I/O density in space-constrained control cabinets. Mount up to 12 modules per standard S800 rack, achieving 192 universal input points in less than one square foot of panel space.

Application Scenarios

Chemical & Petrochemical Processing
Monitor reactor temperatures via thermocouples, track distillation column pressures through 4-20mA transmitters, and verify valve positions with digital limit switches—all from a single module type. The 81EU01's wide operating temperature range (-40°C to +70°C) ensures reliable performance in both refrigerated and high-temperature process areas. Reduce commissioning time by 30% compared to traditional fixed-function I/O systems.

Power Generation & Utilities
Capture critical parameters from steam turbines, gas generators, and auxiliary systems with the precision required for efficiency optimization and emissions compliance. SIL2 certification supports integration into safety instrumented systems for overspeed protection and emergency shutdown sequences. Proven in combined-cycle plants, nuclear facilities, and renewable energy installations worldwide.

Water & Wastewater Treatment
Acquire pH levels, conductivity readings, tank levels, and flow rates across municipal treatment plants and industrial effluent systems. Galvanic isolation prevents measurement errors caused by ground potential differences in distributed pump stations. Withstands high-humidity environments and corrosive atmospheres typical of chlorination and aeration processes.

Manufacturing & Assembly Automation
Integrate quality control sensors, environmental monitors, and machine status signals into unified production data systems. The module's fast scan rates (20ms per channel) support real-time process adjustments in high-speed packaging lines, automotive paint booths, and semiconductor fabrication equipment. Simplify spare parts management across multi-site manufacturing operations.

Building Management Systems
Consolidate HVAC temperature sensors, chiller pressure transducers, and occupancy detectors into energy management platforms. The 81EU01's low power consumption and compact form factor make it ideal for retrofit projects in existing commercial buildings where panel space is limited.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 81EU01 when your application requires mixed signal types within a single control loop or process area. For dedicated high-channel-count applications (32+ points of a single signal type), consider specialized analog input modules like the AI810 or AI815. Ensure your ABB controller firmware supports universal I/O configuration—consult compatibility matrices for Advant OCS versions prior to 3.0 or 800xA releases before 5.1.

Extended Functions

Advanced Filtering & Linearization
Configurable digital filters (moving average, exponential, median) suppress process noise without introducing lag. Automatic thermocouple linearization and cold junction compensation eliminate manual calibration for temperature measurements. Custom scaling functions convert raw sensor values to engineering units directly within the module.

Redundancy & Fault Tolerance
Deploy in redundant controller configurations for high-availability applications. Automatic failover ensures continuous data acquisition even during controller switchovers. Supports both 1:1 and N+1 redundancy architectures per ABB High Integrity system guidelines.

Integration with Asset Management
Compatible with ABB Ability™ System 800xA Asset Optimization for predictive maintenance workflows. Module diagnostics feed into condition monitoring dashboards, enabling data-driven replacement strategies. Electronic nameplates store calibration certificates and maintenance history for regulatory compliance.

Cybersecurity Features
Firmware authentication prevents unauthorized code modifications. Secure configuration download via encrypted communication channels protects intellectual property in OEM machine applications. Complies with IEC 62443 industrial cybersecurity standards when deployed with certified network infrastructure.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules with factory programming available in 10-15 business days. Expedited delivery options for critical outage situations—contact our technical sales team for emergency support.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty programs available for mission-critical installations requiring 3-year or 5-year coverage.

Technical Support: Access to ABB-certified application engineers via phone, email, and remote diagnostics. Firmware updates and configuration tools available through ABB's online customer portal. On-site commissioning assistance and training programs offered through authorized system integrators.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration templates for Control Builder software, and compliance certificates (CE, UL, ATEX where applicable). CAD drawings and 3D models available for download to streamline panel design.

Frequently Asked Questions

What is the maximum cable length for analog sensor connections?
For 4-20mA current loops, cable runs up to 1000 meters are supported with standard twisted-pair instrumentation cable. Voltage inputs should be limited to 100 meters to maintain accuracy specifications. RTD and thermocouple circuits perform best with shielded cable under 300 meters—consult ABB application note AN-I/O-003 for detailed wiring guidelines.

Can I mix RTD and thermocouple inputs on the same module?
Yes, the 81EU01's universal architecture allows any combination of signal types across its 16 channels. For example, channels 1-8 could monitor Pt100 RTDs while channels 9-12 handle Type K thermocouples and channels 13-16 process 4-20mA transmitters. Configuration is performed via software without hardware jumpers or switches.

How does the module perform in high-vibration environments?
The 81EU01 is qualified for 2G vibration per IEC 60068-2-6, suitable for most industrial applications including motor-driven equipment and mobile machinery. For severe vibration (offshore platforms, mining equipment), consider additional shock mounting or consult ABB for ruggedized variants with conformal coating.

Is the module compatible with third-party DCS systems?
The 81EU01 is designed specifically for ABB Advant OCS and System 800xA architectures and requires ABB communication interfaces (CI868, TB810, etc.). It cannot be directly connected to non-ABB controllers. For multi-vendor integration, use ABB's OPC UA servers or Modbus TCP gateways to share data with third-party systems.

What calibration procedures are required after installation?
The module ships factory-calibrated with certificates traceable to national standards. No field calibration is required for typical applications. For applications requiring periodic verification (pharmaceutical GMP, nuclear QA), ABB recommends annual calibration checks using certified signal sources—detailed procedures are provided in the maintenance manual.

Does the module support HART communication for smart transmitters?
The standard 81EU01 does not include HART pass-through capability. For applications requiring HART device configuration and diagnostics, specify the AI825 analog input module which provides dedicated HART channels. Alternatively, use external HART multiplexers with the 81EU01's 4-20mA inputs.

Take the Next Step

Ready to simplify your I/O architecture with proven universal input technology? Our application specialists are standing by to discuss your specific requirements, provide compatibility verification for your existing ABB system, and prepare a detailed quotation. Contact us today to receive technical datasheets, configuration examples, and volume pricing for your next project.
