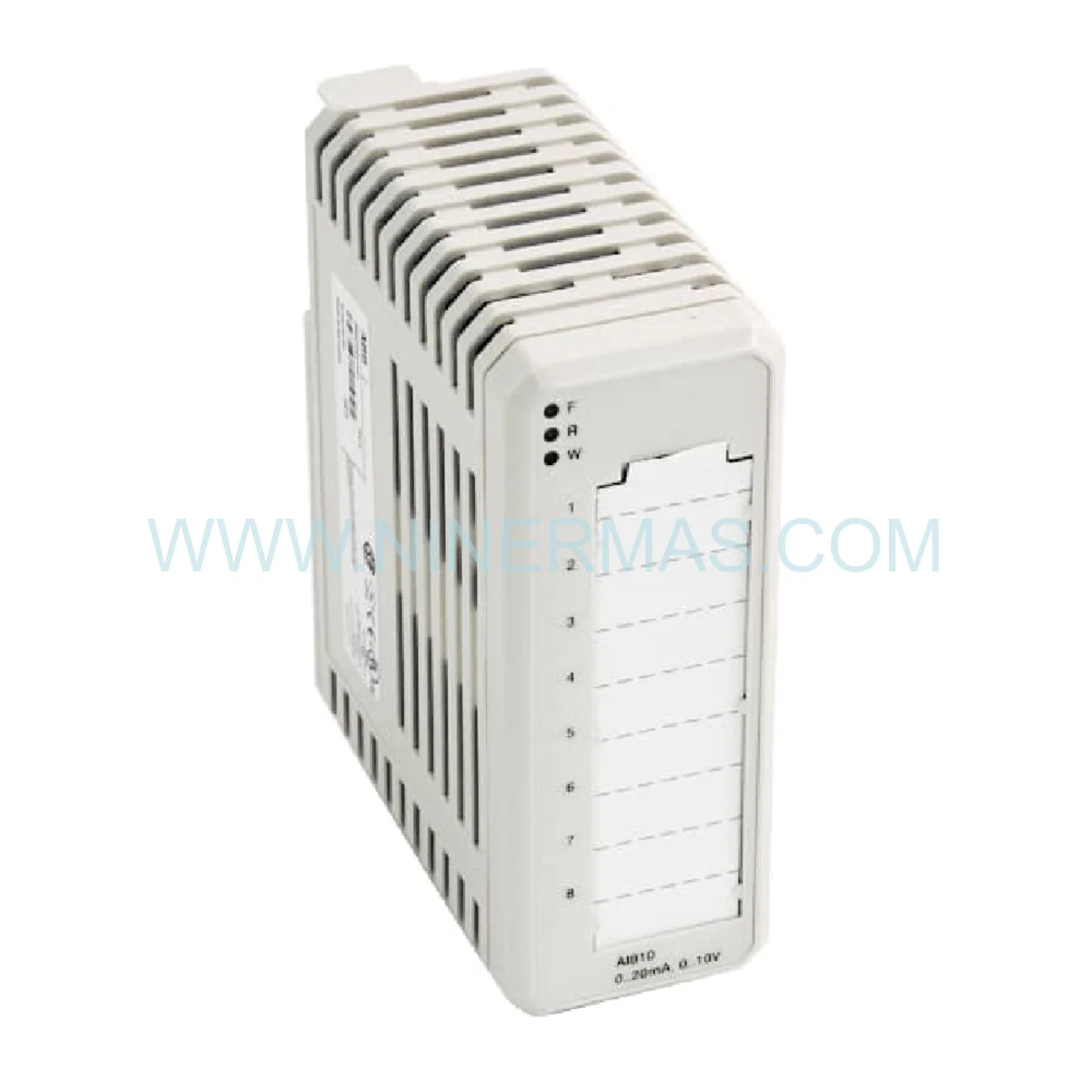

ABB AI810 Analog Input Module (Industrial-Grade Signal Acquisition)

The ABB AI810 (3BSE008516R1) represents a field-proven solution for precision analog signal measurement in mission-critical industrial environments. Engineered for the S800 I/O platform, this 8-channel module delivers 12-bit resolution across voltage and current inputs, serving as the foundational data acquisition layer for ABB 800xA distributed control systems.

Process engineers and automation specialists deploy the AI810 when reliable measurement of temperature transmitters, pressure sensors, flow meters, and level instruments is non-negotiable. Its hot-swappable architecture and channel-level diagnostics minimize unplanned downtime while maintaining continuous process visibility.

Whether you're modernizing legacy control systems or designing greenfield installations, the AI810 integrates seamlessly with AC 800M controllers and supports both electrical and fiber-optic ModuleBus topologies for distributed architectures up to 5 kilometers.

Key Features & Performance Advantages

→ Multi-Range Input Flexibility
Software-configurable channels accept 0-10V DC, 0-20mA, and 4-20mA signals without hardware modifications. Eliminate jumper settings and reduce spare parts inventory by 60% compared to fixed-range modules.

→ Hot-Swap Serviceability
Replace failed modules during live operation without halting production processes. The AI810's keyed connector design prevents incorrect insertion while maintaining bus communication to adjacent I/O points.

→ Enhanced Diagnostic Intelligence
Built-in wire-break detection, over-range alarms, and channel health monitoring provide early fault warnings. Reduce troubleshooting time by 40% through 800xA's integrated diagnostic displays.

→ Harsh Environment Durability
Operates reliably from -40°C to +70°C with conformal coating protection against humidity, dust, and chemical exposure. Certified for Zone 2 hazardous area installations (ATEX/IECEx).

→ Precision Measurement Performance
±0.1% full-scale accuracy with 20ms conversion time ensures responsive control loop performance. 12-bit resolution (4096 counts) delivers sufficient granularity for pharmaceutical batch processes and semiconductor manufacturing.

→ Scalable System Architecture
Combine up to 12 I/O modules per cluster with mixed analog, digital, and specialty functions. Expand capacity using TB840A fiber-optic cluster modems for remote installations.

Industrial Application Scenarios

Chemical Processing Plants
Monitor reactor temperatures, distillation column pressures, and feed flow rates with the precision required for batch recipe compliance. The AI810's 4-20mA current loop capability supports transmitter installations up to 1000 meters from the control room, ideal for sprawling petrochemical facilities.

Power Generation Facilities
Acquire turbine vibration signals, bearing RTD temperatures, and generator voltage feedback for protection relay coordination. Pair with AC 800M controllers to implement advanced load-shedding and black-start sequences in combined-cycle plants.

Water & Wastewater Treatment
Capture pH, conductivity, dissolved oxygen, and turbidity measurements for regulatory compliance reporting. The module's channel isolation prevents ground loop interference common in multi-basin treatment facilities with distributed sensor networks.

Food & Beverage Manufacturing
Track pasteurization temperatures, CIP solution concentrations, and fermentation vessel pressures to maintain HACCP validation. Hot-swap capability enables preventive maintenance during scheduled sanitation cycles without production loss.

Pharmaceutical Production
Document critical process parameters for FDA 21 CFR Part 11 compliance through 800xA's audit trail integration. The AI810's calibration stability reduces validation frequency and associated downtime costs.

Technical Specifications & Selection Guide

Selection Criteria: Choose the AI810 for general-purpose process measurements requiring 12-bit resolution. For applications demanding higher accuracy (±0.05%), consider the AI880A 16-bit module. When HART digital communication is required, specify the AI845A variant with integrated HART multiplexing.

Advanced Integration Capabilities

Redundant Controller Support: The AI810 operates seamlessly in redundant AC 800M configurations, automatically switching I/O ownership during controller failover events without signal interruption or data loss.

Asset Management Integration: Connect to ABB Ability™ System 800xA Asset Optimization for predictive maintenance analytics. The module reports diagnostic counters including conversion errors, calibration drift trends, and cumulative operating hours.

Third-Party Protocol Gateways: Interface with Modbus RTU, PROFIBUS DP, and DeviceNet networks using CI801/CI810 communication modules, enabling hybrid control system architectures during phased migration projects.

Cybersecurity Compliance: When deployed with TC810 Ethernet adapters, the AI810 supports IEC 62443 security policies including role-based access control and encrypted configuration downloads.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock modules with factory-sealed packaging and full traceability documentation.

Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific channel scaling, alarm setpoints, and descriptor tags loaded via Control Builder M.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended service agreements available for critical spares programs.

Technical Support: Unlimited phone and email assistance for configuration troubleshooting, wiring diagrams, and system integration guidance. Remote diagnostic support via 800xA connectivity tools.

Documentation Package: Includes installation manual, dimensional drawings, terminal block wiring diagrams, and Control Builder M library files (GSD/EDS formats).

Frequently Asked Questions

What termination unit is required for the AI810 analog input module?
The AI810 requires the TU830V1 termination unit, which provides 16 screw-terminal positions for field wiring. Each termination unit supports one AI810 module and includes removable terminal blocks for simplified maintenance.

Can I mix voltage and current signals on the same AI810 module?
Yes, each of the 8 channels is independently configurable through 800xA Control Builder M software. You can assign channels 1-4 for 4-20mA transmitters and channels 5-8 for 0-10V signals within the same module.

How does the AI810 compare to legacy Advant OCS analog input cards?
The AI810 offers backward compatibility with Advant Controller 450 systems while providing enhanced diagnostics, faster conversion rates, and simplified configuration compared to DSAI 110/130 modules. Migration requires TU830V1 termination units and updated Control Builder software.

What is the maximum distance for 4-20mA current loop signals?
Current loop signals can reliably transmit up to 1000 meters using 18 AWG shielded twisted-pair cable with <100pF/m capacitance. For voltage signals, limit cable runs to 100 meters to minimize noise pickup and signal degradation.

Does the AI810 support redundant power supply configurations?
Yes, when used with dual SD822 power supply modules on the S800 I/O cluster, the AI810 automatically draws power from the active supply and switches to the backup during primary supply failures without module reset.

How do I calibrate the AI810 analog input channels?
The AI810 ships factory-calibrated with certificates traceable to national standards. Field calibration is performed through 800xA Control Builder M using precision voltage/current sources. Recommended calibration interval is 24 months for non-critical applications, 12 months for regulated industries.

Get Started with Your Process Control Upgrade

Ready to enhance measurement accuracy and system reliability? Our application engineers are available to review your I/O requirements, recommend optimal module configurations, and provide detailed quotations including all necessary termination units, power supplies, and communication adapters.

Contact our team today for technical datasheets, AutoCAD panel layout drawings, and Control Builder M configuration examples tailored to your industry.
