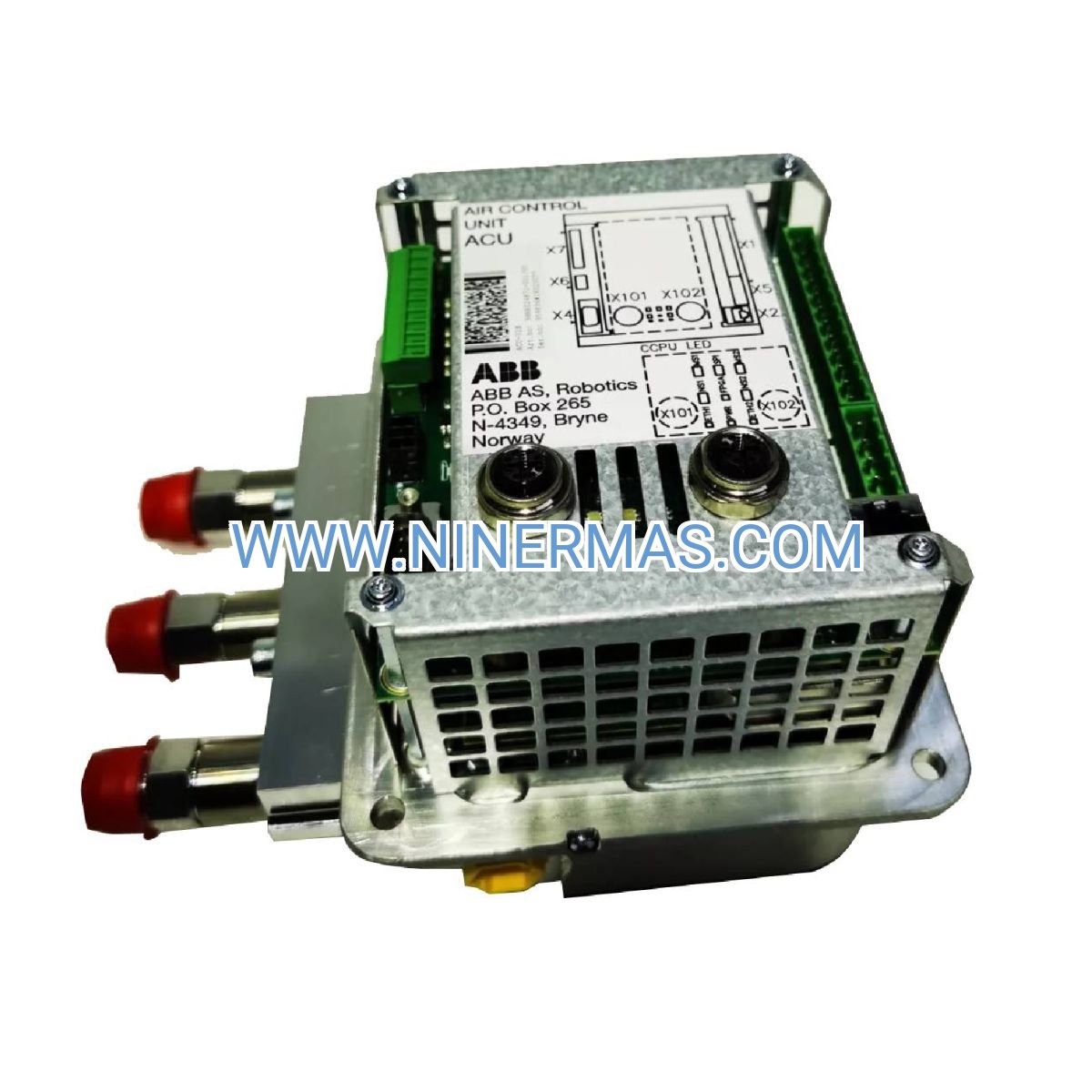

ABB ACU-01B Controller (Industrial-Grade Paint Robotics Platform)

The ABB ACU-01B (3HNA024871-001) represents a next-generation control architecture for automated paint finishing systems, engineered to deliver microsecond-level precision in high-throughput coating operations. Manufactured in Norway to exacting quality standards, this controller serves as the central intelligence hub for ABB paint robot installations across automotive assembly lines, aerospace component finishing facilities, and industrial equipment coating operations.

Designed for seamless integration with ABB's paint robot ecosystem, the ACU-01B addresses critical challenges in modern finishing operations: maintaining consistent coating thickness across complex geometries, minimizing material waste through optimized spray patterns, and ensuring reliable performance in harsh paint booth environments with temperature extremes and airborne contaminants.

This controller delivers measurable operational advantages through its configurable CAN bus communication architecture, backward compatibility with legacy systems (direct replacement for 3HNA013719-001), and industrial-hardened construction that withstands continuous duty cycles in demanding production environments. Ideal for manufacturers seeking to upgrade aging paint robot infrastructure or deploy new automated coating cells with proven, field-tested technology.

Core Features & Business Value

→ High-Speed CAN Bus Communication Protocol
Configurable CAN interface enables real-time data exchange at up to 1 Mbps between robot controllers, spray equipment, and color change systems. Reduces communication latency by 40% compared to legacy serial protocols, supporting faster cycle times and improved throughput in multi-robot paint cells.

✓ Drop-In Replacement Architecture
Engineered as a direct successor to the 3HNA013719-001 model with identical mounting footprint and connector pinouts. Eliminates costly system redesign during upgrades—typical retrofit installations complete in under 4 hours with minimal production downtime.

✓ Paint Booth Environmental Hardening
Sealed enclosure with IP54 protection rating withstands exposure to solvent vapors, humidity fluctuations (10-90% RH), and operating temperatures from 0°C to 50°C. Extended MTBF of 80,000+ hours reduces unplanned maintenance interventions and associated production losses.

→ Compact Form Factor for Space-Constrained Installations
Measuring just 210×160×140mm and weighing 3.66kg, the ACU-01B fits standard ABB robot control cabinets without requiring panel modifications. Frees up valuable cabinet space for additional I/O modules or safety relays in complex automation architectures.

✓ Comprehensive Diagnostic Capabilities
Integrated status LEDs and diagnostic ports provide real-time visibility into controller health, communication status, and fault conditions. Reduces troubleshooting time by 60% through immediate identification of configuration errors or network issues.

→ Global Supply Chain Availability
Stocked at ABB distribution centers in Menden (Germany) and Shanghai (China) with expedited shipping to EMEA and APAC regions. Typical lead times of 3-5 business days ensure rapid replacement during emergency breakdowns or planned capacity expansions.

Application Scenarios & Industry Solutions

Automotive Body-in-White Coating Lines
Orchestrates multi-robot paint cells applying primer, basecoat, and clearcoat layers to vehicle bodies. Synchronizes spray gun activation with robot motion paths to achieve ±5-micron coating thickness uniformity across Class-A surfaces. Integrates with electrostatic spray systems and automatic color change equipment for rapid model changeovers.

Aerospace Component Protective Finishing
Manages complex coating sequences for aircraft structural components requiring MIL-SPEC compliant protective finishes. Supports multi-layer application protocols with precise inter-coat timing and environmental monitoring. Maintains full traceability logs for AS9100 quality system compliance.

Heavy Equipment & Agricultural Machinery Painting
Controls robotic spray operations for large-format components including excavator booms, tractor frames, and construction equipment chassis. Optimizes material transfer efficiency to reduce paint consumption by 15-25% compared to manual spray operations while eliminating operator exposure to isocyanates and VOCs.

Wood Products & Furniture Manufacturing
Enables automated stain and lacquer application for cabinet doors, furniture panels, and architectural millwork. Delivers consistent finish quality across production runs while reducing finishing booth labor requirements by up to 70%. Supports water-based and solvent-based coating chemistries.

Technical Parameters & Selection Guide

Selection Criteria: Choose the ACU-01B when upgrading legacy ABB paint robot systems (S4C/S4C+ controllers) or deploying new IRC5-based paint robot installations. Verify CAN bus compatibility with existing peripheral devices—consult ABB technical documentation for mode configuration requirements. For applications requiring DeviceNet or PROFIBUS connectivity, consider alternative controller models or protocol converter modules.

Extended Capabilities & Integration Options

RobotStudio Programming Environment Integration
Fully compatible with ABB's RobotStudio offline programming platform for motion path simulation, I/O configuration, and communication parameter setup. Supports virtual commissioning workflows that reduce on-site startup time by 30-50%.

Multi-Robot Cell Coordination
Supports networked configurations for paint cells with up to 8 synchronized robots. Enables coordinated motion sequences for large-format components requiring simultaneous coating from multiple spray positions.

Third-Party Equipment Interfacing
Provides standardized I/O mapping for integration with Dürr, Eisenmann, and Fanuc paint kitchen equipment including color changers, pump systems, and booth environmental controls. Reduces integration engineering effort through pre-configured device profiles.

Predictive Maintenance Monitoring
When paired with ABB Ability™ Connected Services, enables cloud-based monitoring of controller performance metrics, communication error rates, and thermal conditions. Supports condition-based maintenance strategies that reduce spare parts inventory costs.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units shipped from regional distribution centers (Menden, DE or Shanghai, CN). Express shipping available for critical breakdown situations.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for high-utilization installations.

Technical Support: Access to ABB-certified robotics engineers for pre-sales application consultation, installation guidance, and post-deployment troubleshooting. Support available via phone, email, and remote diagnostic tools.

Documentation Package: Each unit ships with installation manual, communication protocol specifications, wiring diagrams, and RobotStudio configuration files. Compliance certificates (CE, UL) provided upon request.

Frequently Asked Questions

Q: What communication protocols does the ACU-01B paint robot controller support?
A: The controller features a configurable CAN 2.0B interface operating at baud rates from 125 kbps to 1 Mbps. Units may ship in a default configuration requiring mode adjustment—refer to ABB technical note 3HAC-TN-024871 for switching procedures. For applications requiring PROFIBUS DP or DeviceNet connectivity, external gateway modules are required.

Q: Can this controller replace the older 3HNA013719-001 model in existing paint robot installations?
A: Yes, the ACU-01B is engineered as a form-fit-function replacement for the legacy 3HNA013719-001 controller. Mounting holes, connector locations, and electrical interfaces are identical. Typical retrofit procedures involve power-down, physical swap, and communication parameter verification—most installations complete in 2-4 hours with minimal robot reprogramming.

Q: What are the power consumption specifications for paint booth installations?
A: The ACU-01B operates on 24VDC ±10% supply voltage with typical current draw of 2.8A during normal operation and peak inrush of 4.5A during initialization. Total power dissipation is approximately 67W, requiring adequate cabinet ventilation to maintain ambient temperatures below 45°C for optimal reliability.

Q: Does this controller work with non-ABB paint robot brands?
A: The ACU-01B is specifically designed for ABB paint robot systems (IRB 52/IRB 580 series) and requires ABB IRC5 controller architecture. Integration with Fanuc, KUKA, or Yaskawa paint robots is not supported due to proprietary communication protocols and motion control algorithms. For multi-vendor robot cells, consider PLC-based coordination systems.

Q: What environmental certifications does the ACU-01B controller maintain?
A: The controller meets CE marking requirements for EMC (EN 61000-6-2/EN 61000-6-4) and Low Voltage Directive compliance. UL/cUL recognition available for North American installations. RoHS compliant for hazardous substance restrictions. IP54 enclosure rating provides protection against dust ingress and water splashing typical in paint booth environments.

Q: How do I configure the CAN bus communication mode for my specific paint system?
A: Configuration requires ABB RobotStudio software with appropriate system builder licenses. Access the controller's communication parameters through the I/O configuration menu, select CAN interface settings, and adjust baud rate, node ID, and message filtering according to your peripheral device specifications. ABB provides application-specific configuration templates for common paint kitchen equipment manufacturers.
